RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 430 Coupe

View All

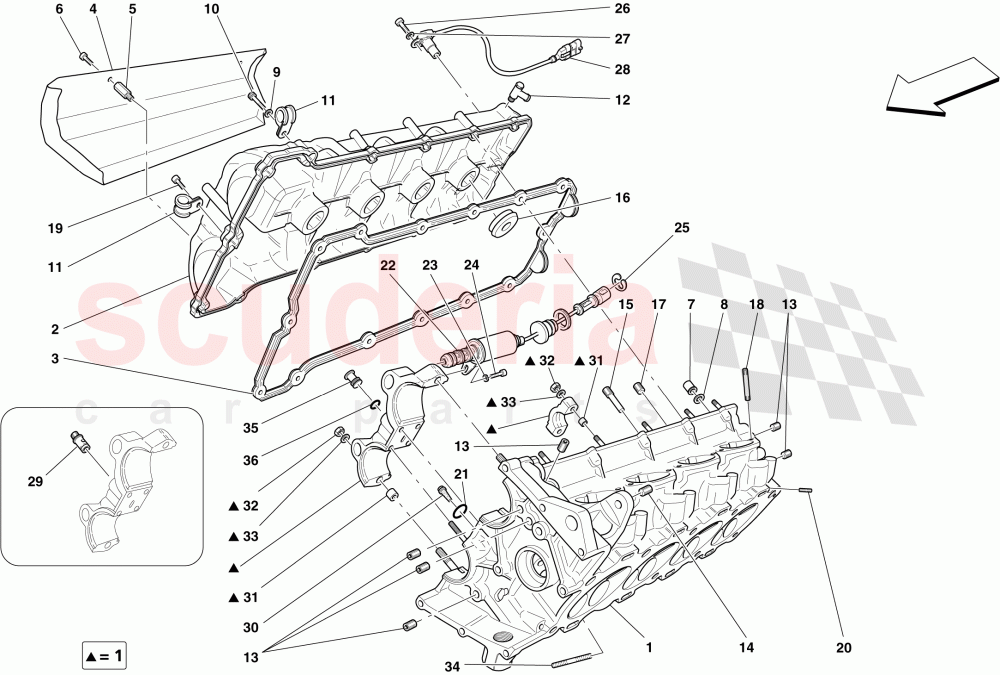

Ferrari 430 Coupe - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	209277	RH HEAD COMPLETE WITH GUIDES	Enquire	To Order
	206796	RH HEAD COMPLETE WITH GUIDES	Enquire	To Order
	219172	RH HEAD COMPLETE WITH GUIDES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224062	RH CYLINDER HEAD COVER	Enquire	To Order
	224062	RH CYLINDER HEAD COVER	Enquire	To Order
	221342	RH CYLINDER HEAD COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	198927	RH Head Cover Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	229163	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212466	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156834	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124342	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140135	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187706	Spark Plug Sleeve Gasket	Enquire	ARRIVING SOON
	187706	Spark Plug Sleeve Gasket	Enquire	ARRIVING SOON
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541334	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250646	Variable Valve Timing Adjuster Solenoid Valve	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087376	3-POINT CIRCLIP D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219864	RH INTAKE TIMING SENSOR	Enquire	To Order
	219865	RH Exhaust Camshaft Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184681	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220239	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220245	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	209277	RH HEAD COMPLETE WITH GUIDES	209277 RH HEAD COMPLETE WITH GUIDES Applicable up to engine No. 91153	-	1	Enquire
1	206796	RH HEAD COMPLETE WITH GUIDES	206796 RH HEAD COMPLETE WITH GUIDES Applicable from engine No. 91154 up to engine No. 97780	-	1	Enquire
1	219172	RH HEAD COMPLETE WITH GUIDES	219172 RH HEAD COMPLETE WITH GUIDES Applicable up to MY 06; Applicable from engine No. 97781 up to engine No. 99607	-	1	Enquire
2	224062	RH CYLINDER HEAD COVER	224062 RH CYLINDER HEAD COVER Applicable for USA, CDN; Applicable up to Ass. No. 67970	-	1	Enquire
2	224062	RH CYLINDER HEAD COVER	224062 RH CYLINDER HEAD COVER Not for USA, CDN; Applicable up to Ass. No. 69638	-	1	Enquire
2	221342	RH CYLINDER HEAD COVER	221342 RH CYLINDER HEAD COVER Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971	-	1	Enquire
2	221342	RH CYLINDER HEAD COVER	221342 RH CYLINDER HEAD COVER Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639	-	1	Enquire
3	198927	RH Head Cover Gasket ARRIVING SOON	198927 RH Head Cover Gasket ARRIVING SOON	-	1	Enquire
4	229163	HEAT SHIELD	229163 HEAT SHIELD	-	1	Enquire
5	212466	STUD BOLT	212466 STUD BOLT	-	1	Enquire
6	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
7	321187	NUT	321187 NUT	-	10	Enquire
8	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	10	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
10	156834	Screw	156834 Screw	-	14	Enquire
11	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
11	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	1	Enquire
12	124342	THREADED CONNECTOR	124342 THREADED CONNECTOR	-	1	Enquire
13	282755	THREADED PLUG	282755 THREADED PLUG	-	6	Enquire
14	140135	THREADED INSERT	140135 THREADED INSERT	-	1	Enquire
16	187706	Spark Plug Sleeve Gasket ARRIVING SOON	187706 Spark Plug Sleeve Gasket Applicable for USA, CDN; Applicable up to Ass. No. 67970 ARRIVING SOON	-	4	Enquire
16	187706	Spark Plug Sleeve Gasket ARRIVING SOON	187706 Spark Plug Sleeve Gasket Not for USA, CDN; Applicable up to Ass. No. 69638 ARRIVING SOON	-	4	Enquire
16	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 67971	-	4	Enquire
16	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639	-	4	Enquire
17	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
18	13541334	STUD BOLT	13541334 STUD BOLT	-	8	Enquire
19	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
20	199760	THREADED PLUG	199760 THREADED PLUG	-	4	Enquire
21	134233	O-RING	134233 O-RING	-	1	Enquire
22	250646	Variable Valve Timing Adjuster Solenoid Valve ARRIVING SOON	250646 Variable Valve Timing Adjuster Solenoid Valve ARRIVING SOON	-	2	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 No longer supplied	-	1	Enquire
24	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
25	11087376	3-POINT CIRCLIP D.12	11087376 3-POINT CIRCLIP D.12	-	1	Enquire
26	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
28	219864	RH INTAKE TIMING SENSOR	219864 RH INTAKE TIMING SENSOR	-	1	Enquire
28	219865	RH Exhaust Camshaft Sensor	219865 RH Exhaust Camshaft Sensor	-	1	Enquire
29	184681	OIL PRESSURE REGULATOR VALVE	184681 OIL PRESSURE REGULATOR VALVE	-	1	Enquire
31	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	22	Enquire
32	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	22	Enquire
33	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	22	Enquire
34	211641	STUD BOLT	211641 STUD BOLT	-	8	Enquire
35	220239	CAP	220239 CAP No longer supplied	-	1	Enquire
36	220245	GASKET	220245 GASKET No longer supplied	-	1	Enquire
