POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 430 Coupe

View All

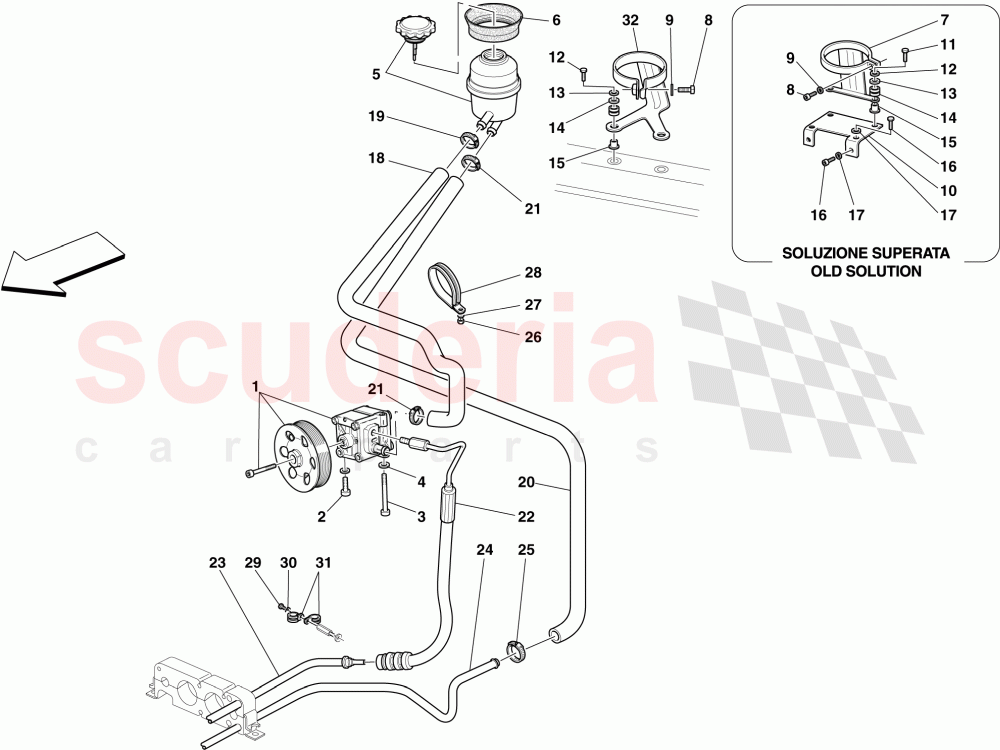

Ferrari 430 Coupe - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198680	HYDRAULIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198519	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180604	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170877	POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179301	RUBBER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184137	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195428	INFERIOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196892	PIPE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177996	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211916	DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214668	DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211536	JUNCTION TO LH STEERING BOX DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202552	UNDERBODY RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124034	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14488624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229765	TANK FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	198680	HYDRAULIC PUMP	198680 HYDRAULIC PUMP	-	1	Enquire
2	198519	SCREW	198519 SCREW	-	1	Enquire
3	180604	SCREW	180604 SCREW	-	1	Enquire
4	11193874	WASHER	11193874 WASHER	-	2	Enquire
5	170877	POWER STEERING FLUID RESERVOIR	170877 POWER STEERING FLUID RESERVOIR	-	1	Enquire
6	179301	RUBBER RING	179301 RUBBER RING	-	1	Enquire
7	184137	UPPER BRACKET	184137 UPPER BRACKET Replaced by 229765 ref. 32; No longer supplied	-	1	Enquire
8	81591700	SCREW	81591700 SCREW L. 14 mm	-	1	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
10	195428	INFERIOR BRACKET	195428 INFERIOR BRACKET Replaced by 229765 ref. 32; No longer supplied	-	1	Enquire
11	10902524	SCREW	10902524 SCREW	-	2	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
13	12643724	WASHER	12643724 WASHER	-	2	Enquire
14	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
15	149707	SPACER	149707 SPACER	-	2	Enquire
16	10902424	SCREW	10902424 SCREW M6 X 18	-	4	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
18	196892	PIPE FROM TANK TO PUMP	196892 PIPE FROM TANK TO PUMP	-	1	Enquire
19	177996	CLAMP	177996 CLAMP	-	1	Enquire
20	211916	DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION	211916 DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION	-	1	Enquire
21	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
22	214668	DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE	214668 DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE	-	1	Enquire
23	211536	JUNCTION TO LH STEERING BOX DELIVERY PIPE	211536 JUNCTION TO LH STEERING BOX DELIVERY PIPE	-	1	Enquire
24	202552	UNDERBODY RETURN PIPE	202552 UNDERBODY RETURN PIPE	-	1	Enquire
25	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
27	12643724	WASHER	12643724 WASHER	-	1	Enquire
28	124034	BRACKET WITH SHEATH	124034 BRACKET WITH SHEATH	-	1	Enquire
29	81591700	SCREW	81591700 SCREW L. 14 mm	-	1	Enquire
30	14488624	WASHER	14488624 WASHER	-	1	Enquire
31	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	2	Enquire
32	229765	TANK FASTENER BRACKET	229765 TANK FASTENER BRACKET Replaces 184137 ref. 7 and 195428 ref. 10	-	1	Enquire
