Name: FUEL SYSTEM PUMPS AND PIPES
Rating: 4.4 (1 reviews)

View All

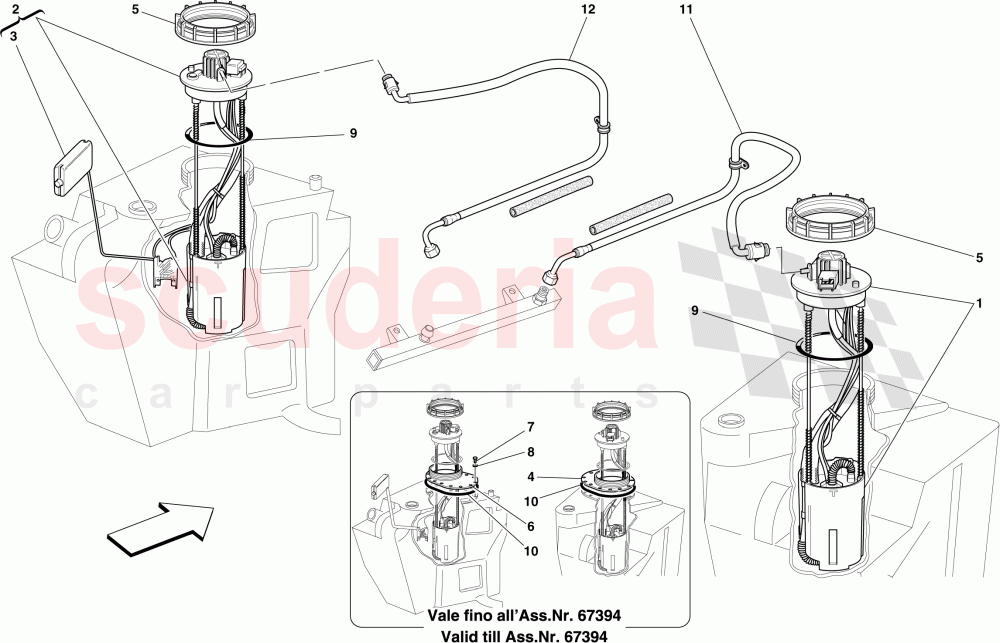

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239820	RH Fuel Pump	$599.97	To Order

Photo	Part No	Description	Price (each)	Stock
	239821	LH Fuel Pump and Fuel Level Indicator	$683.98	To Order

Photo	Part No	Description	Price (each)	Stock
	196124	FUEL SENSOR	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	196100	RH PUMP MOUNT COVER	$125.14	To Order

Photo	Part No	Description	Price (each)	Stock
	181682	FUEL PUMP RETAINER RING NUT	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	196101	LH PUMP MOUNT COVER	$124.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181681	Fuel Pump Gasket	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock

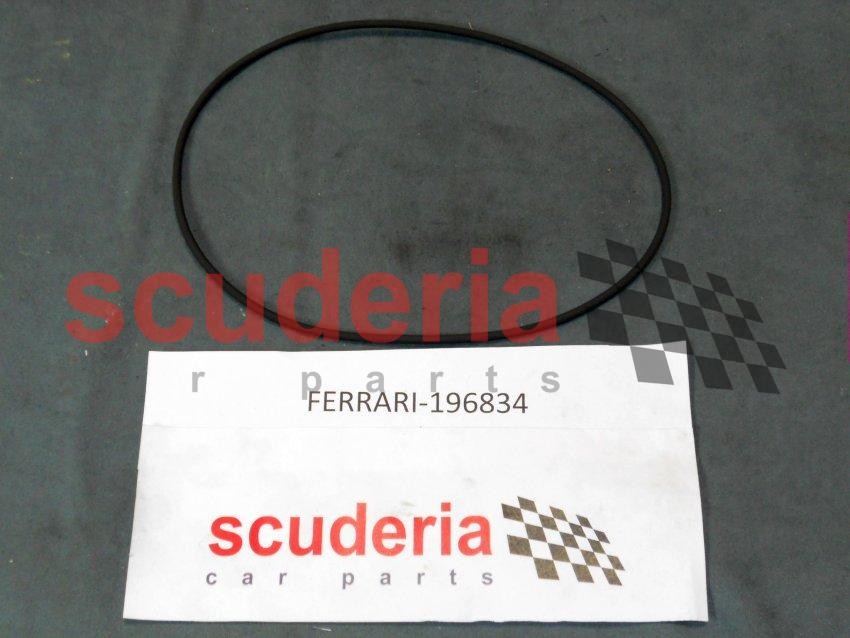

	196834	O-RING	$16.00	To Order

Photo	Part No	Description	Price (each)	Stock
	208831	RH CONNECTION PIPE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	208829	LH CONNECTOR PIPE	$288.81	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	239820	RH Fuel Pump	239820 RH Fuel Pump	$599.97 MSRP: ~~633.58~~ (5.3% off)	1
2	239821	LH Fuel Pump and Fuel Level Indicator	239821 LH Fuel Pump and Fuel Level Indicator	$683.98 MSRP: ~~723.86~~ (5.5% off)	1
3	196124	FUEL SENSOR	196124 FUEL SENSOR	$224.63 MSRP: ~~284.55~~ (21.1% off)	1
4	196100	RH PUMP MOUNT COVER	196100 RH PUMP MOUNT COVER Applicable up to Ass. No. 67394	$125.14	1
5	181682	FUEL PUMP RETAINER RING NUT	181682 FUEL PUMP RETAINER RING NUT	$27.26 MSRP: ~~35.00~~ (22.1% off)	2
6	196101	LH PUMP MOUNT COVER	196101 LH PUMP MOUNT COVER Applicable up to Ass. No. 67394	$124.51	1
7	10977624	SCREW	10977624 SCREW Applicable up to Ass. No. 67394	$0.06	26
8	12604178	Washer	12604178 Washer Applicable up to Ass. No. 67394	-	26	Enquire
9	181681	Fuel Pump Gasket	181681 Fuel Pump Gasket	$22.45 MSRP: ~~24.78~~ (9.4% off)	2
10	196834	O-RING	196834 O-RING Applicable up to Ass. No. 67394	$16.00	2
11	208831	RH CONNECTION PIPE	208831 RH CONNECTION PIPE	$288.81	1
12	208829	LH CONNECTOR PIPE	208829 LH CONNECTOR PIPE	$288.81	1
