Ferrari 430 Coupe - CRANKCASE

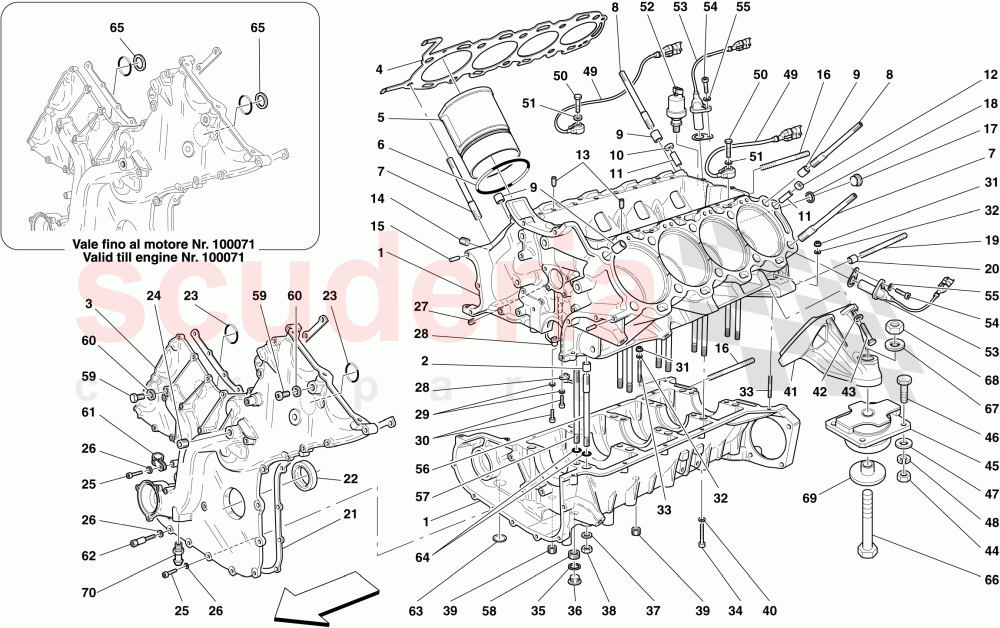

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	236095	COMPLETE CRANKCASE	Enquire	To Order
	202077	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229253	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55012822	LH Cylinder Head Gasket	Enquire	To Order
	184966	RH Cylinder Head Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190770	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217967	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201850	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201849	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177727	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order
	193885	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245464323979	FRONT COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14324940	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303924	SCREW	Enquire	To Order
	156828	SCREW	Enquire	To Order
	231624	SCREW	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175657	PISTON COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252274	SCREW WITH WASHER	Enquire	To Order
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207220	RH ENGINE MOUNTING STRUT	Enquire	To Order
	207221	LH ENGINE MOUNTING STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	Enquire	To Order
	15970734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219870	LH KNOCK SENSOR	Enquire	To Order
	219869	RH KNOCK SENSOR	Enquire	To Order
	187740	KNOCK SENSOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219873	LH Cylinder Bank Speed Sensor	Enquire	To Order
	219872	RH CYLINDER BANK RPM SENSOR	Enquire	To Order
	182194	RPM Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217794	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187718	BLEED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206672	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	191620	WATER OUTPUT REDUCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11369634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182141	RETAINER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213389	CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	236095	COMPLETE CRANKCASE	236095 COMPLETE CRANKCASE Replaces 233052; Applicable with shims 222874, Table 2 pos.4 and 5; Applicable from Ass. No. 72742	-	1	Enquire
1	202077	COMPLETE CRANKCASE	202077 COMPLETE CRANKCASE Applicable up to engine No. 89098	-	1	Enquire
2	176421	CENTERING DOWEL	176421 CENTERING DOWEL	-	10	Enquire
3	229253	FRONT COVER	229253 FRONT COVER See detail in TI 1544; Applicable from engine No. 117479	-	1	Enquire
4	55012822	LH Cylinder Head Gasket	55012822 LH Cylinder Head Gasket	-	1	Enquire
4	184966	RH Cylinder Head Gasket	184966 RH Cylinder Head Gasket	-	1	Enquire
5	190770	CYLINDER SLEEVE	190770 CYLINDER SLEEVE	-	8	Enquire
6	186251	O-RING	186251 O-RING	-	24	Enquire
7	217967	STUD BOLT	217967 STUD BOLT	-	10	Enquire
8	802590	STUD BOLT	802590 STUD BOLT	-	10	Enquire
9	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
10	201850	DOWEL	201850 DOWEL	-	1	Enquire
11	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
12	201849	DOWEL	201849 DOWEL	-	1	Enquire
13	177727	CENTRING DOWEL	177727 CENTRING DOWEL	-	2	Enquire
14	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
15	175611	CENTERING DOWEL	175611 CENTERING DOWEL	-	2	Enquire
16	13546834	STUD BOLT	13546834 STUD BOLT	-	4	Enquire
17	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
17	193885	THREADED PLUG	193885 THREADED PLUG Applicable until depletion	-	1	Enquire
18	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
19	13546934	STUD BOLT	13546934 STUD BOLT	-	3	Enquire
20	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
21	245464323979	FRONT COVER GASKET	245464323979 FRONT COVER GASKET Applicable until depletion	-	1	Enquire
22	188717	Front Crankshaft Seal	188717 Front Crankshaft Seal	-	1	Enquire
23	183010	O-RING	183010 O-RING	-	2	Enquire
24	14324940	THREADED PLUG	14324940 THREADED PLUG	-	1	Enquire
25	14303924	SCREW	14303924 SCREW M6 X 70	-	3	Enquire
25	156828	SCREW	156828 SCREW M6 X 50	-	3	Enquire
25	231624	SCREW	231624 SCREW M6 X 45	-	2	Enquire
25	231622	SCREW	231622 SCREW M6 X 35	-	1	Enquire
25	231620	SCREW	231620 SCREW M6 X 30	-	3	Enquire
25	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	1	Enquire
25	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	15	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	28	Enquire
27	13525770	THREADED INSERT	13525770 THREADED INSERT	-	5	Enquire
28	175657	PISTON COOLING NOZZLE	175657 PISTON COOLING NOZZLE	-	8	Enquire
29	11181474	WASHER	11181474 WASHER No longer supplied	-	8	Enquire
30	252274	SCREW WITH WASHER	252274 SCREW WITH WASHER	-	8	Enquire
30	14302921	SCREW	14302921 SCREW No longer supplied; Replaced by 252274	-	8	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
32	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
33	13541624	STUD BOLT	13541624 STUD BOLT	-	2	Enquire
34	14305324	SCREW	14305324 SCREW	-	1	Enquire
34	231620	SCREW	231620 SCREW	-	10	Enquire
35	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	-	1	Enquire
36	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	1	Enquire
37	178348	WASHER	178348 WASHER	-	20	Enquire
38	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	20	Enquire
39	282756	THREADED PLUG	282756 THREADED PLUG	-	4	Enquire
40	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 No longer supplied	-	11	Enquire
41	207220	RH ENGINE MOUNTING STRUT	207220 RH ENGINE MOUNTING STRUT	-	1	Enquire
41	207221	LH ENGINE MOUNTING STRUT	207221 LH ENGINE MOUNTING STRUT	-	1	Enquire
42	11190574	WASHER	11190574 WASHER	-	8	Enquire
43	11306934	SCREW	11306934 SCREW Applicable from Ass. No. 60389	-	8	Enquire
43	15970734	SCREW	15970734 SCREW Applicable up to Ass. No. 60388	-	8	Enquire
44	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
46	15970634	SCREW	15970634 SCREW	-	8	Enquire
47	12647021	WASHER	12647021 WASHER	-	8	Enquire
48	127497	WASHER	127497 WASHER	-	8	Enquire
49	219870	LH KNOCK SENSOR	219870 LH KNOCK SENSOR Timing side	-	1	Enquire
49	219869	RH KNOCK SENSOR	219869 RH KNOCK SENSOR Timing side	-	1	Enquire
49	187740	KNOCK SENSOR	187740 KNOCK SENSOR Timing side; Replaced by 219872 and 219873; No longer supplied	-	2	Enquire
49	219871	LH KNOCK SENSOR	219871 LH KNOCK SENSOR Flywheel side	-	1	Enquire
49	219868	RH KNOCK SENSOR	219868 RH KNOCK SENSOR Flywheel side	-	1	Enquire
49	187739	KNOCK SENSOR	187739 KNOCK SENSOR Flywheel side; Replaced by 219872 and 219873; No longer supplied	-	2	Enquire
50	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	4	Enquire
51	986899	WASHER	986899 WASHER	-	4	Enquire
53	219873	LH Cylinder Bank Speed Sensor	219873 LH Cylinder Bank Speed Sensor	-	1	Enquire
53	219872	RH CYLINDER BANK RPM SENSOR	219872 RH CYLINDER BANK RPM SENSOR	-	1	Enquire
53	182194	RPM Sensor	182194 RPM Sensor Replaced by 219872 and 219873; No longer supplied	-	2	Enquire
54	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
55	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
56	217794	STUD BOLT	217794 STUD BOLT	-	10	Enquire
57	217796	STUD BOLT	217796 STUD BOLT	-	10	Enquire
58	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
59	187718	BLEED PLUG	187718 BLEED PLUG	-	2	Enquire
60	127497	WASHER	127497 WASHER	-	2	Enquire
61	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	1	Enquire
62	206672	STUD BOLT	206672 STUD BOLT	-	2	Enquire
63	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
64	134704	O-RING ARRIVING SOON	134704 O-RING ARRIVING SOON	-	20	Enquire
65	191620	WATER OUTPUT REDUCER	191620 WATER OUTPUT REDUCER Applicable up to engine No. 100071	-	2	Enquire
66	11369634	SCREW	11369634 SCREW	-	2	Enquire
67	12601774	WASHER	12601774 WASHER	-	2	Enquire
68	176573	NUT	176573 NUT	-	2	Enquire
69	182141	RETAINER WASHER	182141 RETAINER WASHER	-	2	Enquire
70	213389	CONNECTOR	213389 CONNECTOR	-	1	Enquire
