Find Your Part

RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR -Optional- -Sabelt- of Ferrari Ferrari 430 Coupe

View All

Ferrari 430 Coupe - RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR -Optional- -Sabelt-

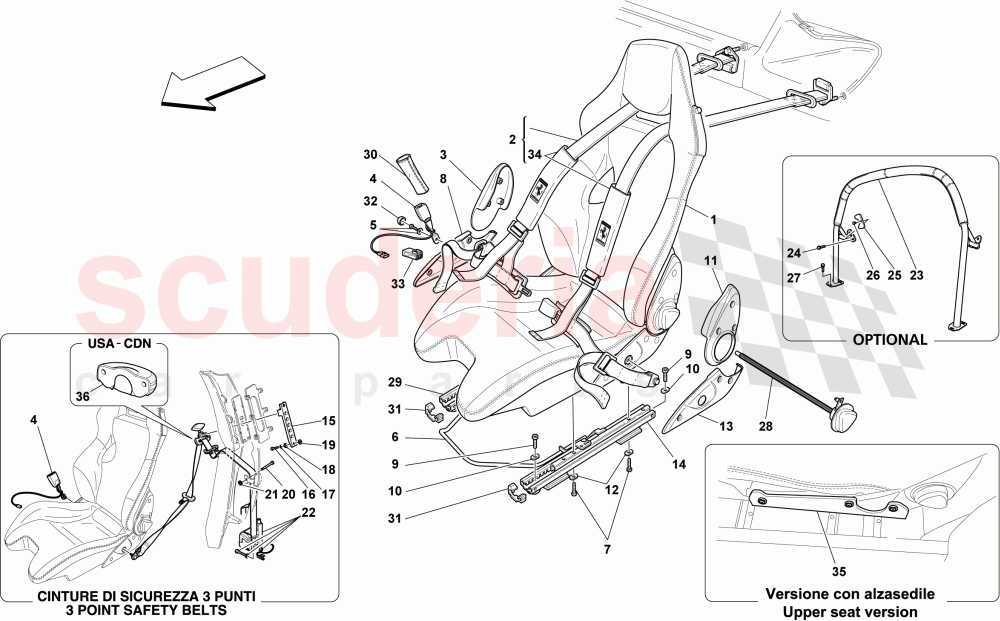

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	71130000	RH RACING SEAT	Enquire	To Order
	71140000	RH RACING SEAT	Enquire	To Order
	71150000	RH RACING SEAT	Enquire	To Order

...and 25 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85704800	COMPLETE LH 4-POINT SEAT HARNESS	Enquire	To Order
	85704800	COMPLETE LH 4-POINT SEAT HARNESS	Enquire	To Order
	85704800	COMPLETE LH 4-POINT SEAT HARNESS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81609800	UPPER RH SHELL, LH SEAT	Enquire	To Order
	81609500	UPPER LH SHELL, RH SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80787800	DRIVER SIDE BUCKLE STALK	Enquire	To Order
	80787500	PASSENGER SIDE BUCKLE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68636200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81033600	SEAT HOOK LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81202500	LOWER RH SHELL, RH SEAT	Enquire	To Order
	81200600	LOWER RH SHELL, LH SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65917800	SCREW	Enquire	To Order
	65917800	SCREW	Enquire	To Order
	85635700	SCREW	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65806500	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81609600	RH SEAT RH UPPER GUARD	Enquire	To Order
	81609900	UPPER LH SHELL, LH SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65806500	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81202400	LOWER LH SHELL, RH SEAT	Enquire	To Order
	81610000	LOWER LH SHELL, LH SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81034500	LH SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80776200	BELT HEIGHT REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64858500	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087776	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80433800	RH SEAT BELTS	Enquire	To Order
	80826800	RH SEAT BELT	Enquire	To Order
	80433700	LH SEAT BELTS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68926300	COMPLETE ROLLBAR	Enquire	To Order
	68926400	COMPLETE ROLLBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82783700	REGULATOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81034400	RH SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81261700	BUCKLE STALK SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67606400	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66155100	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180966	RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65876000	PAIR OF SEAT BELT PADS	Enquire	To Order
	65987400	PAIR OF SEAT BELT PADS	Enquire	To Order
	65992700	PAIR OF SEAT BELT PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82294900	SEAT TILT MECHANISM DOUBLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81316300	SCREW COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	71130000	RH RACING SEAT	71130000 RH RACING SEAT Medium; Leather Leather; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71140000	RH RACING SEAT	71140000 RH RACING SEAT Large; Leather Leather; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71150000	RH RACING SEAT	71150000 RH RACING SEAT Small; Leather Leather; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71160000	RH RACING SEAT	71160000 RH RACING SEAT Medium; Leather Leather; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71170000	RH RACING SEAT	71170000 RH RACING SEAT Large; Leather Alcantara; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71180000	RH RACING SEAT	71180000 RH RACING SEAT Small; Leather Alcantara; Without seat tilt mechanism; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	71190000	RH RACING SEAT	71190000 RH RACING SEAT Leather Leather; Without seat tilt mechanism; Applicable for USA, CDN	-	1	Enquire
1	71200000	RH RACING SEAT	71200000 RH RACING SEAT Leather Alcantara; Without seat tilt mechanism; Applicable for USA, CDN	-	1	Enquire
1	71210000	RH RACING SEAT	71210000 RH RACING SEAT Leather Leather; Without seat tilt mechanism; Applicable for USA LIGHT	-	1	Enquire
1	71220000	RH RACING SEAT	71220000 RH RACING SEAT Leather Alcantara; Without seat tilt mechanism; Applicable for USA LIGHT	-	1	Enquire
1	71230000	LH RACING SEAT	71230000 LH RACING SEAT Small; Leather Leather; With seat tilt mechanism	-	1	Enquire
1	71240000	LH RACING SEAT	71240000 LH RACING SEAT Medium; Leather Leather; With seat tilt mechanism	-	1	Enquire
1	71250000	LH RACING SEAT	71250000 LH RACING SEAT Large; Leather Leather; With seat tilt mechanism	-	1	Enquire
1	71260000	LH RACING SEAT	71260000 LH RACING SEAT Medium; Leather Leather; Without seat tilt mechanism	-	1	Enquire
1	71270000	LH RACING SEAT	71270000 LH RACING SEAT Large; Leather Leather; Without seat tilt mechanism	-	1	Enquire
1	71280000	LH RACING SEAT	71280000 LH RACING SEAT Small; Leather Leather; Without seat tilt mechanism	-	1	Enquire
1	71290000	LH RACING SEAT	71290000 LH RACING SEAT Small; Leather Alcantara; With seat tilt mechanism	-	1	Enquire
1	71300000	LH RACING SEAT	71300000 LH RACING SEAT Medium; Leather Alcantara; With seat tilt mechanism	-	1	Enquire
1	71310000	LH RACING SEAT	71310000 LH RACING SEAT Large; Leather Alcantara; With seat tilt mechanism	-	1	Enquire
1	71320000	LH RACING SEAT	71320000 LH RACING SEAT Medium; Leather Alcantara; Without seat tilt mechanism	-	1	Enquire
1	71330000	LH RACING SEAT	71330000 LH RACING SEAT Large; Leather Alcantara; Without seat tilt mechanism	-	1	Enquire
1	71340000	LH RACING SEAT	71340000 LH RACING SEAT Small; Leather Alcantara; Without seat tilt mechanism	-	1	Enquire
1	71350000	LH RACING SEAT	71350000 LH RACING SEAT Small; Leather Leather; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
1	71360000	LH RACING SEAT	71360000 LH RACING SEAT Medium; Leather Leather; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
1	71370000	LH RACING SEAT	71370000 LH RACING SEAT Large; Leather Leather; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
1	71380000	LH RACING SEAT	71380000 LH RACING SEAT Small; Leather Alcantara; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
1	71390000	LH RACING SEAT	71390000 LH RACING SEAT Medium; Leather Alcantara; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
1	71400000	LH RACING SEAT	71400000 LH RACING SEAT Large; Leather Alcantara; With seat tilt mechanism; For 4-point seat harness	-	1	Enquire
2	85704800	COMPLETE LH 4-POINT SEAT HARNESS	85704800 COMPLETE LH 4-POINT SEAT HARNESS Red; Not for AUS, USA, CDN, J	-	1	Enquire
2	85704800	COMPLETE LH 4-POINT SEAT HARNESS	85704800 COMPLETE LH 4-POINT SEAT HARNESS Black; Not for AUS, USA, CDN, J	-	1	Enquire
2	85704800	COMPLETE LH 4-POINT SEAT HARNESS	85704800 COMPLETE LH 4-POINT SEAT HARNESS Blue; Not for AUS, USA, CDN, J	-	1	Enquire
2	85704700	COMPLETE RH 4-POINT SEAT HARNESS	85704700 COMPLETE RH 4-POINT SEAT HARNESS Red; Not for AUS, USA, CDN, J	-	1	Enquire
2	85704700	COMPLETE RH 4-POINT SEAT HARNESS	85704700 COMPLETE RH 4-POINT SEAT HARNESS Black; Not for AUS, USA, CDN, J	-	1	Enquire
2	85704700	COMPLETE RH 4-POINT SEAT HARNESS	85704700 COMPLETE RH 4-POINT SEAT HARNESS Blue; Not for AUS, USA, CDN, J	-	1	Enquire
3	81609800	UPPER RH SHELL, LH SEAT	81609800 UPPER RH SHELL, LH SEAT	-	1	Enquire
3	81609500	UPPER LH SHELL, RH SEAT	81609500 UPPER LH SHELL, RH SEAT	-	1	Enquire
4	80787800	DRIVER SIDE BUCKLE STALK	80787800 DRIVER SIDE BUCKLE STALK	-	1	Enquire
4	80787500	PASSENGER SIDE BUCKLE MOUNT	80787500 PASSENGER SIDE BUCKLE MOUNT	-	1	Enquire
5	68636200	SCREW	68636200 SCREW	-	2	Enquire
6	81033600	SEAT HOOK LEVER	81033600 SEAT HOOK LEVER	-	2	Enquire
7	14306424	SCREW	14306424 SCREW	-	6	Enquire
8	81202500	LOWER RH SHELL, RH SEAT	81202500 LOWER RH SHELL, RH SEAT	-	1	Enquire
8	81200600	LOWER RH SHELL, LH SEAT	81200600 LOWER RH SHELL, LH SEAT	-	1	Enquire
9	65917800	SCREW	65917800 SCREW Applicable for seat tilt system; Not for USA, CDN	-	8	Enquire
9	65917800	SCREW	65917800 SCREW Applicable for seat tilt system; Applicable for USA, CDN	-	4	Enquire
9	85635700	SCREW	85635700 SCREW Standard; Not for USA, CDN	-	8	Enquire
9	85635700	SCREW	85635700 SCREW Standard; Applicable for USA, CDN	-	4	Enquire
9	81577500	SCREW	81577500 SCREW Passenger side; Applicable for USA, CDN	-	4	Enquire
10	65806500	SPRING PLATE	65806500 SPRING PLATE	-	8	Enquire
11	81609600	RH SEAT RH UPPER GUARD	81609600 RH SEAT RH UPPER GUARD	-	1	Enquire
11	81609900	UPPER LH SHELL, LH SEAT	81609900 UPPER LH SHELL, LH SEAT	-	1	Enquire
12	65806500	SPRING PLATE	65806500 SPRING PLATE	-	12	Enquire
13	81202400	LOWER LH SHELL, RH SEAT	81202400 LOWER LH SHELL, RH SEAT	-	1	Enquire
13	81610000	LOWER LH SHELL, LH SEAT	81610000 LOWER LH SHELL, LH SEAT	-	1	Enquire
14	81034500	LH SEAT GUIDE	81034500 LH SEAT GUIDE	-	2	Enquire
15	80776200	BELT HEIGHT REGULATOR	80776200 BELT HEIGHT REGULATOR	-	2	Enquire
16	14306924	SCREW	14306924 SCREW	-	4	Enquire
17	12625224	WASHER	12625224 WASHER	-	4	Enquire
18	12601374	WASHER	12601374 WASHER	-	4	Enquire
19	12646704	WASHER	12646704 WASHER	-	4	Enquire
20	64858500	PIN	64858500 PIN	-	2	Enquire
21	11087776	SNAP RING	11087776 SNAP RING	-	2	Enquire
22	80433800	RH SEAT BELTS	80433800 RH SEAT BELTS Coloured; Not for USA, CDN	-	1	Enquire
22	80826800	RH SEAT BELT	80826800 RH SEAT BELT Applicable for USA, CDN	-	1	Enquire
22	80433700	LH SEAT BELTS	80433700 LH SEAT BELTS Coloured; Not for USA, CDN	-	1	Enquire
22	80826700	LH SEAT BELT	80826700 LH SEAT BELT Applicable for USA, CDN	-	1	Enquire
23	68926300	COMPLETE ROLLBAR	68926300 COMPLETE ROLLBAR Metal effect	-	1	Enquire
23	68926400	COMPLETE ROLLBAR	68926400 COMPLETE ROLLBAR	-	1	Enquire
24	16044024	SCREW	16044024 SCREW	-	4	Enquire
25	67659200	COVER	67659200 COVER	-	2	Enquire
26	13273977	SCREW	13273977 SCREW	-	2	Enquire
27	13839224	SCREW	13839224 SCREW	-	6	Enquire
28	82783700	REGULATOR HANDLE	82783700 REGULATOR HANDLE	-	2	Enquire
29	81034400	RH SEAT GUIDE	81034400 RH SEAT GUIDE	-	2	Enquire
30	81261700	BUCKLE STALK SLEEVE	81261700 BUCKLE STALK SLEEVE Leather	-	2	Enquire
31	67606400	CAP	67606400 CAP	-	4	Enquire
32	66155100	COVER	66155100 COVER	-	2	Enquire
33	180966	RESISTOR	180966 RESISTOR Applicable for 4-point seat harness	-	2	Enquire
34	65876000	PAIR OF SEAT BELT PADS	65876000 PAIR OF SEAT BELT PADS Black; Applicable for 4-point seat harnesses; Not for AUS, USA, CDN, J	-	1	Enquire
34	65987400	PAIR OF SEAT BELT PADS	65987400 PAIR OF SEAT BELT PADS Red; Applicable for 4-point seat harnesses; Not for AUS, USA, CDN, J	-	1	Enquire
34	65992700	PAIR OF SEAT BELT PADS	65992700 PAIR OF SEAT BELT PADS Blue; Applicable for 4-point seat harnesses; Not for AUS, USA, CDN, J	-	1	Enquire
35	82294900	SEAT TILT MECHANISM DOUBLE BRACKET	82294900 SEAT TILT MECHANISM DOUBLE BRACKET Version with seat tilt system	-	1	Enquire
36	81316300	SCREW COVER	81316300 SCREW COVER Applicable for USA, CDN	-	1	Enquire
