PEDAL BOARD -Applicable for GD- of Ferrari Ferrari 430 Coupe

View All

Ferrari 430 Coupe - PEDAL BOARD -Applicable for GD-

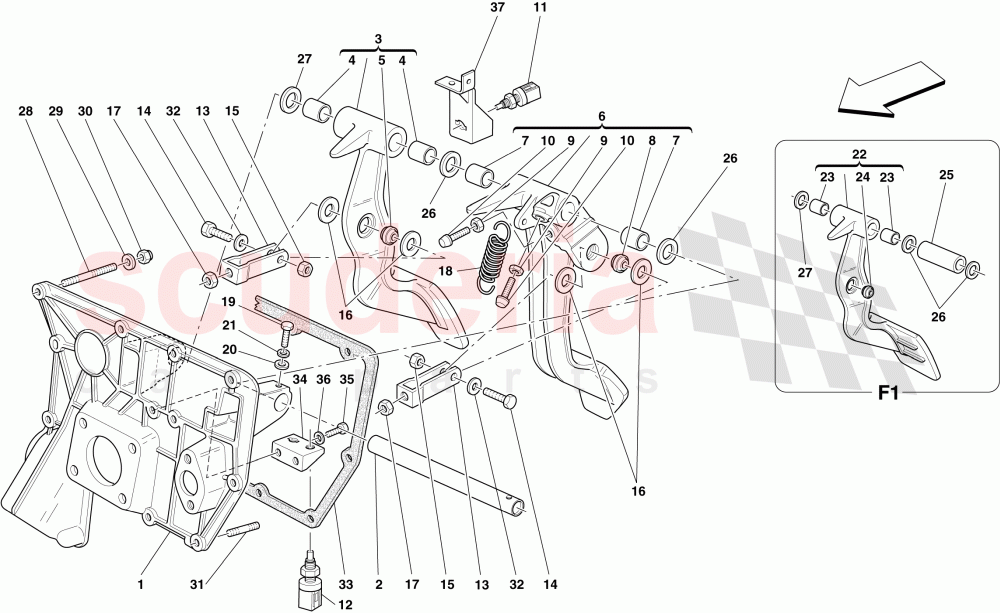

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	214215	PEDAL BOARD MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177120	PEDAL MOUNTING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177118	COMPLETE BRAKE PEDAL RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177119	COMPLETE CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	Enquire	To Order
	958694	PUSH-BUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176471	FORK	Enquire	To Order
	176471	FORK	Enquire	To Order
	199754	FORK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	Enquire	To Order
	66535800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176522	PLASTIC WASHER	Enquire	To Order
	176522	PLASTIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178511	COMPLETE BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178496	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113836	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order
	113833	WASHER	Enquire	To Order
	113834	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13517524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177131	PEDAL BOARD MOUNTING GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186401	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218766	SWITCH MOUNTING	Enquire	To Order
	219557	SWITCH MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	214215	PEDAL BOARD MOUNTING	214215 PEDAL BOARD MOUNTING Applicable for GD	-	1	Enquire
2	177120	PEDAL MOUNTING PIN	177120 PEDAL MOUNTING PIN Applicable for GD	-	1	Enquire
3	177118	COMPLETE BRAKE PEDAL RHD	177118 COMPLETE BRAKE PEDAL RHD Applicable for GD; Not for F1 gearbox	-	1	Enquire
4	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Applicable for GD; Not for F1 gearbox	-	2	Enquire
5	176475	BALL-JOINT	176475 BALL-JOINT Applicable for GD; Not for F1 gearbox	-	1	Enquire
6	177119	COMPLETE CLUTCH PEDAL	177119 COMPLETE CLUTCH PEDAL Applicable for GD; Not for F1 gearbox	-	1	Enquire
7	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Applicable for GD; Not for F1 gearbox	-	2	Enquire
8	176475	BALL-JOINT	176475 BALL-JOINT Applicable for GD; Not for F1 gearbox	-	1	Enquire
9	16102314	NUT	16102314 NUT Applicable for GD; Not for F1 gearbox	-	2	Enquire
10	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW Applicable for GD; Not for F1 gearbox	-	2	Enquire
11	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	334064 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- Applicable for mount 218766 ref. 37; Applicable for GD	-	1	Enquire
11	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH Applicable for mount 219557 ref. 37; Applicable for GD	-	1	Enquire
12	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH Applicable for GD; Not for F1 gearbox	-	1	Enquire
13	176471	FORK	176471 FORK Standard; Applicable for GD; Not for F1 gearbox	-	2	Enquire
13	176471	FORK	176471 FORK Standard; Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
13	199754	FORK	199754 FORK Optional; Version with CCM brakes; Applicable for GD; Not for F1 gearbox	-	2	Enquire
13	199754	FORK	199754 FORK Optional; Version with CCM brakes; Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
14	66535800	SCREW	66535800 SCREW Applicable for GD; Not for F1 gearbox	-	2	Enquire
14	66535800	SCREW	66535800 SCREW Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
15	147985	NUT	147985 NUT Applicable for GD; Not for F1 gearbox	-	2	Enquire
15	147985	NUT	147985 NUT Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
16	176522	PLASTIC WASHER	176522 PLASTIC WASHER Applicable for GD; Not for F1 gearbox	-	4	Enquire
16	176522	PLASTIC WASHER	176522 PLASTIC WASHER Applicable for GD; Applicable for F1 gearbox	-	2	Enquire
17	16102314	NUT	16102314 NUT Applicable for GD; Not for F1 gearbox	-	2	Enquire
17	16102314	NUT	16102314 NUT Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
18	101305	SPRING	101305 SPRING Applicable for GD; Not for F1 gearbox	-	1	Enquire
19	10902424	SCREW	10902424 SCREW Applicable for GD	-	1	Enquire
20	10519424	WASHER	10519424 WASHER Applicable for GD	-	1	Enquire
21	127494	WASHER	127494 WASHER Applicable for GD	-	1	Enquire
22	178511	COMPLETE BRAKE PEDAL	178511 COMPLETE BRAKE PEDAL Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
23	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Applicable for GD; Applicable for F1 gearbox	-	2	Enquire
24	176475	BALL-JOINT	176475 BALL-JOINT Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
25	178496	SHIM	178496 SHIM Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
26	113836	WASHER	113836 WASHER Th. 1.4 mm; Applicable for GD	-	2	Enquire
27	106083	WASHER	106083 WASHER Th. 1 mm; Applicable for GD	-	1	Enquire
27	113833	WASHER	113833 WASHER Th. 1.1 mm; Installed if necessary; Applicable for GD	-	1	Enquire
27	113834	WASHER	113834 WASHER Th. 1.2 mm; Installed if necessary; Applicable for GD	-	1	Enquire
27	113835	WASHER	113835 WASHER Th. 1.3 mm; Installed if necessary; Applicable for GD	-	1	Enquire
27	113836	WASHER	113836 WASHER Th. 1.4 mm; Installed if necessary; Applicable for GD	-	1	Enquire
28	13517524	STUD BOLT	13517524 STUD BOLT Applicable for GD	-	2	Enquire
29	12638524	WASHER	12638524 WASHER Applicable for GD	-	11	Enquire
30	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5 Applicable for GD	-	11	Enquire
31	13516924	STUD BOLT	13516924 STUD BOLT Applicable for GD	-	9	Enquire
32	12601374	WASHER	12601374 WASHER Applicable for GD	-	2	Enquire
33	177131	PEDAL BOARD MOUNTING GASKET	177131 PEDAL BOARD MOUNTING GASKET Applicable for GD	-	1	Enquire
34	186401	PLATE	186401 PLATE Applicable for GD	-	1	Enquire
35	16043224	SCREW	16043224 SCREW Applicable for GD	-	2	Enquire
36	127496	WASHER	127496 WASHER Applicable for GD	-	2	Enquire
37	218766	SWITCH MOUNTING	218766 SWITCH MOUNTING Applicable for switch 183433 ref. 11; Applicable for GD	-	1	Enquire
37	219557	SWITCH MOUNTING	219557 SWITCH MOUNTING Applicable for switch 201957 ref. 11; Applicable for GD	-	1	Enquire
