Ferrari 430 Coupe - DASHBOARD

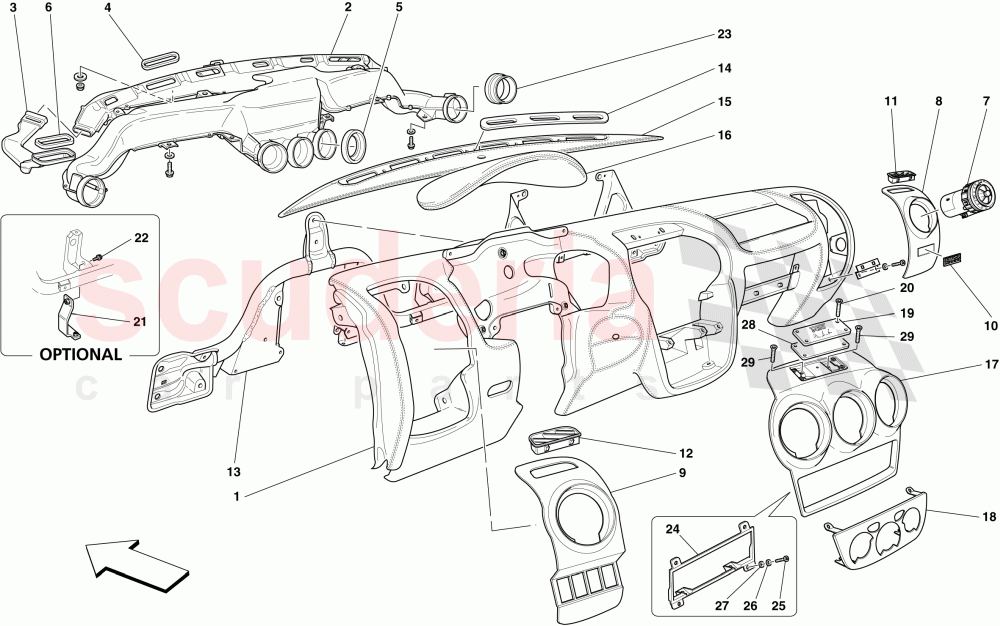

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68715800	COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD	Enquire	To Order
	69141712	LINING	Enquire	To Order
	68442900	COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65536200	AIR DUCT	Enquire	To Order
	63352900	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65132300	RH LATERAL DUCT	Enquire	To Order
	65132400	LH LATERAL DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66050600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63353300	Central Air Vent Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65132500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68811300	INTERIOR AIR VENT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	67796810	RH LATERAL VENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67916310	LH LATERAL VENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82262900	CAMPIONI DEL MONDO "2008" LABEL	Enquire	To Order
	81190910	CAMPIONI DEL MONDO "2007" LABEL	Enquire	To Order
	80462510	60 YEARS LABEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67919000	RH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67919100	LH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68356100	DASHBOARD SUBFRAME ASSEMBLY	Enquire	To Order
	67790600	DASHBOARD SUBFRAME ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65891100	RH AIR VENT SURROUND	Enquire	To Order
	65018200	RH Air Outlet Plate LHD	Enquire	ARRIVING SOON
	65891000	LH AIR VENT SURROUND	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69659600	WINDSCREEN AIR VENT TRIM PANEL	Enquire	To Order
	69659500	WINDSCREEN AIR VENT TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68421700	BINNACLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67796610	UPPER CENTRAL VENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67797010	LOWER CENTRAL VENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68872700	MODEL PLATE	Enquire	To Order
	68719900	MODEL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64214100	SCREW	Enquire	To Order
	68927600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69074200	AMPLIFIER BOX FASTENER BRACKET	Enquire	To Order
	68615200	AMPLIFIER BOX FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68135000	LH LATERAL AIR VENT GASKET	Enquire	To Order
	68134900	RH LATERAL AIR VENT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68662200	RADIO FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69140100	DEDICATION PLAQUE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13270270	SCREW -Valid for USA and CDN-	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68715800	COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD	68715800 COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD With airbag disable system; Applicable for GD	-	1	Enquire
1	69141712	LINING	69141712 LINING Without airbag disable system; Applicable for GD	-	1	Enquire
1	68442900	COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD	68442900 COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD With airbag disable system; Not for GD	-	1	Enquire
1	69141400	COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD	69141400 COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD Without airbag disable system; Not for GD	-	1	Enquire
1	68358300	DASHBOARD	68358300 DASHBOARD Airbag disable system; Applicable for UK; No longer supplied	-	1	Enquire
1	67685012	DASHBOARD BLACK 110552	67685012 DASHBOARD BLACK 110552 Airbag disable system; Not for UK; No longer supplied	-	1	Enquire
1	69141800	DASHBOARD	69141800 DASHBOARD Standard; Applicable for J; No longer supplied	-	1	Enquire
1	69141900	DASHBOARD	69141900 DASHBOARD Standard; Applicable for AUS; No longer supplied	-	1	Enquire
1	80269700	DASHBOARD	80269700 DASHBOARD Standard; Applicable for UK; No longer supplied	-	1	Enquire
1	69305100	DASHBOARD	69305100 DASHBOARD Standard; Applicable for CDN; No longer supplied	-	1	Enquire
1	69212600	DASHBOARD	69212600 DASHBOARD Standard; Applicable for USA; No longer supplied	-	1	Enquire
2	65536200	AIR DUCT	65536200 AIR DUCT Applicable for GD	-	1	Enquire
2	63352900	AIR DUCT	63352900 AIR DUCT Not for GD	-	1	Enquire
3	65132300	RH LATERAL DUCT	65132300 RH LATERAL DUCT	-	1	Enquire
3	65132400	LH LATERAL DUCT	65132400 LH LATERAL DUCT	-	1	Enquire
4	66050600	GASKET	66050600 GASKET	-	6	Enquire
5	63353300	Central Air Vent Gasket	63353300 Central Air Vent Gasket	-	3	Enquire
6	65132500	GASKET	65132500 GASKET	-	2	Enquire
7	68811300	INTERIOR AIR VENT ARRIVING SOON	68811300 INTERIOR AIR VENT ARRIVING SOON	-	5	Enquire
8	67796810	RH LATERAL VENT PANEL	67796810 RH LATERAL VENT PANEL PPG236411 matte sm.met.gr. 682 W; Standard	-	1	Enquire
9	67916310	LH LATERAL VENT PANEL	67916310 LH LATERAL VENT PANEL PPG236411 matte sm.met.gr. 682 W; Standard	-	1	Enquire
10	82262900	CAMPIONI DEL MONDO "2008" LABEL	82262900 CAMPIONI DEL MONDO "2008" LABEL	-	1	Enquire
10	81190910	CAMPIONI DEL MONDO "2007" LABEL	81190910 CAMPIONI DEL MONDO "2007" LABEL	-	1	Enquire
10	80462510	60 YEARS LABEL	80462510 60 YEARS LABEL	-	1	Enquire
10	69833810	CAMPIONI DEL MONDO PLAQUE	69833810 CAMPIONI DEL MONDO PLAQUE	-	1	Enquire
11	67919000	RH SEAT BELT SLOT SURROUND	67919000 RH SEAT BELT SLOT SURROUND	-	1	Enquire
12	67919100	LH SEAT BELT SLOT SURROUND	67919100 LH SEAT BELT SLOT SURROUND	-	1	Enquire
13	68356100	DASHBOARD SUBFRAME ASSEMBLY	68356100 DASHBOARD SUBFRAME ASSEMBLY Applicable for GD	-	1	Enquire
13	67790600	DASHBOARD SUBFRAME ASSEMBLY	67790600 DASHBOARD SUBFRAME ASSEMBLY Not for GD	-	1	Enquire
14	65891100	RH AIR VENT SURROUND	65891100 RH AIR VENT SURROUND Applicable for GD	-	1	Enquire
14	65018200	RH Air Outlet Plate LHD ARRIVING SOON	65018200 RH Air Outlet Plate LHD Not for GD ARRIVING SOON	-	1	Enquire
14	65891000	LH AIR VENT SURROUND	65891000 LH AIR VENT SURROUND Applicable for GD	-	1	Enquire
14	65018300	LH Air Outlet Plate LHD ARRIVING SOON	65018300 LH Air Outlet Plate LHD Not for GD ARRIVING SOON	-	1	Enquire
15	69659600	WINDSCREEN AIR VENT TRIM PANEL	69659600 WINDSCREEN AIR VENT TRIM PANEL Applicable for GD	-	1	Enquire
15	69659500	WINDSCREEN AIR VENT TRIM PANEL	69659500 WINDSCREEN AIR VENT TRIM PANEL Not for GD	-	1	Enquire
16	68421700	BINNACLE	68421700 BINNACLE	-	1	Enquire
17	67796610	UPPER CENTRAL VENT PANEL	67796610 UPPER CENTRAL VENT PANEL PPG236411 matte sm.met.gr. 682 W; Standard	-	1	Enquire
18	67797010	LOWER CENTRAL VENT PANEL	67797010 LOWER CENTRAL VENT PANEL PPG236411 matte sm.met.gr. 682 W; Standard	-	1	Enquire
19	68872700	MODEL PLATE	68872700 MODEL PLATE Carbon; Optional	-	1	Enquire
19	68719900	MODEL PLATE	68719900 MODEL PLATE Standard	-	1	Enquire
20	64214100	SCREW	64214100 SCREW Self-locking	-	4	Enquire
20	68927600	SCREW	68927600 SCREW Black	-	4	Enquire
21	69074200	AMPLIFIER BOX FASTENER BRACKET	69074200 AMPLIFIER BOX FASTENER BRACKET Optional; Applicable for vehicles with amplifier; Applicable for GD	-	1	Enquire
21	68615200	AMPLIFIER BOX FASTENER BRACKET	68615200 AMPLIFIER BOX FASTENER BRACKET Optional; Applicable for vehicles with amplifier; Not for GD	-	1	Enquire
22	11568124	SCREW	11568124 SCREW Optional; Applicable for vehicles with amplifier	-	2	Enquire
23	68135000	LH LATERAL AIR VENT GASKET	68135000 LH LATERAL AIR VENT GASKET	-	1	Enquire
23	68134900	RH LATERAL AIR VENT GASKET	68134900 RH LATERAL AIR VENT GASKET	-	1	Enquire
24	68662200	RADIO FRAME	68662200 RADIO FRAME	-	1	Enquire
25	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	4	Enquire
26	62769800	WASHER	62769800 WASHER	-	4	Enquire
27	67584200	WASHER	67584200 WASHER	-	4	Enquire
28	69140100	DEDICATION PLAQUE MOUNTING	69140100 DEDICATION PLAQUE MOUNTING	-	1	Enquire
29	13270270	SCREW -Valid for USA and CDN-	13270270 SCREW -Valid for USA and CDN-	-	6	Enquire
