PEDAL BOARD -Not for GD- of Ferrari Ferrari 430 Coupe

View All

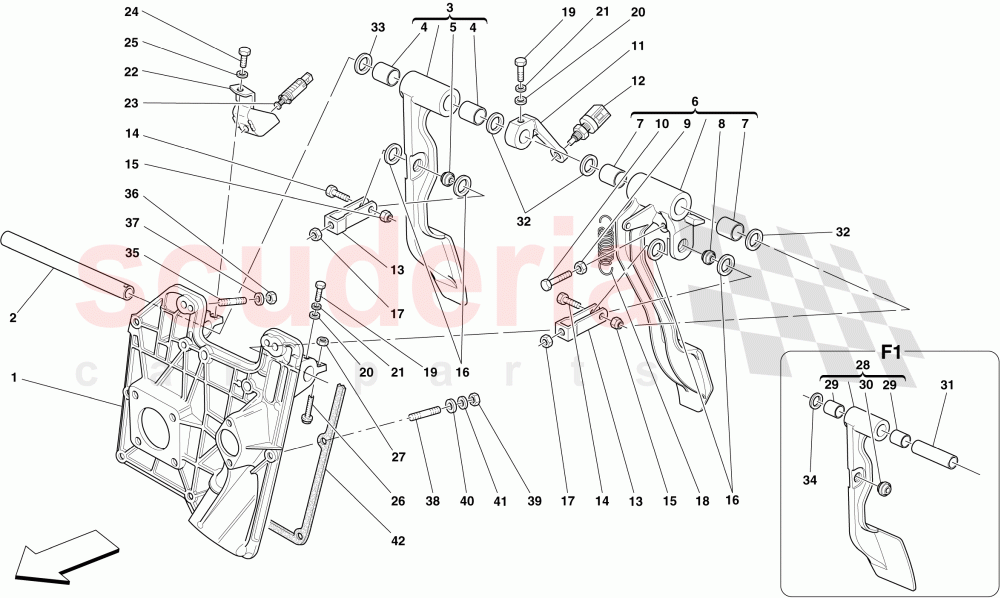

Ferrari 430 Coupe - PEDAL BOARD -Not for GD-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	176464	PEDAL BOARD MOUNTING	Enquire	To Order
	241502	PEDAL BOARD MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176466	PEDAL MOUNTING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180558	COMPLETE BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180559	COMPLETE CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180516	CENTRAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176471	FORK	Enquire	To Order
	176471	FORK	Enquire	To Order
	199754	FORK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	Enquire	To Order
	66535800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176522	PLASTIC WASHER	Enquire	IN STOCK
	176522	PLASTIC WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219558	SWITCH MOUNTING	Enquire	To Order
	219558	SWITCH MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	Enquire	To Order
	958694	PUSH-BUTTON SWITCH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180560	COMPLETE BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176918	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113836	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order
	113833	WASHER	Enquire	IN STOCK
	113834	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	178340	WASHER	Enquire	To Order
	113834	WASHER	Enquire	To Order
	113835	WASHER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13516924	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13517024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102377	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176524	PEDAL BOARD MOUNTING GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	176464	PEDAL BOARD MOUNTING	176464 PEDAL BOARD MOUNTING Not for GD; Applicable for F1 gearbox	-	1	Enquire
1	241502	PEDAL BOARD MOUNTING	241502 PEDAL BOARD MOUNTING Not for GD; Not for F1 gearbox	-	1	Enquire
2	176466	PEDAL MOUNTING PIN	176466 PEDAL MOUNTING PIN Not for GD	-	1	Enquire
3	180558	COMPLETE BRAKE PEDAL	180558 COMPLETE BRAKE PEDAL Not for GD; Not for F1 gearbox	-	1	Enquire
4	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Not for GD; Not for F1 gearbox	-	2	Enquire
5	176475	BALL-JOINT	176475 BALL-JOINT Not for GD; Not for F1 gearbox	-	1	Enquire
6	180559	COMPLETE CLUTCH PEDAL	180559 COMPLETE CLUTCH PEDAL Not for GD; Not for F1 gearbox	-	1	Enquire
7	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Not for GD; Not for F1 gearbox	-	2	Enquire
8	176475	BALL-JOINT	176475 BALL-JOINT Not for GD; Not for F1 gearbox	-	1	Enquire
9	16102314	NUT	16102314 NUT Not for GD; Not for F1 gearbox	-	1	Enquire
10	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW Not for GD; Not for F1 gearbox	-	1	Enquire
11	180516	CENTRAL MOUNTING	180516 CENTRAL MOUNTING Not for GD; Not for F1 gearbox	-	1	Enquire
12	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH Not for GD; Not for F1 gearbox	-	1	Enquire
13	176471	FORK	176471 FORK Standard; Not for GD; Not for F1 gearbox	-	2	Enquire
13	176471	FORK	176471 FORK Standard; Not for GD; Applicable for F1 gearbox	-	1	Enquire
13	199754	FORK	199754 FORK Optional; Version with CCM brakes; Not for GD; Not for F1 gearbox	-	2	Enquire
13	199754	FORK	199754 FORK Optional; Version with CCM brakes; Not for GD; Applicable for F1 gearbox	-	1	Enquire
14	66535800	SCREW	66535800 SCREW Not for GD; Not for F1 gearbox	-	2	Enquire
14	66535800	SCREW	66535800 SCREW Not for GD; Applicable for F1 gearbox	-	1	Enquire
15	147985	NUT IN STOCK	147985 NUT Not for GD; Not for F1 gearbox IN STOCK	-	2	Enquire
15	147985	NUT IN STOCK	147985 NUT Not for GD; Applicable for F1 gearbox IN STOCK	-	1	Enquire
16	176522	PLASTIC WASHER IN STOCK	176522 PLASTIC WASHER Not for GD; Not for F1 gearbox IN STOCK	-	4	Enquire
16	176522	PLASTIC WASHER IN STOCK	176522 PLASTIC WASHER Not for GD; Applicable for F1 gearbox IN STOCK	-	2	Enquire
17	16102314	NUT	16102314 NUT Not for GD; Not for F1 gearbox	-	2	Enquire
17	16102314	NUT	16102314 NUT Not for GD; Applicable for F1 gearbox	-	1	Enquire
18	101305	SPRING IN STOCK	101305 SPRING Not for GD; Not for F1 gearbox IN STOCK	-	1	Enquire
19	10902424	SCREW IN STOCK	10902424 SCREW Not for GD IN STOCK	-	1	Enquire
20	10519424	WASHER IN STOCK	10519424 WASHER Not for GD IN STOCK	-	2	Enquire
21	127494	WASHER IN STOCK	127494 WASHER Not for GD IN STOCK	-	1	Enquire
22	219558	SWITCH MOUNTING	219558 SWITCH MOUNTING Applicable for switch 183433 ref. 23; Not for GD	-	1	Enquire
22	219558	SWITCH MOUNTING	219558 SWITCH MOUNTING Applicable for switch 201957 ref. 23; Not for GD	-	1	Enquire
23	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	334064 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- Applicable for mount 218606 ref. 22; Not for GD	-	1	Enquire
23	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH Applicable for mount 219558 ref. 22; Not for GD IN STOCK	-	1	Enquire
24	16043224	SCREW	16043224 SCREW Not for GD	-	1	Enquire
25	127496	WASHER	127496 WASHER Not for GD	-	1	Enquire
26	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW Not for GD; Not for F1 gearbox	-	1	Enquire
27	16102314	NUT	16102314 NUT Not for GD; Not for F1 gearbox	-	1	Enquire
28	180560	COMPLETE BRAKE PEDAL	180560 COMPLETE BRAKE PEDAL Not for GD; Applicable for F1 gearbox	-	1	Enquire
29	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING Not for GD; Applicable for F1 gearbox	-	2	Enquire
30	176475	BALL-JOINT	176475 BALL-JOINT Not for GD; Applicable for F1 gearbox	-	1	Enquire
31	176918	SHIM	176918 SHIM Not for GD; Applicable for F1 gearbox	-	1	Enquire
32	113836	WASHER	113836 WASHER Th. 1.4 mm; Not for GD; Not for F1 gearbox	-	3	Enquire
33	106083	WASHER	106083 WASHER Th. 1 mm; Not for GD; Not for F1 gearbox	-	1	Enquire
33	113833	WASHER IN STOCK	113833 WASHER Th. 1.1 mm; Installed if necessary; Not for GD; Not for F1 gearbox IN STOCK	-	1	Enquire
33	113834	WASHER	113834 WASHER Th. 1.2 mm; Installed if necessary; Not for GD; Not for F1 gearbox	-	1	Enquire
33	113835	WASHER	113835 WASHER Th. 1.3 mm; Installed if necessary; Not for GD; Not for F1 gearbox	-	1	Enquire
33	113836	WASHER	113836 WASHER Th. 1.4 mm; Installed if necessary; Not for GD; Not for F1 gearbox	-	1	Enquire
34	178340	WASHER	178340 WASHER Not for GD; Applicable for F1 gearbox	-	1	Enquire
34	113834	WASHER	113834 WASHER Th. 1.2 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox	-	1	Enquire
34	113835	WASHER	113835 WASHER Th. 1.3 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox	-	1	Enquire
34	113836	WASHER	113836 WASHER Th. 1.4 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox	-	1	Enquire
35	13516924	STUD BOLT IN STOCK	13516924 STUD BOLT Not for GD IN STOCK	-	6	Enquire
36	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 Not for GD IN STOCK	-	6	Enquire
37	12638524	WASHER IN STOCK	12638524 WASHER Not for GD IN STOCK	-	6	Enquire
38	13517024	STUD BOLT	13517024 STUD BOLT Not for GD	-	2	Enquire
39	16102377	NUT	16102377 NUT Not for GD	-	2	Enquire
40	13550321	WASHER	13550321 WASHER Not for GD	-	2	Enquire
41	12601374	WASHER IN STOCK	12601374 WASHER Not for GD IN STOCK	-	2	Enquire
42	176524	PEDAL BOARD MOUNTING GASKET	176524 PEDAL BOARD MOUNTING GASKET Not for GD	-	1	Enquire
