Name: Engine Bonnet
Rating: 5.0 (1 reviews)

Engine Bonnet of Ferrari Ferrari 430 Challenge (2006)

View All

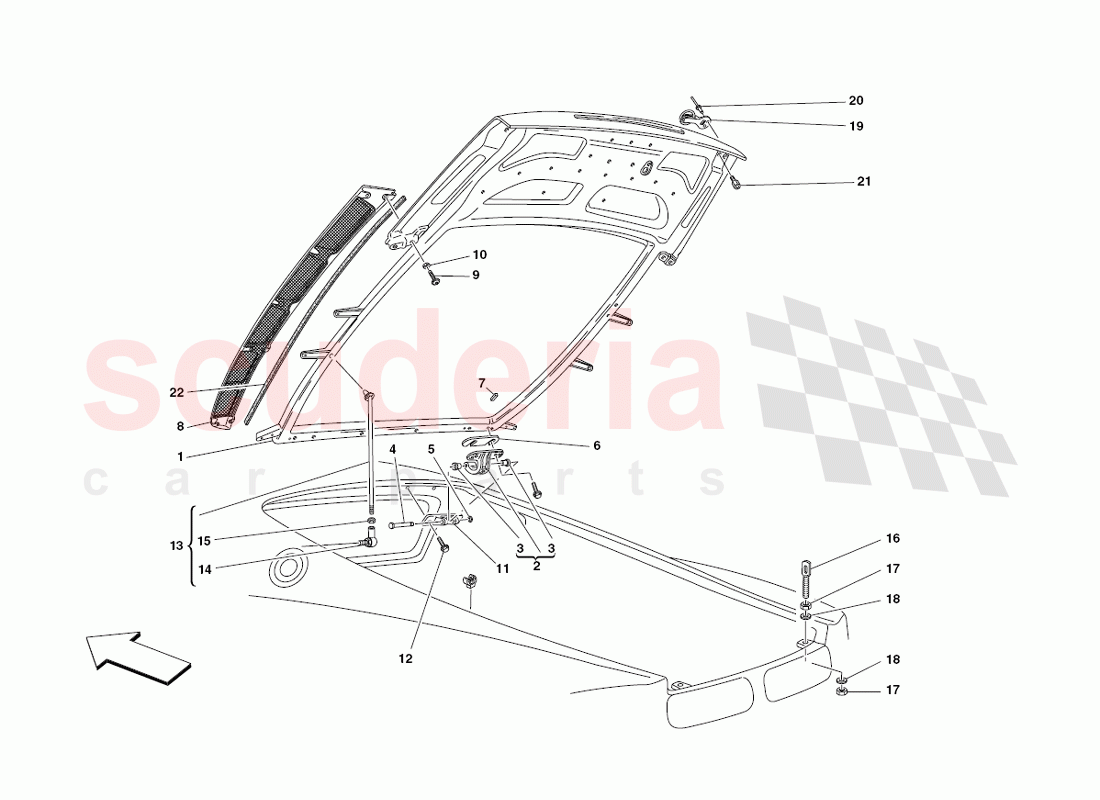

Ferrari 430 Challenge (2006) - Engine Bonnet

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69340911	SHEETED REAR HOOD BONNET	$2,208.07	To Order

Photo	Part No	Description	Price (each)	Stock
	64877600	LH MOBILE HINGE	$208.58	To Order
	64877500	RH MOBILE HINGE	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	62825300	BUSHING	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	64807100	PIN	$10.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	66073100	SHIM	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	81130700	SHIM	$8.40	To Order

Photo	Part No	Description	Price (each)	Stock
	68075100	LH GRILLE	$385.09	To Order
	68997900	LH GRILLE	$349.48	To Order
	68075000	RH GRILLE	$369.04	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	64806500	LH FIXED HINGE	$114.66	To Order
	64806400	RH FIXED HINGE	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	66142300	HOOD SUPPORT ROD	$55.25	To Order

Photo	Part No	Description	Price (each)	Stock
	62481000	BALL-JOINT	$75.46	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	66128500	PIN	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	66149900	NUT	$6.55	To Order

Photo	Part No	Description	Price (each)	Stock
	66150000	WASHER	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	66128400	HOOK	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	14641592	RIVET	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	69058800	VIBRATION DAMPER	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	69416500	SIDE GASKET	$33.10	To Order
	69416600	UPPER GASKET	$27.80	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	69340911	SHEETED REAR HOOD BONNET	69340911 SHEETED REAR HOOD BONNET	$2,208.07	1
2	64877600	LH MOBILE HINGE	64877600 LH MOBILE HINGE	$208.58	1
2	64877500	RH MOBILE HINGE	64877500 RH MOBILE HINGE	$208.58	1
3	62825300	BUSHING	62825300 BUSHING	$37.25 MSRP: ~~48.70~~ (23.5% off)	4
4	64807100	PIN	64807100 PIN	$10.44	2
5	11087974	SNAP RING	11087974 SNAP RING	$0.19 MSRP: ~~0.49~~ (61.2% off)	2
6	66073100	SHIM	66073100 SHIM	$2.74 MSRP: ~~4.75~~ (42.3% off)	2
7	81130700	SHIM	81130700 SHIM	$8.40 MSRP: ~~13.54~~ (38% off)	2
8	68075100	LH GRILLE	68075100 LH GRILLE Grigio-Grey-	$385.09	1
8	68997900	LH GRILLE	68997900 LH GRILLE Nero-Black-	$349.48	1
8	68075000	RH GRILLE	68075000 RH GRILLE Grigio-Grey-	$369.04	1
8	68997800	RH GRILLE	68997800 RH GRILLE Nero-Black-	$353.00	1
9	915271	SCREW	915271 SCREW	$1.31	16
10	12644478	WASHER	12644478 WASHER	$0.21	1
11	64806500	LH FIXED HINGE	64806500 LH FIXED HINGE	$114.66	1
11	64806400	RH FIXED HINGE	64806400 RH FIXED HINGE	$114.66	1
12	13839224	SCREW	13839224 SCREW	$2.79	4
13	66142300	HOOD SUPPORT ROD	66142300 HOOD SUPPORT ROD	$55.25	1
14	62481000	BALL-JOINT	62481000 BALL-JOINT	$75.46	1
15	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
16	66128500	PIN	66128500 PIN	$7.15	2
17	66149900	NUT	66149900 NUT	$6.55	4
18	66150000	WASHER	66150000 WASHER	$2.54	4
19	66128400	HOOK	66128400 HOOK	$72.19	2
20	14641592	RIVET	14641592 RIVET	$0.05	6
21	69058800	VIBRATION DAMPER	69058800 VIBRATION DAMPER	$0.81	2
22	69416500	SIDE GASKET	69416500 SIDE GASKET	$33.10	2
22	69416600	UPPER GASKET	69416600 UPPER GASKET	$27.80	1
