Frame - Front Elements Structures And Plates

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - Frame - Front Elements Structures and Plates

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68885211 COMPLETE FRONT FRAME Enquire To Order
Photo Part No Description Price (each) Stock
68885311 COMPLETE FRONT LATERAL RH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
68885411 COMPLETE FRONT LATERAL LH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
68885500 R.H. FRONT LATERAL SPRAG Enquire To Order
Photo Part No Description Price (each) Stock
68885611 LH FRONT LATERAL CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
68885711 COMPLETE RH FRONT LATERAL TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
68885811 COMPLETE LH FRONT LATERAL TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
68885911 COMPLETE FRONT FRAME Enquire To Order
Photo Part No Description Price (each) Stock
985235611 FRONT BUMPER RH. PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
985235610 FRONT BUMPER LH. PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
207735 L.M. FRAME Enquire To Order
Photo Part No Description Price (each) Stock
207736 R.H. FRAME Enquire To Order
Photo Part No Description Price (each) Stock
194945 L.H. FRONT CRUSH-BOX Enquire To Order
Photo Part No Description Price (each) Stock
194946 RH FRONT CRUSH-BOX. Enquire To Order
Photo Part No Description Price (each) Stock
166301 FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301- Enquire To Order
Photo Part No Description Price (each) Stock
183816 FRONT LOWER CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
68037711 LUGGAGE COMPARTMENT FRONT WALL Enquire To Order
Photo Part No Description Price (each) Stock
66395711 R.H. FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
66395811 L.H. FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
66395400 L.H. BRACKET Enquire To Order
66395500 R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985207175 LH FRONT BUMPER FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67357711 RH FRONT LATERAL WALL Enquire To Order
Photo Part No Description Price (each) Stock
67357811 LH FRONT LATERAL WALL Enquire To Order
Photo Part No Description Price (each) Stock
985198739 RH PANEL Enquire To Order
Photo Part No Description Price (each) Stock
223971 LH PLATE Enquire To Order
Photo Part No Description Price (each) Stock
68886011 COMPLETE RH DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
68886100 COMPLETO COMPLETE LH DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
196005 R.H. UPPER FRAME Enquire To Order
Photo Part No Description Price (each) Stock
196004 L.H. UPPER FRAME Enquire To Order
Photo Part No Description Price (each) Stock
985166215 RH LOWER EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
166115 L.H. LOWER FRAME Enquire To Order
Photo Part No Description Price (each) Stock
14642891 POP RIVET Enquire To Order
Photo Part No Description Price (each) Stock
65133800 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
15180411 Hexagonal Blind Rivet Enquire To Order
15624211 Hexagonal Rivet Enquire To Order
15624311 HEXAGONAL RIVET Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
60853400 RIVET Enquire To Order
166101 Knurled Rivet Enquire To Order
65930400 Knurled Rivet Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13836771 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
193754 UNDER WINDSCREEN CROSS MEMBER -Not for GD- Not as spare part now- -Replaced by 193754- Enquire To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT Enquire To Order
Photo Part No Description Price (each) Stock
207357 COMPLETE CROSSPIECE Enquire To Order
Photo Part No Description Price (each) Stock
196003 R.H. FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
209306 L.H. FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985214462 TOW HOOK BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
View All

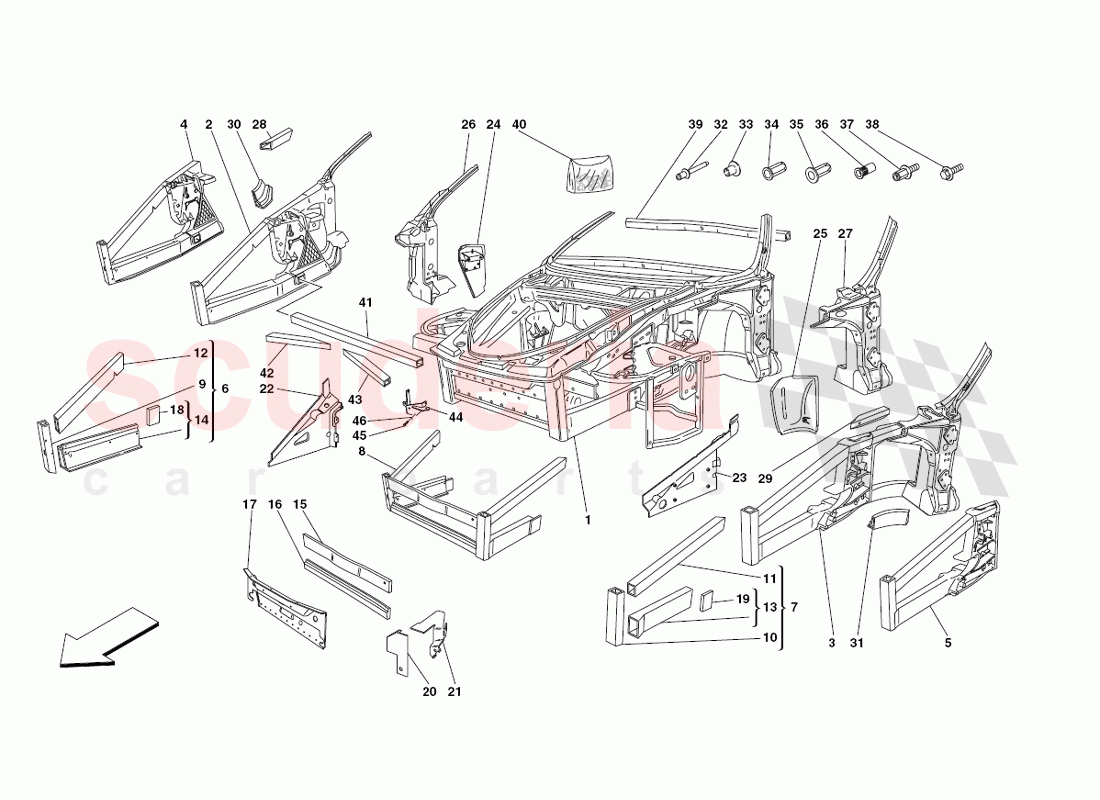

Frame - Front Elements Structures and Plates of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68885211
COMPLETE FRONT FRAME 		- 1 Enquire
2 68885311
COMPLETE FRONT LATERAL RH FLANK 		- 1 Enquire
3 68885411
COMPLETE FRONT LATERAL LH FLANK 		- 1 Enquire
4 68885500
R.H. FRONT LATERAL SPRAG 		- 1 Enquire
5 68885611
LH FRONT LATERAL CONNECTOR 		- 1 Enquire
6 68885711
COMPLETE RH FRONT LATERAL TRELLIS 		- 1 Enquire
7 68885811
COMPLETE LH FRONT LATERAL TRELLIS 		- 1 Enquire
8 68885911
COMPLETE FRONT FRAME 		- 1 Enquire
9 985235611
FRONT BUMPER RH. PILLAR 		- 1 Enquire
10 985235610
FRONT BUMPER LH. PILLAR 		- 1 Enquire
11 207735
L.M. FRAME 		- 1 Enquire
12 207736
R.H. FRAME 		- 1 Enquire
13 194945
L.H. FRONT CRUSH-BOX 		- 1 Enquire
14 194946
RH FRONT CRUSH-BOX. 		- 1 Enquire
15 166301
FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301- 		- 1 Enquire
16 183816
FRONT LOWER CROSS MEMBER 		- 1 Enquire
17 68037711
LUGGAGE COMPARTMENT FRONT WALL 		- 1 Enquire
18 66395711
R.H. FRONT REINFORCEMENT 		- 1 Enquire
19 66395811
L.H. FRONT REINFORCEMENT 		- 1 Enquire
20 66395400
L.H. BRACKET 		- 1 Enquire
20 66395500
R.H. BRACKET 		- 1 Enquire
21 985207175
LH FRONT BUMPER FASTENER BRACKET 		- 1 Enquire
22 67357711
RH FRONT LATERAL WALL 		- 1 Enquire
23 67357811
LH FRONT LATERAL WALL 		- 1 Enquire
24 985198739
RH PANEL 		- 1 Enquire
25 223971
LH PLATE 		- 1 Enquire
26 68886011
COMPLETE RH DOOR PILLAR 		- 1 Enquire
27 68886100
COMPLETO COMPLETE LH DOOR PILLAR 		- 1 Enquire
28 196005
R.H. UPPER FRAME 		- 1 Enquire
29 196004
L.H. UPPER FRAME 		- 1 Enquire
30 985166215
RH LOWER EXTRUSION 		- 1 Enquire
31 166115
L.H. LOWER FRAME 		- 1 Enquire
32 14642891
POP RIVET 		- 1 Enquire
33 65133800
RIVET 		- 1 Enquire
34 15180411
Hexagonal Blind Rivet 		- 1 Enquire
34 15624211
Hexagonal Rivet 		- 1 Enquire
34 15624311
HEXAGONAL RIVET 		- 1 Enquire
34 248146
HEXAGONAL RIVET 		- 1 Enquire
34 248150
ESAGONAL RIVET M8 		- 1 Enquire
35 65151200
Rivet 		- 1 Enquire
36 60853400
RIVET 		- 1 Enquire
36 166101
Knurled Rivet 		- 1 Enquire
36 65930400
Knurled Rivet 		- 1 Enquire
36 65135000
Knurled Rivet 		- 1 Enquire
36 65319800
Nut Knurled Rivet 		- 1 Enquire
37 65065400
HEXAGONAL HEAD STUD BOLT 		- 1 Enquire
38 13836771
SCREW 		- 1 Enquire
39 193754
UNDER WINDSCREEN CROSS MEMBER -Not for GD- Not as spare part now- -Replaced by 193754- 		- 1 Enquire
40 70000950
REPAIR INSERTS KIT 		- 1 Enquire
41 207357
COMPLETE CROSSPIECE 		- 1 Enquire
42 196003
R.H. FRONT REINFORCEMENT 		- 1 Enquire
43 209306
L.H. FRONT REINFORCEMENT 		- 1 Enquire
44 985214462
TOW HOOK BRACKET 		- 1 Enquire
45 14306924
SCREW 		- 5 Enquire
46 84653800
WASHER 		- 5 Enquire
