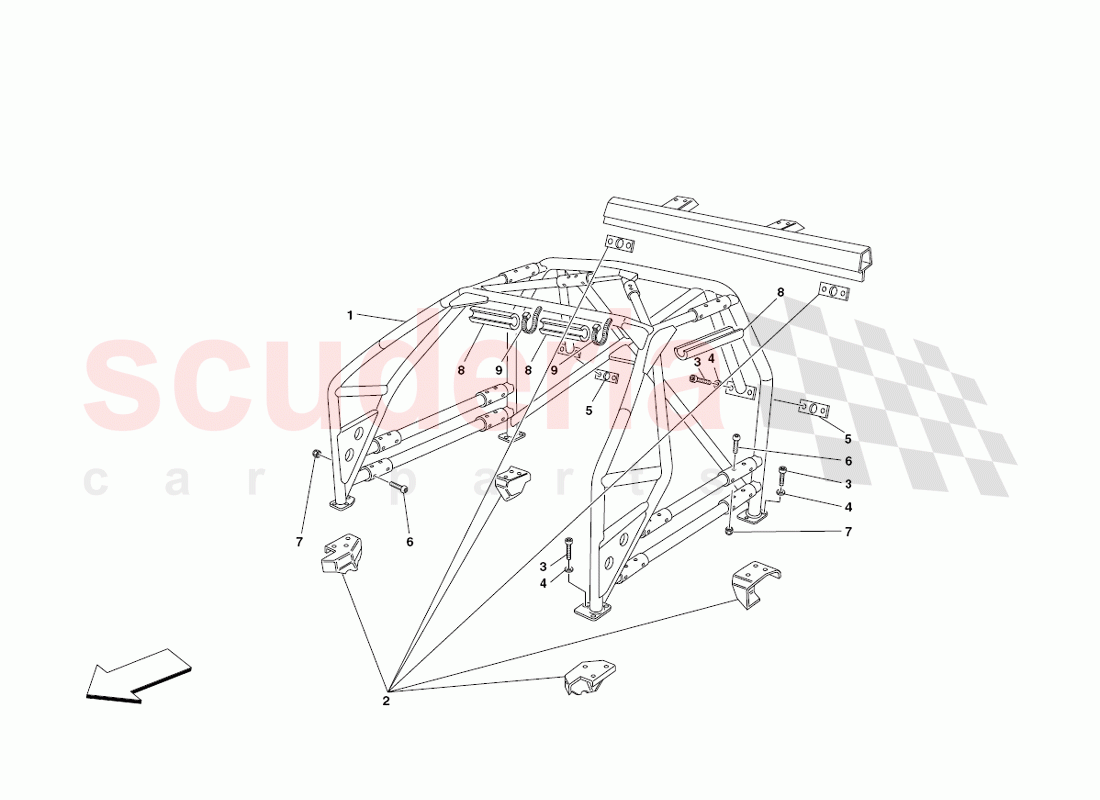

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	70000947	ROLL-BAR FIXING PLATE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14420126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190573	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66154000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	196655	CLAMP.	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69339500	COMPLETE ROLL-BAR	69339500 COMPLETE ROLL-BAR Standard-	-	1	Enquire
1	69697700	COMPLETE ROLL-BAR	69697700 COMPLETE ROLL-BAR Optional-Passenger seat-	-	1	Enquire
2	70000947	ROLL-BAR FIXING PLATE KIT	70000947 ROLL-BAR FIXING PLATE KIT	-	1	Enquire
3	14420126	SCREW	14420126 SCREW	-	16	Enquire
4	11190573	WASHER	11190573 WASHER	-	16	Enquire
5	65986300	THICKNESS	65986300 THICKNESS mm 2-	-	2	Enquire
5	65986400	THICKNESS	65986400 THICKNESS mm 3-	-	2	Enquire
5	65986500	THICKNESS	65986500 THICKNESS mm 4-	-	2	Enquire
6	66154000	SCREW	66154000 SCREW	-	44	Enquire
7	147985	NUT	147985 NUT	-	44	Enquire
8	69744700	LINING	69744700 LINING L = 338 mm.	-	2	Enquire
8	69744800	LINING	69744800 LINING L = 483 mm.	-	2	Enquire
8	69744900	LINING	69744900 LINING L = 388 mm.	-	1	Enquire
8	69745000	LINING	69745000 LINING L = 354 mm.	-	1	Enquire
8	69775000	LINING	69775000 LINING L = 166 mm.	-	2	Enquire
8	69774900	LINING	69774900 LINING L = 255 mm.	-	2	Enquire
9	196655	CLAMP.	196655 CLAMP. Qty 24 for cars with passenger seat	-	12	Enquire
