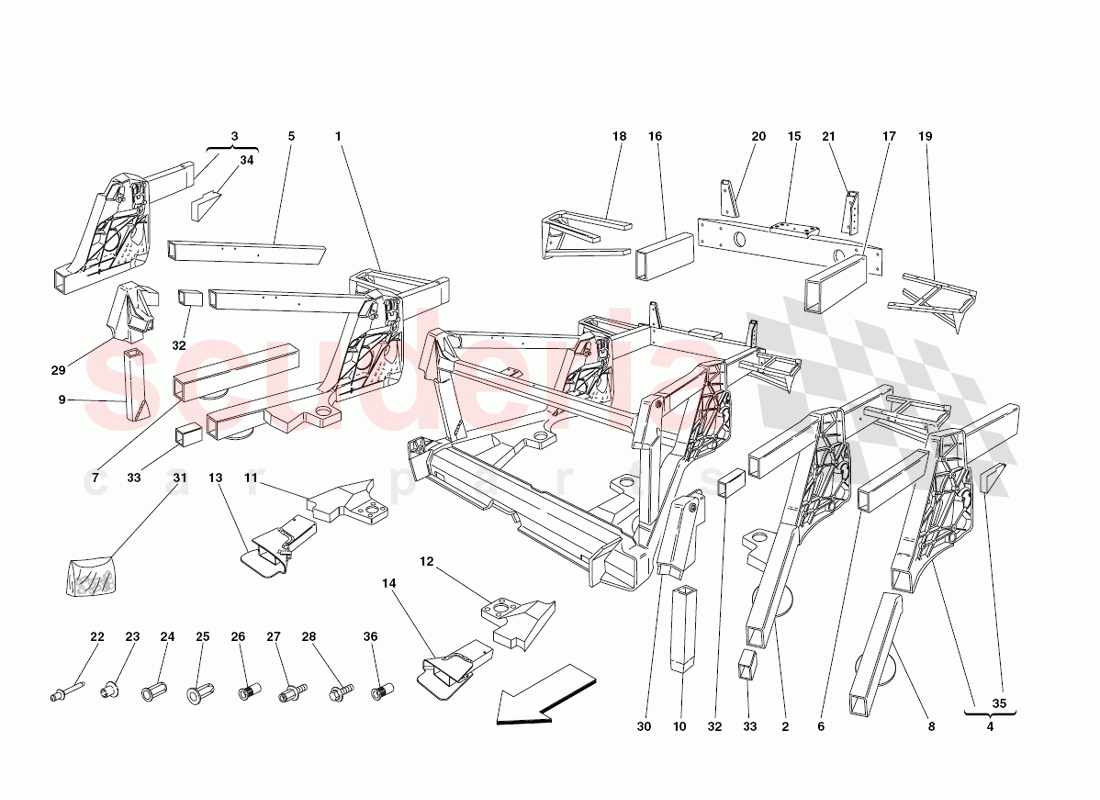

Ferrari 430 Challenge (2006) - Frame - Central Elements Sub-Groups

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68887311	COMPLETE RH LATERAL FRAME	$3,315.08	To Order

Photo	Part No	Description	Price (each)	Stock
	68887411	COMPLETE LH LATERAL TRELLIS	$15,269.34	To Order

Photo	Part No	Description	Price (each)	Stock
	68887511	RH REAR LATERAL CASTING	$2,820.87	To Order

Photo	Part No	Description	Price (each)	Stock
	68887611	LH REAR LATERAL CASTING	$2,820.87	To Order

Photo	Part No	Description	Price (each)	Stock
	202584	R.H. UPPER FRAME	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	202583	L.H. UPPER FRAME	$417.18	To Order

Photo	Part No	Description	Price (each)	Stock
	212303	R.H. LOWER FRAME	$200.67	To Order

Photo	Part No	Description	Price (each)	Stock
	212302	L.H. LOWER FRAME	$200.67	To Order

Photo	Part No	Description	Price (each)	Stock
	66051211	COMPLETE RH REAR PILLAR	$716.70	To Order

Photo	Part No	Description	Price (each)	Stock
	66051111	COMPLETE LH REAR PILLAR	$716.70	To Order

Photo	Part No	Description	Price (each)	Stock
	6234102	R.H. BRACKET ENGINE SUPPORT	$142.57	To Order

Photo	Part No	Description	Price (each)	Stock
	6234101	L.H. BRACKET ENGINE SUPPORT	$458.02	To Order

Photo	Part No	Description	Price (each)	Stock
	65942200	R.H. SUPPORT FOR BRACKET	$1,428.08	To Order

Photo	Part No	Description	Price (each)	Stock
	65942311	LH STRUT MOUNT	$786.24	To Order

Photo	Part No	Description	Price (each)	Stock
	231530	REAR BUMPER CROSS MEMBER	$1,700.86	To Order

Photo	Part No	Description	Price (each)	Stock
	207272	R.H. REAR FRAME	$478.01	To Order

Photo	Part No	Description	Price (each)	Stock
	207271	L.H. REAR FRAME	$691.31	To Order

Photo	Part No	Description	Price (each)	Stock
	67679211	REAR RH FENDER FRAME	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	67780211	REAR LH FENDER FRAME	$930.65	To Order
	67780211	REAR LH FENDER FRAME	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	68027011	RH LATERAL BRACKET	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	68027111	LH LATERAL BRACKET	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14642891	POP RIVET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	65133800	RIVET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	15180411	Hexagonal Blind Rivet	$1.56	To Order
	15624211	Hexagonal Rivet	$1.00	To Order
	15624311	HEXAGONAL RIVET	$4.64	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65151200	Rivet	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	166101	Knurled Rivet	$1.54	To Order
	60853400	RIVET	$0.66	To Order
	65930400	Knurled Rivet	$1.00	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65065400	HEXAGONAL HEAD STUD BOLT	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13836771	SCREW	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	6166261	R.H. UPPER FUSION REAR PILLAR	$473.02	To Order

Photo	Part No	Description	Price (each)	Stock
	6166161	L.H. UPPER FUSION REAR PILLAR	$473.02	To Order

Photo	Part No	Description	Price (each)	Stock
	70000950	REPAIR INSERTS KIT	$1,785.90	To Order

Photo	Part No	Description	Price (each)	Stock
	181980	UPPER INNER CORE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	181979	LOWER INNER CORE	$12.59	To Order

Photo	Part No	Description	Price (each)	Stock
	196575	R.H. REINFORCEMENT	$10.45	To Order

Photo	Part No	Description	Price (each)	Stock
	196574	L.H. REINFORCEMENT	$20.05	To Order

Photo	Part No	Description	Price (each)	Stock
	15629711	RIVET	$0.45	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	68887311	COMPLETE RH LATERAL FRAME	68887311 COMPLETE RH LATERAL FRAME	$3,315.08	1
2	68887411	COMPLETE LH LATERAL TRELLIS	68887411 COMPLETE LH LATERAL TRELLIS	$15,269.34	1
3	68887511	RH REAR LATERAL CASTING	68887511 RH REAR LATERAL CASTING	$2,820.87	1
4	68887611	LH REAR LATERAL CASTING	68887611 LH REAR LATERAL CASTING	$2,820.87	1
5	202584	R.H. UPPER FRAME	202584 R.H. UPPER FRAME	$320.90	1
6	202583	L.H. UPPER FRAME	202583 L.H. UPPER FRAME	$417.18	1
7	212303	R.H. LOWER FRAME	212303 R.H. LOWER FRAME	$200.67	1
8	212302	L.H. LOWER FRAME	212302 L.H. LOWER FRAME	$200.67	1
9	66051211	COMPLETE RH REAR PILLAR	66051211 COMPLETE RH REAR PILLAR	$716.70	1
10	66051111	COMPLETE LH REAR PILLAR	66051111 COMPLETE LH REAR PILLAR	$716.70	1
11	6234102	R.H. BRACKET ENGINE SUPPORT	6234102 R.H. BRACKET ENGINE SUPPORT	$142.57	1
12	6234101	L.H. BRACKET ENGINE SUPPORT	6234101 L.H. BRACKET ENGINE SUPPORT	$458.02	1
13	65942200	R.H. SUPPORT FOR BRACKET	65942200 R.H. SUPPORT FOR BRACKET	$1,428.08	1
14	65942311	LH STRUT MOUNT	65942311 LH STRUT MOUNT	$786.24	1
15	231530	REAR BUMPER CROSS MEMBER	231530 REAR BUMPER CROSS MEMBER	$1,700.86	1
16	207272	R.H. REAR FRAME	207272 R.H. REAR FRAME	$478.01	1
17	207271	L.H. REAR FRAME	207271 L.H. REAR FRAME	$691.31	1
18	67679211	REAR RH FENDER FRAME	67679211 REAR RH FENDER FRAME	$930.65	1
19	67780211	REAR LH FENDER FRAME	67780211 REAR LH FENDER FRAME use part number: 67780211	$930.65	1
19	67780211	REAR LH FENDER FRAME	67780211 REAR LH FENDER FRAME	$930.65	1
20	68027011	RH LATERAL BRACKET	68027011 RH LATERAL BRACKET	$272.77	1
21	68027111	LH LATERAL BRACKET	68027111 LH LATERAL BRACKET	$272.77	1
22	14642891	POP RIVET	14642891 POP RIVET	$0.15	1
23	65133800	RIVET	65133800 RIVET	$0.15	1
24	15180411	Hexagonal Blind Rivet	15180411 Hexagonal Blind Rivet	$1.56	1
24	15624211	Hexagonal Rivet	15624211 Hexagonal Rivet	$1.00	1
24	15624311	HEXAGONAL RIVET	15624311 HEXAGONAL RIVET	$4.64	1
24	248146	HEXAGONAL RIVET	248146 HEXAGONAL RIVET	$1.07	1
24	248150	ESAGONAL RIVET M8	248150 ESAGONAL RIVET M8	$0.44	1
25	65151200	Rivet	65151200 Rivet	$4.80	1
26	166101	Knurled Rivet	166101 Knurled Rivet	$1.54	1
26	60853400	RIVET	60853400 RIVET	$0.66	1
26	65930400	Knurled Rivet	65930400 Knurled Rivet	$1.00	1
26	65135000	Knurled Rivet	65135000 Knurled Rivet	$1.26	1
26	65319800	Nut Knurled Rivet	65319800 Nut Knurled Rivet	$0.84	1
27	65065400	HEXAGONAL HEAD STUD BOLT	65065400 HEXAGONAL HEAD STUD BOLT	$3.45	1
28	13836771	SCREW	13836771 SCREW	$2.25	1
29	6166261	R.H. UPPER FUSION REAR PILLAR	6166261 R.H. UPPER FUSION REAR PILLAR	$473.02	1
30	6166161	L.H. UPPER FUSION REAR PILLAR	6166161 L.H. UPPER FUSION REAR PILLAR	$473.02	1
31	70000950	REPAIR INSERTS KIT	70000950 REPAIR INSERTS KIT	$1,785.90	1
32	181980	UPPER INNER CORE	181980 UPPER INNER CORE	$336.95	1
33	181979	LOWER INNER CORE	181979 LOWER INNER CORE	$12.59	1
34	196575	R.H. REINFORCEMENT	196575 R.H. REINFORCEMENT	$10.45	1
35	196574	L.H. REINFORCEMENT	196574 L.H. REINFORCEMENT	$20.05	1
36	15629711	RIVET	15629711 RIVET	$0.45	2
