LUBRICATION SYSTEM AND BLOW-BY SYSTEM of Ferrari Ferrari 360 Modena

View All

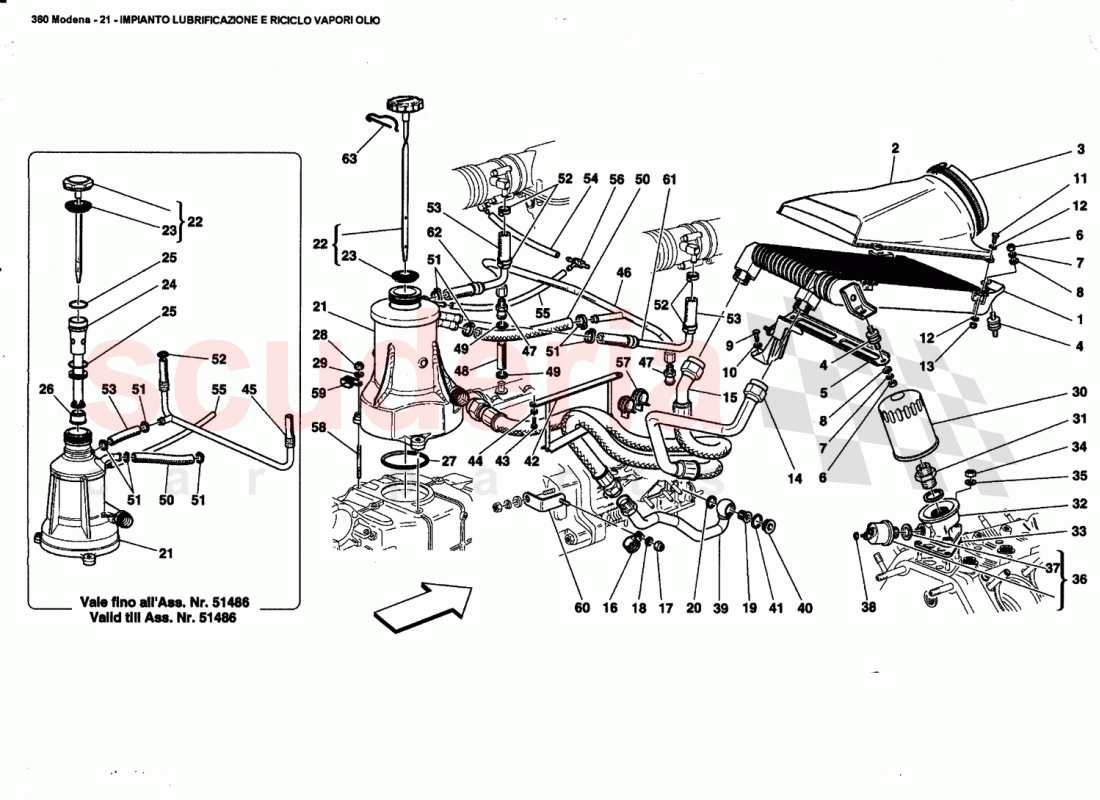

Ferrari 360 Modena - LUBRICATION SYSTEM AND BLOW-BY SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	185412	OIL RADIATOR	Enquire	To Order
	175717	OIL RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181001	AIR INLET CONVEYOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180555	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175724	RADIATOR SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179103	HOSE FROM ENGINE HOSE TO RADIATOR	Enquire	To Order
	201655	HOSE FROM ENGINE HOSE TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177785	HOSE FROM RADIATOR TO DISAREATOR	Enquire	To Order
	181163	HOSE FROM RADIATOR TO DISAREATOR	Enquire	To Order
	201656	HOSE FROM RADIATOR TO DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122319	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144487	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176620	COMPLETE OIL DISAREATOR	Enquire	To Order
	201625	COMPLETE OIL DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183096	TANK PLUG	Enquire	To Order
	202249	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182183	SHIELD FOR OIL LEVEL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182184	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182185	END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197654	Oil Filter	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	173929	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173633	OIL FILTER BASE-PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188052	Oil Filter Base Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock

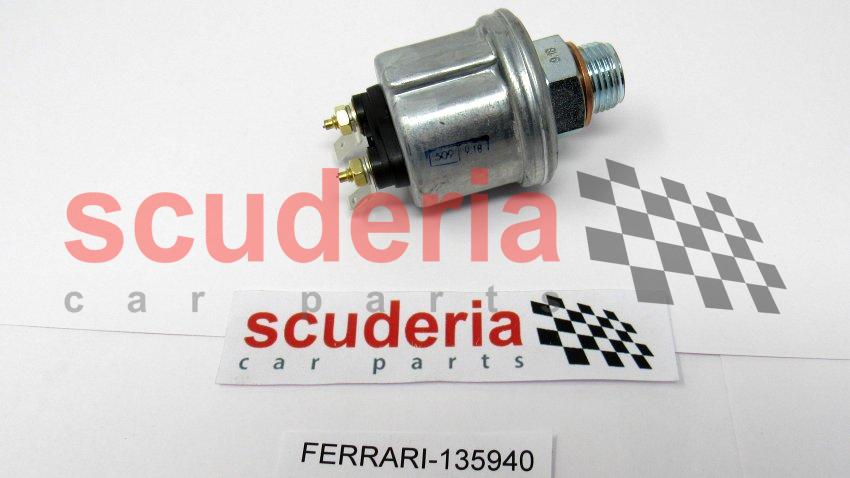

	135940	Transmitter Oil Pressure	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178199	HOSE FROM ENGINE TO RADIATOR HOSE	Enquire	To Order
	201654	HOSE FROM ENGINE TO RADIATOR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122318	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183044	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183655	OIL HOSE RETAINING BRACKET	Enquire	To Order
	181860	OIL HOSE RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176276	BUTTERFLY CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173968	HEADS CONNECTION VENT PIPE	Enquire	To Order
	201653	HEADS CONNECTION VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170448	VALVE	Enquire	To Order
	215820	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175746	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	202182	RUBBER HOSE	Enquire	To Order
	175745	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175744	RUBBER HOSE	Enquire	To Order
	202183	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126342	RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194910	RUBBER HOSE	Enquire	To Order
	185208	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	160013	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517024	STUD BOLT	Enquire	To Order
	13517124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178314	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202196	L.H. BUTTERFLY CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202194	R.H. BUTTERFLY CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

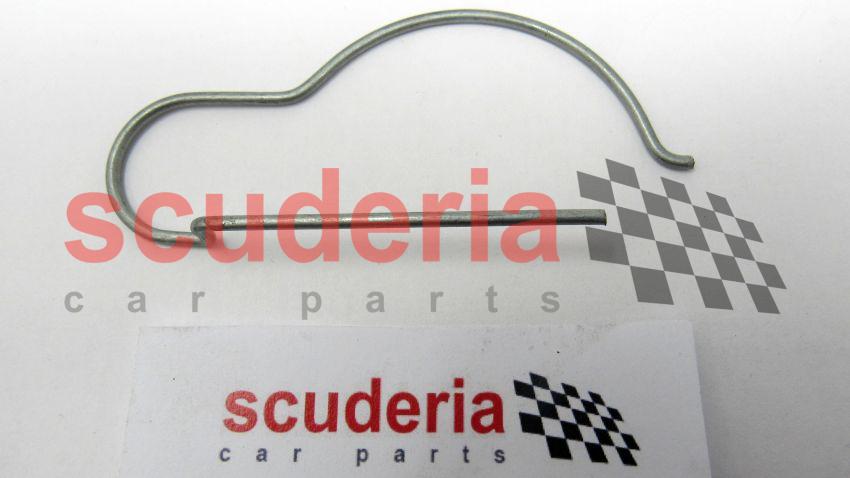

	209265	NO SCREW ABLE SPLIT PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	185412	OIL RADIATOR	185412 OIL RADIATOR	-	1	Enquire
1	175717	OIL RADIATOR	175717 OIL RADIATOR Not as spare part / For the cars till Ass. Nr. 33358 use the / radiator 179835 + pipe 181163	-	1	Enquire
2	181001	AIR INLET CONVEYOR	181001 AIR INLET CONVEYOR	-	1	Enquire
3	180555	GASKET	180555 GASKET	-	1	Enquire
4	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	-	4	Enquire
5	175724	RADIATOR SUPPORTING BRACKET	175724 RADIATOR SUPPORTING BRACKET	-	1	Enquire
6	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	8	Enquire
7	127494	WASHER IN STOCK	127494 WASHER IN STOCK	-	8	Enquire
8	13577724	WASHER	13577724 WASHER	-	8	Enquire
9	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	-	2	Enquire
10	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	-	2	Enquire
11	10977824	SCREW IN STOCK	10977824 SCREW IN STOCK	-	3	Enquire
12	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	-	6	Enquire
13	319201	FUEL FILLER PIPE ASSEMBLY IN STOCK	319201 FUEL FILLER PIPE ASSEMBLY IN STOCK	-	3	Enquire
14	179103	HOSE FROM ENGINE HOSE TO RADIATOR	179103 HOSE FROM ENGINE HOSE TO RADIATOR RADIATOR	-	1	Enquire
14	201655	HOSE FROM ENGINE HOSE TO RADIATOR	201655 HOSE FROM ENGINE HOSE TO RADIATOR RADIATOR / Anodized Racing pipe / Optional	-	1	Enquire
15	177785	HOSE FROM RADIATOR TO DISAREATOR	177785 HOSE FROM RADIATOR TO DISAREATOR DISAREATOR / Valid till Ass. Nr. 33358	-	1	Enquire
15	181163	HOSE FROM RADIATOR TO DISAREATOR	181163 HOSE FROM RADIATOR TO DISAREATOR DISAREATOR / Valid from Ass. Nr. 33359	-	1	Enquire
15	201656	HOSE FROM RADIATOR TO DISAREATOR	201656 HOSE FROM RADIATOR TO DISAREATOR DISAREATOR / Anodized Racing pipe / Optional	-	1	Enquire
16	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	-	1	Enquire
17	134041	NUT IN STOCK	134041 NUT IN STOCK	-	1	Enquire
18	127494	WASHER IN STOCK	127494 WASHER IN STOCK	-	1	Enquire
19	122319	UNION	122319 UNION	-	1	Enquire
20	144487	GASKET	144487 GASKET	-	1	Enquire
21	176620	COMPLETE OIL DISAREATOR	176620 COMPLETE OIL DISAREATOR Valid till Ass. Nr. 51486	-	1	Enquire
21	201625	COMPLETE OIL DISAREATOR	201625 COMPLETE OIL DISAREATOR Valid from Ass. Nr. 51487 / Till car Ass. Nr. 56313 to assemble with / tank plug 202249 ref. 22 with hole and / no screwable split pin 209265 ref. 63	-	1	Enquire
22	183096	TANK PLUG	183096 TANK PLUG Valid till Ass. Nr. 51486	-	1	Enquire
22	202249	TANK PLUG	202249 TANK PLUG Valid from Ass. Nr. 51487	-	1	Enquire
23	180585	Oil Tank Cap Gasket IN STOCK	180585 Oil Tank Cap Gasket IN STOCK	-	1	Enquire
24	182183	SHIELD FOR OIL LEVEL ROD	182183 SHIELD FOR OIL LEVEL ROD Valid till stock exhaustion / Valid till Ass. Nr. 51486	-	1	Enquire
25	182184	O.R. GASKET	182184 O.R. GASKET Valid till Ass. Nr. 51486	-	2	Enquire
26	182185	END	182185 END Valid till Ass. Nr. 51486	-	1	Enquire
27	176388	O-RING IN STOCK	176388 O-RING IN STOCK	-	1	Enquire
28	147985	NUT IN STOCK	147985 NUT IN STOCK	-	3	Enquire
29	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	3	Enquire
30	197654	Oil Filter ARRIVING SOON	197654 Oil Filter ARRIVING SOON	-	1	Enquire
31	173929	THREADED UNION	173929 THREADED UNION	-	1	Enquire
32	173633	OIL FILTER BASE-PLATE	173633 OIL FILTER BASE-PLATE	-	1	Enquire
33	188052	Oil Filter Base Gasket IN STOCK	188052 Oil Filter Base Gasket IN STOCK	-	1	Enquire
34	147985	NUT IN STOCK	147985 NUT IN STOCK	-	3	Enquire
35	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	3	Enquire
36	135940	Transmitter Oil Pressure ARRIVING SOON	135940 Transmitter Oil Pressure ARRIVING SOON	-	1	Enquire
37	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	-	1	Enquire
38	62790300	NUT IN STOCK	62790300 NUT IN STOCK	-	2	Enquire
39	178199	HOSE FROM ENGINE TO RADIATOR HOSE	178199 HOSE FROM ENGINE TO RADIATOR HOSE RADIATOR HOSE	-	1	Enquire
39	201654	HOSE FROM ENGINE TO RADIATOR HOSE	201654 HOSE FROM ENGINE TO RADIATOR HOSE RADIATOR HOSE / Anodized Racing pipe / Optional	-	1	Enquire
40	122318	THREADED PLUG	122318 THREADED PLUG	-	1	Enquire
41	183044	GASKET	183044 GASKET	-	1	Enquire
42	183655	OIL HOSE RETAINING BRACKET	183655 OIL HOSE RETAINING BRACKET Valid from engine Nr. 53227 /	-	1	Enquire
42	181860	OIL HOSE RETAINING BRACKET	181860 OIL HOSE RETAINING BRACKET Valid till engine Nr. 53226 /	-	1	Enquire
43	81591700	SCREW	81591700 SCREW	-	2	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	2	Enquire
45	176276	BUTTERFLY CONNECTION PIPE	176276 BUTTERFLY CONNECTION PIPE Valid till Ass. Nr. 51486	-	1	Enquire
46	173968	HEADS CONNECTION VENT PIPE	173968 HEADS CONNECTION VENT PIPE	-	1	Enquire
46	201653	HEADS CONNECTION VENT PIPE	201653 HEADS CONNECTION VENT PIPE Anodized Racing pipe / Optional /	-	1	Enquire
47	170448	VALVE	170448 VALVE For cars not USA and CDN from Ass. Nr. 57034 Q.ty 1	-	2	Enquire
47	215820	VALVE	215820 VALVE With hole 2 on the membrane / Not for USA and CDN / Valid from Ass. Nr. 57034	-	1	Enquire
48	175746	RUBBER HOSE	175746 RUBBER HOSE	-	2	Enquire
49	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	4	Enquire
50	202182	RUBBER HOSE	202182 RUBBER HOSE Valid from Ass. Nr. 51487	-	1	Enquire
50	175745	RUBBER HOSE	175745 RUBBER HOSE Valid till Ass. Nr. 51486	-	1	Enquire
51	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	4	Enquire
52	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP Q.ty 4 from Ass. Nr. 51487 IN STOCK	-	2	Enquire
53	175744	RUBBER HOSE	175744 RUBBER HOSE Valid till Ass. Nr. 51486	-	1	Enquire
53	202183	RUBBER HOSE	202183 RUBBER HOSE Valid from Ass. Nr. 51487	-	2	Enquire
54	126342	RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	126342 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	-	2	Enquire
55	194910	RUBBER HOSE	194910 RUBBER HOSE Valid from Ass. Nr. 51487	-	1	Enquire
55	185208	RUBBER HOSE	185208 RUBBER HOSE Valid till Ass. Nr. 51486	-	1	Enquire
56	258855	3-WAY CONNECTOR IN STOCK	258855 3-WAY CONNECTOR IN STOCK	-	1	Enquire
57	160013	CLIP	160013 CLIP	-	2	Enquire
58	13517024	STUD BOLT	13517024 STUD BOLT Valid for F1	-	3	Enquire
58	13517124	STUD BOLT	13517124 STUD BOLT	-	3	Enquire
59	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	-	1	Enquire
60	178314	BRACKET	178314 BRACKET	-	1	Enquire
61	202196	L.H. BUTTERFLY CONNECTION PIPE	202196 L.H. BUTTERFLY CONNECTION PIPE PIPE / Valid from Ass. Nr. 51487	-	1	Enquire
62	202194	R.H. BUTTERFLY CONNECTION PIPE	202194 R.H. BUTTERFLY CONNECTION PIPE PIPE / Valid from Ass. Nr. 51487	-	1	Enquire
63	209265	NO SCREW ABLE SPLIT PIN	209265 NO SCREW ABLE SPLIT PIN Valid form car Ass. Nr. 56314	-	1	Enquire
