Find Your Part

R.H. CYLlNDER HEAD of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - R.H. CYLlNDER HEAD

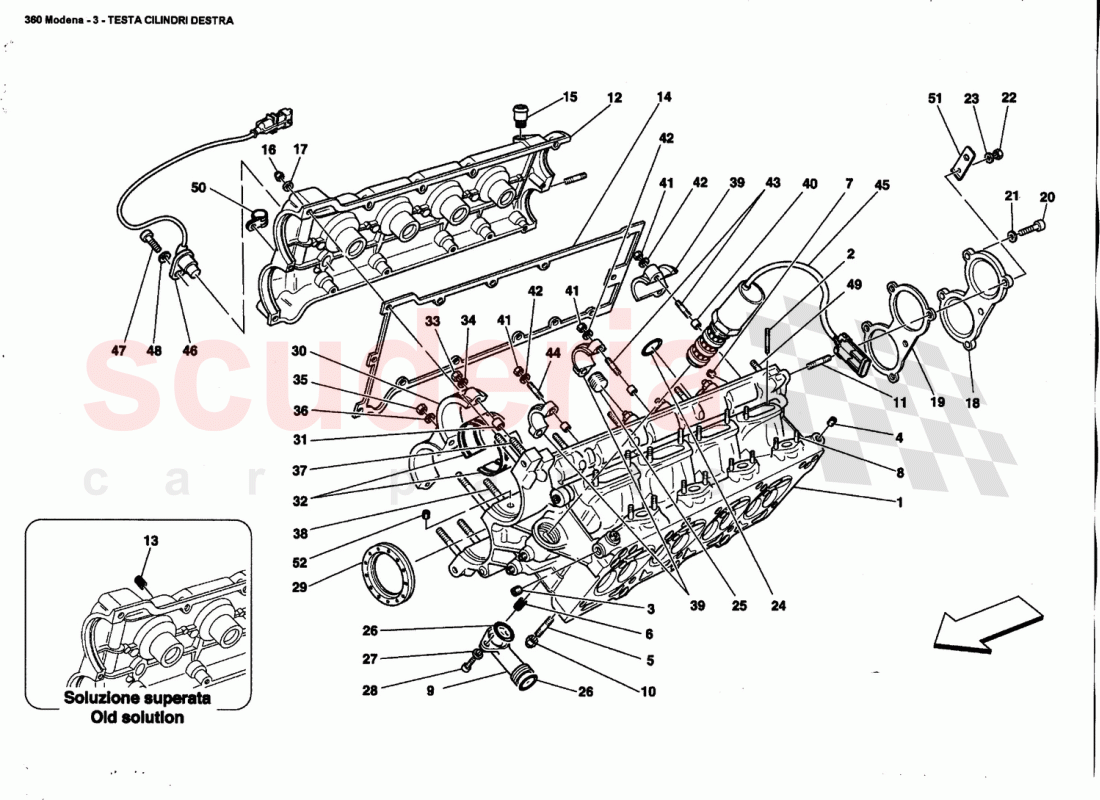

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	179305	R.H. HEAD	Enquire	To Order
	198758	R.H. HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525270	THREADED INSERT	Enquire	To Order
	13525170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141563	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151485	OIL EXHAUST DUCTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176450	R.H. CYLINDERS HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173540	Cam Cover Gasket RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173985	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177019	END PLATE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177055	Cover Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167135	O-RING D.26,7X1,78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147278	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order
	212538	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	780253	Camshaft Oil Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173784	FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182694	HALF BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541424	STUD BOLT	Enquire	To Order
	13541324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195086	VARIATOR CONTROL SOLENOID VALVE	Enquire	To Order
	195086	VARIATOR CONTROL SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219349	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500624	STUD BOLT	Enquire	To Order
	13541124	STUD BOLT	Enquire	To Order
	13541324	STUD BOLT	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198823	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	212395	COMPLETE R.H. CYLINDERS HEAD	212395 COMPLETE R.H. CYLINDERS HEAD Valid till engine Nr. 78048	-	1	Enquire
-	212395	COMPLETE R.H. CYLINDERS HEAD	212395 COMPLETE R.H. CYLINDERS HEAD Valid from engine Nr. 78049	-	1	Enquire
1	179305	R.H. HEAD	179305 R.H. HEAD Not as spare part / With the complete cylinders head / 180705 / Valid till engine Nr. 78048	-	1	Enquire
1	198758	R.H. HEAD	198758 R.H. HEAD Not as spare part / With the complete cylinders head / 212395 / Valid from engine Nr. 78049	-	1	Enquire
2	13541224	STUD BOLT	13541224 STUD BOLT	-	8	Enquire
3	14326101	THREADED PLUG	14326101 THREADED PLUG	-	9	Enquire
4	282755	THREADED PLUG	282755 THREADED PLUG	-	2	Enquire
5	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	8	Enquire
6	13525270	THREADED INSERT	13525270 THREADED INSERT Not as spare part / Replaced by 13525170	-	6	Enquire
6	13525170	THREADED INSERT	13525170 THREADED INSERT	-	6	Enquire
7	141563	THREADED PLUG	141563 THREADED PLUG	-	2	Enquire
8	11500224	STUD BOLT	11500224 STUD BOLT	-	8	Enquire
9	151485	OIL EXHAUST DUCTING	151485 OIL EXHAUST DUCTING	-	3	Enquire
10	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	-	8	Enquire
11	13541024	STUD BOLT	13541024 STUD BOLT	-	3	Enquire
12	176450	R.H. CYLINDERS HEAD COVER	176450 R.H. CYLINDERS HEAD COVER Not as spare part / With the complete cylinders head / 180705	-	1	Enquire
13	13525470	THREADED INSERT	13525470 THREADED INSERT	-	8	Enquire
14	173540	Cam Cover Gasket RH	173540 Cam Cover Gasket RH	-	1	Enquire
15	173985	UNION	173985 UNION	-	1	Enquire
16	100044	Selflocking nut	100044 Selflocking nut	-	13	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	13	Enquire
18	177019	END PLATE COVER	177019 END PLATE COVER	-	1	Enquire
19	177055	Cover Gasket	177055 Cover Gasket	-	1	Enquire
20	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Not as spare part / Replaced by 14432224	-	2	Enquire
20	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
24	167135	O-RING D.26,7X1,78	167135 O-RING D.26,7X1,78	-	4	Enquire
25	127635	THREADED PLUG	127635 THREADED PLUG	-	5	Enquire
26	147278	O-Ring	147278 O-Ring	-	6	Enquire
27	12604178	Washer	12604178 Washer	-	6	Enquire
28	14304124	SCREW	14304124 SCREW Not as spare part / Replaced by 212538	-	6	Enquire
28	212538	SCREW	212538 SCREW	-	6	Enquire
29	780253	Camshaft Oil Seal	780253 Camshaft Oil Seal	-	2	Enquire
30	173784	FRONT SUPPORT	173784 FRONT SUPPORT Not as spare part / With the complete cylinders head / 180705	-	1	Enquire
31	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
32	182694	HALF BEARING	182694 HALF BEARING	-	4	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
34	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
35	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	1	Enquire
36	11193874	WASHER	11193874 WASHER	-	1	Enquire
37	13541724	STUD BOLT	13541724 STUD BOLT	-	2	Enquire
38	13543424	STUD BOLT	13543424 STUD BOLT	-	1	Enquire
40	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	22	Enquire
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	22	Enquire
42	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	22	Enquire
43	13541424	STUD BOLT	13541424 STUD BOLT Not as spare part / Replaced by 13541321	-	14	Enquire
43	13541324	STUD BOLT	13541324 STUD BOLT	-	14	Enquire
44	13541324	STUD BOLT	13541324 STUD BOLT INTERMEDIATE CAP	-	8	Enquire
45	195086	VARIATOR CONTROL SOLENOID VALVE	195086 VARIATOR CONTROL SOLENOID VALVE VALVE	-	1	Enquire
45	195086	VARIATOR CONTROL SOLENOID VALVE	195086 VARIATOR CONTROL SOLENOID VALVE VALVE / Valid till stock exhaustion	-	1	Enquire
46	219349	TIMING SENSOR	219349 TIMING SENSOR	-	1	Enquire
47	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
48	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
49	11500624	STUD BOLT	11500624 STUD BOLT	-	1	Enquire
49	13541124	STUD BOLT	13541124 STUD BOLT	-	5	Enquire
49	13541324	STUD BOLT	13541324 STUD BOLT	-	3	Enquire
49	13542024	STUD BOLT	13542024 STUD BOLT	-	1	Enquire
49	13541724	STUD BOLT	13541724 STUD BOLT	-	1	Enquire
49	13541824	STUD	13541824 STUD	-	1	Enquire
49	13541624	STUD BOLT	13541624 STUD BOLT	-	1	Enquire
50	320600	CLIP	320600 CLIP	-	1	Enquire
52	198823	THREADED PLUG	198823 THREADED PLUG Valid from engine Nr. 78049	-	2	Enquire
