WATER PUMP AND OIUWATER HEAT EXCHANGER of Ferrari Ferrari 360 Modena

View All

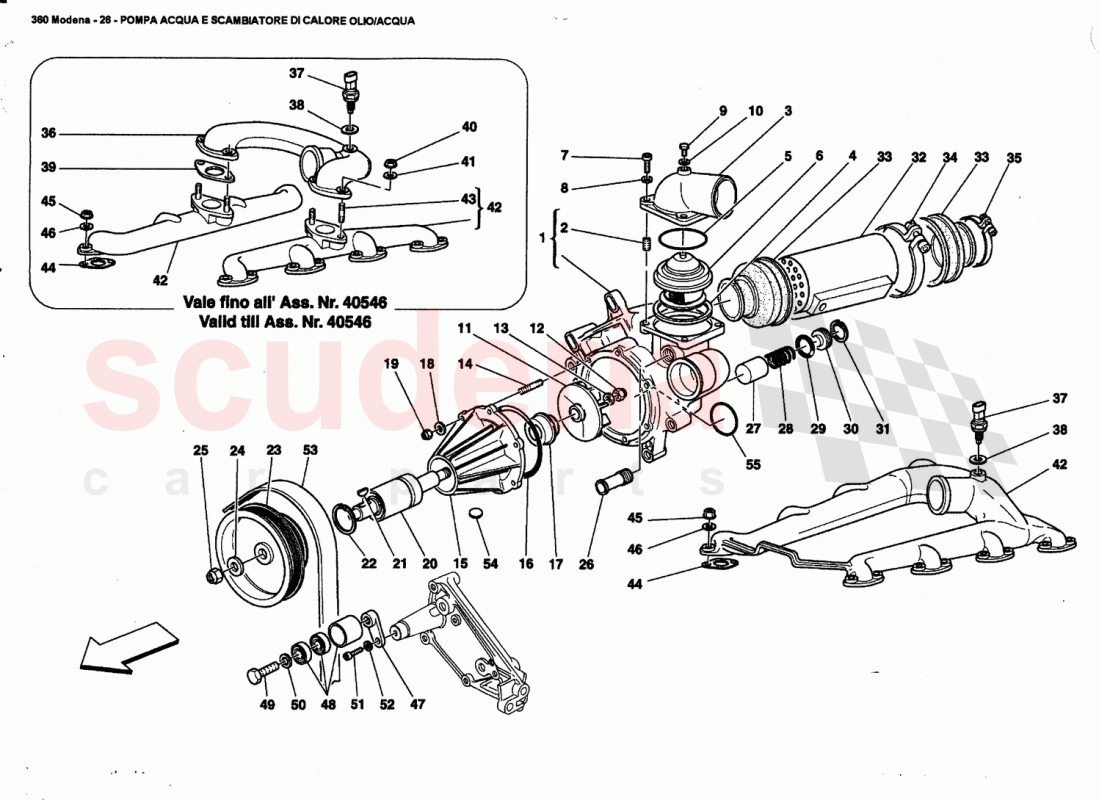

Ferrari 360 Modena - WATER PUMP AND OIUWATER HEAT EXCHANGER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	194105	WATER PUMP BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171926	THERMOSTATIC VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149279	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	950840	WATER THERMOSTAT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	132349	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176045	WATER PUMP ROTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176173	WATER PUMP COVER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137868	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143742	BEARING WITH SHAFT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11059976	SEEGER RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177207	WATER PUMP CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	106227	Fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176046	BUSHING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176047	SPRING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147278	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176048	CAP FOR BYPASS SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11058376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180846	Water-Oil Heat Exchanger	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187173	SLEEVE	Enquire	To Order
	187173	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153430	CLAMP D.70-90MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169526	WATER OUTLET MANIFOLD CONNECTION DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169564	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169749	COMPLETE WATER OUTLET MANIFOLD	Enquire	To Order
	179748	COMPLETE WATER OUTLET MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141332	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180296	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179698	BELT TIGHTENING BEARING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15970921	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14302824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201446	Belt Alternator-Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101044	O-RING	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	194105	WATER PUMP BODY	194105 WATER PUMP BODY	-	1	Enquire
2	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	-	4	Enquire
3	171926	THERMOSTATIC VALVE COVER	171926 THERMOSTATIC VALVE COVER	-	1	Enquire
4	137873	O-Ring IN STOCK	137873 O-Ring IN STOCK	-	1	Enquire
5	149279	O-Ring IN STOCK	149279 O-Ring IN STOCK	-	1	Enquire
6	950840	WATER THERMOSTAT IN STOCK	950840 WATER THERMOSTAT IN STOCK	-	1	Enquire
7	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	4	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
9	132349	CONNECTOR	132349 CONNECTOR	-	1	Enquire
10	10297760	GASKET IN STOCK	10297760 GASKET IN STOCK	-	1	Enquire
11	176045	WATER PUMP ROTOR IN STOCK	176045 WATER PUMP ROTOR IN STOCK	-	1	Enquire
12	100436	BLIND NUT IN STOCK	100436 BLIND NUT IN STOCK	-	1	Enquire
13	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	-	1	Enquire
14	13540924	STUD BOLT	13540924 STUD BOLT	-	6	Enquire
15	176173	WATER PUMP COVER IN STOCK	176173 WATER PUMP COVER IN STOCK	-	1	Enquire
16	137868	O-Ring IN STOCK	137868 O-Ring IN STOCK	-	1	Enquire
17	183759	Water Pump Seal IN STOCK	183759 Water Pump Seal IN STOCK	-	1	Enquire
18	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	6	Enquire
19	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	6	Enquire
20	143742	BEARING WITH SHAFT IN STOCK	143742 BEARING WITH SHAFT IN STOCK	-	1	Enquire
21	10202320	Woodruff Key IN STOCK	10202320 Woodruff Key IN STOCK	-	1	Enquire
22	11059976	SEEGER RING IN STOCK	11059976 SEEGER RING IN STOCK	-	1	Enquire
23	177207	WATER PUMP CONTROL PULLEY	177207 WATER PUMP CONTROL PULLEY	-	1	Enquire
24	12646821	WASHER IN STOCK	12646821 WASHER IN STOCK	-	1	Enquire
25	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	-	1	Enquire
26	106227	Fitting	106227 Fitting	-	1	Enquire
27	176046	BUSHING FOR BYPASS	176046 BUSHING FOR BYPASS	-	1	Enquire
28	176047	SPRING FOR BYPASS	176047 SPRING FOR BYPASS	-	1	Enquire
29	147278	O-Ring IN STOCK	147278 O-Ring IN STOCK	-	1	Enquire
30	176048	CAP FOR BYPASS SPRING	176048 CAP FOR BYPASS SPRING	-	1	Enquire
31	11058376	SEEGER RING	11058376 SEEGER RING	-	1	Enquire
32	180846	Water-Oil Heat Exchanger IN STOCK	180846 Water-Oil Heat Exchanger IN STOCK	-	1	Enquire
33	187173	SLEEVE	187173 SLEEVE	-	2	Enquire
33	187173	SLEEVE	187173 SLEEVE	-	2	Enquire
34	153430	CLAMP D.70-90MM IN STOCK	153430 CLAMP D.70-90MM IN STOCK	-	2	Enquire
35	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	-	2	Enquire
36	169526	WATER OUTLET MANIFOLD CONNECTION DUCT	169526 WATER OUTLET MANIFOLD CONNECTION DUCT CONNECTION DUCT / Valid till Ass. Nr. 40546	-	1	Enquire
37	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR SENSOR IN STOCK	-	1	Enquire
38	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	-	1	Enquire
39	169564	GASKET IN STOCK	169564 GASKET Valid till Ass. Nr. 40546 IN STOCK	-	2	Enquire
40	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED Valid till Ass. Nr. 40546 IN STOCK	-	4	Enquire
41	12601374	WASHER IN STOCK	12601374 WASHER Valid till Ass. Nr. 40546 IN STOCK	-	4	Enquire
42	169749	COMPLETE WATER OUTLET MANIFOLD	169749 COMPLETE WATER OUTLET MANIFOLD MANIFOLD / Valid till Ass. Nr. 40546	-	2	Enquire
42	179748	COMPLETE WATER OUTLET MANIFOLD	179748 COMPLETE WATER OUTLET MANIFOLD MANIFOLD / Valid from Ass. Nr. 40547	-	1	Enquire
43	13516824	STUD BOLT	13516824 STUD BOLT Valid till Ass. Nr. 40546	-	4	Enquire
44	141332	GASKET IN STOCK	141332 GASKET IN STOCK	-	8	Enquire
45	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	16	Enquire
46	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	16	Enquire
47	180296	SMALL PLATE	180296 SMALL PLATE	-	1	Enquire
48	179698	BELT TIGHTENING BEARING IN STOCK	179698 BELT TIGHTENING BEARING IN STOCK	-	1	Enquire
49	15970921	SCREW IN STOCK	15970921 SCREW IN STOCK	-	1	Enquire
50	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	-	1	Enquire
51	14302824	SCREW	14302824 SCREW	-	1	Enquire
52	986899	WASHER	986899 WASHER	-	1	Enquire
53	201446	Belt Alternator-Water Pump	201446 Belt Alternator-Water Pump CONTROL BELT / Valid till stock exhaustion	-	1	Enquire
54	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
55	101044	O-RING IN STOCK	101044 O-RING IN STOCK	-	1	Enquire
