Name: Battery and Battery Disconn. Switch
Rating: 4.5 (1 reviews)

Battery and Battery Disconn. Switch of Ferrari Ferrari 355 Challenge (1999)

View All

Ferrari 355 Challenge (1999) - Battery and Battery Disconn. Switch

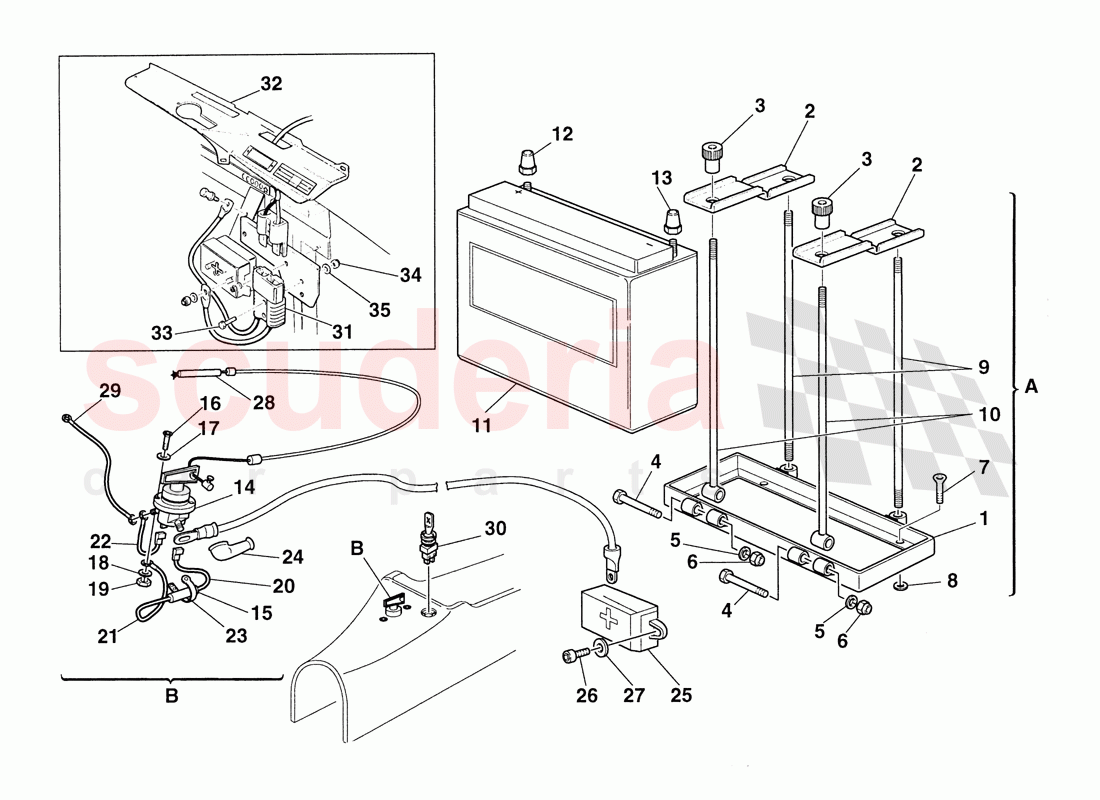

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	169054	Battery frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169053	Upper bracket for battery fastening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146357	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903834	SCREW	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	169056	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164754	Battery conn, cable	Enquire	To Order
	169055	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164713	BATTERY	$1,570.40	To Order

Photo	Part No	Description	Price (each)	Stock
	164751	Positive pin	$33.15	To Order

Photo	Part No	Description	Price (each)	Stock
	164752	Negative pin	$33.15	To Order

Photo	Part No	Description	Price (each)	Stock
	145221	Battery disconn. switch	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	145221	Battery disconn. switch	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	124683	PROTECTIVE CAP	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	15783501	Screw	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	173902	Radiator fan switch	$30.37	To Order

Photo	Part No	Description	Price (each)	Stock
	174863	Auxiliary connector kit	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	174863	Auxiliary connector kit	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	10903224	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14496429	Washer	$0.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	164784	Battery disconnecting switch complete	164784 Battery disconnecting switch complete B on Picture	$382.70	1
-	169072	Battery support kit	169072 Battery support kit A on Picture	$1,207.95	1
1	169054	Battery frame	169054 Battery frame	-	1	Enquire
2	169053	Upper bracket for battery fastening	169053 Upper bracket for battery fastening	-	1	Enquire
3	146357	Ring nut	146357 Ring nut	-	2	Enquire
4	10903834	SCREW	10903834 SCREW	$7.13	1
5	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
7	14440734	SCREW	14440734 SCREW	$6.26	4
8	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	4
9	169056	Stud bolt	169056 Stud bolt	-	1	Enquire
10	164754	Battery conn, cable	164754 Battery conn, cable	-	2	Enquire
10	169055	Stud bolt	169055 Stud bolt	-	1	Enquire
11	164713	BATTERY	164713 BATTERY	$1,570.40	1
12	164751	Positive pin	164751 Positive pin	$33.15	1
13	164752	Negative pin	164752 Negative pin	$33.15	1
14	145221	Battery disconn. switch	145221 Battery disconn. switch	$336.95	1
15	145221	Battery disconn. switch	145221 Battery disconn. switch	$336.95	1
16	145221	Battery disconn. switch	145221 Battery disconn. switch	$336.95	2
17	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
18	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
23	10441390	BRACKET WITH SHEATH	10441390 BRACKET WITH SHEATH	$0.57	1
24	124683	PROTECTIVE CAP	124683 PROTECTIVE CAP	$0.52 MSRP: ~~1.00~~ (48% off)	2
25	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK	$56.14 MSRP: ~~63.85~~ (12.1% off)	1
26	15783501	Screw	15783501 Screw	$3.32	2
27	14496324	WASHER	14496324 WASHER	$3.23	2
28	14496324	WASHER	14496324 WASHER	$3.23	1
29	14496324	WASHER	14496324 WASHER	$3.23	1
30	173902	Radiator fan switch	173902 Radiator fan switch	$30.37	1
31	174863	Auxiliary connector kit	174863 Auxiliary connector kit	$481.36	1
32	174863	Auxiliary connector kit	174863 Auxiliary connector kit	$481.36	1
33	10903224	SCREW	10903224 SCREW	$0.28 MSRP: ~~0.40~~ (30% off)	2
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
35	14496429	Washer	14496429 Washer	$0.05	2
