Find Your Part

View All

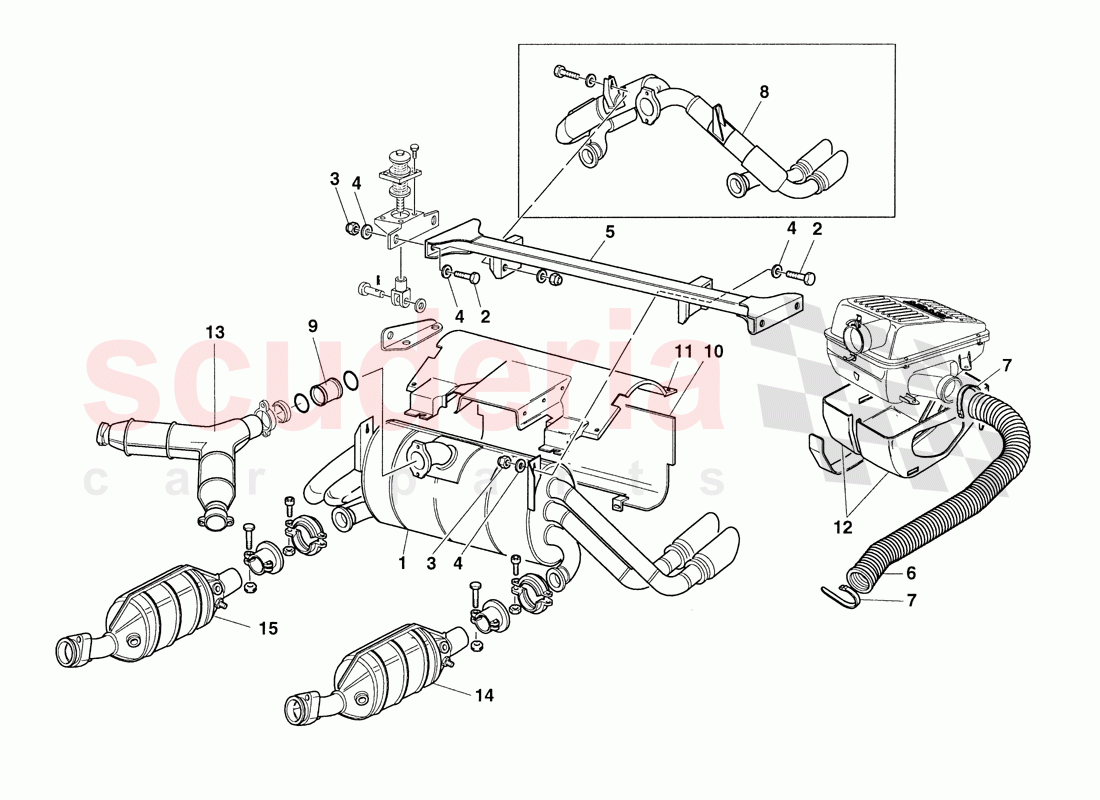

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164783	Exhaust silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550301	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166893	Cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164782	Air intake pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122890	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167003	Special exhaust silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170683	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358300	Rear heat shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153569	Upper heat shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175142	Right air intake shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166581	COMPLETE BY-PASS TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178291	L.H. CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178292	R.H. CATALYST	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	175143	Left air intake shield	175143 Left air intake shield	-	1	Enquire
1	164783	Exhaust silencer	164783 Exhaust silencer	-	1	Enquire
2	16043224	SCREW	16043224 SCREW	-	8	Enquire
3	133989	NUT	133989 NUT	-	8	Enquire
4	13550301	WASHER	13550301 WASHER	-	16	Enquire
5	166893	Cross member	166893 Cross member	-	1	Enquire
6	164782	Air intake pipe	164782 Air intake pipe	-	2	Enquire
7	122890	Clamp	122890 Clamp	-	4	Enquire
8	167003	Special exhaust silencer	167003 Special exhaust silencer	-	1	Enquire
9	170683	Spacer	170683 Spacer	-	1	Enquire
10	65358300	Rear heat shield	65358300 Rear heat shield	-	1	Enquire
11	153569	Upper heat shield	153569 Upper heat shield	-	1	Enquire
12	175142	Right air intake shield	175142 Right air intake shield	-	1	Enquire
13	166581	COMPLETE BY-PASS TUBE	166581 COMPLETE BY-PASS TUBE	-	1	Enquire
14	178291	L.H. CATALYST	178291 L.H. CATALYST	-	1	Enquire
15	178292	R.H. CATALYST	178292 R.H. CATALYST	-	1	Enquire
