Name: Electrical System
Rating: 5.0 (1 reviews)

View All

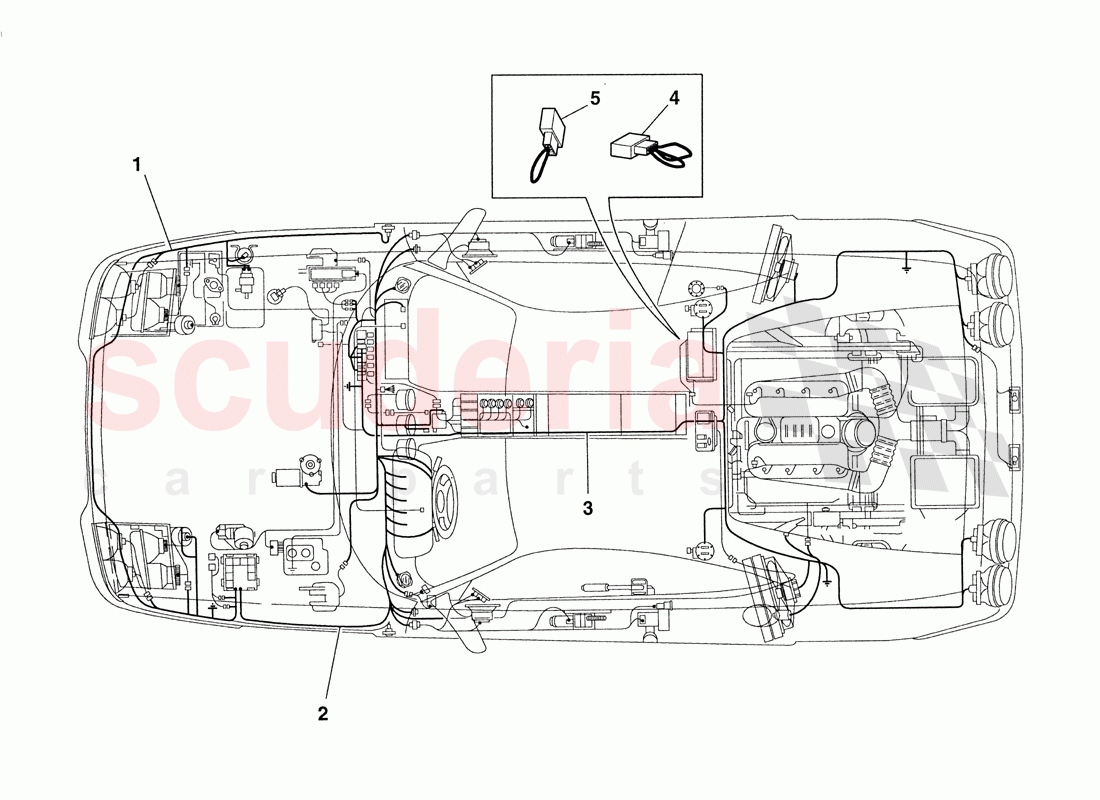

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	172955	FRONT CABLES	$1,726.53	To Order

Photo	Part No	Description	Price (each)	Stock
	173693	Dashboard connection cables	$2,583.39	To Order
	173701	Dashboard connection cables - for AUS	$3,653.65	To Order
	173698	Dashboard connection cables - for J	$2,804.82	To Order

...and 2 more part variants. See table on right for more details.

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	165269	Rear system wiring	$11.30	To Order

Photo	Part No	Description	Price (each)	Stock
	172673	ANTITHEFT CABLE BRIDGE	$7.86	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	172955	FRONT CABLES	172955 FRONT CABLES	$1,726.53	1
2	173693	Dashboard connection cables	173693 Dashboard connection cables	$2,583.39	1
2	173701	Dashboard connection cables - for AUS	173701 Dashboard connection cables - for AUS	$3,653.65	1
2	173698	Dashboard connection cables - for J	173698 Dashboard connection cables - for J	$2,804.82	1
2	173695	Dashboard connection cables - for RH drive	173695 Dashboard connection cables - for RH drive	$1,789.11	1
2	173696	Dashboard connection cables - for USA	173696 Dashboard connection cables - for USA	$2,525.62	1
3	173694	Rear cables	173694 Rear cables	$1,411.48	1
3	173702	Rear cables - for AUS	173702 Rear cables - for AUS	$3,653.65	1
3	173699	Rear cables - for J	173699 Rear cables - for J	$850.42	1
3	173697	Rear cables - for USA	173697 Rear cables - for USA	$2,008.94	1
4	165269	Rear system wiring	165269 Rear system wiring	$11.30	1
5	172673	ANTITHEFT CABLE BRIDGE	172673 ANTITHEFT CABLE BRIDGE	$7.86	1
