DOORS - OPENING CONTROL AND HINGES of Ferrari Ferrari 355 (5.2 Motronic)

View All

Ferrari 355 (5.2 Motronic) - DOORS - OPENING CONTROL AND HINGES

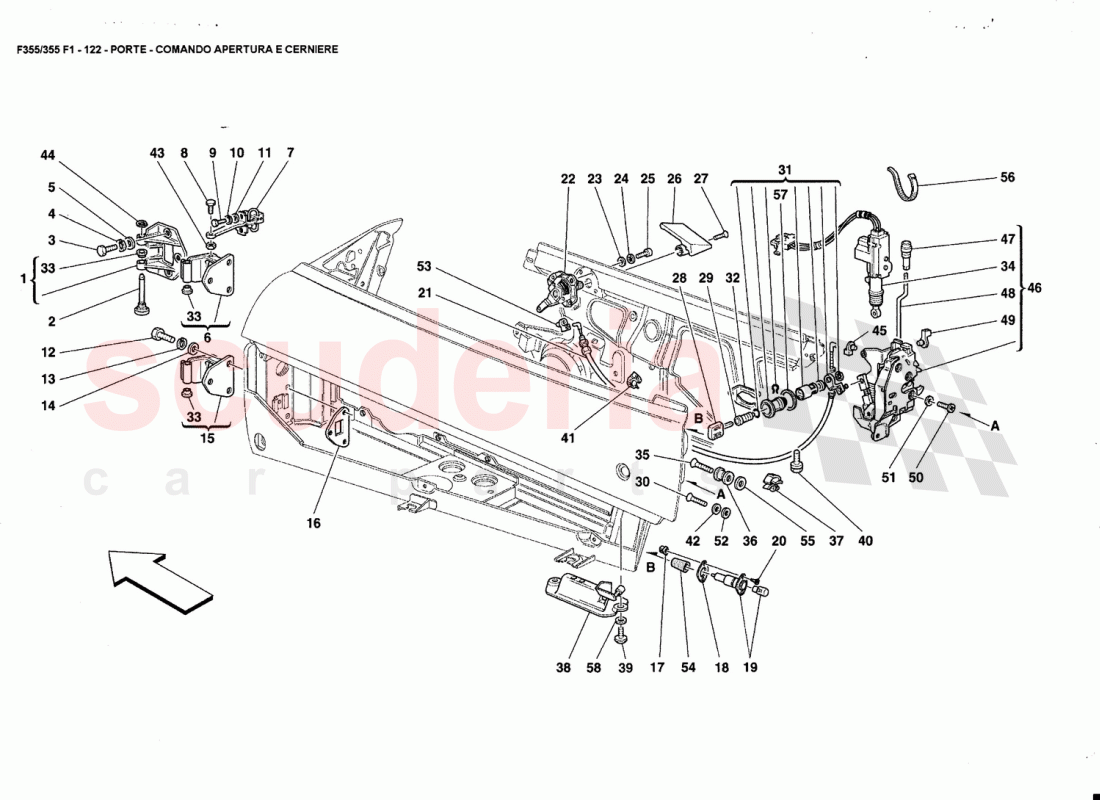

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64379300	FIXED HINGE	Enquire	To Order
	64379300	FIXED HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64375600	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16135924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64379100	UPPER MOBILE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63942000	TIE ROD FOR DOOR STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64375500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63942300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16135924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64379200	LOWER MOBILE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62101100	PLATE FOR MOVABLE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184786	Open-Door Light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64314100	DOOR OPENING CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64536100	LH INNER DEVICE FOR DOOR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60711900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14071911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63519000	LH INNER HANDLE FOR DOOR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13309277	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170010	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64046800	L.H. DOOR BLOCK SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64318300	ELASTIC FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62825300	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62832300	DOORS LOCKING/RELEASING ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62858700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63364100	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61130600	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64458500	LH EXTERIOR DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40063208	CABLE RETAIN CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64312600	L.H. DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62800900	KNOB FOR SAFETY ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62109200	SAFETY LOCK ROD FOR L.H. DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63280600	ROD CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813460	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63314400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63314400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63291200	CABLE RETAIN CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60101201	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63285300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65257600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62794700	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63617600	SAFETY LOCK ROD FOR R.H. DOOR	63617600 SAFETY LOCK ROD FOR R.H. DOOR	-	1	Enquire
-	63695300	ROD CLIP	63695300 ROD CLIP	-	2	Enquire
-	64685200	R.H. DOOR LOCK	64685200 R.H. DOOR LOCK	-	1	Enquire
-	63617700	SAFETY LOCK ROD FOR L.H. DOOR	63617700 SAFETY LOCK ROD FOR L.H. DOOR	-	1	Enquire
-	62109100	SAFETY LOCK ROD FOR R.H. DOOR	62109100 SAFETY LOCK ROD FOR R.H. DOOR	-	1	Enquire
-	64685300	L.H. DOOR LOCK	64685300 L.H. DOOR LOCK	-	1	Enquire
-	64312700	R.H. DOOR LOCK	64312700 R.H. DOOR LOCK	-	1	Enquire
-	64458400	R.H. OUTER DOOR HANDLE	64458400 R.H. OUTER DOOR HANDLE	-	1	Enquire
-	64046700	R.H. DOOR BLOCK SEAT	64046700 R.H. DOOR BLOCK SEAT	-	1	Enquire
-	63518900	RH INNER HANDLE FOR DOOR OPENING	63518900 RH INNER HANDLE FOR DOOR OPENING	-	1	Enquire
-	64536000	RH INNER DEVICE FOR DOOR OPENING	64536000 RH INNER DEVICE FOR DOOR OPENING	-	1	Enquire
-	64829700	LOWER MOBILE HINGE	64829700 LOWER MOBILE HINGE	-	2	Enquire
-	64829600	UPPER MOBILE HINGE	64829600 UPPER MOBILE HINGE	-	2	Enquire
-	64829800	FIXED HINGE	64829800 FIXED HINGE Valid for Spider /	-	4	Enquire
1	64379300	FIXED HINGE	64379300 FIXED HINGE	-	4	Enquire
1	64379300	FIXED HINGE	64379300 FIXED HINGE Not for Spider /	-	4	Enquire
2	64375600	PIN	64375600 PIN	-	4	Enquire
3	16135924	SCREW	16135924 SCREW	-	12	Enquire
4	127496	WASHER	127496 WASHER	-	12	Enquire
5	84653800	WASHER	84653800 WASHER	-	12	Enquire
6	64379100	UPPER MOBILE HINGE	64379100 UPPER MOBILE HINGE	-	2	Enquire
7	63942000	TIE ROD FOR DOOR STOP	63942000 TIE ROD FOR DOOR STOP	-	2	Enquire
8	64375500	SCREW	64375500 SCREW	-	2	Enquire
9	63942300	SCREW	63942300 SCREW	-	4	Enquire
10	127494	WASHER	127494 WASHER	-	4	Enquire
11	13577724	WASHER	13577724 WASHER	-	4	Enquire
12	16135924	SCREW	16135924 SCREW	-	12	Enquire
13	127496	WASHER	127496 WASHER	-	12	Enquire
14	84653800	WASHER	84653800 WASHER	-	12	Enquire
15	64379200	LOWER MOBILE HINGE	64379200 LOWER MOBILE HINGE	-	2	Enquire
16	62101100	PLATE FOR MOVABLE HINGE	62101100 PLATE FOR MOVABLE HINGE HINGE	-	4	Enquire
17	14115580	FIXING BLOCK	14115580 FIXING BLOCK	-	4	Enquire
18	140576	GASKET	140576 GASKET	-	2	Enquire
19	184786	Open-Door Light	184786 Open-Door Light WITH BULB	-	2	Enquire
20	15901470	SCREW	15901470 SCREW	-	4	Enquire
21	64314100	DOOR OPENING CABLE	64314100 DOOR OPENING CABLE	-	2	Enquire
22	64536100	LH INNER DEVICE FOR DOOR OPENING	64536100 LH INNER DEVICE FOR DOOR OPENING OPENING	-	1	Enquire
23	60711900	WASHER	60711900 WASHER	-	6	Enquire
24	149951	WASHER	149951 WASHER	-	6	Enquire
25	14071911	SCREW	14071911 SCREW	-	6	Enquire
26	63519000	LH INNER HANDLE FOR DOOR OPENING	63519000 LH INNER HANDLE FOR DOOR OPENING	-	1	Enquire
27	13309277	SCREW	13309277 SCREW	-	2	Enquire
28	170010	BLANK KEY	170010 BLANK KEY	-	-	Enquire
30	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
31	64046800	L.H. DOOR BLOCK SEAT	64046800 L.H. DOOR BLOCK SEAT	-	1	Enquire
32	64318300	ELASTIC FORK	64318300 ELASTIC FORK	-	2	Enquire
33	62825300	BUSHING	62825300 BUSHING	-	16	Enquire
34	62832300	DOORS LOCKING/RELEASING ACTUATOR	62832300 DOORS LOCKING/RELEASING ACTUATOR ACTUATOR	-	2	Enquire
35	62858700	SCREW	62858700 SCREW	-	2	Enquire
36	63364100	STRIKER	63364100 STRIKER	-	2	Enquire
37	61130600	Spring	61130600 Spring	-	8	Enquire
38	64458500	LH EXTERIOR DOOR HANDLE	64458500 LH EXTERIOR DOOR HANDLE	-	1	Enquire
39	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	4	Enquire
40	13836324	SCREW	13836324 SCREW	-	4	Enquire
41	248061	CLIP	248061 CLIP	-	4	Enquire
42	12643724	WASHER	12643724 WASHER	-	2	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
44	11087974	SNAP RING	11087974 SNAP RING	-	4	Enquire
45	40063208	CABLE RETAIN CLIP	40063208 CABLE RETAIN CLIP	-	2	Enquire
46	64312600	L.H. DOOR LOCK	64312600 L.H. DOOR LOCK	-	1	Enquire
47	62800900	KNOB FOR SAFETY ROD	62800900 KNOB FOR SAFETY ROD	-	2	Enquire
48	62109200	SAFETY LOCK ROD FOR L.H. DOOR	62109200 SAFETY LOCK ROD FOR L.H. DOOR	-	1	Enquire
49	63280600	ROD CLIP	63280600 ROD CLIP	-	2	Enquire
50	813460	SCREW	813460 SCREW	-	6	Enquire
51	63314400	WASHER	63314400 WASHER	-	6	Enquire
52	63314400	WASHER	63314400 WASHER	-	2	Enquire
53	63291200	CABLE RETAIN CLIP	63291200 CABLE RETAIN CLIP	-	2	Enquire
54	60101201	BOOT	60101201 BOOT	-	2	Enquire
55	63285300	WASHER	63285300 WASHER	-	2	Enquire
56	MC43254	CLAMP	MC43254 CLAMP	-	2	Enquire
57	65257600	GASKET	65257600 GASKET	-	2	Enquire
58	62794700	WASHER	62794700 WASHER	-	4	Enquire
