FRONT PART STRUCTURES of Ferrari Ferrari 355 (5.2 Motronic)

View All

Ferrari 355 (5.2 Motronic) - FRONT PART STRUCTURES

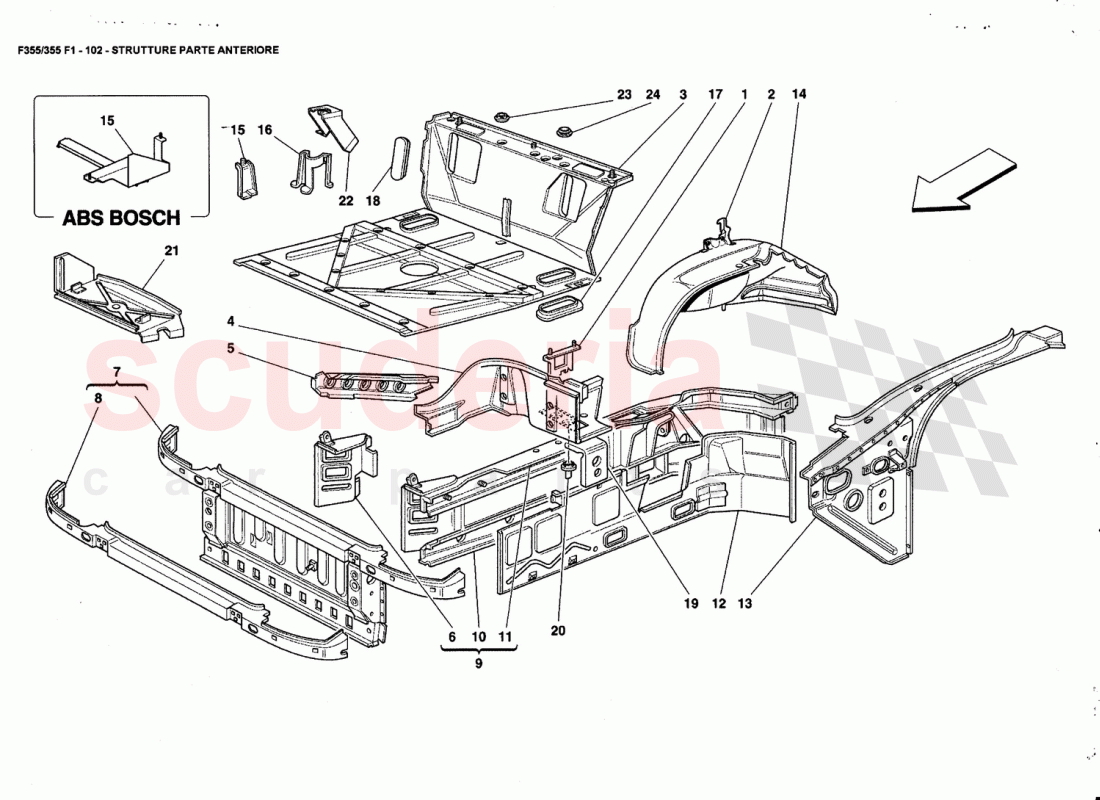

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62166000	BRACKET FOR CONTROL UNIT FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62068300	LH BRACKET FOR FRONT HOOD LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65262400	COMPLETE TRUNK BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63537200	L.H. LIGHT AROUND FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64312800	COMPLETE FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65342300	LH FRONT LATERAL STRUCTURE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62083100	L.H. LOWER SPRAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63597800	L.H. UPPER SPRAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63953900	SPRAGS L.H. SIDE WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64899400	R.H. FENDER SUPPORT WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65335000	L.H. FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165600	DEHYDRATOR FILTER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62678500	PLUG FOR HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62921200	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62121200	BUMPER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63013000	R.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64043800	BATTERY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64292100	BATTERY CUT-OUT SWITCH FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63505900	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	14507187	PLUG	14507187 PLUG	-	1	Enquire
-	63589700	R.H. FRONT WHEELHOUSE	63589700 R.H. FRONT WHEELHOUSE	-	1	Enquire
-	63590100	R.H. FRONT WHEELHOUSE	63590100 R.H. FRONT WHEELHOUSE	-	1	Enquire
-	65291000	WINDSHIELD WASHER BAG FIXING BRACKET	65291000 WINDSHIELD WASHER BAG FIXING BRACKET	-	1	Enquire
-	65335000	L.H. FRONT WHEELHOUSE	65335000 L.H. FRONT WHEELHOUSE	-	1	Enquire
-	65354800	L.H. FRONT WHEELHOUSE	65354800 L.H. FRONT WHEELHOUSE	-	1	Enquire
-	65290700	LH FENDER SUPPORT WALL	65290700 LH FENDER SUPPORT WALL	-	1	Enquire
-	65290900	RH FENDER SUPPORT WALL	65290900 RH FENDER SUPPORT WALL	-	1	Enquire
-	65263000	R.H. UPPER SPRAG	65263000 R.H. UPPER SPRAG	-	1	Enquire
-	64514000	R.H. UPPER SPRAG	64514000 R.H. UPPER SPRAG	-	1	Enquire
-	65350800	R.H. UPPER SPRAG	65350800 R.H. UPPER SPRAG	-	1	Enquire
-	63954000	SPRAGS R.H. SIDE WALL	63954000 SPRAGS R.H. SIDE WALL	-	1	Enquire
-	65332800	L.H. UPPER SPRAG	65332800 L.H. UPPER SPRAG	-	1	Enquire
-	64514100	L.H. UPPER SPRAG	64514100 L.H. UPPER SPRAG	-	1	Enquire
-	65350900	L.H. UPPER SPRAG	65350900 L.H. UPPER SPRAG	-	1	Enquire
-	63597400	R.H. UPPER SPRAG	63597400 R.H. UPPER SPRAG	-	1	Enquire
-	62083000	R.H. LOWER SPRAG	62083000 R.H. LOWER SPRAG	-	1	Enquire
-	65196700	LH FRONT LATERAL STRUCTURE ASSEMBLY	65196700 LH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65262800	RH FRONT LATERAL STRUCTURE ASSEMBLY	65262800 RH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65197100	LH FRONT LATERAL STRUCTURE ASSEMBLY	65197100 LH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65350600	RH FRONT LATERAL STRUCTURE ASSEMBLY	65350600 RH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65354400	RH FRONT LATERAL STRUCTURE ASSEMBLY	65354400 RH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65350700	LH FRONT LATERAL STRUCTURE ASSEMBLY	65350700 LH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65354500	LH FRONT LATERAL STRUCTURE ASSEMBLY	65354500 LH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	65342300	LH FRONT LATERAL STRUCTURE ASSEMBLY	65342300 LH FRONT LATERAL STRUCTURE ASSEMBLY	-	1	Enquire
-	62096200	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	62096200 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	-	1	Enquire
-	63343700	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	63343700 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	-	1	Enquire
-	64513800	COMPLETE FRONT MOULDING	64513800 COMPLETE FRONT MOULDING	-	1	Enquire
-	63597600	REINFORCEMENT FOR FRONT RH SIDE STRUCTURE	63597600 REINFORCEMENT FOR FRONT RH SIDE STRUCTURE R.H. SIDE STRUCTURE	-	1	Enquire
-	63343800	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	63343800 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE Valid for CDN	-	1	Enquire
-	65263300	LH LIGHT AROUND FRAMEWORK	65263300 LH LIGHT AROUND FRAMEWORK	-	1	Enquire
-	64299200	R.H. LIGHT AROUND FRAMEWORK	64299200 R.H. LIGHT AROUND FRAMEWORK Completed with brackets 15 and 16 /	-	1	Enquire
-	65263200	RH LIGHT AROUND FRAMEWORK	65263200 RH LIGHT AROUND FRAMEWORK Completed with bracket 16	-	1	Enquire
-	65262400	COMPLETE TRUNK BOTTOM	65262400 COMPLETE TRUNK BOTTOM Valid for ABS BOSCH and	-	1	Enquire
-	65360000	COMPLETE TRUNK BOTTOM	65360000 COMPLETE TRUNK BOTTOM Valid for GD	-	1	Enquire
-	65360000	COMPLETE TRUNK BOTTOM	65360000 COMPLETE TRUNK BOTTOM	-	1	Enquire
-	62068200	RH BRACKET FOR FRONT HOOD LOCK	62068200 RH BRACKET FOR FRONT HOOD LOCK	-	1	Enquire
1	62166000	BRACKET FOR CONTROL UNIT FIXING	62166000 BRACKET FOR CONTROL UNIT FIXING	-	1	Enquire
2	62068300	LH BRACKET FOR FRONT HOOD LOCK	62068300 LH BRACKET FOR FRONT HOOD LOCK HOOD LOCK	-	1	Enquire
3	65262400	COMPLETE TRUNK BOTTOM	65262400 COMPLETE TRUNK BOTTOM Not for GD / Not for ABS BOSCH and / 355 F1 cars	-	1	Enquire
4	63537200	L.H. LIGHT AROUND FRAMEWORK	63537200 L.H. LIGHT AROUND FRAMEWORK FRAMEWORK / Completed with bracket 1	-	1	Enquire
5	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	63597700 REINFORCEMENT FOR FRONT LH SIDE STRUCTURE L.H. SIDE STRUCTURE	-	1	Enquire
6	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	62096300 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE Not for CDN /	-	1	Enquire
7	64312800	COMPLETE FRONT FRAMEWORK	64312800 COMPLETE FRONT FRAMEWORK	-	1	Enquire
8	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	70000611 UPPER CROSS MEMBER FOR FRONT FRAMEWORK FRONT FRAMEWORK	-	1	Enquire
9	65342300	LH FRONT LATERAL STRUCTURE ASSEMBLY	65342300 LH FRONT LATERAL STRUCTURE ASSEMBLY STRUCTURE ASSEMBLY / Not for CDN and GD	-	1	Enquire
10	62083100	L.H. LOWER SPRAG	62083100 L.H. LOWER SPRAG Without reinforcements	-	1	Enquire
11	63597800	L.H. UPPER SPRAG	63597800 L.H. UPPER SPRAG	-	1	Enquire
12	63953900	SPRAGS L.H. SIDE WALL	63953900 SPRAGS L.H. SIDE WALL	-	1	Enquire
13	64899400	R.H. FENDER SUPPORT WALL	64899400 R.H. FENDER SUPPORT WALL WALL	-	1	Enquire
14	65335000	L.H. FRONT WHEELHOUSE	65335000 L.H. FRONT WHEELHOUSE	-	1	Enquire
15	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	62165400 WINDSHIELD WASHER BAG FIXING BRACKET FIXING BRACKET	-	1	Enquire
16	62165600	DEHYDRATOR FILTER FIXING BRACKET	62165600 DEHYDRATOR FILTER FIXING BRACKET BRACKET	-	1	Enquire
17	62678500	PLUG FOR HOLE	62678500 PLUG FOR HOLE	-	2	Enquire
18	62921200	PLUG	62921200 PLUG	-	2	Enquire
19	62121200	BUMPER FIXING BRACKET	62121200 BUMPER FIXING BRACKET	-	2	Enquire
20	63013000	R.H. PLUG	63013000 R.H. PLUG	-	1	Enquire
21	64043800	BATTERY SUPPORT	64043800 BATTERY SUPPORT	-	1	Enquire
22	64292100	BATTERY CUT-OUT SWITCH FIXING BRACKET	64292100 BATTERY CUT-OUT SWITCH FIXING BRACKET	-	1	Enquire
23	63505900	PLUG	63505900 PLUG	-	1	Enquire
24	14507987	PLUG	14507987 PLUG	-	2	Enquire
