Body-Outer Trims

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - BODY-OUTER TRIMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63962200 COMPLETE L.H. FRONT FENDER Enquire To Order
63962100 COMPLETE R.H. FRONT FENDER Enquire To Order
63962700 COMPLETE R.H. FRONT FENDER Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62065100 LOWER SIDE OF LH FRONT FENDER Enquire To Order
62065000 LOWER SIDE OF RH FRONT FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62065200 FENDER FRONT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
13836971 SCREW Enquire To Order
13836324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62115800 NUT WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
62059500 FRONT SIDE COVERING Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14647590 NUT WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
64680100 COMPLETE R.H. REAR FENDER Enquire To Order
65268500 COMPLETE R.H. REAR FENDER Enquire To Order
65268600 COMPLETE L.H. REAR FENDER Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
70000841 RH UPPER REAR SIDE COVERING Enquire To Order
70000856 RH UPPER REAR SIDE COVERING Enquire To Order
65749400 RH UPPER REAR SIDE COVERING Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64109700 CENTRAL COVERING FOR REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62072800 INTERNAL REINFORCEMENT FOR LH REAR FENDER Enquire To Order
62072700 INTERNAL REINFORCEMENT FOR RH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62055200 STRIKER FIXING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62067000 FRONT SIDE COVERING FOR RH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
70000844 LH LOWER REAR SIDE COVERING Enquire To Order
70000843 RH LOWER REAR SIDE COVERING] Enquire To Order
Photo Part No Description Price (each) Stock
70000634 L.H. DOOR STRIP Enquire To Order
70000633 R.H. DOOR STRIP Enquire To Order
Photo Part No Description Price (each) Stock
64246800 R.H. LOWER PLATE Enquire To Order
64247000 L.H. LOWER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
64246600 COMPLETE REAR WALL FRAMEWORK Enquire To Order
Photo Part No Description Price (each) Stock
64107900 REAR SIDE COVERING Enquire To Order
Photo Part No Description Price (each) Stock
15896472 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
60032109 PRANCING HORSE BADGE CHROME Enquire To Order
Photo Part No Description Price (each) Stock
808769 CAP NUT Enquire To Order
Photo Part No Description Price (each) Stock
10519224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
64420300 R.H. GASKET Enquire To Order
64420400 L.H. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
64989100 CONVEYOR FOR L.H. AIR PLUG Enquire To Order
64988800 CONVEYOR FOR R.H. AIR PLUG Enquire To Order
Photo Part No Description Price (each) Stock
64526100 REAR COVERING SHIELD Enquire To Order
64121600 REAR COVERING SHIELD Enquire To Order
64523400 REAR COVERING SHIELD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
20286209 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65083700 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
64523300 F 355 Spider MARK Enquire To Order
65496100 355 F1 Spider MARK Enquire To Order
64220100 F 355 BERLINETTA LOGO Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64760200 MARK FIXING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
20043105 PININFARINA BADGE Enquire To Order
Photo Part No Description Price (each) Stock
88074800 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14624587 RUBBER CLOSING PLUG D6,3 X 3 Enquire To Order
Photo Part No Description Price (each) Stock
60677000 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
65625500 RH FRONT WHEELHOUSE PROTECTION Enquire To Order
65625400 LH FRONT WHEELHOUSE PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
63557700 GASKET FOR NUT Enquire To Order
Photo Part No Description Price (each) Stock
64174300 FRONT FENDER L.H. ORNAMENT Enquire To Order
64174200 FRONT FENDER R.H. ORNAMENT Enquire To Order
Photo Part No Description Price (each) Stock
16101714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12034470 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12639901 WASHER Enquire To Order
View All

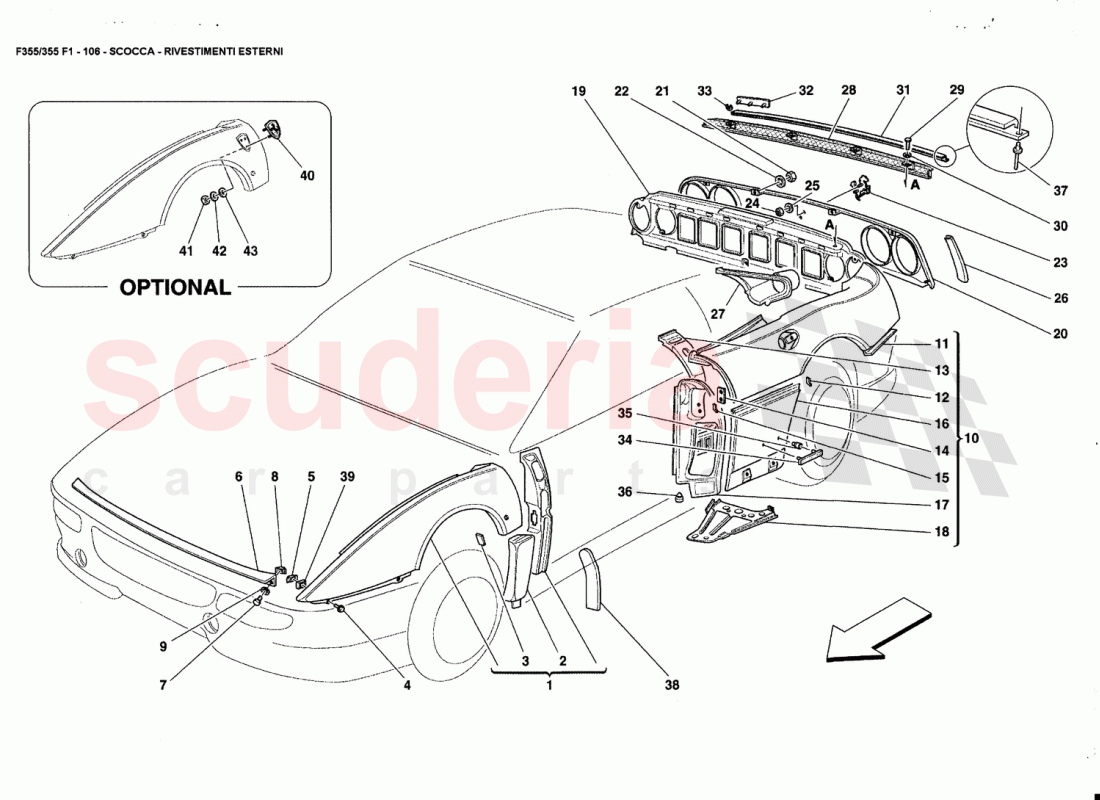

BODY-OUTER TRIMS of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 63962200
COMPLETE L.H. FRONT FENDER 		- 1 Enquire
1 63962100
COMPLETE R.H. FRONT FENDER 		- 1 Enquire
1 63962700
COMPLETE R.H. FRONT FENDER 		- 1 Enquire
1 63962200
COMPLETE L.H. FRONT FENDER
Not for USA and CDN 		- 1 Enquire
1 63962800
COMPLETE L.H. FRONT FENDER
Valid for USA and CDN 		- 1 Enquire
2 62065100
LOWER SIDE OF LH FRONT FENDER
COVERING 		- 1 Enquire
2 62065000
LOWER SIDE OF RH FRONT FENDER 		- 1 Enquire
3 62065200
FENDER FRONT PROTECTION 		- 2 Enquire
4 13836971
SCREW 		- 12 Enquire
4 13836324
SCREW 		- 2 Enquire
5 62115800
NUT WITH CAGE 		- 14 Enquire
6 62059500
FRONT SIDE COVERING 		- 1 Enquire
7 10977624
SCREW 		- 6 Enquire
8 14647590
NUT WITH CAGE 		- 6 Enquire
9 860172
WASHER 		- 6 Enquire
10 64680100
COMPLETE R.H. REAR FENDER 		- 1 Enquire
10 65268500
COMPLETE R.H. REAR FENDER 		- 1 Enquire
10 65268600
COMPLETE L.H. REAR FENDER 		- 1 Enquire
10 64115600
COMPLETE R.H. REAR FENDER 		- 1 Enquire
10 64522600
COMPLETE R.H. REAR FENDER 		- 1 Enquire
10 65268300
COMPLETE R.H. REAR FENDER 		- 1 Enquire
10 65268400
COMPLETE L.H. REAR FENDER
Valid from car Nr. 107437 GS and / from car Nr. 107413 GD 		- 1 Enquire
10 64680200
COMPLETE L.H. REAR FENDER
Valid for USA Spider and CDN Spider 		- 1 Enquire
10 64115700
COMPLETE L.H. REAR FENDER
Not for Spider 		- 1 Enquire
10 64522711
COMPLETE L.H. REAR FENDER
Valid for Spider / Valid till car Nr. 107436 GS and / till car Nr. 107412 GD 		- 1 Enquire
11 70000841
RH UPPER REAR SIDE COVERING 		- 1 Enquire
11 70000856
RH UPPER REAR SIDE COVERING 		- 1 Enquire
11 65749400
RH UPPER REAR SIDE COVERING 		- 1 Enquire
11 70000842
LH UPPER REAR SIDE COVERING 		- 1 Enquire
11 70000855
LH UPPER REAR SIDE COVERING 		- 1 Enquire
11 65749300
LH UPPER REAR SIDE COVERING 		- 1 Enquire
12 64109700
CENTRAL COVERING FOR REAR FENDER
REAR FENDER 		- 2 Enquire
13 62072800
INTERNAL REINFORCEMENT FOR LH REAR FENDER
FOR R.H. REAR FENDER 		- 1 Enquire
13 62072700
INTERNAL REINFORCEMENT FOR RH REAR FENDER 		- 1 Enquire
14 62055200
STRIKER FIXING PLATE 		- 2 Enquire
15 62067000
FRONT SIDE COVERING FOR RH REAR FENDER
FOR REAR FENDER 		- 2 Enquire
16 70000844
LH LOWER REAR SIDE COVERING 		- 1 Enquire
16 70000843
RH LOWER REAR SIDE COVERING] 		- 1 Enquire
17 70000634
L.H. DOOR STRIP
Completed with plate 14 		- 1 Enquire
17 70000633
R.H. DOOR STRIP 		- 1 Enquire
18 64246800
R.H. LOWER PLATE 		- 1 Enquire
18 64247000
L.H. LOWER PLATE 		- 1 Enquire
19 64246600
COMPLETE REAR WALL FRAMEWORK
FRAMEWORK 		- 1 Enquire
20 64107900
REAR SIDE COVERING 		- 1 Enquire
21 15896472
NUT 		- 15 Enquire
22 62769800
WASHER 		- 15 Enquire
23 60032109
PRANCING HORSE BADGE CHROME 		- 1 Enquire
24 808769
CAP NUT 		- 2 Enquire
25 10519224
WASHER 		- 2 Enquire
26 64420300
R.H. GASKET 		- 1 Enquire
26 64420400
L.H. GASKET 		- 1 Enquire
27 64989100
CONVEYOR FOR L.H. AIR PLUG 		- 1 Enquire
27 64988800
CONVEYOR FOR R.H. AIR PLUG 		- 1 Enquire
28 64526100
REAR COVERING SHIELD
Valid for USA GTS, CDN GTS, AUS GTS 		- 1 Enquire
28 64121600
REAR COVERING SHIELD
Valid for USA, CDN, AUS and ORIENTE 		- 1 Enquire
28 64523400
REAR COVERING SHIELD
Valid for GTS / Not for USA GTS, CDN GTS, AUS GTS / and ORIENTE GTS 		- 1 Enquire
28 64116600
REAR COVERING SHIELD
Not for GTS / Not for USA, CDN, AUS and ORIENTE 		- 1 Enquire
29 20286209
SCREW 		- 4 Enquire
30 11181574
WASHER 		- 4 Enquire
31 65083700
GASKET 		- 1 Enquire
32 64523300
F 355 Spider MARK 		- 1 Enquire
32 65496100
355 F1 Spider MARK 		- 1 Enquire
32 64220100
F 355 BERLINETTA LOGO
Not for 355 F1 / Valid for BERLINETTA 		- 1 Enquire
32 65495900
355 F1 BERLINETTA MARK
Valid for 355 F1 		- 1 Enquire
32 64471400
F 355 GTS MARK 		- 1 Enquire
32 65496000
355 F1 GTS MARK 		- 1 Enquire
33 64760200
MARK FIXING PLATE 		- 3 Enquire
34 20043105
PININFARINA BADGE 		- 2 Enquire
35 88074800
CLIP 		- 4 Enquire
36 14624587
RUBBER CLOSING PLUG D6,3 X 3 		- 2 Enquire
37 60677000
RIVET 		- 2 Enquire
38 65625500
RH FRONT WHEELHOUSE PROTECTION 		- 1 Enquire
38 65625400
LH FRONT WHEELHOUSE PROTECTION
PROTECTION / Valid till stock exhaustion 		- 1 Enquire
39 63557700
GASKET FOR NUT 		- 6 Enquire
40 64174300
FRONT FENDER L.H. ORNAMENT
Optional 		- 1 Enquire
40 64174200
FRONT FENDER R.H. ORNAMENT 		- 1 Enquire
41 16101714
NUT 		- 6 Enquire
42 12034470
WASHER 		- 6 Enquire
43 12639901
WASHER 		- 6 Enquire
