CENTRAL PART STRUCTURES of Ferrari Ferrari 355 (5.2 Motronic)

View All

Ferrari 355 (5.2 Motronic) - CENTRAL PART STRUCTURES

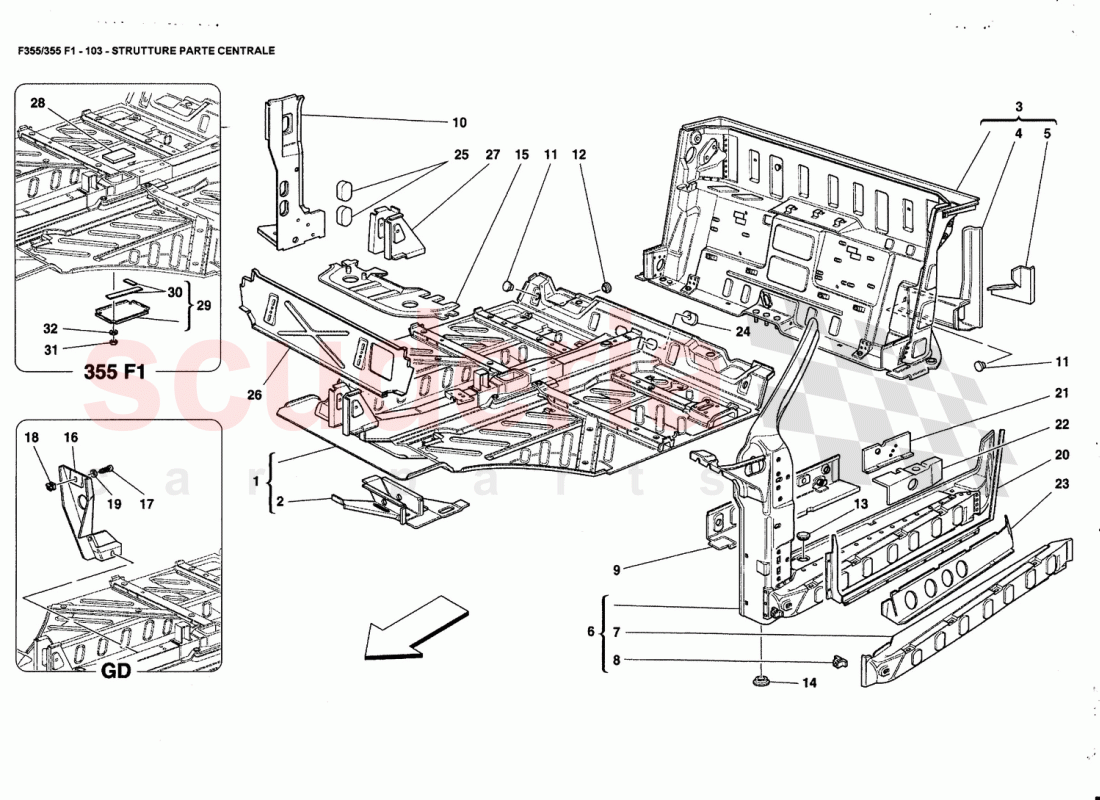

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65730800	COMPLETE CENTRAL FLOOR	Enquire	To Order
	65730800	COMPLETE CENTRAL FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62164100	L.H. PLATE WITH REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64899200	COMPLETE REAR FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64245800	MOVING FRAME FIXING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64302200	REINFORCEMENT L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62088600	COMPLETE FRAMEWORK FOR LH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62077400	EXTERNAL COVERING FOR LH SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62055300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62069000	INTERNAL PLATE FOR LH SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62080100	R.H. PILLAR BOX-TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506987	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	952336	BLANKING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62209400	REINFORCEMENT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64447000	FOOT-REST REINFORCEMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903975	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14202782	BLOCK -Valid for SA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64374200	L.H. STRUCTURAL SHAPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63011300	L.H. REAR REINFORCEMENT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64384300	L.H. OUTER REAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63011500	L.H. OUTER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63566000	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64463600	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330200	DASH PANEL LOWER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62063700	UNION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64733900	PLATE FOR CENTRAL TUNNEL HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64733700	PLATE FOR PAVEMENT HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64735400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64436600	DASH PANEL LOWER SHIELD	64436600 DASH PANEL LOWER SHIELD	-	1	Enquire
-	63011400	R.H. OUTER REINFORCEMENT	63011400 R.H. OUTER REINFORCEMENT	-	1	Enquire
-	64384700	L.H. REAR REINFORCEMENT PLATE	64384700 L.H. REAR REINFORCEMENT PLATE Valid for GTS and Spider	-	1	Enquire
-	63011200	R.H. REAR REINFORCEMENT PLATE	63011200 R.H. REAR REINFORCEMENT PLATE	-	1	Enquire
-	64384600	R.H. REAR REINFORCEMENT PLATE	64384600 R.H. REAR REINFORCEMENT PLATE	-	1	Enquire
-	64384200	R.H. OUTER REAR REINFORCEMENT	64384200 R.H. OUTER REAR REINFORCEMENT	-	1	Enquire
-	64645400	L.H. STRUCTURAL SHAPE ASSEMBLY	64645400 L.H. STRUCTURAL SHAPE ASSEMBLY	-	1	Enquire
-	64374100	R.H. STRUCTURAL SHAPE ASSEMBLY	64374100 R.H. STRUCTURAL SHAPE ASSEMBLY	-	1	Enquire
-	64645300	R.H. STRUCTURAL SHAPE ASSEMBLY	64645300 R.H. STRUCTURAL SHAPE ASSEMBLY	-	1	Enquire
-	62446300	D. 30 PLUG	62446300 D. 30 PLUG	-	4	Enquire
-	62068900	INTERNAL PLATE FOR RH SIDE MEMBER	62068900 INTERNAL PLATE FOR RH SIDE MEMBER	-	1	Enquire
-	62080200	L.H. PILLAR BOX-TYPE	62080200 L.H. PILLAR BOX-TYPE	-	1	Enquire
-	64522400	R.H. DOOR COMPARTMENT FRAME	64522400 R.H. DOOR COMPARTMENT FRAME	-	1	Enquire
-	62077300	EXTERNAL COVERING FOR RH SIDE MEMBER	62077300 EXTERNAL COVERING FOR RH SIDE MEMBER R.H. SIDE MEMBER	-	1	Enquire
-	64384500	L.H. DOOR COMPARTMENT FRAME	64384500 L.H. DOOR COMPARTMENT FRAME Valid for GTS	-	1	Enquire
-	64522500	L.H. DOOR COMPARTMENT FRAME	64522500 L.H. DOOR COMPARTMENT FRAME	-	1	Enquire
-	62088500	COMPLETE FRAMEWORK FOR RH DOOR	62088500 COMPLETE FRAMEWORK FOR RH DOOR	-	1	Enquire
-	64384400	R.H. DOOR COMPARTMENT FRAME	64384400 R.H. DOOR COMPARTMENT FRAME	-	1	Enquire
-	65355500	COMPLETE REAR FRAMEWORK	65355500 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65487500	COMPLETE REAR FRAMEWORK	65487500 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	64781800	MOVING FRAME FIXING CROSS MEMBER	64781800 MOVING FRAME FIXING CROSS MEMBER	-	1	Enquire
-	64938000	COMPLETE REAR FRAMEWORK	64938000 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65354600	COMPLETE REAR FRAMEWORK	65354600 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65429100	COMPLETE REAR FRAMEWORK	65429100 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	64954200	COMPLETE REAR FRAMEWORK	64954200 COMPLETE REAR FRAMEWORK Valid for Spider GD	-	1	Enquire
-	65403100	COMPLETE REAR FRAMEWORK	65403100 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	64934400	COMPLETE REAR FRAMEWORK	64934400 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65342600	COMPLETE REAR FRAMEWORK	65342600 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65457800	COMPLETE REAR FRAMEWORK	65457800 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65749200	COMPLETE CENTRAL FLOOR	65749200 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	62164000	R.H. PLATE WITH REINFORCEMENT	62164000 R.H. PLATE WITH REINFORCEMENT	-	1	Enquire
-	65330700	COMPLETE REAR FRAMEWORK	65330700 COMPLETE REAR FRAMEWORK	-	1	Enquire
-	65731000	COMPLETE CENTRAL FLOOR	65731000 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	65749100	COMPLETE CENTRAL FLOOR	65749100 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	65731100	COMPLETE CENTRAL FLOOR	65731100 COMPLETE CENTRAL FLOOR Valid for GD Spider	-	1	Enquire
-	65731100	COMPLETE CENTRAL FLOOR	65731100 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	65730900	COMPLETE CENTRAL FLOOR	65730900 COMPLETE CENTRAL FLOOR Valid for Spider / Not for GD	-	1	Enquire
-	65730900	COMPLETE CENTRAL FLOOR	65730900 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	65749000	COMPLETE CENTRAL FLOOR	65749000 COMPLETE CENTRAL FLOOR	-	1	Enquire
-	65731000	COMPLETE CENTRAL FLOOR	65731000 COMPLETE CENTRAL FLOOR Valid for GD / Not for Spider	-	1	Enquire
-	65730800	COMPLETE CENTRAL FLOOR	65730800 COMPLETE CENTRAL FLOOR Valid for ABS BOSCH cars /	-	1	Enquire
-	65748900	COMPLETE CENTRAL FLOOR	65748900 COMPLETE CENTRAL FLOOR	-	1	Enquire
1	65730800	COMPLETE CENTRAL FLOOR	65730800 COMPLETE CENTRAL FLOOR Not for 355F1 / Valid for 355F1 / Notf or 355F1	-	1	Enquire
1	65730800	COMPLETE CENTRAL FLOOR	65730800 COMPLETE CENTRAL FLOOR Not for Spider-Not for GD / Not for ABS BOSCH and 355 F1 cars	-	1	Enquire
2	62164100	L.H. PLATE WITH REINFORCEMENT	62164100 L.H. PLATE WITH REINFORCEMENT	-	1	Enquire
3	64899200	COMPLETE REAR FRAMEWORK	64899200 COMPLETE REAR FRAMEWORK	-	1	Enquire
4	64245800	MOVING FRAME FIXING CROSS MEMBER	64245800 MOVING FRAME FIXING CROSS MEMBER MEMBER	-	1	Enquire
5	64302200	REINFORCEMENT L.H. BRACKET	64302200 REINFORCEMENT L.H. BRACKET REINFORCEMENT R.H. BRACKET	-	1	Enquire
6	62088600	COMPLETE FRAMEWORK FOR LH DOOR	62088600 COMPLETE FRAMEWORK FOR LH DOOR Not for GTS and Spider	-	1	Enquire
7	62077400	EXTERNAL COVERING FOR LH SIDE MEMBER	62077400 EXTERNAL COVERING FOR LH SIDE MEMBER L.H. SIDE MEMBER	-	1	Enquire
8	62055300	BRACKET	62055300 BRACKET	-	2	Enquire
9	62069000	INTERNAL PLATE FOR LH SIDE MEMBER	62069000 INTERNAL PLATE FOR LH SIDE MEMBER	-	1	Enquire
10	62080100	R.H. PILLAR BOX-TYPE	62080100 R.H. PILLAR BOX-TYPE	-	1	Enquire
11	14506987	CAP	14506987 CAP	-	9	Enquire
12	14506587	PLUG	14506587 PLUG	-	1	Enquire
13	14507987	PLUG	14507987 PLUG	-	2	Enquire
14	952336	BLANKING PLUG	952336 BLANKING PLUG	-	4	Enquire
15	62209400	REINFORCEMENT PLATE	62209400 REINFORCEMENT PLATE	-	1	Enquire
16	64447000	FOOT-REST REINFORCEMENT BRACKET	64447000 FOOT-REST REINFORCEMENT BRACKET BRACKET	-	1	Enquire
17	15903975	Screw	15903975 Screw	-	2	Enquire
18	14202782	BLOCK -Valid for SA-	14202782 BLOCK -Valid for SA-	-	2	Enquire
19	62769800	WASHER	62769800 WASHER	-	2	Enquire
20	64374200	L.H. STRUCTURAL SHAPE ASSEMBLY	64374200 L.H. STRUCTURAL SHAPE ASSEMBLY	-	1	Enquire
21	63011300	L.H. REAR REINFORCEMENT PLATE	63011300 L.H. REAR REINFORCEMENT PLATE Valid for BERLINETTA	-	1	Enquire
22	64384300	L.H. OUTER REAR REINFORCEMENT	64384300 L.H. OUTER REAR REINFORCEMENT	-	1	Enquire
23	63011500	L.H. OUTER REINFORCEMENT	63011500 L.H. OUTER REINFORCEMENT	-	1	Enquire
24	63566000	SEAL RING	63566000 SEAL RING	-	1	Enquire
25	64463600	THICKNESS	64463600 THICKNESS	-	2	Enquire
26	64330200	DASH PANEL LOWER SHIELD	64330200 DASH PANEL LOWER SHIELD	-	1	Enquire
27	62063700	UNION BRACKET	62063700 UNION BRACKET	-	1	Enquire
28	64733900	PLATE FOR CENTRAL TUNNEL HOLE	64733900 PLATE FOR CENTRAL TUNNEL HOLE Valid for 355 F1	-	1	Enquire
29	64733700	PLATE FOR PAVEMENT HOLE	64733700 PLATE FOR PAVEMENT HOLE	-	1	Enquire
30	64735400	GASKET	64735400 GASKET	-	4	Enquire
31	147985	NUT	147985 NUT	-	4	Enquire
32	84653800	WASHER	84653800 WASHER	-	4	Enquire
