Electrical System - Not for USA of Ferrari Ferrari 348 TS (1993)

View All

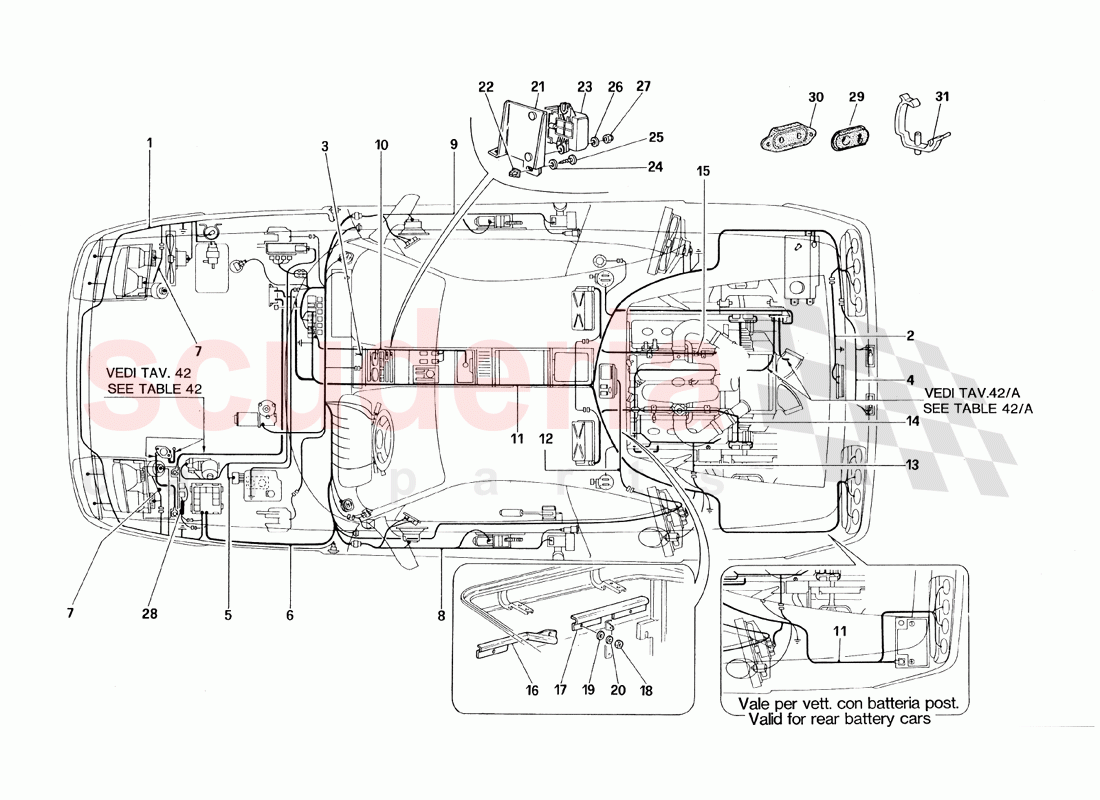

Ferrari 348 TS (1993) - Electrical System - Not for USA

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	134426	FRONT CABLES -Not for J-	Enquire	To Order
	139573	FRONT CABLES -Valid for J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140835	CABLE FOR FURTHER STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153142	CAR RADIO CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139367	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134436	CABLES FOR ANTISKID DEVICES CONNECTION	Enquire	To Order
	142530	CABLES FOR ANTISKID DEVICES CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146916	DASHBOARD CONNECTION CABLES	Enquire	To Order
	146605	DASHBOARD CONNECTION CABLES	Enquire	To Order
	146155	DASHBOARD CONNECTION CABLES	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	138914	FRONT HEADLIGHT CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153784	L.H. DOOR CONNECTION CABLES	Enquire	To Order
	153783	L.H. DOOR CONNECTION CABLES	Enquire	To Order
	146740	LH DOOR CONNECTION CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	134431	RH DOOR CONNECTION CABLES	Enquire	To Order
	151100	RH DOOR CONNECTION CABLES	Enquire	To Order
	146741	LH DOOR CONNECTION CABLES	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	134429	CABLES FOR TUNNEL-CONSOLE CONNECTION	Enquire	To Order
	139524	CABLES FOR TUNNEL CONSOLE CONNECTION	Enquire	To Order
	145772	CABLES FOR TUNNEL CONSOLE CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151561	REAR CABLES	Enquire	To Order
	151560	REAR CABLES	Enquire	To Order
	151558	REAR CABLES	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	134432	ROOF LIGHT CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151912	CONNECTION CABLES FOR ENGINE UTILITIES	Enquire	To Order
	142747	CONNECTION CABLES FOR MOTOR UTILITIES	Enquire	To Order
	151333	CONNECTION CABLES FOR MOTOR UTILITIES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	134435	CABLES FOR LH MAIN BEARINGS CONNECTION	Enquire	To Order
	139491	CABLES FOR LH MAIN BEARINGS CONNECTION	Enquire	To Order
	143207	CABLES FOR LH SIDE ENGINE CONNECTION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	134426	FRONT CABLES -Not for J-	134426 FRONT CABLES -Not for J- Not for CDN and J	-	1	Enquire
1	139573	FRONT CABLES -Valid for J-	139573 FRONT CABLES -Valid for J- Valid for CDN and J	-	1	Enquire
2	140835	CABLE FOR FURTHER STOP LIGHT	140835 CABLE FOR FURTHER STOP LIGHT Valid for CDN and AUS	-	1	Enquire
3	153142	CAR RADIO CABLES	153142 CAR RADIO CABLES	-	1	Enquire
4	139367	CABLES FOR NUMBER PLATE LIGHTS	139367 CABLES FOR NUMBER PLATE LIGHTS	-	1	Enquire
5	134436	CABLES FOR ANTISKID DEVICES CONNECTION	134436 CABLES FOR ANTISKID DEVICES CONNECTION Not per GD	-	1	Enquire
5	142530	CABLES FOR ANTISKID DEVICES CONNECTION	142530 CABLES FOR ANTISKID DEVICES CONNECTION Valid per GD	-	1	Enquire
6	146916	DASHBOARD CONNECTION CABLES	146916 DASHBOARD CONNECTION CABLES Valid for M. 2.7 Not for CDN, GD.SA andJ	-	1	Enquire
6	146605	DASHBOARD CONNECTION CABLES	146605 DASHBOARD CONNECTION CABLES Valid for M. 2.7 Valid for CON	-	1	Enquire
6	146155	DASHBOARD CONNECTION CABLES	146155 DASHBOARD CONNECTION CABLES Valid for SA and J	-	1	Enquire
6	145760	DASHBOARD CONNECTION CABLES	145760 DASHBOARD CONNECTION CABLES Valid for M. 2.7 Valid for GD	-	1	Enquire
6	140613	DASHBOARD CONNECTION CABLES	140613 DASHBOARD CONNECTION CABLES Valid for M. 2.5 Valid for GD	-	1	Enquire
6	134427	DASHBOARD CONNECTION CABLES	134427 DASHBOARD CONNECTION CABLES Valid for M. 2.5 Not for GD, SA and J	-	1	Enquire
7	138914	FRONT HEADLIGHT CONNECTION CABLES	138914 FRONT HEADLIGHT CONNECTION CABLES Valid for CDN	-	2	Enquire
8	153784	L.H. DOOR CONNECTION CABLES	153784 L.H. DOOR CONNECTION CABLES Valid for GD Valid after stock exhaustion of 146741 Valid for bellows assembly 153703 See Table 118 Part. 23	-	1	Enquire
8	153783	L.H. DOOR CONNECTION CABLES	153783 L.H. DOOR CONNECTION CABLES Valid for M. 2.7 Not for GD Valid after stock exhaustion of 146740 -Valid for bellows assembly 153703 See Table 118 Part. 23	-	1	Enquire
8	146740	LH DOOR CONNECTION CABLES	146740 LH DOOR CONNECTION CABLES Valid for M. 2.7 Not for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22	-	1	Enquire
8	146741	LH DOOR CONNECTION CABLES	146741 LH DOOR CONNECTION CABLES Valid for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22	-	1	Enquire
8	134430	LH DOOR CONNECTION CABLES	134430 LH DOOR CONNECTION CABLES Valid for M. 2.5 Not for GD Valid for bellows 138903 See Table 11 8 Part. 22	-	1	Enquire
9	134431	RH DOOR CONNECTION CABLES	134431 RH DOOR CONNECTION CABLES Valid for M. 2.5 Not for GD Valid for bellows 138903 See Table 118 Part. 22	-	1	Enquire
9	151100	RH DOOR CONNECTION CABLES	151100 RH DOOR CONNECTION CABLES Valid for GD Valid till stock exhaustion Valid for bellows 138903 See Table 11 8 Part. 22	-	1	Enquire
9	146741	LH DOOR CONNECTION CABLES	146741 LH DOOR CONNECTION CABLES Valid for M. 2.7 Not for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22	-	1	Enquire
9	153784	L.H. DOOR CONNECTION CABLES	153784 L.H. DOOR CONNECTION CABLES Valid for M. 2.7 Not for GD Validafterstock exhaustion of 146741 valid for bellows assembly 153703 see table118 part. 23	-	1	Enquire
9	153785	R.H. DOOR CONNECTION CABLES	153785 R.H. DOOR CONNECTION CABLES Valid for GD Valid after stock exhaustion of 1 51100 Valid for bellows assembly 153703 See Table 118 Part. 23	-	1	Enquire
10	134429	CABLES FOR TUNNEL-CONSOLE CONNECTION	134429 CABLES FOR TUNNEL-CONSOLE CONNECTION Valid for M. 2.5	-	1	Enquire
10	139524	CABLES FOR TUNNEL CONSOLE CONNECTION	139524 CABLES FOR TUNNEL CONSOLE CONNECTION Valid for M. 2.7 Not for AUS	-	1	Enquire
10	145772	CABLES FOR TUNNEL CONSOLE CONNECTION	145772 CABLES FOR TUNNEL CONSOLE CONNECTION Valid for AUS	-	1	Enquire
11	151561	REAR CABLES	151561 REAR CABLES Valid for SA and J Valid for front battery cars	-	1	Enquire
11	151560	REAR CABLES	151560 REAR CABLES Valid for CDN Valid for front battery cars	-	1	Enquire
11	151558	REAR CABLES	151558 REAR CABLES Valid for AUS Valid for front battery cars	-	1	Enquire
11	151332	REAR CABLES	151332 REAR CABLES Valid for Wl. 2.7 Not for CDN, AUS, SA and J Valid for front battery cars	-	1	Enquire
11	146606	REAR CABLES	146606 REAR CABLES Valid for CDN Valid for rear battery cars	-	1	Enquire
11	146917	REAR CABLES	146917 REAR CABLES Valid for M. 2.7 Not for CDN, AUS, SA and J Valid for rear battery cars	-	1	Enquire
11	146156	REAR CABLES	146156 REAR CABLES Valid for SA and J Valid for rear battery cars	-	1	Enquire
11	134428	REAR CABLES	134428 REAR CABLES Valid for Wl. 2.5	-	1	Enquire
11	145761	REAR CABLES	145761 REAR CABLES Valid for AUS Valid for rear battery cars	-	1	Enquire
12	134432	ROOF LIGHT CONNECTION CABLES	134432 ROOF LIGHT CONNECTION CABLES	-	1	Enquire
13	151912	CONNECTION CABLES FOR ENGINE UTILITIES	151912 CONNECTION CABLES FOR ENGINE UTILITIES Valid for Wl. 2.7 Valid for front battery cars Valid from engine Nr. 30738	-	1	Enquire
13	142747	CONNECTION CABLES FOR MOTOR UTILITIES	142747 CONNECTION CABLES FOR MOTOR UTILITIES Valid for M. 2.7 Valid for rear battery cars	-	1	Enquire
13	151333	CONNECTION CABLES FOR MOTOR UTILITIES	151333 CONNECTION CABLES FOR MOTOR UTILITIES Valid for M. 2.7 Valid for front battery cars Valid till engine Nr. 30737	-	1	Enquire
13	134433	CONNECTION CABLES FOR MOTOR UTILITIES	134433 CONNECTION CABLES FOR MOTOR UTILITIES Valid for Wl. 2.5	-	1	Enquire
14	134435	CABLES FOR LH MAIN BEARINGS CONNECTION	134435 CABLES FOR LH MAIN BEARINGS CONNECTION Valid for M. 2.5 Not for catalyzed cars	-	1	Enquire
14	139491	CABLES FOR LH MAIN BEARINGS CONNECTION	139491 CABLES FOR LH MAIN BEARINGS CONNECTION Valid for M. 2.5 Valid for catalyzed cars	-	1	Enquire
14	143207	CABLES FOR LH SIDE ENGINE CONNECTION	143207 CABLES FOR LH SIDE ENGINE CONNECTION Valid for Wl. 2.7 Not for SA and ZA	-	1	Enquire
14	146608	CABLES FOR LH. MAIN BEARINGS CONNECTION	146608 CABLES FOR LH. MAIN BEARINGS CONNECTION Valid for Wl. 2.7 Valid for SA Valid for ZA till car Nr. 90965	-	1	Enquire
