Ferrari 348 TS (1993) - Body - Outer Trims

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63393200 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
62807800 LH FRONT LATERAL GRAVEL GUARD Enquire To Order
62807700 RH FRONT LATERAL GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
62095600 LH FRONT WHEELHOUSE GRAVEL GUARD Enquire To Order
62095500 RH FRONT WHEELHOUSE GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
62128100 LOWER GUARD FIXING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
15645507 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
168133 Screw M5 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
62172000 L.H. KICK PLATE Enquire To Order
62171900 R.H. KICK PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62172100 Kick Plate Rubber Enquire To Order
Photo Part No Description Price (each) Stock
15914977 SCREW -Valid for GTS- Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14115580 FIXING BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
14202782 BLOCK -Valid for SA- Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
15917177 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62084500 L.H. REAR WHEELHOUSE Enquire To Order
62084400 R.H. REAR WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
62084700 L.H. REAR WHEELHOUSE Enquire To Order
62084600 R.H. REAR WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
62118500 L.H. REAR WHEELHOUSE Enquire To Order
62118400 R.H. REAR WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
14215480 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
168133 Screw M5 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
62118800 CONVEYOR FOR L.H. AIR PLUG Enquire To Order
62118700 CONVEYOR FOR R.H. AIR PLUG Enquire To Order
Photo Part No Description Price (each) Stock
62871800 REAR SIDE COVERING Enquire To Order
62067400 REAR SIDE COVERING Enquire To Order
Photo Part No Description Price (each) Stock
62067000 FRONT SIDE COVERING FOR RH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62218200 CENTRAL COVERING FOR REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62066300 COMPLETE LH REAR FENDER Enquire To Order
62066200 COMPLETE RH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62072700 INTERNAL REINFORCEMENT FOR RH REAR FENDER Enquire To Order
62072800 INTERNAL REINFORCEMENT FOR LH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
140917 FUEL TANK PROTECTION PLATE Enquire To Order
Photo Part No Description Price (each) Stock
70000630 UPPER SIDE FOR L.H. REAR FENDER Enquire To Order
70000629 UPPER SIDE FOR R.H. REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
88074800 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
20043105 PININFARINA BADGE Enquire To Order
Photo Part No Description Price (each) Stock
70000632 LOWER SIDE FOR LH REAR FENDER Enquire To Order
70000631 LOWER SIDE FOR RH REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62076200 L.H. LOWER PLATE Enquire To Order
62076100 R.H. LOWER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
70000634 L.H. DOOR STRIP Enquire To Order
70000633 R.H. DOOR STRIP Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12647724 WASHER Enquire To Order
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14202985 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
15785101 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62858800 GASKET FOR TURRET Enquire To Order
Photo Part No Description Price (each) Stock
62660300 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
62660200 TUBES PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
63510200 L.H. LOWER FRONT GRAVEL GUARD Enquire To Order
62095300 R.H. LOWER FRONT GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
14202180 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
15903975 Screw Enquire To Order
Photo Part No Description Price (each) Stock
62128000 LH LOWER GUARD FOR UNDERBODY Enquire To Order
62127900 RH LOWER GUARD FOR UNDERBODY Enquire To Order
Photo Part No Description Price (each) Stock
63393200 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14215480 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
62066000 COVERING FOR L.H. UNDERDOOR Enquire To Order
62065900 COVERING FOR R.H. UNDERDOOR Enquire To Order
Photo Part No Description Price (each) Stock
62059500 FRONT SIDE COVERING Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14647590 NUT WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62115800 NUT WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
13836971 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62065100 LOWER SIDE OF LH FRONT FENDER Enquire To Order
62065000 LOWER SIDE OF RH FRONT FENDER Enquire To Order
Photo Part No Description Price (each) Stock
62065200 FENDER FRONT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
63962200 COMPLETE L.H. FRONT FENDER Enquire To Order
63962200 COMPLETE L.H. FRONT FENDER Enquire To Order
62064400 COMPLETE RH FRONT FENDER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63006800 REAR SHIELD NET Enquire To Order
Photo Part No Description Price (each) Stock
63006700 FRAME Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14054048 NUT Enquire To Order
Photo Part No Description Price (each) Stock
20286209 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
15688075 SCREW Enquire To Order
15645507 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62055200 STRIKER FIXING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
12643778 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
63251500 L.H. REAR GASKET Enquire To Order
63251400 R.H. REAR GASKET Enquire To Order
Photo Part No Description Price (each) Stock
60517200 CLIP Enquire To Order
View All

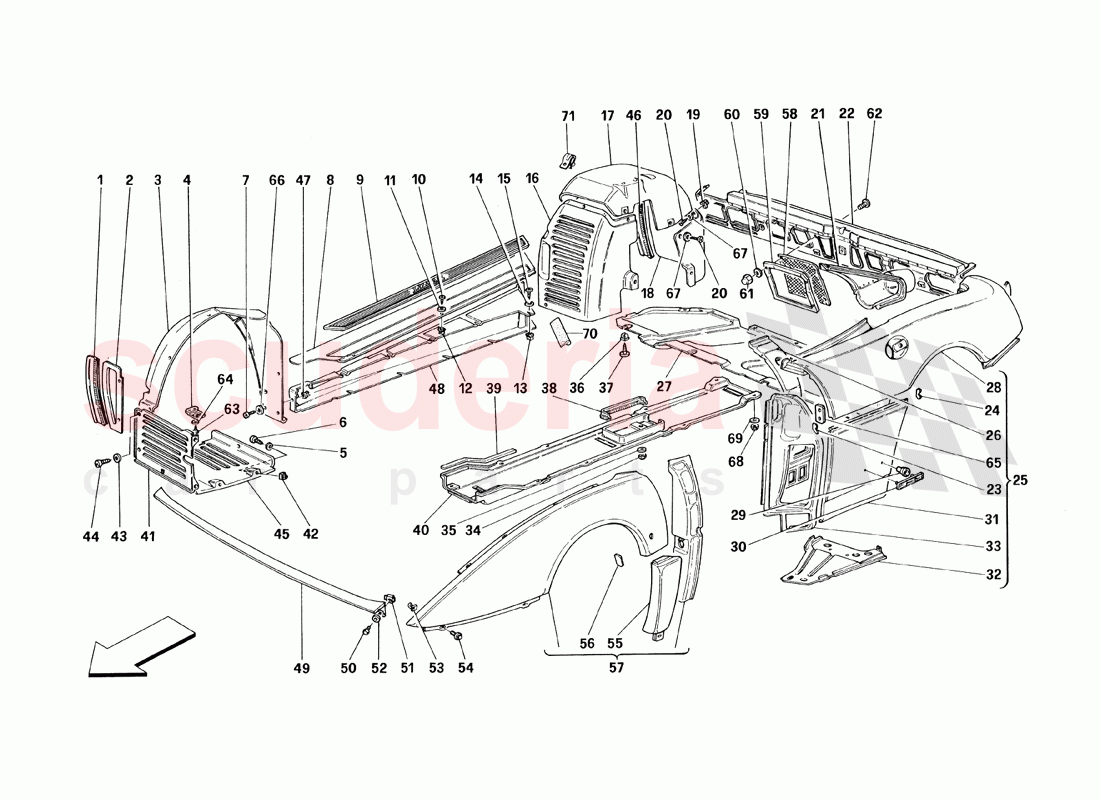

Body - Outer Trims of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 63393200
GASKET 		- 2 Enquire
2 62807800
LH FRONT LATERAL GRAVEL GUARD 		- 1 Enquire
2 62807700
RH FRONT LATERAL GRAVEL GUARD 		- 1 Enquire
3 62095600
LH FRONT WHEELHOUSE GRAVEL GUARD 		- 1 Enquire
3 62095500
RH FRONT WHEELHOUSE GRAVEL GUARD 		- 1 Enquire
4 62128100
LOWER GUARD FIXING BRACKET 		- 2 Enquire
5 62769800
WASHER
not as spare part use part number: 12638178 		- 6 Enquire
6 15645507
SCREW 		- 6 Enquire
7 168133
Screw M5 x 20 		- 14 Enquire
8 62172000
L.H. KICK PLATE 		- 1 Enquire
8 62171900
R.H. KICK PLATE 		- 1 Enquire
9 62172100
Kick Plate Rubber 		- 2 Enquire
10 15914977
SCREW -Valid for GTS- 		- 6 Enquire
11 62769800
WASHER 		- 6 Enquire
12 14115580
FIXING BLOCK 		- 6 Enquire
13 14202782
BLOCK -Valid for SA- 		- 20 Enquire
14 12643724
WASHER 		- 20 Enquire
15 15917177
SCREW 		- 18 Enquire
16 62084500
L.H. REAR WHEELHOUSE
Front side 		- 1 Enquire
16 62084400
R.H. REAR WHEELHOUSE
Front side 		- 1 Enquire
17 62084700
L.H. REAR WHEELHOUSE
Central side 		- 1 Enquire
17 62084600
R.H. REAR WHEELHOUSE
Central side 		- 1 Enquire
18 62118500
L.H. REAR WHEELHOUSE
Rear side 		- 1 Enquire
18 62118400
R.H. REAR WHEELHOUSE
Rearside 		- 1 Enquire
19 14215480
BLOCK 		- 20 Enquire
20 168133
Screw M5 x 20 		- 20 Enquire
21 62118800
CONVEYOR FOR L.H. AIR PLUG 		- 1 Enquire
21 62118700
CONVEYOR FOR R.H. AIR PLUG 		- 1 Enquire
22 62871800
REAR SIDE COVERING
valid for USA,CDN and AUS 		- 1 Enquire
22 62067400
REAR SIDE COVERING
Valid for USA, CDN and AUS 		- 1 Enquire
23 62067000
FRONT SIDE COVERING FOR RH REAR FENDER 		- 1 Enquire
24 62218200
CENTRAL COVERING FOR REAR FENDER 		- 2 Enquire
25 62066300
COMPLETE LH REAR FENDER 		- 1 Enquire
25 62066200
COMPLETE RH REAR FENDER 		- 1 Enquire
26 62072700
INTERNAL REINFORCEMENT FOR RH REAR FENDER 		- 1 Enquire
26 62072800
INTERNAL REINFORCEMENT FOR LH REAR FENDER 		- 1 Enquire
27 140917
FUEL TANK PROTECTION PLATE 		- 1 Enquire
28 70000630
UPPER SIDE FOR L.H. REAR FENDER 		- 1 Enquire
28 70000629
UPPER SIDE FOR R.H. REAR FENDER 		- 1 Enquire
29 88074800
CLIP 		- 4 Enquire
30 20043105
PININFARINA BADGE
(replace in pairs) 		- 2 Enquire
31 70000632
LOWER SIDE FOR LH REAR FENDER 		- 1 Enquire
31 70000631
LOWER SIDE FOR RH REAR FENDER 		- 1 Enquire
32 62076200
L.H. LOWER PLATE 		- 1 Enquire
32 62076100
R.H. LOWER PLATE 		- 1 Enquire
33 70000634
L.H. DOOR STRIP
Completed with plate 65 		- 1 Enquire
33 70000633
R.H. DOOR STRIP
Completed with plate 65 		- 1 Enquire
34 14059290
FLANGED NUT M6 		- 11 Enquire
35 12647724
WASHER
not as spare part use part number: 12640678 		- 11 Enquire
35 12643724
WASHER
Valid for GD 		- 11 Enquire
36 14202985
BLOCK 		- 9 Enquire
37 15785101
SCREW 		- 9 Enquire
38 62858800
GASKET FOR TURRET 		- 1 Enquire
39 62660300
GASKET 		- 2 Enquire
40 62660200
TUBES PROTECTION 		- 1 Enquire
41 63510200
L.H. LOWER FRONT GRAVEL GUARD 		- 1 Enquire
41 62095300
R.H. LOWER FRONT GRAVEL GUARD 		- 1 Enquire
42 14202180
BLOCK 		- 6 Enquire
43 62769800
WASHER
not as spare part use part number: 12638178 		- 14 Enquire
44 15903975
Screw 		- 14 Enquire
45 62128000
LH LOWER GUARD FOR UNDERBODY 		- 1 Enquire
45 62127900
RH LOWER GUARD FOR UNDERBODY 		- 1 Enquire
46 63393200
GASKET 		- 2 Enquire
47 14215480
BLOCK 		- 14 Enquire
48 62066000
COVERING FOR L.H. UNDERDOOR 		- 1 Enquire
48 62065900
COVERING FOR R.H. UNDERDOOR 		- 1 Enquire
49 62059500
FRONT SIDE COVERING 		- 1 Enquire
50 10977624
SCREW 		- 6 Enquire
51 14647590
NUT WITH CAGE 		- 6 Enquire
52 860172
WASHER 		- 6 Enquire
53 62115800
NUT WITH CAGE 		- 14 Enquire
54 13836971
SCREW 		- 14 Enquire
55 62065100
LOWER SIDE OF LH FRONT FENDER 		- 1 Enquire
55 62065000
LOWER SIDE OF RH FRONT FENDER 		- 1 Enquire
56 62065200
FENDER FRONT PROTECTION 		- 2 Enquire
57 63962200
COMPLETE L.H. FRONT FENDER
Not for USA and CDN 		- 1 Enquire
57 63962200
COMPLETE L.H. FRONT FENDER
Valid for USA and CDN 		- 1 Enquire
57 62064400
COMPLETE RH FRONT FENDER
Not for USA and CDN 		- 1 Enquire
57 62921400
COMPLETE RH FRONT FENDER
Valid for USA and CDN 		- 1 Enquire
58 63006800
REAR SHIELD NET 		- 1 Enquire
59 63006700
FRAME 		- 1 Enquire
60 62769800
WASHER
not as spare part use part number: 12638178 		- 4 Enquire
61 14054048
NUT 		- 4 Enquire
62 20286209
SCREW 		- 4 Enquire
63 15688075
SCREW 		- 4 Enquire
63 15645507
SCREW 		- 4 Enquire
64 62769800
WASHER
not as spare part use part number: 12638178 		- 8 Enquire
65 62055200
STRIKER FIXING PLATE 		- 2 Enquire
66 62769800
WASHER
not as spare part use part number: 12638178 		- 14 Enquire
67 62769800
WASHER
not as spare part use part number: 12638178 		- 20 Enquire
68 14059290
FLANGED NUT M6
Valid for GD 		- 2 Enquire
68 319201
FUEL FILLER PIPE ASSEMBLY
Not for GD 		- 2 Enquire
69 12643724
WASHER
Valid for GD 		- 2 Enquire
69 12643778
WASHER
Not for GD 		- 2 Enquire
70 63251500
L.H. REAR GASKET 		- 1 Enquire
70 63251400
R.H. REAR GASKET 		- 1 Enquire
71 60517200
CLIP 		- 6 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
