Rear Hood of Ferrari Ferrari 348 TS (1993)

View All

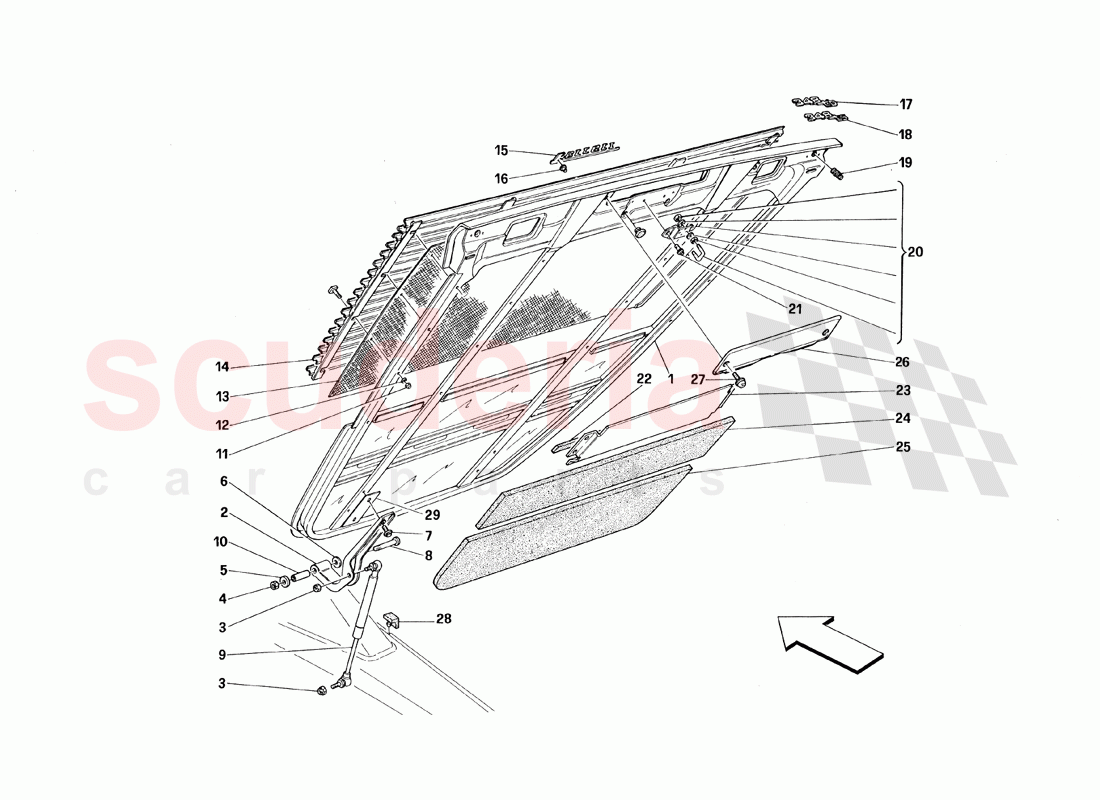

Ferrari 348 TS (1993) - Rear Hood

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62216500	ENGINE HOOD BONNET	Enquire	To Order
	62168000	ENGINE HOOD BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62061500	ENGINE HOOD BONNET HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62093000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13835814	BLOCKS FIXING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62054500	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62175300	BONNET/BOOT STAY	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62059400	HINGE BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054048	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62167800	GRILLE LOWER PROTECTION	Enquire	To Order
	62237100	GRID LOWER PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62237000	HOOD BONNET GRID	Enquire	To Order
	62237000	HOOD BONNET GRID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61025000	FERRARI BADGE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	88074800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62696600	348 Tb MARK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62696700	348 Ts MARK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62167600	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60536900	BONNET HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836371	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62848700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62849500	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62808600	REAR INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62808000	FRONT INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63313200	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63341400	ANTI-SHOCK RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62757600	ZINCFOIL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	62216500	ENGINE HOOD BONNET	62216500 ENGINE HOOD BONNET Valid for USA, CDN e AUS	-	1	Enquire
1	62168000	ENGINE HOOD BONNET	62168000 ENGINE HOOD BONNET Not for USA, CDN and AUS	-	1	Enquire
2	62061500	ENGINE HOOD BONNET HINGE	62061500 ENGINE HOOD BONNET HINGE	-	2	Enquire
3	16104411	Selflocking nut	16104411 Selflocking nut	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
5	10519424	WASHER	10519424 WASHER	-	2	Enquire
6	62093000	WASHER	62093000 WASHER	-	4	Enquire
7	13835814	BLOCKS FIXING SCREW	13835814 BLOCKS FIXING SCREW	-	4	Enquire
8	62054500	PIN	62054500 PIN	-	2	Enquire
9	62175300	BONNET/BOOT STAY ARRIVING SOON	62175300 BONNET/BOOT STAY ARRIVING SOON	-	2	Enquire
10	62059400	HINGE BUSHING	62059400 HINGE BUSHING	-	2	Enquire
11	14054048	NUT	14054048 NUT	-	16	Enquire
12	62769800	WASHER	62769800 WASHER not as spare part use part number: 12638178	-	16	Enquire
13	62167800	GRILLE LOWER PROTECTION	62167800 GRILLE LOWER PROTECTION Valid till car Nr. 87772	-	1	Enquire
13	62237100	GRID LOWER PROTECTION	62237100 GRID LOWER PROTECTION Valid from car Nr. 87773	-	1	Enquire
14	62237000	HOOD BONNET GRID	62237000 HOOD BONNET GRID Valid till car Nr. 87772	-	1	Enquire
14	62237000	HOOD BONNET GRID	62237000 HOOD BONNET GRID valid from car Nr. 87773	-	1	Enquire
15	61025000	FERRARI BADGE ARRIVING SOON	61025000 FERRARI BADGE (2 Pin) ARRIVING SOON	-	1	Enquire
16	88074800	CLIP	88074800 CLIP	-	2	Enquire
17	62696600	348 Tb MARK	62696600 348 Tb MARK	-	1	Enquire
18	62696700	348 Ts MARK	62696700 348 Ts MARK	-	1	Enquire
19	62167600	VIBRATION DAMPER	62167600 VIBRATION DAMPER	-	2	Enquire

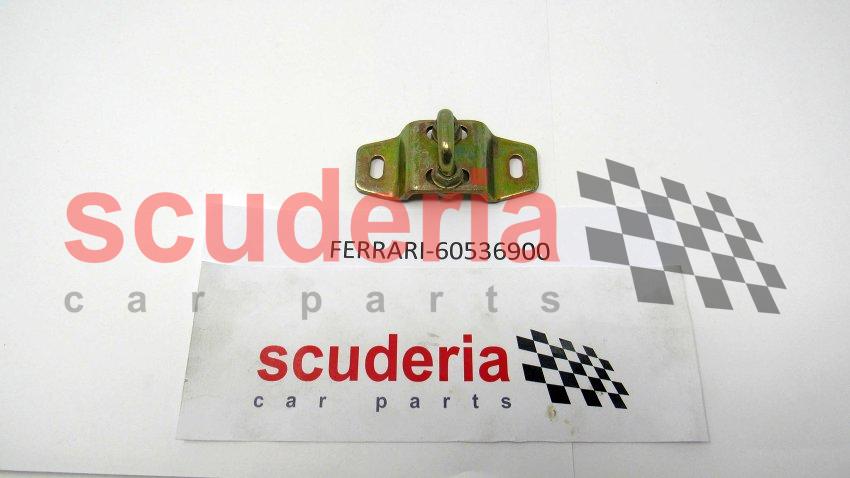

20	60536900	BONNET HOOK	60536900 BONNET HOOK	-	1	Enquire
21	13836371	SCREW	13836371 SCREW	-	2	Enquire
22	62848700	GASKET	62848700 GASKET	-	1	Enquire
23	62849500	SHIELD	62849500 SHIELD	-	1	Enquire
24	62808600	REAR INSULATOR	62808600 REAR INSULATOR	-	1	Enquire
25	62808000	FRONT INSULATOR	62808000 FRONT INSULATOR	-	1	Enquire
26	63313200	COVER	63313200 COVER Valid for USA, CDN and AUS	-	1	Enquire
27	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM Valid for USA, CDN e AUS	-	2	Enquire
28	63341400	ANTI-SHOCK RUBBER	63341400 ANTI-SHOCK RUBBER	-	2	Enquire
29	62757600	ZINCFOIL	62757600 ZINCFOIL	-	2	Enquire
