Doors - Framework and Rear Mirror of Ferrari Ferrari 348 TS (1993)

View All

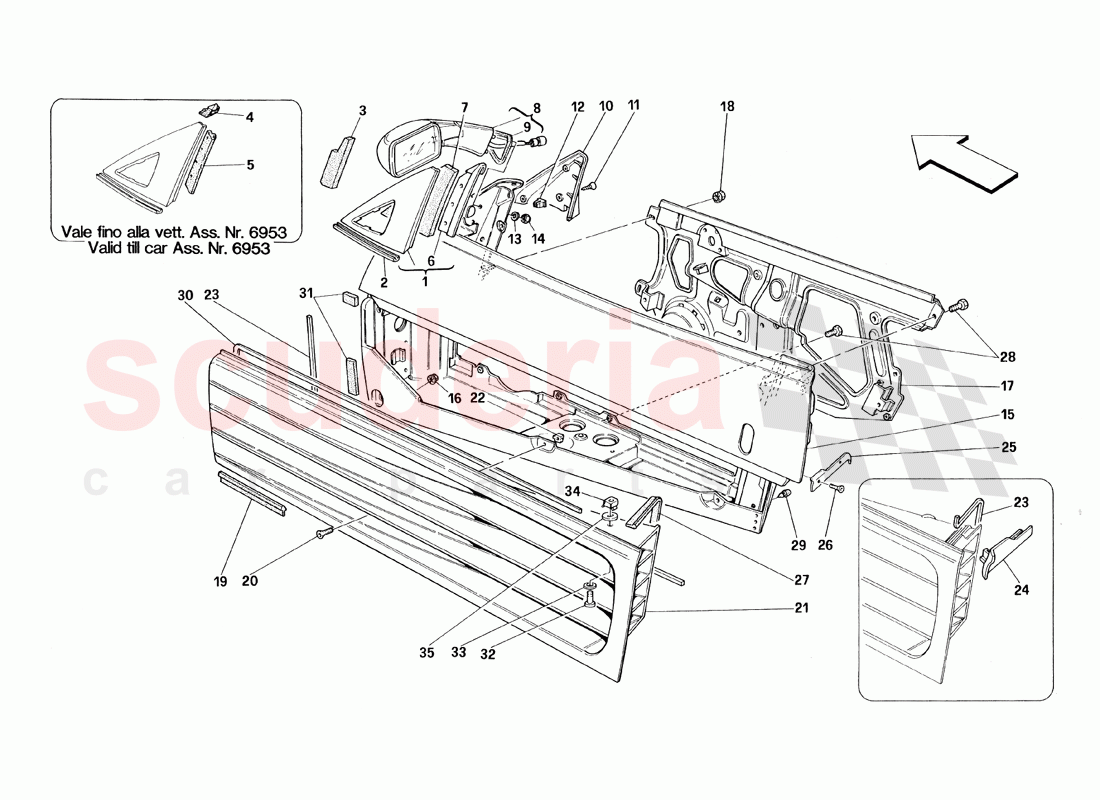

Ferrari 348 TS (1993) - Doors - Framework and Rear Mirror

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63390100	L.H. OUTER PLATE	Enquire	To Order
	63390000	R.H. OUTER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639200	L.H. LOWER GASKET	Enquire	To Order
	63639100	R.H. LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63931600	REAR SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147559	LH. UPPER RUBBER	Enquire	To Order
	147558	RH UPPER RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63303400	LH BADGE INNER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65209000	FRONT SILENCER	Enquire	To Order
	63235300	RH BADGE INNER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63231110	L.H. EXTERNAL REAR MIRROR	Enquire	To Order
	62189010	L.H. EXTERNAL REAR MIRROR	Enquire	To Order
	62867610	L.H. EXTERNAL REAR MIRROR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	64298700	L.H. MIRROR GASKET	Enquire	To Order
	64298600	R.H. MIRROR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62188800	L.H. INNER PLATE	Enquire	To Order
	62188700	R.H. INNER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12673107	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62098500	L.H. DOOR	Enquire	To Order
	62183000	L.H. DOOR	Enquire	To Order
	62182900	R.H. DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62098700	L.H. DOOR INNER FRAMEWORK	Enquire	To Order
	62098600	R.H. DOOR INNER FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62153000	GRILL LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441437	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62118310	L.H. DOOR GRILL	Enquire	To Order
	62118210	R.H. DOOR GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14190190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62152900	GRILL PROFILE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62926900	LH SUPPORT	Enquire	To Order
	62926800	RH SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63394600	L.H. REAR CARPET SHIELD	Enquire	To Order
	63394500	R.H. REAR CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15913508	SCREW -Not for GTS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64517300	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836371	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14624587	RUBBER CLOSING PLUG D6,3 X 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62649900	GRILL UPPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64731900	ANTI-VIBRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304387	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14197890	CAGE NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63398400	THICKNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	63390100	L.H. OUTER PLATE	63390100 L.H. OUTER PLATE	-	1	Enquire
1	63390000	R.H. OUTER PLATE	63390000 R.H. OUTER PLATE	-	1	Enquire
2	63639200	L.H. LOWER GASKET	63639200 L.H. LOWER GASKET	-	1	Enquire
2	63639100	R.H. LOWER GASKET	63639100 R.H. LOWER GASKET	-	1	Enquire
3	63931600	REAR SILENCER	63931600 REAR SILENCER	-	2	Enquire
4	147559	LH. UPPER RUBBER	147559 LH. UPPER RUBBER Valid till car Ass. Nr. 6953	-	1	Enquire
4	147558	RH UPPER RUBBER	147558 RH UPPER RUBBER Valid till car Ass. Nr. 6953	-	1	Enquire
5	-		Valid till car Ass. Nr. 6953 Not as spare part REPLACED BY 63235300	-	2	Enquire
6	63303400	LH BADGE INNER GASKET	63303400 LH BADGE INNER GASKET Valid from car Ass. Nr. 6954	-	1	Enquire
7	65209000	FRONT SILENCER	65209000 FRONT SILENCER	-	2	Enquire
7	63235300	RH BADGE INNER GASKET	63235300 RH BADGE INNER GASKET Valid from car Ass. Nr. 6954	-	1	Enquire
8	63231110	L.H. EXTERNAL REAR MIRROR	63231110 L.H. EXTERNAL REAR MIRROR Valid for AUS	-	1	Enquire
8	62189010	L.H. EXTERNAL REAR MIRROR	62189010 L.H. EXTERNAL REAR MIRROR Not for GD	-	1	Enquire
8	62867610	L.H. EXTERNAL REAR MIRROR	62867610 L.H. EXTERNAL REAR MIRROR Valid for GD Not for AUS	-	1	Enquire
8	62867510	R.H. EXTERNAL REAR MIRROR	62867510 R.H. EXTERNAL REAR MIRROR Valid for GD	-	1	Enquire
8	62830910	R.H. EXTERNAL REAR MIRROR	62830910 R.H. EXTERNAL REAR MIRROR Valid for USA	-	1	Enquire
8	62188910	R.H. EXTERNAL REAR MIRROR	62188910 R.H. EXTERNAL REAR MIRROR Not for USA and GD	-	1	Enquire
9	64298700	L.H. MIRROR GASKET	64298700 L.H. MIRROR GASKET	-	1	Enquire
9	64298600	R.H. MIRROR GASKET	64298600 R.H. MIRROR GASKET	-	1	Enquire
10	62188800	L.H. INNER PLATE	62188800 L.H. INNER PLATE	-	1	Enquire
10	62188700	R.H. INNER PLATE	62188700 R.H. INNER PLATE	-	1	Enquire
11	12673107	SCREW	12673107 SCREW	-	4	Enquire
12	14115580	FIXING BLOCK	14115580 FIXING BLOCK	-	4	Enquire
13	12643724	WASHER	12643724 WASHER	-	6	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
15	62098500	L.H. DOOR	62098500 L.H. DOOR Not for USA, CDN, AUS and SA	-	1	Enquire
15	62183000	L.H. DOOR	62183000 L.H. DOOR Valid for USA, CDN, AUS and SA	-	1	Enquire
15	62182900	R.H. DOOR	62182900 R.H. DOOR Valid for USA, CDN, AUS and SA	-	1	Enquire
15	62098400	R.H. DOOR	62098400 R.H. DOOR Not for USA, CDN, AUS and SA	-	1	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
17	62098700	L.H. DOOR INNER FRAMEWORK	62098700 L.H. DOOR INNER FRAMEWORK	-	1	Enquire
17	62098600	R.H. DOOR INNER FRAMEWORK	62098600 R.H. DOOR INNER FRAMEWORK	-	1	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
19	62153000	GRILL LOWER GASKET	62153000 GRILL LOWER GASKET	-	2	Enquire
20	14441437	SCREW	14441437 SCREW	-	8	Enquire
21	62118310	L.H. DOOR GRILL	62118310 L.H. DOOR GRILL Till car Ass. Nr. 7401 also order parts 25, 26, 27	-	1	Enquire
21	62118210	R.H. DOOR GRILL	62118210 R.H. DOOR GRILL Till car Ass. Nr. 7401 also order parts 25, 26, 27	-	1	Enquire
22	14190190	NUT	14190190 NUT	-	8	Enquire
23	62152900	GRILL PROFILE GASKET	62152900 GRILL PROFILE GASKET	-	2	Enquire
24	62926900	LH SUPPORT	62926900 LH SUPPORT Valid till car Ass. Nr.7401	-	1	Enquire
24	62926800	RH SUPPORT	62926800 RH SUPPORT Valid till car Ass. Nr. 7401	-	1	Enquire
25	63394600	L.H. REAR CARPET SHIELD	63394600 L.H. REAR CARPET SHIELD Valid from car Ass. Nr. 7402	-	1	Enquire
25	63394500	R.H. REAR CARPET SHIELD	63394500 R.H. REAR CARPET SHIELD valid from car Ass. Nr. 7402	-	1	Enquire
26	15913508	SCREW -Not for GTS-	15913508 SCREW -Not for GTS- Valid from car Ass. Nr. 7402	-	4	Enquire
27	64517300	GASKET	64517300 GASKET Valid from car Ass. Nr. 7402	-	2	Enquire
28	13836371	SCREW	13836371 SCREW	-	12	Enquire
29	14624587	RUBBER CLOSING PLUG D6,3 X 3	14624587 RUBBER CLOSING PLUG D6,3 X 3	-	2	Enquire
30	62649900	GRILL UPPER GASKET	62649900 GRILL UPPER GASKET	-	2	Enquire
31	64731900	ANTI-VIBRATIONS	64731900 ANTI-VIBRATIONS	-	2	Enquire
32	14304387	SCREW	14304387 SCREW	-	2	Enquire
33	62769800	WASHER	62769800 WASHER not as spare part use part number: 12638178	-	2	Enquire
34	14197890	CAGE NUT	14197890 CAGE NUT	-	2	Enquire
35	63398400	THICKNESS	63398400 THICKNESS	-	2	Enquire
