Battery and Battery Disconnection Switch of Ferrari Ferrari 348 Challenge (1995)

View All

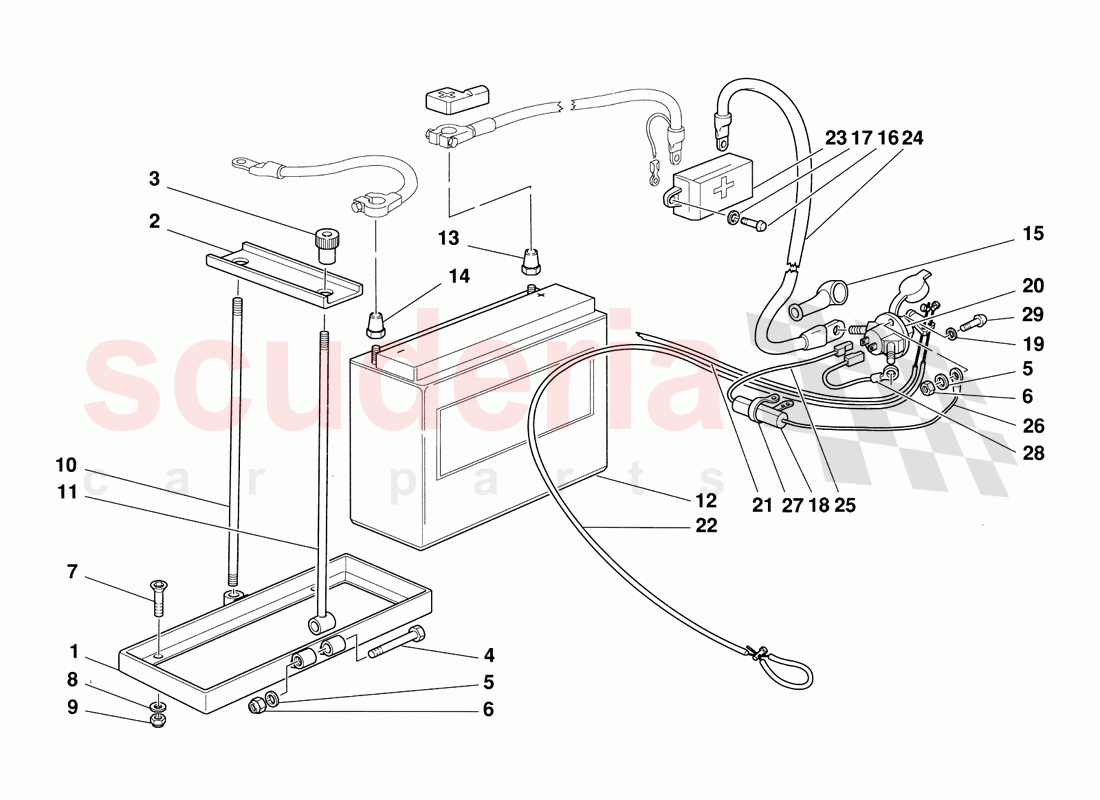

Ferrari 348 Challenge (1995) - Battery and Battery Disconnection Switch

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164738	Frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164750	Upper bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146357	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163374	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163373	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164713	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164751	Positive pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164752	Negative pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124683	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783501	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145221	Battery disconn. switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147033	Inside cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147493	Outside cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145468	Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147015	Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147016	Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147031	Cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	147014	Battery disconnecting switch mounting complete	147014 Battery disconnecting switch mounting complete	-	1	Enquire
-	169072	Battery support kit	169072 Battery support kit	-	1	Enquire
1	164738	Frame	164738 Frame	-	1	Enquire
2	164750	Upper bracket	164750 Upper bracket	-	1	Enquire
3	146357	Ring nut	146357 Ring nut	-	2	Enquire
4	10903834	SCREW	10903834 SCREW	-	1	Enquire
5	10519424	WASHER	10519424 WASHER	-	8	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
7	14440734	SCREW	14440734 SCREW	-	4	Enquire
8	62769800	WASHER	62769800 WASHER	-	4	Enquire
9	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
10	163374	Stud bolt	163374 Stud bolt	-	1	Enquire
11	163373	Stud bolt	163373 Stud bolt	-	1	Enquire
12	164713	BATTERY	164713 BATTERY	-	1	Enquire
13	164751	Positive pin	164751 Positive pin	-	1	Enquire
14	164752	Negative pin	164752 Negative pin	-	1	Enquire
15	124683	PROTECTIVE CAP	124683 PROTECTIVE CAP	-	2	Enquire
16	15783501	Screw	15783501 Screw	-	2	Enquire
17	14496324	WASHER	14496324 WASHER	-	2	Enquire
18	-		(Parts supplied on request with No. 147014 only)	-	1	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
20	145221	Battery disconn. switch	145221 Battery disconn. switch	-	1	Enquire
21	147033	Inside cable	147033 Inside cable (Parts supplied on request with No. 147014 only)	-	1	Enquire
22	147493	Outside cable	147493 Outside cable (Parts supplied on request with No. 147014 only)	-	1	Enquire
23	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK (For cars with front battery only)	-	1	Enquire
24	145468	Cable	145468 Cable (With rear battery, q. 1)	-	2	Enquire
25	147015	Cable	147015 Cable (Parts supplied on request with No. 147014 only)	-	1	Enquire
26	147016	Cable	147016 Cable (Parts supplied on request with No. 147014 only)	-	1	Enquire
27	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	1	Enquire
28	147031	Cable	147031 Cable (Parts supplied on request with No. 147014 only)	-	1	Enquire
29	-			-	2	Enquire
