Name: Wheels and Brake Air Intakes
Rating: 5.0 (1 reviews)

Wheels and Brake Air Intakes of Ferrari Ferrari 348 Challenge (1995)

View All

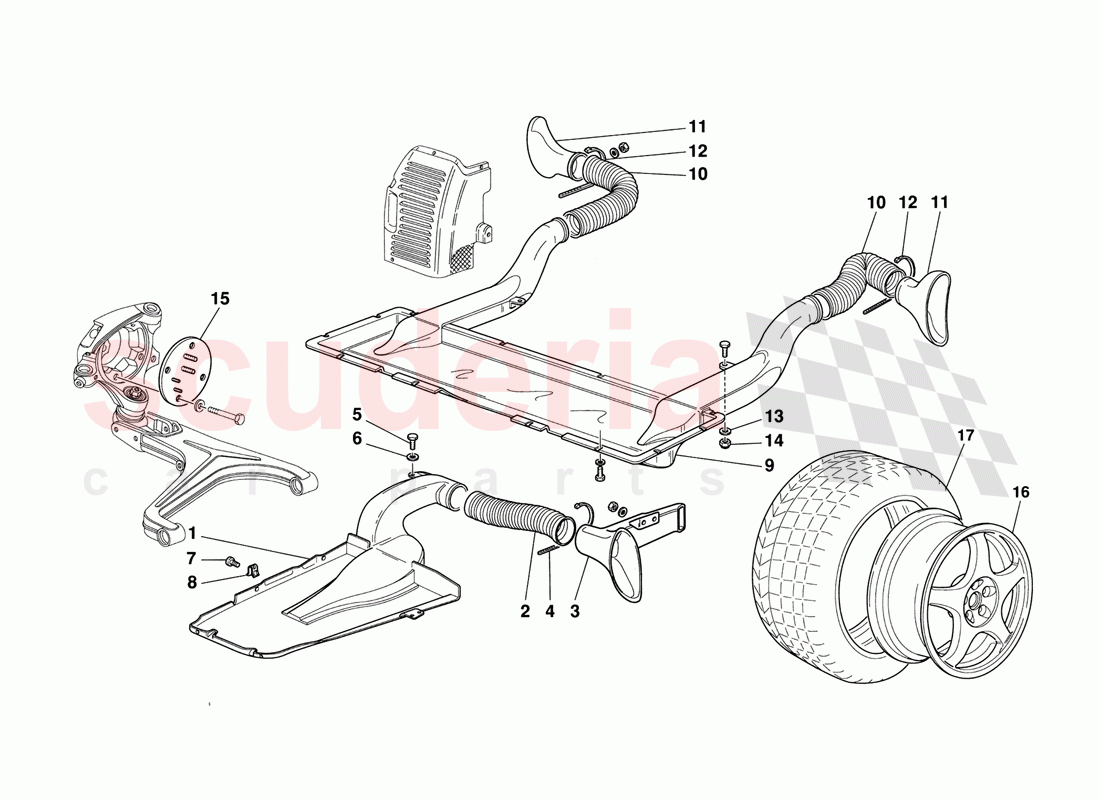

Ferrari 348 Challenge (1995) - Wheels and Brake Air Intakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	145250	LH inside intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145252	Pipe	$64.20	To Order
	145249	RH inside intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167198	LH outside intake	Enquire	To Order
	167197	RH outside intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157409	Clamp	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	15783501	Screw	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	147781	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167196	Rear bottom intake	$2,101.33	To Order

Photo	Part No	Description	Price (each)	Stock
	64784300	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167195	LH outside intake	$337.47	To Order
	167194	RH outside intake	$337.47	To Order

Photo	Part No	Description	Price (each)	Stock
	157409	Clamp	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	159055	L.H. COVER	$33.68	To Order
	159056	R.H. COVER	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	167493	Front wheel rim	Enquire	To Order
	167494	Rear wheel rim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163368	Rain tire - Pirelli 225/40 ZR 18	Enquire	To Order
	163369	Rain tire - Pirelli 265/40 ZR 18	Enquire	To Order
	163366	Slick tire - Pirelli 245/645x1 8	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	145250	LH inside intake	145250 LH inside intake	-	1	Enquire
2	145252	Pipe	145252 Pipe	$64.20	2
2	145249	RH inside intake	145249 RH inside intake	-	1	Enquire
3	167198	LH outside intake	167198 LH outside intake	-	1	Enquire
3	167197	RH outside intake	167197 RH outside intake	-	1	Enquire
4	157409	Clamp	157409 Clamp	$1.54	4
5	15783501	Screw	15783501 Screw	$3.32	2
6	14496324	WASHER	14496324 WASHER	$3.23	2
7	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	$1.47 MSRP: ~~1.75~~ (16% off)	8
8	147781	Clamp	147781 Clamp	-	8	Enquire
9	167196	Rear bottom intake	167196 Rear bottom intake	$2,101.33	1
10	64784300	Pipe	64784300 Pipe	-	2	Enquire
11	167195	LH outside intake	167195 LH outside intake	$337.47	1
11	167194	RH outside intake	167194 RH outside intake	$337.47	1
12	157409	Clamp	157409 Clamp	$1.54	4
13	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
15	159055	L.H. COVER	159055 L.H. COVER	$33.68	1
15	159056	R.H. COVER	159056 R.H. COVER	$33.68	1
16	167493	Front wheel rim	167493 Front wheel rim	-	2	Enquire
16	167494	Rear wheel rim	167494 Rear wheel rim	-	2	Enquire
17	163368	Rain tire - Pirelli 225/40 ZR 18	163368 Rain tire - Pirelli 225/40 ZR 18	-	2	Enquire
17	163369	Rain tire - Pirelli 265/40 ZR 18	163369 Rain tire - Pirelli 265/40 ZR 18	-	4	Enquire
17	163366	Slick tire - Pirelli 245/645x1 8	163366 Slick tire - Pirelli 245/645x1 8	-	2	Enquire
17	163367	Slick tire - Pirelli 305/645x1 8	163367 Slick tire - Pirelli 305/645x1 8	-	2	Enquire
