Roll Bar of Ferrari Ferrari 348 Challenge (1995)

View All

Ferrari 348 Challenge (1995) - Roll Bar

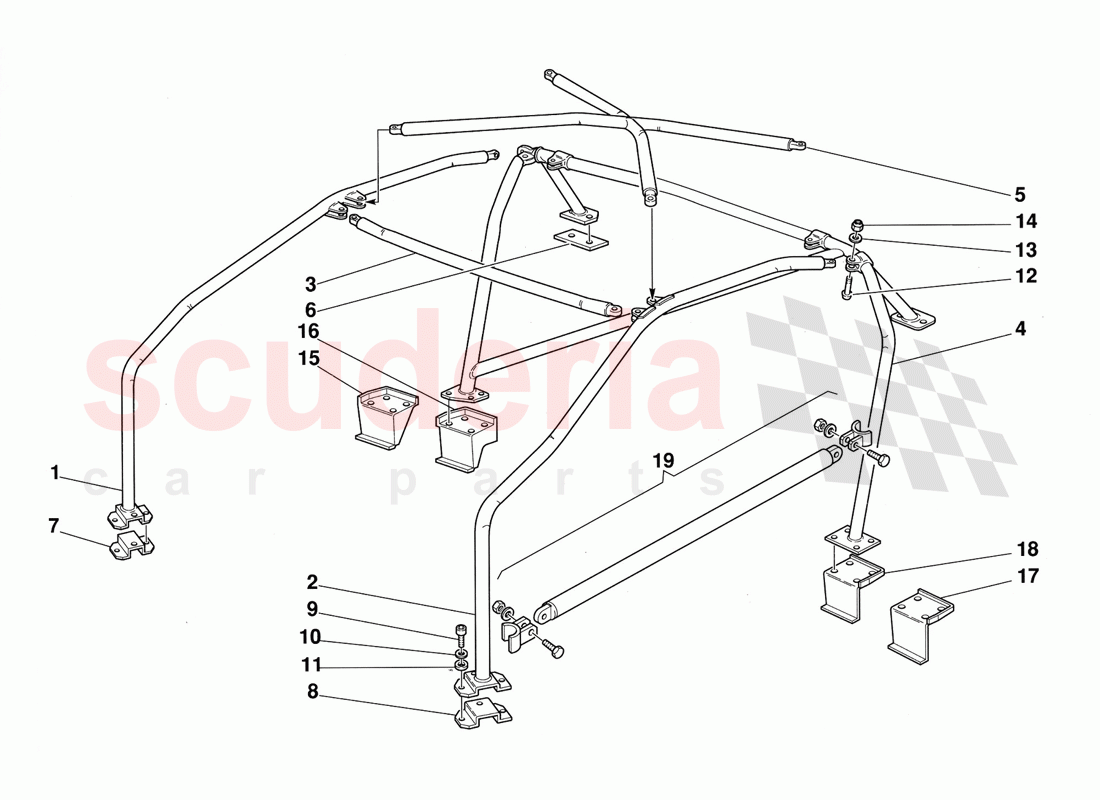

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62964300	RH cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964300	RH cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964400	Froni cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62907100	Main frame rib for L H. sleering	Enquire	To Order
	62923700	Main frame rib for R H. steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62971400	X-structure on the top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62969900	Rear plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62967200	R.H front plale	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62967300	L.H front plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550301	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147798	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638601	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147799	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62965700	RH rear reinforced housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62967000	RH rear reinforced housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62966600	LH rear reinforced housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62967100	LH rear reinforced housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62974600	Protection cross member kit	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	145217	LH steering compl-roll bar	145217 LH steering compl-roll bar	-	1	Enquire
-	62965300	Plates assembly	62965300 Plates assembly (Valid for 2nd series 348 TS only from N 94269 USA version car and 94905 for all other versions).	-	1	Enquire
-	62965100	Plates assembly	62965100 Plates assembly (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions)	-	1	Enquire
-	145218	RH steering compl-roll bar	145218 RH steering compl-roll bar	-	1	Enquire
1	62964300	RH cross member	62964300 RH cross member (Supplied with roll bar assembly only)	-	1	Enquire
2	62964300	RH cross member	62964300 RH cross member (Supplied with roll bar assembly only)	-	1	Enquire
3	62964400	Froni cross member	62964400 Froni cross member (Supplied with roll bar assembly only)	-	1	Enquire
4	62907100	Main frame rib for L H. sleering	62907100 Main frame rib for L H. sleering (Supplied with roll bar assembly only)	-	1	Enquire
4	62923700	Main frame rib for R H. steering	62923700 Main frame rib for R H. steering (Supplied with roll bar assembly only)	-	1	Enquire
5	62971400	X-structure on the top	62971400 X-structure on the top (Supplied with roll bar assembly only)	-	1	Enquire
6	62969900	Rear plate	62969900 Rear plate (Supplied with plates assembly only)	-	2	Enquire
7	62967200	R.H front plale	62967200 R.H front plale (Supplied with plates assembly only)	-	1	Enquire
8	62967300	L.H front plate	62967300 L.H front plate (Supplied with plates assembly only)	-	1	Enquire
9	14306424	SCREW	14306424 SCREW	-	18	Enquire
10	986899	WASHER	986899 WASHER	-	18	Enquire
11	13550301	WASHER	13550301 WASHER	-	18	Enquire
12	147798	Screw	147798 Screw	-	10	Enquire
13	12638601	WASHER	12638601 WASHER	-	10	Enquire
14	147799	Nut	147799 Nut	-	10	Enquire
15	62965700	RH rear reinforced housing	62965700 RH rear reinforced housing (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)	-	1	Enquire
16	62967000	RH rear reinforced housing	62967000 RH rear reinforced housing (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)	-	1	Enquire
17	62966600	LH rear reinforced housing	62966600 LH rear reinforced housing (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)	-	1	Enquire
18	62967100	LH rear reinforced housing	62967100 LH rear reinforced housing (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)	-	1	Enquire
19	62974600	Protection cross member kit	62974600 Protection cross member kit (Valid for 1st series 346 TH and 348 TS all cars until N 94268 USA version car and 94904 for all other versions) (Supplied with plates assembly only)	-	2	Enquire
