Outside Gearbox Controls

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - OUTSIDE GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
139777 GEARBOX CONTROL BOX Enquire To Order
Photo Part No Description Price (each) Stock
152533 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock

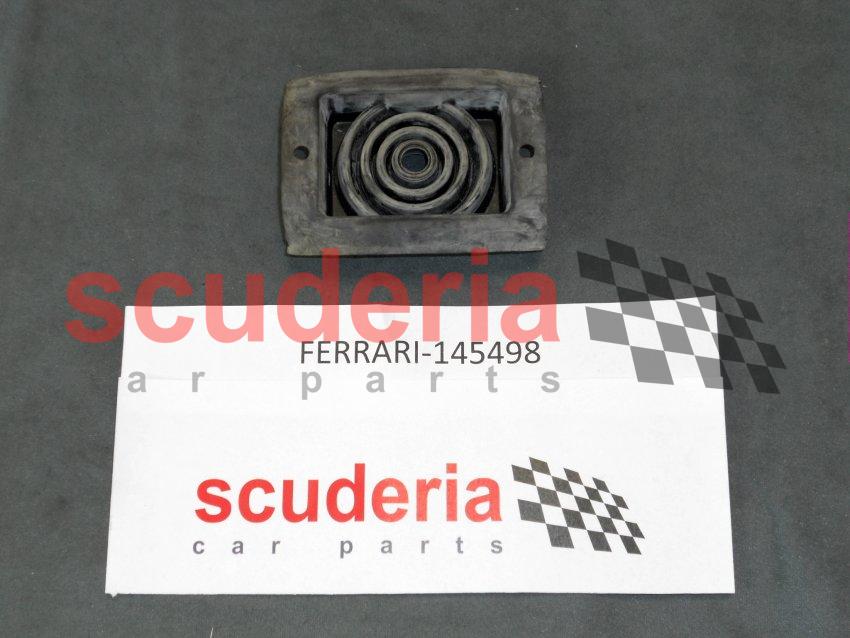

145498 DRIVING GEAR BELLOW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
139846 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
139847 NUT Enquire To Order
Photo Part No Description Price (each) Stock
139784 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
139843 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
139851 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
139805 CONTROL LEVER Enquire To Order
Photo Part No Description Price (each) Stock
103301 Knob for gearshift lever Enquire To Order
Photo Part No Description Price (each) Stock
101619 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148452 Speed selector Enquire To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT Enquire To Order
Photo Part No Description Price (each) Stock
139786 REVERSE GEAR SPRING Enquire To Order
Photo Part No Description Price (each) Stock
139785 MOUTH PIECE SPRING Enquire To Order
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
141410 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
141411 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62657100 EXPANDIBLE GASKET Enquire To Order
Photo Part No Description Price (each) Stock
150298 GEARBOX CONTROL CABLES Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
137476 CABLE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
105550 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
152645 CABLES LOWER SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
13540924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
139800 TRANSLATOR REACTION PIN Enquire To Order
Photo Part No Description Price (each) Stock
141399 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
238108 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
139854 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
139802 RUBBER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
139803 COVER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
140847 PROTECTION PLATE Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
60659100 Caged Captive Nut 6mm Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104339 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
15687970 VITE -Non pi fornito- -Sostituito dal 15687909- Enquire To Order
Photo Part No Description Price (each) Stock
60696300 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
141410 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
141411 NUT Enquire To Order
View All

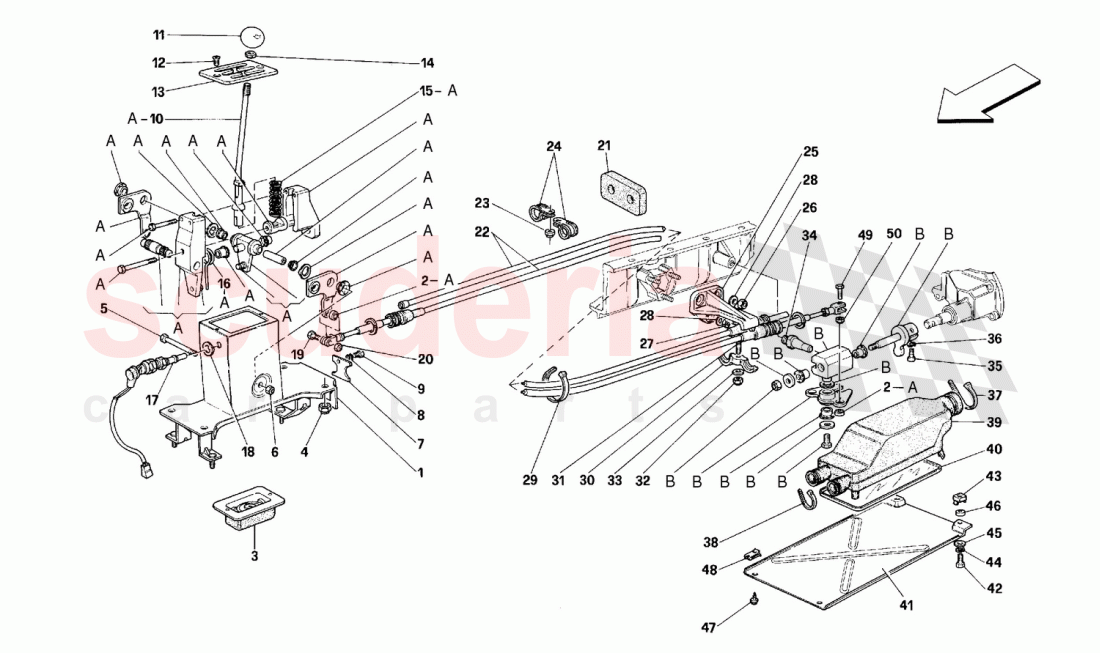

OUTSIDE GEARBOX CONTROLS of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 162614
KNOB -Valid for 348 COMP.- 		- 1 Enquire
- 144743
GEARBOX CONTROL ASSEMBLY
ASSEMBLY 		- 1 Enquire
- 149570
INNER CONTROL DRIVING GEAR ASSEMBLY
GEAR ASSEMBLY 		- 1 Enquire
- 148077
TRANSLATOR ASSEMBLY 		- 1 Enquire
1 139777
GEARBOX CONTROL BOX 		- 1 Enquire
2 152533
BALL JOINT 		- 4 Enquire
3 145498
DRIVING GEAR BELLOW 		- 1 Enquire
4 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
5 139846
SCREW 		- 1 Enquire
6 139847
NUT 		- 1 Enquire
7 139784
PLATE 		- 1 Enquire
8 139843
WASHER 		- 1 Enquire
9 139851
SCREW 		- 1 Enquire
10 139805
CONTROL LEVER 		- 1 Enquire
11 103301
Knob for gearshift lever 		- 1 Enquire
12 101619
SCREW 		- 2 Enquire
13 148452
Speed selector 		- 1 Enquire
14 108010
CHECKNUT 		- 1 Enquire
15 139786
REVERSE GEAR SPRING 		- 1 Enquire
16 139785
MOUTH PIECE SPRING 		- 1 Enquire
17 115980A
SWITCH 		- 1 Enquire
18 84653800
WASHER 		- 1 Enquire
19 141410
SCREW 		- 2 Enquire
20 141411
NUT 		- 2 Enquire
21 62657100
EXPANDIBLE GASKET 		- 1 Enquire
22 150298
GEARBOX CONTROL CABLES 		- 2 Enquire
23 14059290
FLANGED NUT M6 		- 1 Enquire
24 10441590
BRACKET WITH SHEATH 		- 2 Enquire
25 137476
CABLE SUPPORT 		- 1 Enquire
26 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 2 Enquire
27 16102314
NUT 		- 1 Enquire
28 12601374
WASHER 		- 3 Enquire
29 105550
CLAMP 		- 2 Enquire
30 152645
CABLES LOWER SUPPORT 		- 1 Enquire
31 13540924
STUD BOLT 		- 1 Enquire
32 14059290
FLANGED NUT M6 		- 1 Enquire
33 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
34 139800
TRANSLATOR REACTION PIN 		- 1 Enquire
35 141399
SCREW 		- 1 Enquire
36 238108
WASHER 		- 1 Enquire
37 10815787
CLAMP 		- 1 Enquire
38 139854
CLAMP 		- 2 Enquire
39 139802
RUBBER BOOT 		- 1 Enquire
40 139803
COVER PLATE 		- 1 Enquire
41 140847
PROTECTION PLATE 		- 1 Enquire
42 10977524
SCREW 		- 2 Enquire
43 60659100
Caged Captive Nut 6mm 		- 2 Enquire
44 127494
WASHER 		- 2 Enquire
45 12643724
WASHER 		- 2 Enquire
46 104339
SPACER 		- 2 Enquire
47 15687970
VITE -Non pi fornito- -Sostituito dal 15687909- 		- 2 Enquire
48 60696300
CLIP 		- 2 Enquire
49 141410
SCREW 		- 2 Enquire
50 141411
NUT 		- 2 Enquire
