GEARBOX COVERS of Ferrari Ferrari 348 (2.7 Motronic)

View All

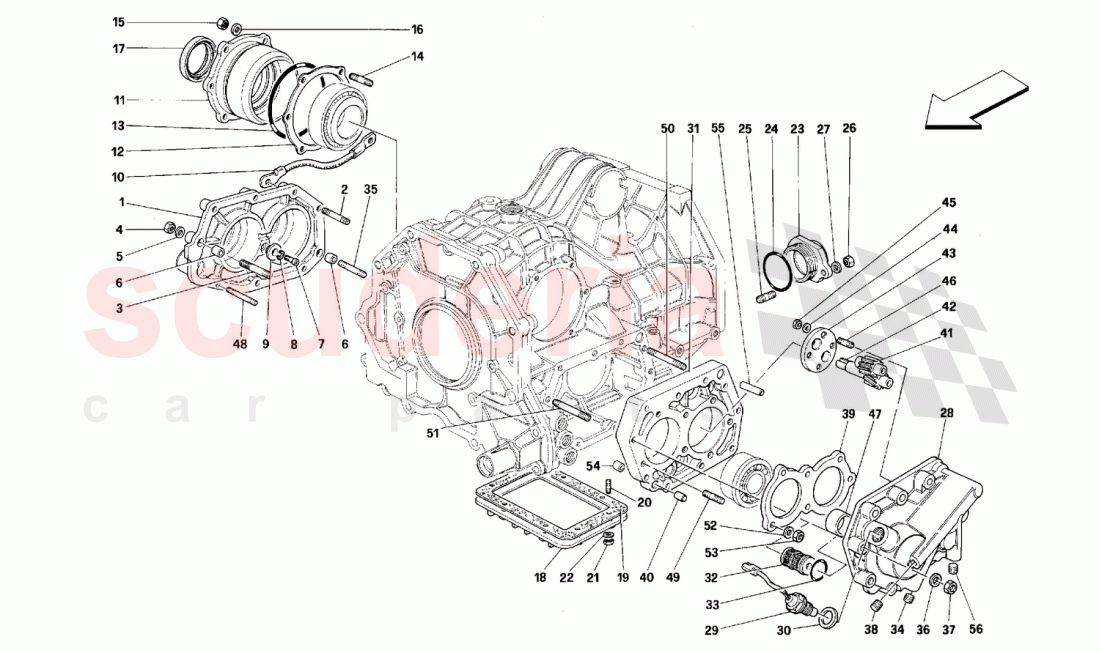

Ferrari 348 (2.7 Motronic) - GEARBOX COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	135741	R.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131757	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155073	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143448	DIFFERENTIAL LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132135	SPACER FOR LID mm. 1,30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139453	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133628	RH Oil Sealing Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135736	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177720	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139699	OIL SEAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131747	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543224	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153149	L.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116987	Pulse Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150055	INTERMEDIATE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115538	FILTER FOR GEAR BOX OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101034	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10275550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544124	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326050	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145272	BEARING RETAINING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109723	GEARBOX OIL PUMP DRIVEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109722	GEARBOX OIL PUMP DRIVING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121962	Oil pump cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113088	SEAL RING SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544024	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543224	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544324	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544224	Stud on dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131746	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	141509	L.H. seal ring on	141509 L.H. seal ring on	-	1	Enquire
-	132141	SPACER mm. 1,90	132141 SPACER mm. 1,90	-	-	Enquire
-	145458	SPACER mm. 1,55	145458 SPACER mm. 1,55	-	-	Enquire
-	132138	SPACER mm. 1,60	132138 SPACER mm. 1,60	-	-	Enquire
-	145459	SPACER mm. 1,65	145459 SPACER mm. 1,65	-	-	Enquire
-	132139	SPACER mm. 1,70	132139 SPACER mm. 1,70	-	-	Enquire
-	132140	SPACER mm. 1,80	132140 SPACER mm. 1,80	-	-	Enquire
-	132136	SPACER mm. 1,40	132136 SPACER mm. 1,40	-	-	Enquire
-	145457	SPACER mm. 1,45	145457 SPACER mm. 1,45	-	-	Enquire
-	132137	SPACER mm. 1,50	132137 SPACER mm. 1,50	-	-	Enquire
1	135741	R.H. SIDE COVER	135741 R.H. SIDE COVER	-	1	Enquire
2	13543624	STUD BOLT	13543624 STUD BOLT	-	6	Enquire
3	13543724	STUD BOLT	13543724 STUD BOLT	-	1	Enquire
4	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	9	Enquire
5	12601374	WASHER	12601374 WASHER	-	9	Enquire
6	100041	CENTERING DOWEL	100041 CENTERING DOWEL	-	2	Enquire
7	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
8	238108	WASHER	238108 WASHER	-	1	Enquire
9	131757	BUSHING	131757 BUSHING	-	1	Enquire
10	155073	CABLE FOR ENGINE-FRAME EARTH	155073 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
11	143448	DIFFERENTIAL LATERAL COVER	143448 DIFFERENTIAL LATERAL COVER COVER	-	2	Enquire
12	132135	SPACER FOR LID mm. 1,30	132135 SPACER FOR LID mm. 1,30 mm. 1,30	-	2	Enquire
13	139453	O.R. GASKET	139453 O.R. GASKET	-	2	Enquire
14	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	12	Enquire
15	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	12	Enquire
16	12601374	WASHER	12601374 WASHER	-	12	Enquire
17	133628	RH Oil Sealing Ring	133628 RH Oil Sealing Ring	-	1	Enquire
18	135736	LOWER COVER	135736 LOWER COVER	-	1	Enquire
19	177720	GASKET	177720 GASKET	-	1	Enquire
20	13540824	STUD BOLT	13540824 STUD BOLT	-	8	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
23	139699	OIL SEAL COVER	139699 OIL SEAL COVER	-	1	Enquire
24	131747	O-RING	131747 O-RING	-	1	Enquire
25	13543224	STUD	13543224 STUD	-	2	Enquire
26	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
27	12601374	WASHER	12601374 WASHER	-	2	Enquire
28	153149	L.H. SIDE COVER	153149 L.H. SIDE COVER	-	1	Enquire
29	116987	Pulse Sensor	116987 Pulse Sensor	-	1	Enquire
30	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
31	150055	INTERMEDIATE BODY	150055 INTERMEDIATE BODY	-	1	Enquire
32	115538	FILTER FOR GEAR BOX OIL PUMP	115538 FILTER FOR GEAR BOX OIL PUMP	-	1	Enquire
33	101034	O.R. GASKET	101034 O.R. GASKET	-	1	Enquire
34	10275550	THREADED PLUG	10275550 THREADED PLUG	-	1	Enquire
35	13544124	STUD	13544124 STUD	-	1	Enquire
36	12601374	WASHER	12601374 WASHER	-	10	Enquire
37	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	10	Enquire
38	14326050	CAP	14326050 CAP	-	1	Enquire
39	145272	BEARING RETAINING FLANGE	145272 BEARING RETAINING FLANGE	-	1	Enquire
40	125717	CENTRING DOWEL	125717 CENTRING DOWEL	-	1	Enquire
41	109723	GEARBOX OIL PUMP DRIVEN	109723 GEARBOX OIL PUMP DRIVEN	-	1	Enquire
42	109722	GEARBOX OIL PUMP DRIVING	109722 GEARBOX OIL PUMP DRIVING	-	1	Enquire
43	121962	Oil pump cover	121962 Oil pump cover	-	1	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
45	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
46	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	-	4	Enquire
47	113088	SEAL RING SEAT	113088 SEAL RING SEAT	-	1	Enquire
48	13544024	STUD	13544024 STUD	-	1	Enquire
49	13543224	STUD	13543224 STUD	-	7	Enquire
50	13544324	STUD	13544324 STUD	-	8	Enquire
51	13544224	Stud on dowel	13544224 Stud on dowel	-	8	Enquire
52	127496	WASHER	127496 WASHER	-	7	Enquire
53	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	7	Enquire
54	100041	CENTERING DOWEL	100041 CENTERING DOWEL	-	1	Enquire
55	131746	DOWEL	131746 DOWEL	-	1	Enquire
56	14326150	CAP	14326150 CAP	-	1	Enquire
