Clutch Release Control -Valid For Gd-

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - CLUTCH RELEASE CONTROL -Valid for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
149868 CLUTCH PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT Enquire To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
149295 PEDAL SLAB Enquire To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14499421 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
101305 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
129612 SPRING ANCHOR PIN Enquire To Order
Photo Part No Description Price (each) Stock
187014 PEDAL ADJUSTER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder Enquire To Order
Photo Part No Description Price (each) Stock
129615 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10248271 FORK FOR CLUTCH LEVER Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
130926 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
134903 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
131319 PEDAL FASTENING PIN Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
106083 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62164600 PEDAL SUPPORT GUARD Enquire To Order
Photo Part No Description Price (each) Stock
62697800 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
15925601 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14499421 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
140669 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
105369 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
232649 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
139375 2-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer Enquire To Order
Photo Part No Description Price (each) Stock
143041 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
141522 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
140666 INTERMEDIATE TUBE Enquire To Order
Photo Part No Description Price (each) Stock
141521 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
240774 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer Enquire To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING Enquire To Order
View All

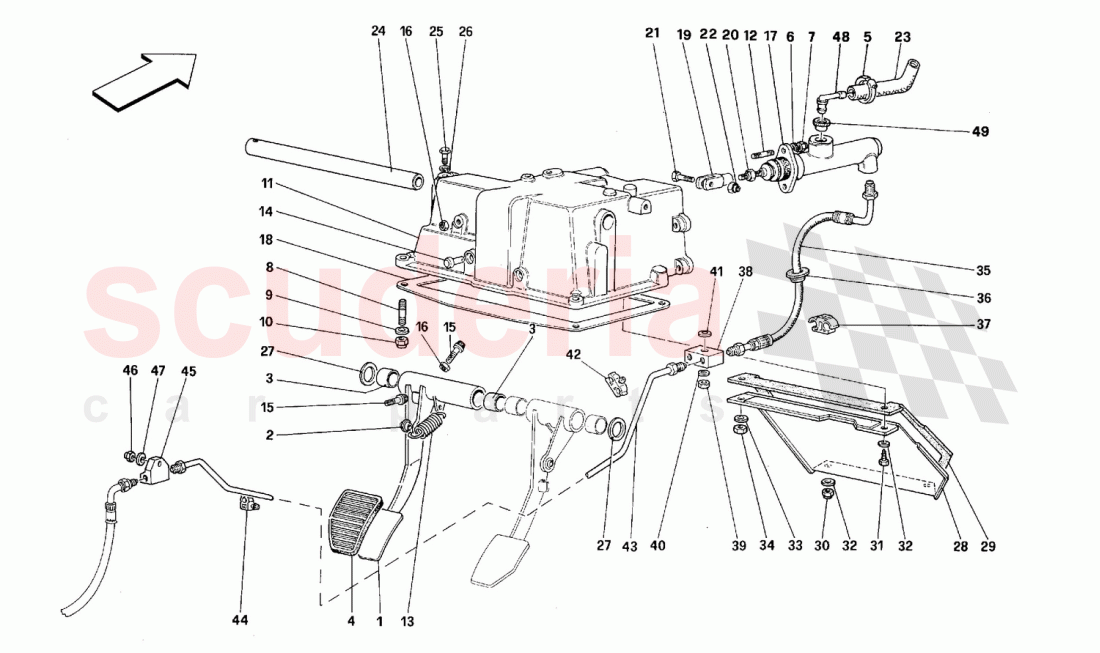

CLUTCH RELEASE CONTROL -Valid for GD- of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 113835
WASHER 		- 2 Enquire
- 113836
WASHER 		- 2 Enquire
- 113833
WASHER 		- 2 Enquire
- 113834
WASHER 		- 2 Enquire
- 148261
COMPLETE PEDAL SUPPORT 		- 1 Enquire
1 149868
CLUTCH PEDAL 		- 1 Enquire
2 109407
BALL-JOINT 		- 1 Enquire
3 103163
SELF-LUBRICATING BUSHING 		- 2 Enquire
4 149295
PEDAL SLAB 		- 1 Enquire
5 157934
SCREW COLLAR 		- 2 Enquire
6 12638524
WASHER 		- 2 Enquire
7 14040711
NUT M8 FLANGED 		- 2 Enquire
8 13516824
STUD BOLT 		- 4 Enquire
9 14499421
WASHER 		- 4 Enquire
10 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
12 13516824
STUD BOLT 		- 2 Enquire
13 101305
SPRING 		- 1 Enquire
14 129612
SPRING ANCHOR PIN 		- 1 Enquire
15 187014
PEDAL ADJUSTER SCREW 		- 2 Enquire
16 16102314
NUT 		- 2 Enquire
17 175211
Clutch master cylinder 		- 1 Enquire
18 129615
GASKET 		- 1 Enquire
19 10248271
FORK FOR CLUTCH LEVER 		- 1 Enquire
20 16102314
NUT 		- 1 Enquire
21 130926
SCREW 		- 1 Enquire
22 16104411
Selflocking nut 		- 1 Enquire
23 134903
RUBBER PIPE 		- 1 Enquire
24 131319
PEDAL FASTENING PIN 		- 1 Enquire
25 10902224
SCREW 		- 1 Enquire
26 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
27 106083
WASHER 		- 2 Enquire
28 62164600
PEDAL SUPPORT GUARD 		- 1 Enquire
29 62697800
GASKET 		- 1 Enquire
30 14059290
FLANGED NUT M6 		- 2 Enquire
31 15925601
SCREW 		- 1 Enquire
32 12646604
WASHER 		- 3 Enquire
33 14499421
WASHER 		- 1 Enquire
34 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 1 Enquire
35 140669
HOSE 		- 1 Enquire
36 105369
CABLE GROMMET 		- 1 Enquire
37 232649
CLIP 		- 1 Enquire
38 139375
2-WAY UNION 		- 1 Enquire
39 14059290
FLANGED NUT M6 		- 1 Enquire
40 14499370
Washer 		- 1 Enquire
41 143041
SPACER 		- 1 Enquire
42 141522
CLIP 		- 9 Enquire
43 140666
INTERMEDIATE TUBE 		- 1 Enquire
44 141521
CLIP 		- 2 Enquire
45 240774
CONNECTOR 		- 1 Enquire
46 14059290
FLANGED NUT M6 		- 1 Enquire
47 14499370
Washer 		- 1 Enquire
48 184497
CONNECTOR 		- 1 Enquire
49 175189
SEAT RING 		- 1 Enquire
