Ferrari 296 GTB Europe - ELECTRIC MACHINE COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
979089 THREE-COMPARTMENT TANK $802.28 To Order
748152 THREE-COMPARTMENT TANK $786.24 To Order
Photo Part No Description Price (each) Stock
762914 RUBBER PIPE $18.83 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.47 To Order
Photo Part No Description Price (each) Stock
981124 MTA OIL PLUG $59.35 To Order
Photo Part No Description Price (each) Stock
900410 CAP WITH BATTERY COOLING SYSTEM HEADER TANK BREATHER $46.52 To Order
Photo Part No Description Price (each) Stock
917997 RUBBER PIPE $49.73 To Order
941445 RUBBER PIPE $256.72 To Order
Photo Part No Description Price (each) Stock
768950 HOSE $30.47 To Order
Photo Part No Description Price (each) Stock
784940 THREE-COMPARTMENT HEADER TANK BRACKET $137.98 To Order
Photo Part No Description Price (each) Stock
874304 RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE $240.67 To Order
55003858 RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE $240.67 To Order
Photo Part No Description Price (each) Stock
922718 O-RING $34.83 To Order
Photo Part No Description Price (each) Stock
867659 CAP WITH P2 HEADER TANK BREATHER $33.68 To Order
Photo Part No Description Price (each) Stock
918008 RUBBER PIPE $256.72 To Order
941443 RUBBER PIPE $256.72 To Order
Photo Part No Description Price (each) Stock
741090 P2 CIRCUIT FILLER MOULDED PIPE $78.61 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
813354 PUMP INLET AND FILLER PIPE $513.46 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.72 IN STOCK
Photo Part No Description Price (each) Stock
909762 RADIATOR OUTLET PIPE $320.90 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
817117 P2 INLET PIPE $385.09 To Order
Photo Part No Description Price (each) Stock
771663 P2 OUTLET PIPE $449.27 To Order
Photo Part No Description Price (each) Stock
286421 O-RING $0.94 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
938685 THREADED BRACKET FOR FASTENING P2 CIRCUIT PIPE RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.75 IN STOCK
Photo Part No Description Price (each) Stock
243396 RETAINER BLOCK $25.66 To Order
Photo Part No Description Price (each) Stock
243398 PLATE $14.10 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 IN STOCK
Photo Part No Description Price (each) Stock
934069 OIL RADIATOR COMPLETE WITH FAN $1,331.80 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
12647778 WASHER $0.41 To Order
Photo Part No Description Price (each) Stock
797730 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
908793 RADIATOR INLET PIPE $272.77 To Order
Photo Part No Description Price (each) Stock
216851 O-RING $3.47 To Order
Photo Part No Description Price (each) Stock
894449 COMPL. PUMP WITH PLATE $1,325.54 To Order
55004826 COMPL. PUMP WITH PLATE $1,235.52 To Order
Photo Part No Description Price (each) Stock
986012 OIL PUMP MOUNTING BRACKET $93.05 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
14303834 SCREW $1.57 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
301064 DOUBLE CLIP $1.96 To Order
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
797724 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
248153 RIVET $1.47 To Order
Photo Part No Description Price (each) Stock
262108 SCREW COLLAR $1.78 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
875436 O-RING $1.72 To Order
View All

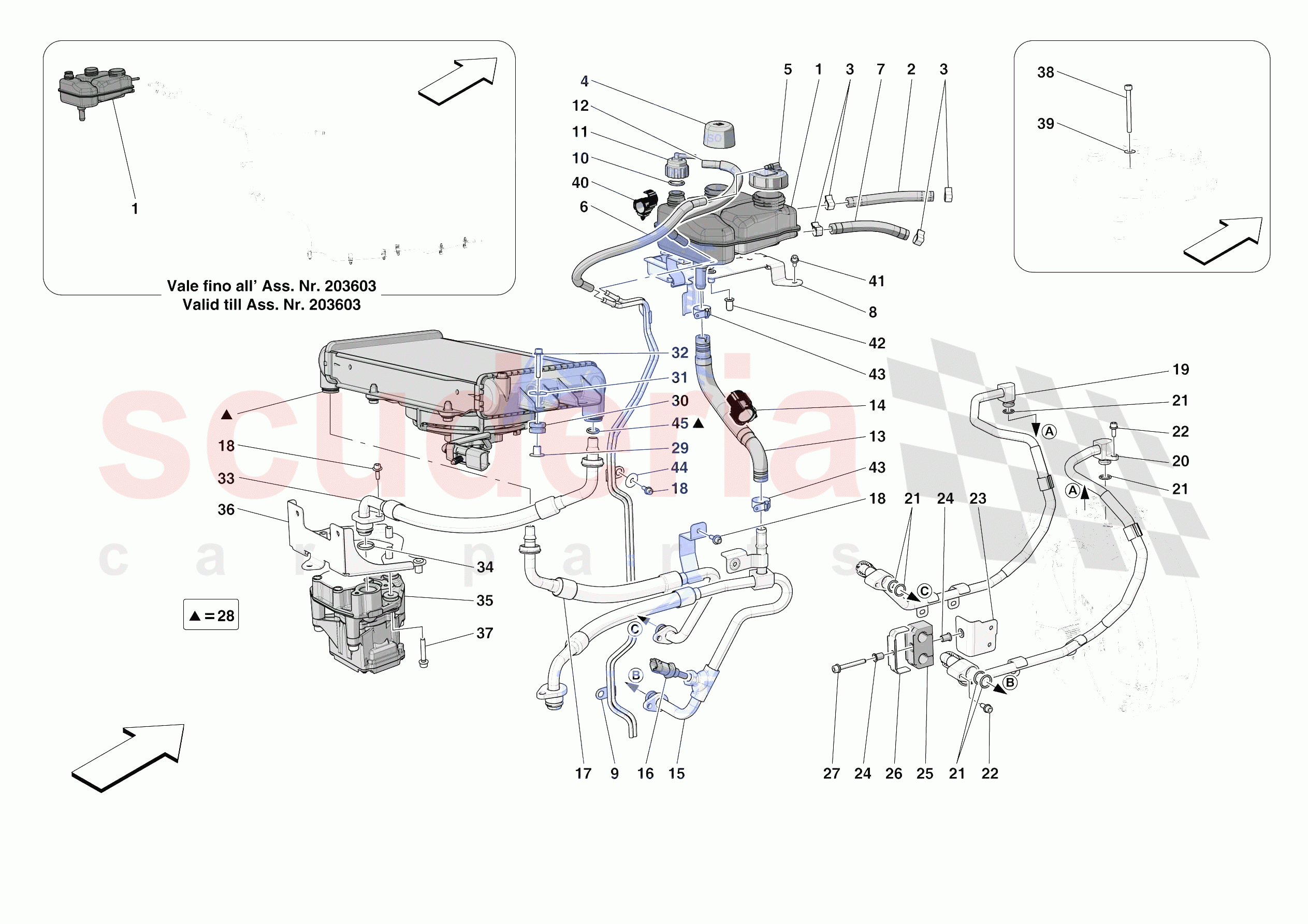

ELECTRIC MACHINE COOLING of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 979089
THREE-COMPARTMENT TANK
Version with HVB battery breather - Identify part number installed in vehicle before ordering, see TI 2932 		$802.28 1
1 748152
THREE-COMPARTMENT TANK
Version without HVB battery breather - Identify part number installed in vehicle before ordering, see TI 2932 		$786.24 1
2 762914
RUBBER PIPE 		$18.83 1
3 13126970
COLLAR 		$1.47 4
4 981124
MTA OIL PLUG 		$59.35 1
5 900410
CAP WITH BATTERY COOLING SYSTEM HEADER TANK BREATHER 		$46.52 1
6 917997
RUBBER PIPE
Applies until depletion 		$49.73 1
6 941445
RUBBER PIPE
For vehicles up to Ass.ly No. 204002 also order rubber pipe 941443 ref. 12 and clip 248061 ref. 40; Applicable after depletion of 917997 		$256.72 1
7 768950
HOSE 		$30.47 1
8 784940
THREE-COMPARTMENT HEADER TANK BRACKET 		$137.98 1
9 874304
RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE 		$240.67 1
9 55003858
RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE 		$240.67 1
10 922718
O-RING 		$34.83 1
11 867659
CAP WITH P2 HEADER TANK BREATHER 		$33.68 1
12 918008
RUBBER PIPE
Applies until depletion 		$256.72 1
12 941443
RUBBER PIPE
For vehicles up to Ass.ly No. 204002 also order rubber pipe 941445 ref. 6 and clip 248061 ref. 40; Applicable after depletion of 918008 		$256.72 1
13 741090
P2 CIRCUIT FILLER MOULDED PIPE 		$78.61 1
14 248061
CLIP
IN STOCK 		$2.14 1
15 813354
PUMP INLET AND FILLER PIPE 		$513.46 1
16 180137
TEMPERATURE SENSOR
IN STOCK 		$28.72 (12.9% off) 1
17 909762
RADIATOR OUTLET PIPE 		$320.90 1
18 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 16
19 817117
P2 INLET PIPE 		$385.09 1
20 771663
P2 OUTLET PIPE 		$449.27 1
21 286421
O-RING 		$0.94 6
22 248334
SCREW
M6 X 16 		$0.68 4
23 938685
THREADED BRACKET FOR FASTENING P2 CIRCUIT PIPE RETAINER BLOCK 		- 1 Enquire
24 243399
BUSH
IN STOCK 		$0.75 2
25 243396
RETAINER BLOCK 		$25.66 1
26 243398
PLATE 		$14.10 1
27 231624
SCREW
M6 X 45
IN STOCK 		$0.44 1
28 934069
OIL RADIATOR COMPLETE WITH FAN 		$1,331.80 1
29 149707
SPACER
IN STOCK 		$1.10 (37.1% off) 3
30 177576
CABLE GROMMET
IN STOCK 		$2.20 3
31 12647778
WASHER 		$0.41 (36.9% off) 3
32 797730
SCREW
M5 X 30 		$0.58 3
33 908793
RADIATOR INLET PIPE 		$272.77 1
34 216851
O-RING 		$3.47 2
35 894449
COMPL. PUMP WITH PLATE
Applies until depletion 		$1,325.54 1
35 55004826
COMPL. PUMP WITH PLATE 		$1,235.52 1
36 986012
OIL PUMP MOUNTING BRACKET 		$93.05 1
37 231622
SCREW
M6 X 35
IN STOCK 		$0.36 (28% off) 3
38 14303834
SCREW
M6 X 60
IN STOCK 		$1.57 1
39 12644424
WASHER
IN STOCK 		$0.06 (85% off) 1
40 301064
DOUBLE CLIP 		$1.96 1
40 248061
CLIP
IN STOCK 		$2.14 1
41 797724
SCREW
M5 X 14 		$0.47 3
42 248153
RIVET 		$1.47 1
43 262108
SCREW COLLAR 		$1.78 2
44 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 3
45 875436
O-RING 		$1.72 1
