ANTI-THEFT SYSTEM of Ferrari Ferrari 296 GTB Europe

View All

Ferrari 296 GTB Europe - ANTI-THEFT SYSTEM

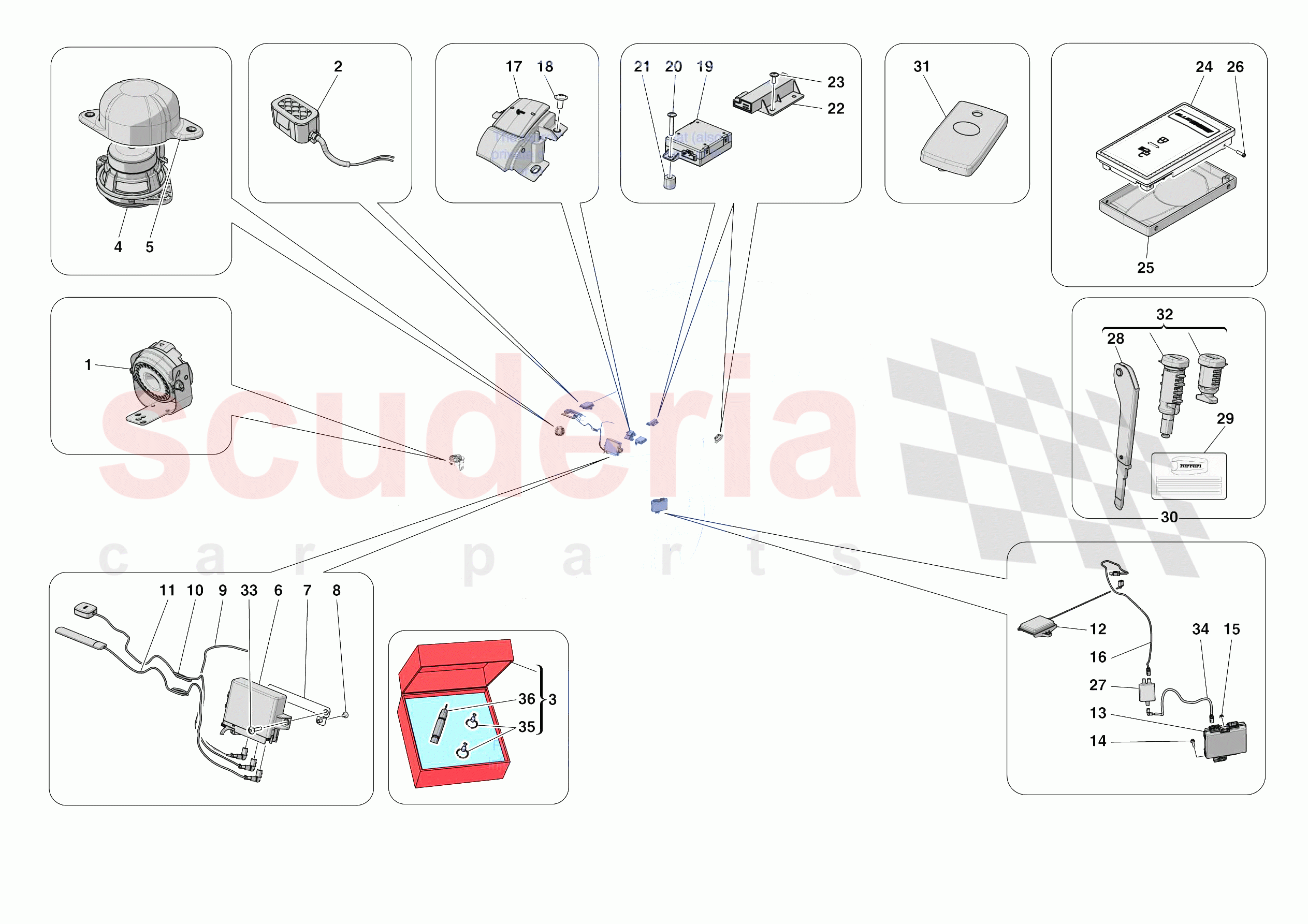

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	336779	COMPL. ANTI-THEFT SYSTEM SIREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333337	GSM MICROPHONE	Enquire	To Order
	333337	GSM MICROPHONE	Enquire	To Order
	333337	GSM MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895549	KEY SCREWDRIVER-RING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332825	GLONASS SPEAKER	Enquire	To Order
	332825	GLONASS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965601	SPEAKER COVER	Enquire	To Order
	965601	SPEAKER COVER	Enquire	To Order
	818342	SPEAKER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818431	GLONASS ECU	Enquire	To Order
	956025	E-CALL TCU	Enquire	To Order
	824396	TCU ECALL / SVR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	741711	ERA GLONASS ECU BRACKET	Enquire	To Order
	741711	ERA GLONASS ECU BRACKET	Enquire	To Order
	741711	ERA GLONASS ECU BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824398	RF ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336506	GLONASS GPS ANTENNA	Enquire	To Order
	336506	GLONASS GPS ANTENNA	Enquire	To Order
	336506	GLONASS GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336507	GLONASS GSM ANTENNA	Enquire	To Order
	336507	GLONASS GSM ANTENNA	Enquire	To Order
	336507	GLONASS GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925991	PASSIVE START ANTENNA	Enquire	To Order
	935814	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	839378	PASSIVE START ECU	Enquire	To Order
	940501	PASSIVE START ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285227	SCREW M5 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	775528	PASSIVE ENTRY RF ANTENNA CABLE	Enquire	To Order
	775528	PASSIVE ENTRY RF ANTENNA CABLE	Enquire	To Order
	912307	RF ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829636	COMPL. E-CALL CONTROL	Enquire	To Order
	829636	COMPL. E-CALL CONTROL	Enquire	To Order
	829636	COMPL. E-CALL CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293416	ANTI-LIFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	902033	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310778	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	953697	WRENCH	Enquire	To Order
	953698	WRENCH	Enquire	To Order
	953699	WRENCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	865296	KEY FOB	Enquire	To Order
	865295	KEY FOB	Enquire	To Order
	923359	KEY FOB	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	865301	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916407	LUGGAGE COMPARTMENT TUB SPLITTER	Enquire	To Order
	916407	LUGGAGE COMPARTMENT TUB SPLITTER	Enquire	To Order
	916407	LUGGAGE COMPARTMENT TUB SPLITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766328	WRENCH BIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772851	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824397	DRIVER CARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766286	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	907909	NPE-SPLITTER CABLE	Enquire	To Order
	907909	NPE-SPLITTER CABLE	Enquire	To Order
	907909	NPE-SPLITTER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865300	KEY RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925517	SCREWDRIVER ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	336779	COMPL. ANTI-THEFT SYSTEM SIREN	336779 COMPL. ANTI-THEFT SYSTEM SIREN	-	1	Enquire
2	333337	GSM MICROPHONE	333337 GSM MICROPHONE Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
2	333337	GSM MICROPHONE	333337 GSM MICROPHONE	-	1	Enquire
2	333337	GSM MICROPHONE	333337 GSM MICROPHONE	-	1	Enquire
3	895549	KEY SCREWDRIVER-RING KIT	895549 KEY SCREWDRIVER-RING KIT	-	1	Enquire
4	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER Applicable for E-CALL system	-	1	Enquire
4	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER	-	1	Enquire
5	965601	SPEAKER COVER	965601 SPEAKER COVER Applicable for E-CALL system	-	1	Enquire
5	965601	SPEAKER COVER	965601 SPEAKER COVER	-	1	Enquire
5	818342	SPEAKER COVER	818342 SPEAKER COVER Applicable for E-CALL system	-	1	Enquire
6	818431	GLONASS ECU	818431 GLONASS ECU No longer supplied - Replaced by -; Unprogrammed	-	1	Enquire
6	956025	E-CALL TCU	956025 E-CALL TCU Applicable for E-CALL system - Applicable for UAE only	-	1	Enquire
6	824396	TCU ECALL / SVR	824396 TCU ECALL / SVR Applicable for E-CALL system - Version with SVR satellite alarm system with or without card - Not for Turkey	-	1	Enquire
6	956023	E-CALL TCU	956023 E-CALL TCU Specific for Turkey - Applicable for E-CALL system	-	1	Enquire
7	741711	ERA GLONASS ECU BRACKET	741711 ERA GLONASS ECU BRACKET Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
7	741711	ERA GLONASS ECU BRACKET	741711 ERA GLONASS ECU BRACKET	-	1	Enquire
7	741711	ERA GLONASS ECU BRACKET	741711 ERA GLONASS ECU BRACKET	-	1	Enquire
7	791164	COMPL. ANTI-THEFT SYSTEM ECU BRACKET	791164 COMPL. ANTI-THEFT SYSTEM ECU BRACKET Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
8	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
9	824398	RF ANTENNA	824398 RF ANTENNA Version with satellite alarm system with card	-	1	Enquire
10	336506	GLONASS GPS ANTENNA	336506 GLONASS GPS ANTENNA Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
10	336506	GLONASS GPS ANTENNA	336506 GLONASS GPS ANTENNA	-	1	Enquire
10	336506	GLONASS GPS ANTENNA	336506 GLONASS GPS ANTENNA	-	1	Enquire
11	336507	GLONASS GSM ANTENNA	336507 GLONASS GSM ANTENNA Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
11	336507	GLONASS GSM ANTENNA	336507 GLONASS GSM ANTENNA	-	1	Enquire
11	336507	GLONASS GSM ANTENNA	336507 GLONASS GSM ANTENNA	-	1	Enquire
12	925991	PASSIVE START ANTENNA	925991 PASSIVE START ANTENNA	-	1	Enquire
12	935814	PASSIVE START ANTENNA	935814 PASSIVE START ANTENNA	-	1	Enquire
13	839378	PASSIVE START ECU	839378 PASSIVE START ECU	-	1	Enquire
13	940501	PASSIVE START ECU	940501 PASSIVE START ECU	-	1	Enquire
14	16285227	SCREW M5 X 20	16285227 SCREW M5 X 20 M5 X 20	-	1	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
16	775528	PASSIVE ENTRY RF ANTENNA CABLE	775528 PASSIVE ENTRY RF ANTENNA CABLE	-	1	Enquire
16	775528	PASSIVE ENTRY RF ANTENNA CABLE	775528 PASSIVE ENTRY RF ANTENNA CABLE	-	1	Enquire
16	912307	RF ANTENNA CABLE	912307 RF ANTENNA CABLE	-	1	Enquire
17	829636	COMPL. E-CALL CONTROL	829636 COMPL. E-CALL CONTROL Applicable for E-CALL system - Version with SVR satellite alarm system with or without card	-	1	Enquire
17	829636	COMPL. E-CALL CONTROL	829636 COMPL. E-CALL CONTROL	-	1	Enquire
17	829636	COMPL. E-CALL CONTROL	829636 COMPL. E-CALL CONTROL	-	1	Enquire
18	85833700	SCREW	85833700 SCREW M5 X 10	-	6	Enquire
19	293416	ANTI-LIFT SENSOR	293416 ANTI-LIFT SENSOR	-	1	Enquire
20	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 30	-	2	Enquire
21	902033	SPACER	902033 SPACER	-	2	Enquire
22	310778	PASSIVE START ANTENNA	310778 PASSIVE START ANTENNA	-	4	Enquire
23	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
24	953697	WRENCH	953697 WRENCH Leather	-	1	Enquire
24	953698	WRENCH	953698 WRENCH Leather	-	1	Enquire
24	953699	WRENCH	953699 WRENCH Carbon version; Leather	-	1	Enquire
24	953700	WRENCH	953700 WRENCH Carbon version; Leather	-	1	Enquire
25	865296	KEY FOB	865296 KEY FOB Plastic	-	1	Enquire
25	865295	KEY FOB	865295 KEY FOB Yellow	-	1	Enquire
25	923359	KEY FOB	923359 KEY FOB Grey	-	1	Enquire
25	865703	KEY FOB	865703 KEY FOB Carbon version	-	1	Enquire
26	865301	SCREW	865301 SCREW	-	4	Enquire
27	916407	LUGGAGE COMPARTMENT TUB SPLITTER	916407 LUGGAGE COMPARTMENT TUB SPLITTER Applicable for version in carbon fibre	-	1	Enquire
27	916407	LUGGAGE COMPARTMENT TUB SPLITTER	916407 LUGGAGE COMPARTMENT TUB SPLITTER	-	1	Enquire
27	916407	LUGGAGE COMPARTMENT TUB SPLITTER	916407 LUGGAGE COMPARTMENT TUB SPLITTER	-	1	Enquire
28	766328	WRENCH BIT	766328 WRENCH BIT	-	1	Enquire
29	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	-	1	Enquire
30	772851	KEY AND BLOCK KIT	772851 KEY AND BLOCK KIT Manage the loose components; No longer supplied; Contains: 1 key, 2 ignition switch blocks and 1 CODE CARD	-	1	Enquire
31	824397	DRIVER CARD	824397 DRIVER CARD Version with satellite alarm system with card - Request ASM authorisation	-	1	Enquire
32	766286	KEY AND BLOCK KIT	766286 KEY AND BLOCK KIT Contains: 1 wrench and 2 blocks	-	1	Enquire
33	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
34	907909	NPE-SPLITTER CABLE	907909 NPE-SPLITTER CABLE Applicable for version in carbon fibre	-	1	Enquire
34	907909	NPE-SPLITTER CABLE	907909 NPE-SPLITTER CABLE	-	1	Enquire
34	907909	NPE-SPLITTER CABLE	907909 NPE-SPLITTER CABLE	-	1	Enquire
35	865300	KEY RING	865300 KEY RING	-	2	Enquire
36	925517	SCREWDRIVER ADAPTER	925517 SCREWDRIVER ADAPTER	-	1	Enquire
