ELECTRIC MACHINE of Ferrari Ferrari 296 GTB Europe

View All

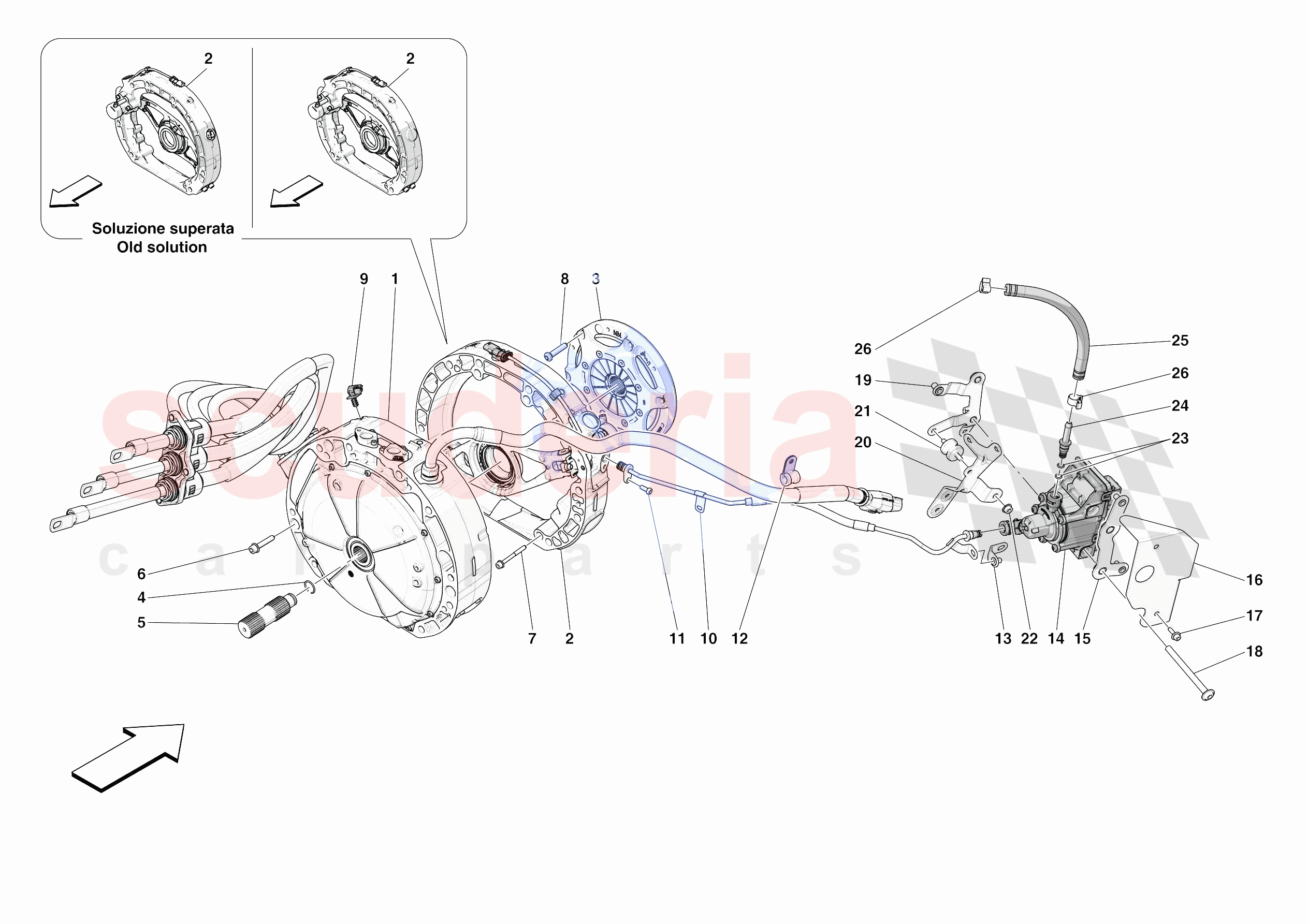

Ferrari 296 GTB Europe - ELECTRIC MACHINE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	893656	P2 ELECTRIC MACHINE	Enquire	To Order
	803852	P2 ELECTRIC MACHINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	Enquire	To Order
	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	Enquire	To Order
	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774482	CLUTCH ASSEMBLY	Enquire	To Order
	774482	CLUTCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	810755	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	913477	SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION	Enquire	To Order
	770526	SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265097	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893495	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order
	899974	PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	804791	COMPL. MODULAR CLUTCH ACTUATOR PIPE	Enquire	To Order
	840352	COMPL. MODULAR CLUTCH ACTUATOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868624	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794338	MODULAR CLUTCH ACTUATOR PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772760	M4 MODULAR CLUTCH ACTUATOR	Enquire	To Order
	990376	M4 MODULAR CLUTCH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911154	MODULAR CLUTCH ACTUATOR SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911155	MODULAR CLUTCH ACTUATOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749513	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	789364	MODULAR CLUTCH ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	789478	MODULAR CLUTCH ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925715	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954484	HYDRAULIC CONNECTOR FOR RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	762612	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	893656	P2 ELECTRIC MACHINE	893656 P2 ELECTRIC MACHINE	-	1	Enquire
1	803852	P2 ELECTRIC MACHINE	803852 P2 ELECTRIC MACHINE	-	1	Enquire
2	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	742168 CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE For vehicles up to engine No. 551983 also order DCT wiring harness 982357 tab.182 ref.11; Version without temperature sensor	-	1	Enquire
2	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	742168 CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE Version with temperature sensor	-	1	Enquire
2	742168	CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE	742168 CLUTCH ACTUATION SYSTEM HYDRAULIC FLANGE Version without temperature sensor	-	1	Enquire
3	774482	CLUTCH ASSEMBLY	774482 CLUTCH ASSEMBLY In case of replacement, contact [email protected] to carry out marriage procedure	-	1	Enquire
3	774482	CLUTCH ASSEMBLY	774482 CLUTCH ASSEMBLY In case of replacement, contact [email protected] to carry out marriage procedure	-	1	Enquire
4	810755	SNAP RING	810755 SNAP RING	-	1	Enquire
5	913477	SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION	913477 SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION Applies until depletion	-	1	Enquire
5	770526	SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION	770526 SPLINED SHAFT BETWEEN ELECTRIC MACHINE AND TRANSMISSION Applicable after depletion of 913477	-	1	Enquire
6	265097	SCREW	265097 SCREW M8 X 40	-	3	Enquire
7	255494	SCREW	255494 SCREW M6 X 55	-	4	Enquire
8	893495	SCREW	893495 SCREW	-	6	Enquire
9	250318	SNAP CLIP	250318 SNAP CLIP	-	3	Enquire
9	899974	PIPE MOUNTING	899974 PIPE MOUNTING	-	2	Enquire
10	804791	COMPL. MODULAR CLUTCH ACTUATOR PIPE	804791 COMPL. MODULAR CLUTCH ACTUATOR PIPE No longer supplied - Replaced by 840352	-	1	Enquire
10	840352	COMPL. MODULAR CLUTCH ACTUATOR PIPE	840352 COMPL. MODULAR CLUTCH ACTUATOR PIPE	-	1	Enquire
11	13026924	SCREW	13026924 SCREW M6 X 14	-	1	Enquire
12	868624	BRACKET	868624 BRACKET	-	1	Enquire
13	794338	MODULAR CLUTCH ACTUATOR PIPE FASTENER BRACKET	794338 MODULAR CLUTCH ACTUATOR PIPE FASTENER BRACKET	-	1	Enquire
14	772760	M4 MODULAR CLUTCH ACTUATOR	772760 M4 MODULAR CLUTCH ACTUATOR Applies until depletion	-	1	Enquire
14	990376	M4 MODULAR CLUTCH ACTUATOR	990376 M4 MODULAR CLUTCH ACTUATOR Applicable after depletion of 772760	-	1	Enquire
15	911154	MODULAR CLUTCH ACTUATOR SHIELD BRACKET	911154 MODULAR CLUTCH ACTUATOR SHIELD BRACKET	-	1	Enquire
16	911155	MODULAR CLUTCH ACTUATOR SHIELD	911155 MODULAR CLUTCH ACTUATOR SHIELD	-	1	Enquire
17	85833700	SCREW	85833700 SCREW M5 X 16	-	7	Enquire
18	749513	SCREW	749513 SCREW	-	2	Enquire
19	789364	MODULAR CLUTCH ACTUATOR BRACKET	789364 MODULAR CLUTCH ACTUATOR BRACKET	-	1	Enquire
20	789478	MODULAR CLUTCH ACTUATOR BRACKET	789478 MODULAR CLUTCH ACTUATOR BRACKET	-	1	Enquire
21	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	3	Enquire
22	14040614	NUT	14040614 NUT	-	3	Enquire
23	925715	O-RING	925715 O-RING	-	2	Enquire
24	954484	HYDRAULIC CONNECTOR FOR RUBBER PIPE	954484 HYDRAULIC CONNECTOR FOR RUBBER PIPE	-	1	Enquire
25	762612	RUBBER PIPE	762612 RUBBER PIPE	-	1	Enquire
26	13125470	COLLAR	13125470 COLLAR	-	2	Enquire
