FRONT SUBSTRUCTURE TRIM

Find Your Part

Ferrari 296 GTS USA - FRONT SUBSTRUCTURE TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
782806 CENTRE COSMETIC COVER $56.14 To Order
805539 COMPL. CENTRE COSMETIC COVER $2,147.29 To Order
819508 COMPL. CENTRE COSMETIC COVER $2,213.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782811 RH COSMETIC COVER $77.00 To Order
778110 COMPL. RH COSMETIC TRIM $2,517.13 To Order
819505 COMPL. RH COSMETIC TRIM $2,581.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782808 LH COSMETIC TRIM $77.00 To Order
778106 COMPL. LH COSMETIC TRIM $2,517.13 To Order
819503 COMPL. LH COSMETIC TRIM $2,581.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782733 COMPL. RH UNDERWINDSCREEN TRAY $415.69 To Order
741291 COMPL. RH UNDERWINDSCREEN TRAY $353.00 To Order
789936 COMPL. RH UNDERWINDSCREEN TRAY $4,380.54 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782742 COMPL. LH UNDERWINDSCREEN TRAY $473.02 To Order
741288 COMPL. LH UNDERWINDSCREEN TRAY $501.69 To Order
778109 COMPL. LH UNDERWINDSCREEN TRAY $5,032.00 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782740 RH FRONT BUSH $33.68 To Order
Photo Part No Description Price (each) Stock
782756 LH FRONT BUSH $33.68 To Order
Photo Part No Description Price (each) Stock
851358 RH A-PILLAR SEAL $86.08 To Order
Photo Part No Description Price (each) Stock
851357 LH A-PILLAR SEAL $86.08 To Order
Photo Part No Description Price (each) Stock
952336 BLANKING PLUG $5.75 To Order
Photo Part No Description Price (each) Stock
849815 VIBRATION DAMPER $33.68 ARRIVING SOON
Photo Part No Description Price (each) Stock
16281827 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
15689601 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
14115885 BLOCK $0.16 To Order
Photo Part No Description Price (each) Stock
791557 FRONT STABILUS SPRING $35.98 To Order
Photo Part No Description Price (each) Stock
825003 CENTRE FILTER TRAY GASKET $70.18 To Order
Photo Part No Description Price (each) Stock
745096 BRAKE OIL RESERVOIR LID $17.63 To Order
Photo Part No Description Price (each) Stock
84324400 COSMETIC CAP $1.54 To Order
84324400 COSMETIC CAP $1.54 To Order
Photo Part No Description Price (each) Stock
844829 WINDSCREEN SEAL NITTO $2.24 To Order
Photo Part No Description Price (each) Stock
852839 EQUIVALENT HOLE SURROUND DUCT $60.96 To Order
859428 EQUIVALENT HOLE SURROUND DUCT $57.33 To Order
Photo Part No Description Price (each) Stock
859426 COMPL. FRONT EQUIVALENT HOLE INTAKE $54.54 To Order
Photo Part No Description Price (each) Stock
933955 FRONT LH SHOCK TOWER PULER $10.73 To Order
Photo Part No Description Price (each) Stock
775662 AC CHARGE CONNECTOR COVER $72.19 To Order
View All

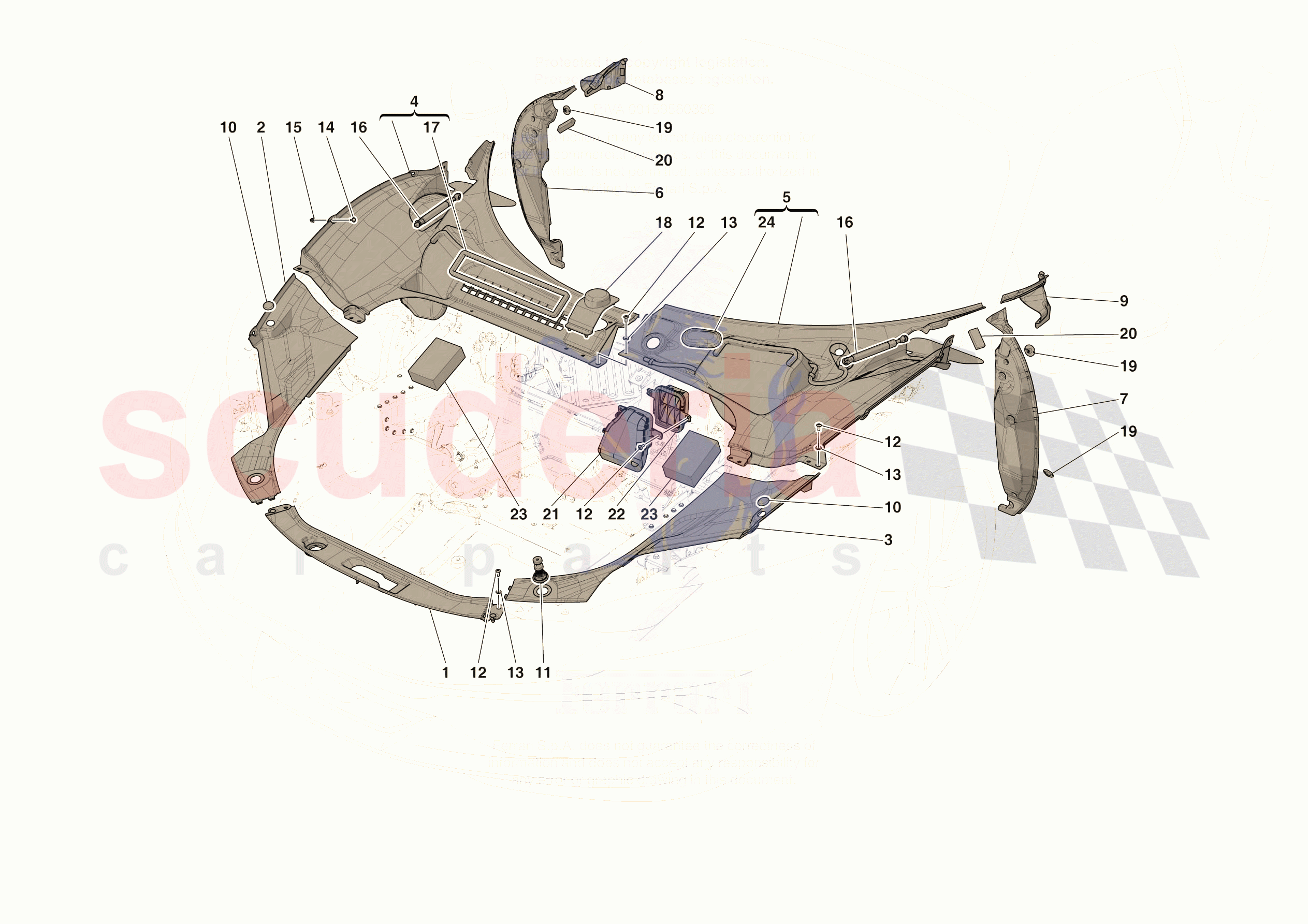

FRONT SUBSTRUCTURE TRIM of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 782806
CENTRE COSMETIC COVER 		$56.14 1
0001 805539
COMPL. CENTRE COSMETIC COVER
Gloss finish carbon version 		$2,147.29 1
0001 819508
COMPL. CENTRE COSMETIC COVER
Matte finish carbon version 		$2,213.24 1
0001 70007766
COMPL. CENTRE COSMETIC COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0002 782811
RH COSMETIC COVER 		$77.00 1
0002 778110
COMPL. RH COSMETIC TRIM
Gloss finish carbon version 		$2,517.13 1
0002 819505
COMPL. RH COSMETIC TRIM
Matte finish carbon version 		$2,581.64 1
0002 70007767
COMPL. RH COSMETIC TRIM
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0003 782808
LH COSMETIC TRIM 		$77.00 1
0003 778106
COMPL. LH COSMETIC TRIM
Gloss finish carbon version 		$2,517.13 1
0003 819503
COMPL. LH COSMETIC TRIM
Matte finish carbon version 		$2,581.64 1
0003 70007768
COMPL. LH COSMETIC TRIM
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0004 782733
COMPL. RH UNDERWINDSCREEN TRAY 		$415.69 1
0004 741291
COMPL. RH UNDERWINDSCREEN TRAY 		$353.00 1
0004 789936
COMPL. RH UNDERWINDSCREEN TRAY
Gloss finish carbon version 		$4,380.54 1
0004 888869
COMPL. RH UNDERWINDSCREEN TRAY
Gloss finish carbon version 		$4,142.67 1
0004 818928
COMPL. RH UNDERWINDSCREEN TRAY
Matte finish carbon version 		$4,392.09 1
0004 888882
COMPL. RH UNDERWINDSCREEN TRAY
Matte finish carbon version 		$4,298.91 1
0004 70007769
COMPL. RH UNDERWINDSCREEN TRAY
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0004 70007770
COMPL. RH UNDERWINDSCREEN TRAY
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0005 782742
COMPL. LH UNDERWINDSCREEN TRAY 		$473.02 1
0005 741288
COMPL. LH UNDERWINDSCREEN TRAY 		$501.69 1
0005 778109
COMPL. LH UNDERWINDSCREEN TRAY
Gloss finish carbon version 		$5,032.00 1
0005 888861
COMPL. LH UNDERWINDSCREEN TRAY
Gloss finish carbon version 		$4,763.36 1
0005 818955
COMPL. LH UNDERWINDSCREEN TRAY
Matte finish carbon version 		$5,050.04 1
0005 888885
COMPL. LH UNDERWINDSCREEN TRAY
Matte finish carbon version 		$4,942.54 1
0005 70007771
COMPL. LH UNDERWINDSCREEN TRAY
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0005 70007772
COMPL. LH UNDERWINDSCREEN TRAY
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0006 782740
RH FRONT BUSH 		$33.68 1
0007 782756
LH FRONT BUSH 		$33.68 1
0008 851358
RH A-PILLAR SEAL 		$86.08 1
0009 851357
LH A-PILLAR SEAL 		$86.08 1
0010 952336
BLANKING PLUG 		$5.75 2
0011 849815
VIBRATION DAMPER
ARRIVING SOON 		$33.68 2
0012 16281827
SCREW
M5 X 14 		$0.23 10
0013 62769800
WASHER 		$0.23 (23.3% off) 8
0014 15689601
SCREW
M8 X 13 		$0.24 6
0015 14115885
BLOCK 		$0.16 6
0016 791557
FRONT STABILUS SPRING 		$35.98 2
0017 825003
CENTRE FILTER TRAY GASKET 		$70.18 1
0018 745096
BRAKE OIL RESERVOIR LID 		$17.63 1
0019 84324400
COSMETIC CAP 		$1.54 4
0019 84324400
COSMETIC CAP 		$1.54 4
0020 844829
WINDSCREEN SEAL NITTO 		$2.24 2
0021 852839
EQUIVALENT HOLE SURROUND DUCT 		$60.96 1
0021 859428
EQUIVALENT HOLE SURROUND DUCT 		$57.33 1
0022 859426
COMPL. FRONT EQUIVALENT HOLE INTAKE 		$54.54 1
0023 933955
FRONT LH SHOCK TOWER PULER 		$10.73 2
0024 775662
AC CHARGE CONNECTOR COVER 		$72.19 1
