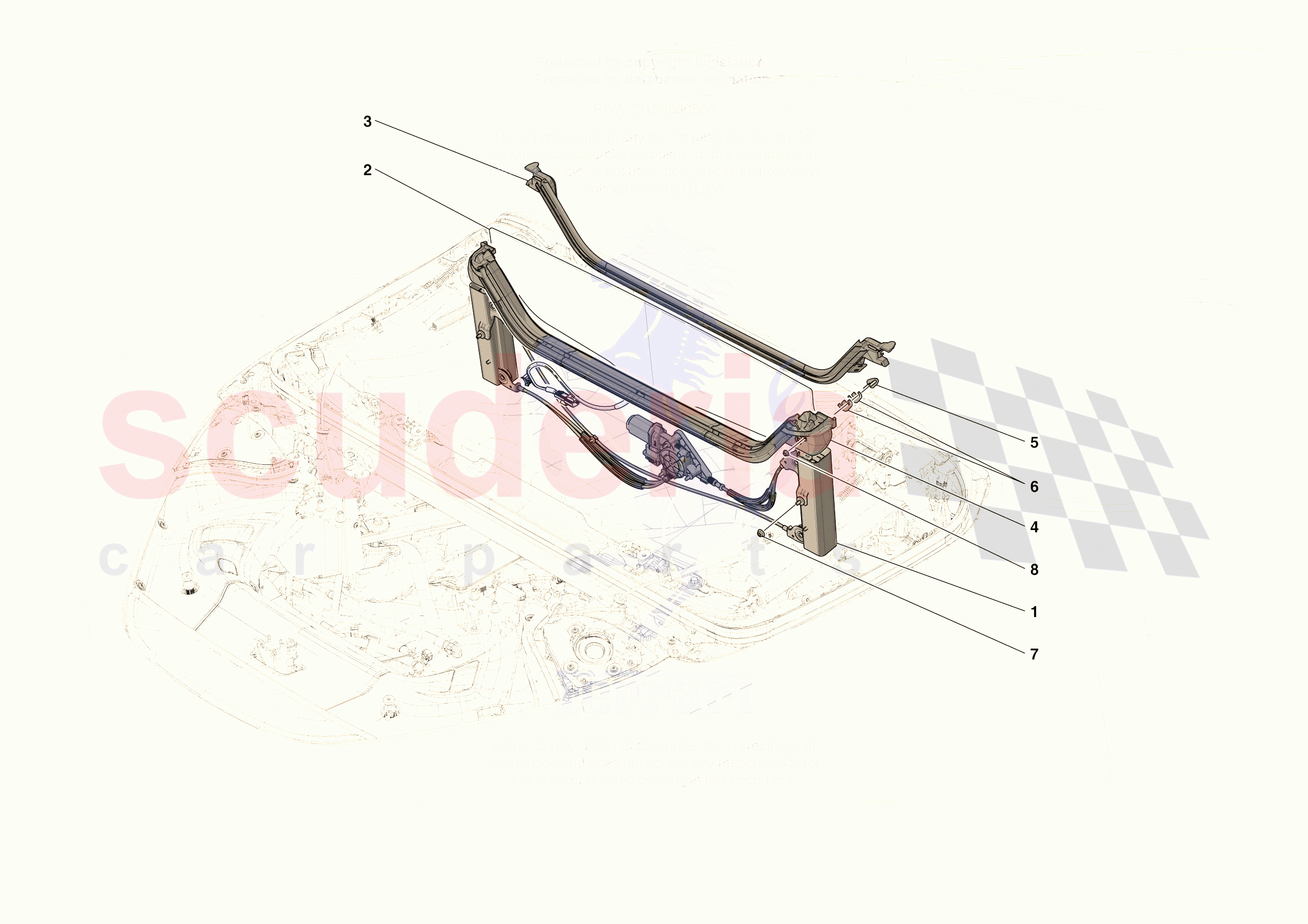

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	815189	REAR SCREEN LIFTER	$875.30	To Order

Photo	Part No	Description	Price (each)	Stock
	903339	OPENING REAR SCREEN	$790.19	To Order

Photo	Part No	Description	Price (each)	Stock
	788146	INNER SEAL	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	788145	EXTERNAL GASKET	$463.58	To Order

Photo	Part No	Description	Price (each)	Stock
	84413000	PLATE	$17.20	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	815189	REAR SCREEN LIFTER	815189 REAR SCREEN LIFTER	$875.30	1
0002	903339	OPENING REAR SCREEN	903339 OPENING REAR SCREEN Including wiring harness	$790.19	1
0003	788146	INNER SEAL	788146 INNER SEAL	$384.11	1
0004	788145	EXTERNAL GASKET	788145 EXTERNAL GASKET	$463.58	1
0005	84413000	PLATE	84413000 PLATE	$17.20	2
0006	920403	SHIM	920403 SHIM Applies until depletion; 1.5 mm	$10.31	4
0006	847999	SHIM	847999 SHIM Applicable after depletion of 920403; 1.5 mm	$12.32	4
0006	920169	SHIM	920169 SHIM Applies until depletion; 3 mm	$12.32	2
0006	848000	SHIM	848000 SHIM Applicable after depletion of 920169; 3 mm	$10.31	2
0007	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6.2	$1.51	7
0008	13046011	NUT	13046011 NUT M5 X 5	$0.39	8
