DASHBOARD - TRIM -NOT FOR RHD- of Ferrari Ferrari 296 GTS USA

View All

Ferrari 296 GTS USA - DASHBOARD - TRIM -NOT FOR RHD-

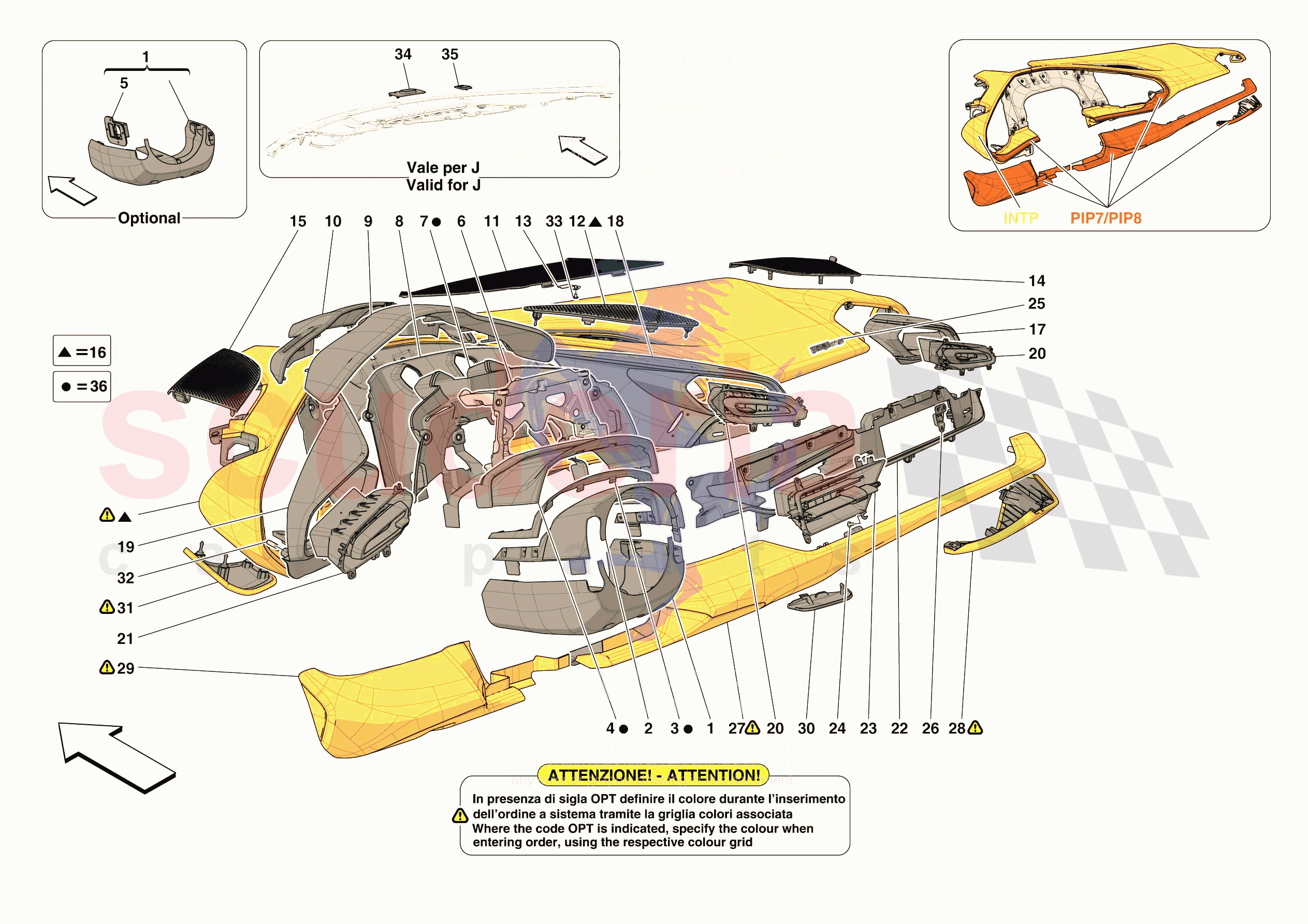

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	970282	COMPL. LOWER STEERING COLUMN SHIELD	Enquire	To Order
	801077	COMPL. LOWER STEERING COLUMN SHIELD	Enquire	To Order
	801103	COMPL. LOWER STEERING COLUMN SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	970293	UPPER STEERING COLUMN SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84001400	JOYSTICK PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	741790	COMPL. CLUSTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970151	CLUSTER MOUNTING PANEL	Enquire	To Order
	743775	CLUSTER MOUNTING PANEL	Enquire	To Order
	70007700	CLUSTER MOUNTING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970161	COMPL. BROW	Enquire	To Order
	743860	COMPL. BROW	Enquire	To Order
	70007701	COMPL. BROW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970212	UPPER CLUSTER SHELL	Enquire	To Order
	743892	UPPER CLUSTER SHELL	Enquire	To Order
	70007702	UPPER CLUSTER SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970197	COMPL. CENTRE SPEAKER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970205	COMPL. DIFFUSER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985406	GSM MICROPHONE INSULATION MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970199	RH SPEAKER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970148	LH SPEAKER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	852490	COMPL. COVER BAG	Enquire	To Order
	914061	COMPL. COVER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970225	COMPL. RH LATERAL CASTING	Enquire	To Order
	743784	COMP. RH LATERAL VENT BEZEL	Enquire	To Order
	70007703	COMP. RH LATERAL VENT BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970245	COMPL. RH CLUSTER CASTING	Enquire	To Order
	743786	COMPL. RH CLUSTER TRIM	Enquire	To Order
	70007704	COMPL. RH CLUSTER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970252	COMPL. LH CLUSTER CASTING	Enquire	To Order
	743776	COMPL. LH CLUSTER TRIM	Enquire	To Order
	70007705	COMPL. LH CLUSTER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	969295	RH VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	969292	LH VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970343	COMPL. DISPLAY MOUNT	Enquire	To Order
	832060	COMPL. DISPLAY MOUNT	Enquire	To Order
	770756	COMPL. DISPLAY MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	969312	CENTRE VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915489	DASHBOARD BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914184	RH LATERAL DISPLAY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	947658	CENTRE UNDERDASHBOARD ELEMENT	Enquire	To Order
	947660	CENTRE UNDERDASHBOARD ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	947661	COMPL. RH LOWER PLUG	Enquire	To Order
	947662	COMPL. RH LOWER PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	947663	COMPL. LH LOWER PLUG	Enquire	To Order
	947664	COMPL. LH LOWER PLUG	Enquire	To Order
	947666	COMPL. LH LOWER PLUG	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	970294	RH SATELLITE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	947668	COMPL. LH SATELLITE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	890157	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87511200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808368	VICS ANTENNA BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808364	5.8 GHz ANTENNA BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	888781	COMPL. SUN VISOR	Enquire	To Order
	888782	COMPL. SUN VISOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	970282	COMPL. LOWER STEERING COLUMN SHIELD	970282 COMPL. LOWER STEERING COLUMN SHIELD	-	1	Enquire
0001	801077	COMPL. LOWER STEERING COLUMN SHIELD	801077 COMPL. LOWER STEERING COLUMN SHIELD	-	1	Enquire
0001	801103	COMPL. LOWER STEERING COLUMN SHIELD	801103 COMPL. LOWER STEERING COLUMN SHIELD Applicable for full electric seats or full electric seats with ventilation	-	1	Enquire
0001	801041	COMPL. LOWER STEERING COLUMN SHIELD	801041 COMPL. LOWER STEERING COLUMN SHIELD Applicable for full electric seats or full electric seats with ventilation	-	1	Enquire
0002	970293	UPPER STEERING COLUMN SHIELD	970293 UPPER STEERING COLUMN SHIELD	-	1	Enquire
0005	84001400	JOYSTICK PANEL	84001400 JOYSTICK PANEL Applicable for full electric seats or full electric seats with ventilation	-	1	Enquire
0006	741790	COMPL. CLUSTER BRACKET	741790 COMPL. CLUSTER BRACKET	-	1	Enquire
0008	970151	CLUSTER MOUNTING PANEL	970151 CLUSTER MOUNTING PANEL Matte Canna di Fucile grey	-	1	Enquire
0008	743775	CLUSTER MOUNTING PANEL	743775 CLUSTER MOUNTING PANEL Matte finish carbon version	-	1	Enquire
0008	70007700	CLUSTER MOUNTING PANEL	70007700 CLUSTER MOUNTING PANEL Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0009	970161	COMPL. BROW	970161 COMPL. BROW Matte black	-	1	Enquire
0009	743860	COMPL. BROW	743860 COMPL. BROW Matte finish carbon version	-	1	Enquire
0009	70007701	COMPL. BROW	70007701 COMPL. BROW Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0010	970212	UPPER CLUSTER SHELL	970212 UPPER CLUSTER SHELL Matte black	-	1	Enquire
0010	743892	UPPER CLUSTER SHELL	743892 UPPER CLUSTER SHELL Matte finish carbon version	-	1	Enquire
0010	70007702	UPPER CLUSTER SHELL	70007702 UPPER CLUSTER SHELL Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0011	970197	COMPL. CENTRE SPEAKER SURROUND	970197 COMPL. CENTRE SPEAKER SURROUND	-	1	Enquire
0012	970205	COMPL. DIFFUSER SURROUND	970205 COMPL. DIFFUSER SURROUND	-	1	Enquire
0013	985406	GSM MICROPHONE INSULATION MESH	985406 GSM MICROPHONE INSULATION MESH Applicable for E-CALL system	-	1	Enquire
0014	970199	RH SPEAKER SURROUND	970199 RH SPEAKER SURROUND	-	1	Enquire
0015	970148	LH SPEAKER SURROUND	970148 LH SPEAKER SURROUND	-	1	Enquire
0016	852490	COMPL. COVER BAG	852490 COMPL. COVER BAG INTP for colour selection of upper part of dashboard - PIP8 for colour selection of Alcantara piping; INTP- -PIP8- -STC1- -STC2	-	1	Enquire
0016	914061	COMPL. COVER BAG	914061 COMPL. COVER BAG INTP for colour selection of upper part of dashboard - PIP7 for colour selection of leather piping; INTP- -PIP7- -STC1- -STC2	-	1	Enquire
0017	970225	COMPL. RH LATERAL CASTING	970225 COMPL. RH LATERAL CASTING Matte Canna di Fucile grey	-	1	Enquire
0017	743784	COMP. RH LATERAL VENT BEZEL	743784 COMP. RH LATERAL VENT BEZEL Matte finish carbon version	-	1	Enquire
0017	70007703	COMP. RH LATERAL VENT BEZEL	70007703 COMP. RH LATERAL VENT BEZEL Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0018	970245	COMPL. RH CLUSTER CASTING	970245 COMPL. RH CLUSTER CASTING Matte Canna di Fucile grey	-	1	Enquire
0018	743786	COMPL. RH CLUSTER TRIM	743786 COMPL. RH CLUSTER TRIM Matte finish carbon version	-	1	Enquire
0018	70007704	COMPL. RH CLUSTER TRIM	70007704 COMPL. RH CLUSTER TRIM Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0019	970252	COMPL. LH CLUSTER CASTING	970252 COMPL. LH CLUSTER CASTING Matte Canna di Fucile grey	-	1	Enquire
0019	743776	COMPL. LH CLUSTER TRIM	743776 COMPL. LH CLUSTER TRIM Matte finish carbon version	-	1	Enquire
0019	70007705	COMPL. LH CLUSTER TRIM	70007705 COMPL. LH CLUSTER TRIM Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0020	969295	RH VENT	969295 RH VENT	-	2	Enquire
0021	969292	LH VENT	969292 LH VENT	-	1	Enquire
0022	970343	COMPL. DISPLAY MOUNT	970343 COMPL. DISPLAY MOUNT Gloss black	-	1	Enquire
0022	832060	COMPL. DISPLAY MOUNT	832060 COMPL. DISPLAY MOUNT Gloss finish carbon version	-	1	Enquire
0022	770756	COMPL. DISPLAY MOUNT	770756 COMPL. DISPLAY MOUNT Matte finish carbon version	-	1	Enquire
0023	969312	CENTRE VENT	969312 CENTRE VENT	-	1	Enquire
0024	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	4	Enquire
0024	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	7	Enquire
0025	915489	DASHBOARD BADGE	915489 DASHBOARD BADGE	-	1	Enquire
0026	914184	RH LATERAL DISPLAY BRACKET	914184 RH LATERAL DISPLAY BRACKET Applicable for passenger display surround in gloss or matte finish carbon	-	1	Enquire
0027	947658	CENTRE UNDERDASHBOARD ELEMENT	947658 CENTRE UNDERDASHBOARD ELEMENT Alcantara - STC1 - STC2; PIP8	-	1	Enquire
0027	947660	CENTRE UNDERDASHBOARD ELEMENT	947660 CENTRE UNDERDASHBOARD ELEMENT Leather - STC1 - STC2; PIP7	-	1	Enquire
0028	947661	COMPL. RH LOWER PLUG	947661 COMPL. RH LOWER PLUG Alcantara; PIP8	-	1	Enquire
0028	947662	COMPL. RH LOWER PLUG	947662 COMPL. RH LOWER PLUG Leather; PIP7	-	1	Enquire
0029	947663	COMPL. LH LOWER PLUG	947663 COMPL. LH LOWER PLUG Alcantara - STC1 - STC2; PIP8	-	1	Enquire
0029	947664	COMPL. LH LOWER PLUG	947664 COMPL. LH LOWER PLUG Leather - STC1 - STC2; PIP7	-	1	Enquire
0029	947666	COMPL. LH LOWER PLUG	947666 COMPL. LH LOWER PLUG Alcantara - Applicable for full electric seats or full electric seats with ventilation - STC1 - STC2; PIP8	-	1	Enquire
0029	947667	COMPL. LH LOWER PLUG	947667 COMPL. LH LOWER PLUG Leather - Applicable for full electric seats or full electric seats with ventilation - STC1 - STC2; PIP7	-	1	Enquire
0030	970294	RH SATELLITE PLUG	970294 RH SATELLITE PLUG	-	1	Enquire
0031	947668	COMPL. LH SATELLITE PLUG	947668 COMPL. LH SATELLITE PLUG Leather; INTP	-	1	Enquire
0032	890157	GRUB SCREW	890157 GRUB SCREW	-	2	Enquire
0033	87511200	SCREW	87511200 SCREW Applicable for E-CALL system; M4 X 6	-	1	Enquire
0034	808368	VICS ANTENNA BASE	808368 VICS ANTENNA BASE	-	1	Enquire
0035	808364	5.8 GHz ANTENNA BASE	808364 5.8 GHz ANTENNA BASE	-	1	Enquire
0036	888781	COMPL. SUN VISOR	888781 COMPL. SUN VISOR Matte black	-	1	Enquire
0036	888782	COMPL. SUN VISOR	888782 COMPL. SUN VISOR Matte finish carbon version	-	1	Enquire
