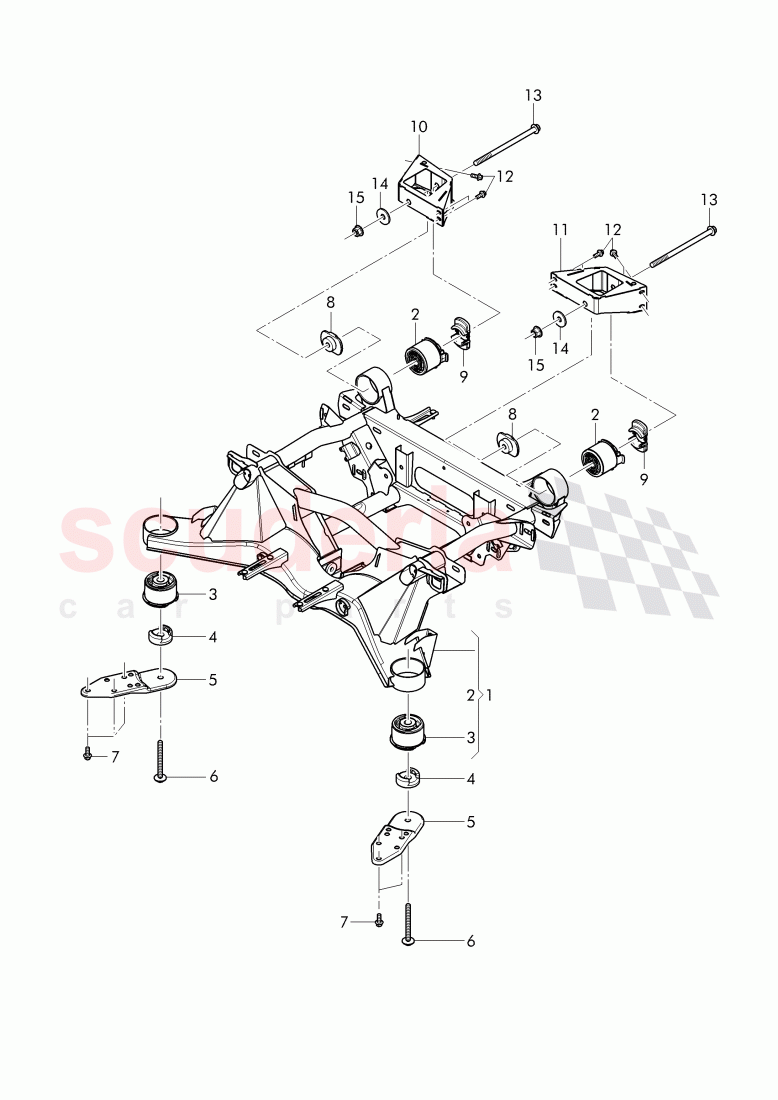

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0505235K	sub-frame, with rubber mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505145C	bonded rubber mounting, D - 15.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0501225B	spacer, Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0501491	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90924103	bolt, hex. hd. with pin, (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003827	hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0501225D	stop plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505157	stop plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505374A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505373A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002731	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007869	Hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003534	shouldered hex. nut, D >> - 07.11.2011	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0505235K	sub-frame, with rubber mounting	3Y0505235K sub-frame, with rubber mounting rear,	-	1	Enquire
3	3Y0505145C	bonded rubber mounting, D - 15.09.2014>>	3Y0505145C bonded rubber mounting, D - 15.09.2014>> front,	-	2	Enquire
4	3Y0501225B	spacer, Washer	3Y0501225B spacer, Washer	-	2	Enquire
5	3Y0501491	bracket	3Y0501491 bracket left a. right,	-	2	Enquire
6	N90924103	bolt, hex. hd. with pin, (combi)	N90924103 bolt, hex. hd. with pin, (combi) M12X1,5X130,	-	2	Enquire
7	WHT003827	hexagon head bolt	WHT003827 hexagon head bolt M10X25,	-	6	Enquire
8	3Y0501225D	stop plate	3Y0501225D stop plate front,	-	2	Enquire
9	3Y0505157	stop plate	3Y0505157 stop plate rear,	-	2	Enquire
10	3Y0505374A	bracket	3Y0505374A bracket side right,	-	1	Enquire
11	3Y0505373A	bracket	3Y0505373A bracket side left,	-	1	Enquire
12	WHT002731	bolt	WHT002731 bolt M8X20,	-	8	Enquire
13	WHT007869	Hexagon head bolt	WHT007869 Hexagon head bolt M14X245,	-	2	Enquire
14	N90625003	washer	N90625003 washer 15X44X4,	-	2	Enquire
15	WHT003534	shouldered hex. nut, D >> - 07.11.2011	WHT003534 shouldered hex. nut, D >> - 07.11.2011 M14,	-	2	Enquire
