track control arm, D - MJ 2017>> of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - track control arm, D - MJ 2017>>

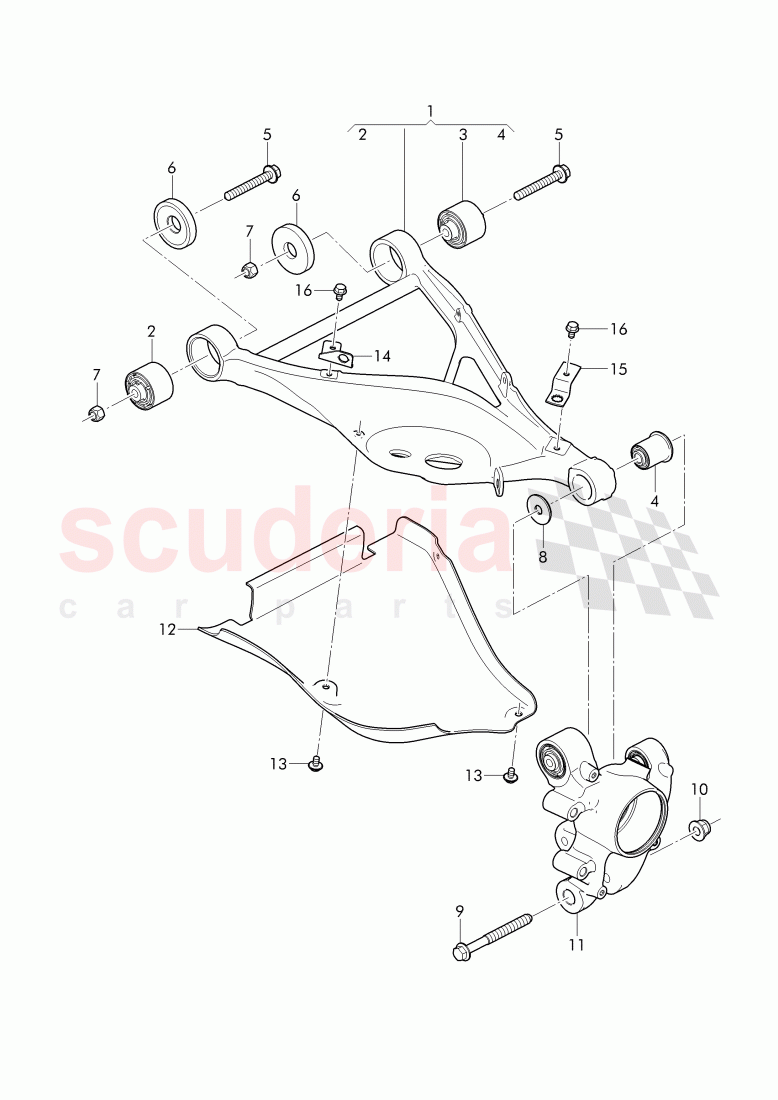

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0511511E	track control arm, D - 07.11.2016>>	Enquire
	3Y0511512E	track control arm, D - 07.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0511473	rubber isolator	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10628301	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505279	stop washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10402904	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0511324	spacer bushing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10401801	hexagon nut, shouldered D - 07.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5825207A	underbody lining	Enquire
	3Y5825208A	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0611799	Holder for Break pipe	Enquire
	3Y0611800	Holder for Break pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0611847B	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10668401	Hexagon bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0511511E	track control arm, D - 07.11.2016>>	3Y0511511E track control arm, D - 07.11.2016>> left lower,	-	1	Enquire
1	3Y0511512E	track control arm, D - 07.11.2016>>	3Y0511512E track control arm, D - 07.11.2016>> right lower,	-	1	Enquire
4	3Z0511473	rubber isolator	3Z0511473 rubber isolator outer,	-	2	Enquire
5	N10628301	Hex collared bolt	N10628301 Hex collared bolt M12X1,5X90,	-	4	Enquire
6	3Y0505279	stop washer	3Y0505279 stop washer inner,	-	4	Enquire
7	N10402904	Hexagon collar nut	N10402904 Hexagon collar nut M12X1,5,	-	4	Enquire
8	3Z0511324	spacer bushing	3Z0511324 spacer bushing outer,	-	2	Enquire
9	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X1,5X135X90,	-	2	Enquire

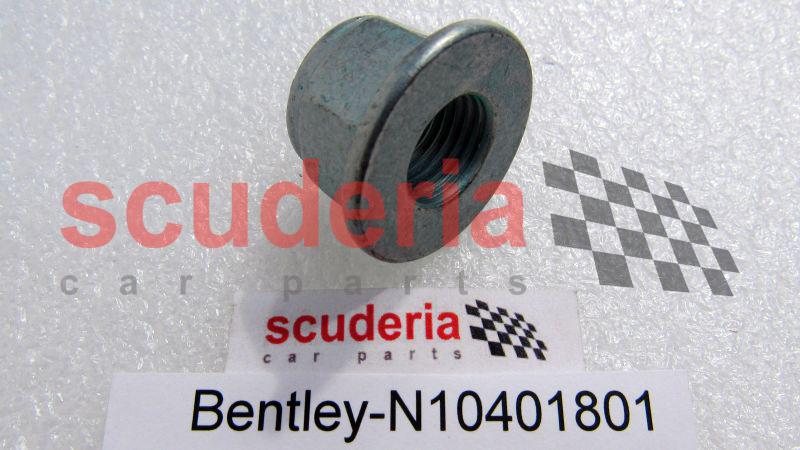

10	N10401801	hexagon nut, shouldered D - 07.11.2011>>	N10401801 hexagon nut, shouldered D - 07.11.2011>> M14X1,5,	-	2	Enquire
12	3Y5825207A	underbody lining	3Y5825207A underbody lining left,	-	1	Enquire
12	3Y5825208A	underbody lining	3Y5825208A underbody lining right,	-	1	Enquire
13	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	N90989102 socket head bolt with inner multipoint head D - 06.11.2006>> M8X16,	-	4	Enquire
14	3Y0611799	Holder for Break pipe	3Y0611799 Holder for Break pipe left inner,	-	1	Enquire
14	3Y0611800	Holder for Break pipe	3Y0611800 Holder for Break pipe right inner,	-	1	Enquire
15	3Y0611847B	retainer for brake hose	3Y0611847B retainer for brake hose left a. right,	-	2	Enquire
16	N10668401	Hexagon bolt	N10668401 Hexagon bolt M8X16,	-	4	Enquire
