Find Your Part

track control arm, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - track control arm, D >> - MJ 2016

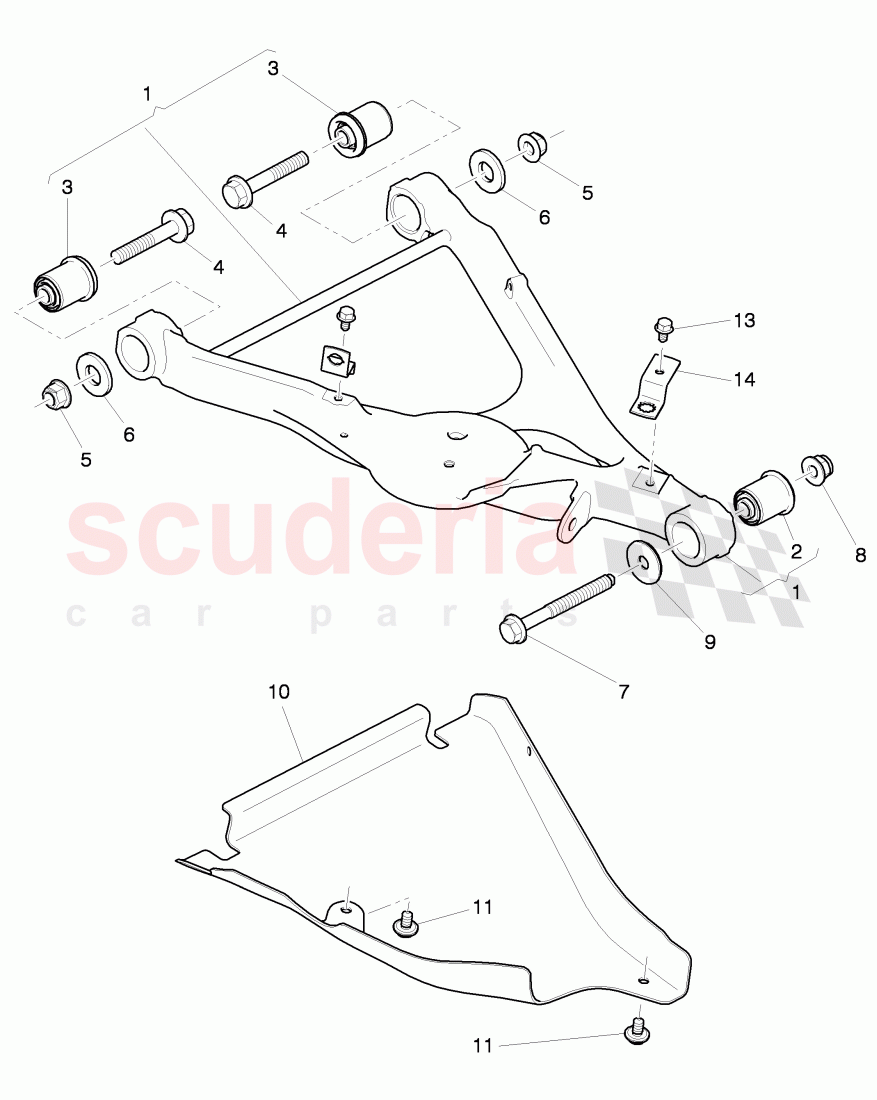

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0511511C	track control arm	Enquire
	3Y0511512C	track control arm	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0511473	rubber isolator	$477.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0505545	rubber isolator	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003536	screw, hex. hd., D >> - 05.09.2011	Enquire	IN STOCK
	3W0499337	Hexagon head bolt	$23.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003534	shouldered hex. nut, D >> - 07.11.2011	Enquire	IN STOCK
	N10401801	hexagon nut, shouldered D - 07.11.2011>>	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0505203	washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10401801	hexagon nut, shouldered D - 07.11.2011>>	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0511324	spacer bushing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5825207	underbody lining	Enquire	IN STOCK
	3Y5825208	underbody lining	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	$4.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0611847B	retainer for brake hose	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10668401	Hexagon bolt	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0511511C	track control arm	3Y0511511C track control arm left lower,	-	1	Enquire
1	3Y0511512C	track control arm	3Y0511512C track control arm right lower,	-	1	Enquire
2	3Z0511473	rubber isolator IN STOCK	3Z0511473 rubber isolator IN STOCK	$477.21	2
3	3Y0505545	rubber isolator	3Y0505545 rubber isolator	-	4	Enquire
4	WHT003536	screw, hex. hd., D >> - 05.09.2011	WHT003536 screw, hex. hd., D >> - 05.09.2011 M14X80,	-	4	Enquire
4	3W0499337	Hexagon head bolt IN STOCK	3W0499337 Hexagon head bolt M14X1,5X85, IN STOCK	$23.51	4
5	WHT003534	shouldered hex. nut, D >> - 07.11.2011	WHT003534 shouldered hex. nut, D >> - 07.11.2011 M14,	-	4	Enquire
5	N10401801	hexagon nut, shouldered D - 07.11.2011>> IN STOCK	N10401801 hexagon nut, shouldered D - 07.11.2011>> IN STOCK	$3.25	4
6	3Y0505203	washer	3Y0505203 washer	-	4	Enquire
7	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X1,5X135X90,	-	2	Enquire
8	N10401801	hexagon nut, shouldered D - 07.11.2011>> IN STOCK	N10401801 hexagon nut, shouldered D - 07.11.2011>> IN STOCK	$3.25	2
9	3Z0511324	spacer bushing	3Z0511324 spacer bushing	-	2	Enquire
10	3Y5825207	underbody lining	3Y5825207 underbody lining left,	-	1	Enquire
10	3Y5825208	underbody lining	3Y5825208 underbody lining right,	-	1	Enquire
11	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>> IN STOCK	N90989102 socket head bolt with inner multipoint head D - 06.11.2006>> M8X16, IN STOCK	$4.56	4
12	3Y0611847A	retainer for brake hose	3Y0611847A retainer for brake hose	-	2	Enquire
13	3Y0611847B	retainer for brake hose	3Y0611847B retainer for brake hose	-	2	Enquire
14	N10668401	Hexagon bolt	N10668401 Hexagon bolt	-	4	Enquire
