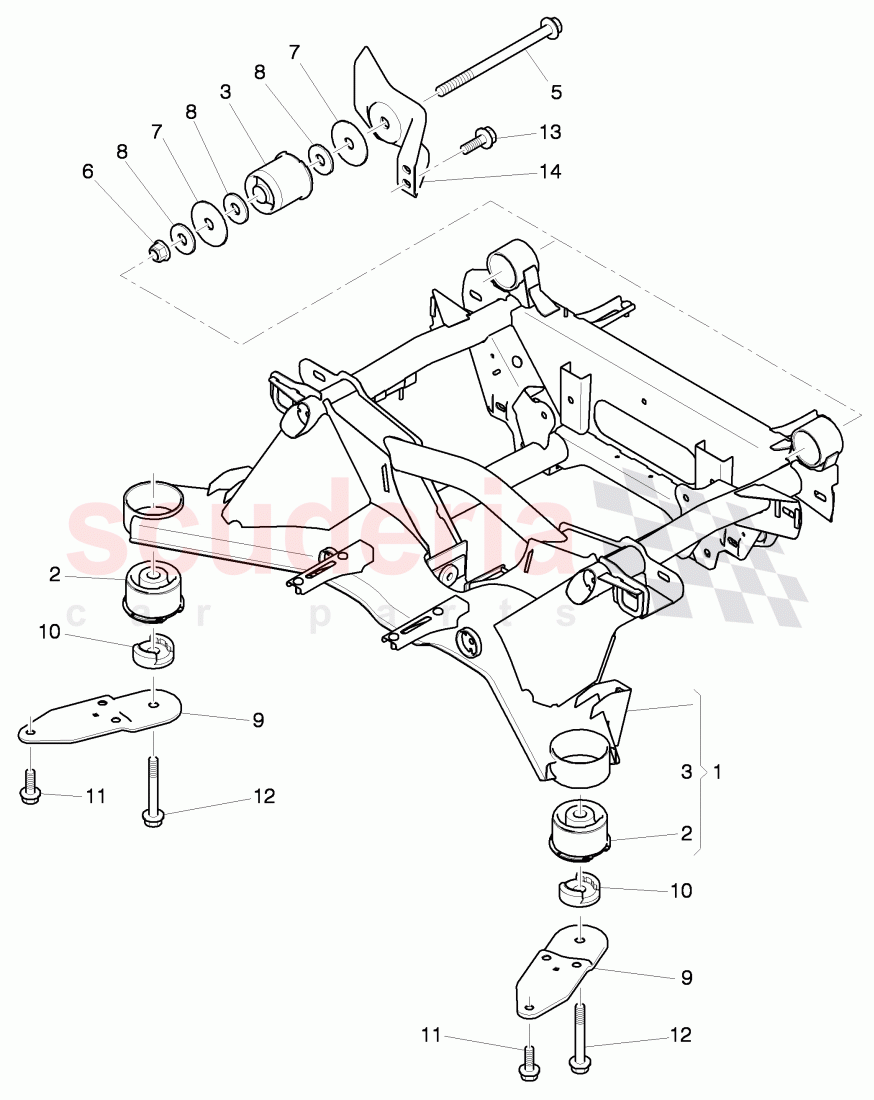

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0505235J	sub-frame, with rubber mounting, D - 15.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0505145C	bonded rubber mounting, D - 15.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0505185	rubber isolator	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003622	shouldered bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003534	shouldered hex. nut, D >> - 07.11.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90975002	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0501491	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0501225B	spacer, Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003827	hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003828	hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002731	bolt	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0505235J	sub-frame, with rubber mounting, D - 15.09.2014>>	3Y0505235J sub-frame, with rubber mounting, D - 15.09.2014>> rear,	-	1	Enquire
2	3Y0505145C	bonded rubber mounting, D - 15.09.2014>>	3Y0505145C bonded rubber mounting, D - 15.09.2014>> front,	-	2	Enquire
3	3Z0505185	rubber isolator	3Z0505185 rubber isolator TRAILING,	-	2	Enquire
5	WHT003622	shouldered bolt	WHT003622 shouldered bolt M14X210,	-	2	Enquire
6	WHT003534	shouldered hex. nut, D >> - 07.11.2011	WHT003534 shouldered hex. nut, D >> - 07.11.2011 M14,	-	2	Enquire
7	3Z0599283	spacer washer	3Z0599283 spacer washer 1.5MM,	-	2	Enquire
7	3Z0599283A	spacer washer	3Z0599283A spacer washer 1.0MM,	-	2	Enquire
7	3Z0599283B	spacer washer	3Z0599283B spacer washer 2.0MM,	-	2	Enquire
8	N90975002	washer	N90975002 washer M15,	-	6	Enquire
9	3Y0501491	bracket	3Y0501491 bracket SHEAR,	-	2	Enquire
10	3Y0501225B	spacer, Washer	3Y0501225B spacer, Washer	-	2	Enquire
11	WHT003827	hexagon head bolt	WHT003827 hexagon head bolt M10X25,	-	4	Enquire
12	WHT003828	hexagon head bolt	WHT003828 hexagon head bolt M12X110,	-	2	Enquire
13	WHT002731	bolt	WHT002731 bolt M8X20,	-	8	Enquire
14	3Y0505373	support bracket	3Y0505373 support bracket left,	-	1	Enquire
14	3Y0505374	support bracket	3Y0505374 support bracket right,	-	1	Enquire
