Find Your Part

door of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - door

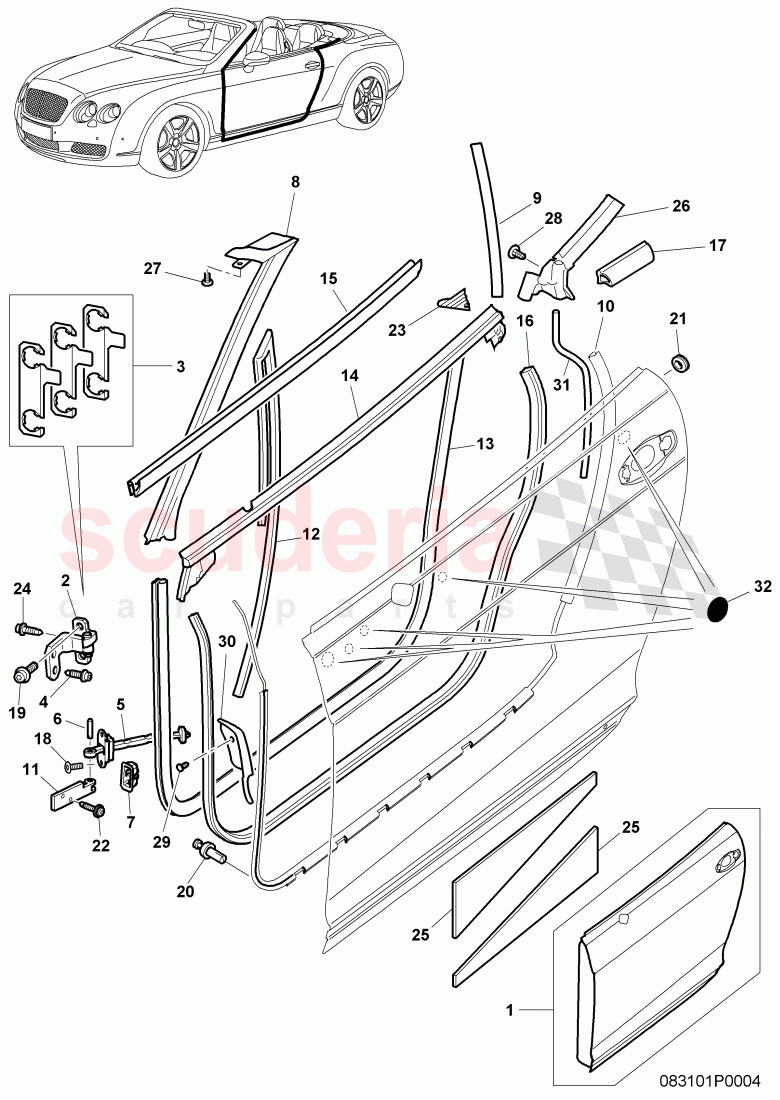

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8831055D	door, D - MJ 2010>>, also use:	Enquire
	3W8831056D	door, D - MJ 2010>>, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D4831401C	door hinge, D - 25.07.2011>>	Enquire
	3D4831401C	door hinge, D - 25.07.2011>>	Enquire
	3D4831402C	door hinge, D - 25.07.2011>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D0831379C	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837249D	check strap - door	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837257	pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837267	cover	Enquire
	3W8837268	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7845119E	gasket	Enquire
	3W7845120E	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837901A	gasket	Enquire
	3W7837902A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837433M	gasket	Enquire
	3W8837434M	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837429B	check rod - door	Enquire
	3W0837430B	check rod - door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837431C	gasket, guide	Enquire
	3W7837432C	gasket, guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867337A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837475C	gasket	Enquire
	3W7837476C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837513	gasket, door	Enquire
	3W8837514	gasket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837703A	door seal, D - 03.01.2011>> - 03.10.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837175A	gasket	Enquire
	3W7837176A	gasket, right rear	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	Enquire
	N90638103	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868307	rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837111	bungs	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0845643C	Hexagon socket oval head, panel bolt (combi), spring washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837155	gasket, insert	Enquire
	3W8837156	gasket, insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90823403	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	D378500A2	sound absorber, laminated alu., (self-adhesive)'order unit 6'	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867415H	gasket, D - 19.12.2011>>	Enquire
	3W7867416H	gasket, D - 19.12.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90833102	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0881635E	Clip Retainer for trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91153401	rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837615	bracket, gasket	Enquire
	3W8837616	bracket, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871353A	water drainage hose	Enquire
	3W7871354	water drainage hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8864820	Adhesive tape	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W8831055D	door, D - MJ 2010>>, also use:	3W8831055D door, D - MJ 2010>>, also use: left front,	-	1	Enquire
1	3W8831056D	door, D - MJ 2010>>, also use:	3W8831056D door, D - MJ 2010>>, also use: right front,	-	1	Enquire
2	3D4831401C	door hinge, D - 25.07.2011>>	3D4831401C door hinge, D - 25.07.2011>> left upper,	-	2	Enquire
2	3D4831401C	door hinge, D - 25.07.2011>>	3D4831401C door hinge, D - 25.07.2011>>	-	1	Enquire
2	3D4831402C	door hinge, D - 25.07.2011>>	3D4831402C door hinge, D - 25.07.2011>> right upper,	-	2	Enquire
2	3D4831402C	door hinge, D - 25.07.2011>>	3D4831402C door hinge, D - 25.07.2011>>	-	1	Enquire
3	3D0831379C	spacer washer	3D0831379C spacer washer left, 1,0MM,	-	4	Enquire
3	3D0831379E	spacer washer	3D0831379E spacer washer left, 1.5MM,	-	4	Enquire
3	3D0831379E	spacer washer	3D0831379E spacer washer left, 2.0MM,	-	4	Enquire
3	3D0831380E	spacer washer	3D0831380E spacer washer right, 1.0MM,	-	4	Enquire
3	3D0831380E	spacer washer	3D0831380E spacer washer right, 1.5MM,	-	4	Enquire
3	3D0831380E	spacer washer	3D0831380E spacer washer right, 2.0MM,	-	4	Enquire
4	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	8	Enquire
5	3W0837249D	check strap - door	3W0837249D check strap - door	-	2	Enquire
6	8Z0837257	pin	8Z0837257 pin	-	2	Enquire
7	3W8837267	cover	3W8837267 cover right,	-	1	Enquire
7	3W8837268	cover	3W8837268 cover left,	-	1	Enquire
8	3W7845119E	gasket	3W7845119E gasket left,	-	1	Enquire
8	3W7845120E	gasket	3W7845120E gasket right,	-	1	Enquire
9	3W7837901A	gasket	3W7837901A gasket left rear, outer,	-	1	Enquire
9	3W7837902A	gasket	3W7837902A gasket right rear, outer,	-	1	Enquire
10	3W8837433M	gasket	3W8837433M gasket left,	-	1	Enquire
10	3W8837434M	gasket	3W8837434M gasket right,	-	1	Enquire
11	3W0837429B	check rod - door	3W0837429B check rod - door left inner,	-	1	Enquire
11	3W0837430B	check rod - door	3W0837430B check rod - door right inner,	-	1	Enquire
12	3W7837431C	gasket, guide	3W7837431C gasket, guide left,	-	1	Enquire
12	3W7837432C	gasket, guide	3W7837432C gasket, guide right,	-	1	Enquire
13	3W7867337A	gasket	3W7867337A gasket lower,	-	2	Enquire
14	3W7837475C	gasket	3W7837475C gasket left outer,	-	1	Enquire
14	3W7837476C	gasket	3W7837476C gasket right outer,	-	1	Enquire
15	3W8837513	gasket, door	3W8837513 gasket, door left inner,	-	1	Enquire
15	3W8837514	gasket, door	3W8837514 gasket, door right inner,	-	1	Enquire
16	3W0837703A	door seal, D - 03.01.2011>> - 03.10.2011	3W0837703A door seal, D - 03.01.2011>> - 03.10.2011 left, right,	-	2	Enquire
17	3W7837175A	gasket	3W7837175A gasket left rear,	-	1	Enquire
17	3W7837176A	gasket, right rear	3W7837176A gasket, right rear right,	-	1	Enquire
18	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	N01470111 bolt, with hex. socket, hd., D >> - 14.02.2011 M6X12,	-	4	Enquire
18	N90638103	round hd. screw	N90638103 round hd. screw M6X12,	-	4	Enquire
19	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	8	Enquire
20	3W0868307	rivet	3W0868307 rivet black,	-	2	Enquire
21	8Z0837111	bungs	8Z0837111 bungs	-	2	Enquire
22	4B0845643C	Hexagon socket oval head, panel bolt (combi), spring washer	4B0845643C Hexagon socket oval head, panel bolt (combi), spring washer M8,	-	4	Enquire
23	3W8837155	gasket, insert	3W8837155 gasket, insert left outer,	-	1	Enquire
23	3W8837156	gasket, insert	3W8837156 gasket, insert right outer,	-	1	Enquire
24	N90823403	socket head bolt with inner multipoint head	N90823403 socket head bolt with inner multipoint head M8X24,	-	4	Enquire
25	D378500A2	sound absorber, laminated alu., (self-adhesive)'order unit 6'	D378500A2 sound absorber, laminated alu., (self-adhesive)'order unit 6'	-	1	Enquire
26	3W7867415H	gasket, D - 19.12.2011>>	3W7867415H gasket, D - 19.12.2011>> left rear,	-	1	Enquire
26	3W7867416H	gasket, D - 19.12.2011>>	3W7867416H gasket, D - 19.12.2011>> right rear,	-	-	Enquire
27	N90833102	Oval hexagon socket head bolt	N90833102 Oval hexagon socket head bolt M6X10,0,	-	2	Enquire
28	3W0881635E	Clip Retainer for trim	3W0881635E Clip Retainer for trim	-	2	Enquire
29	N91153401	rivet	N91153401 rivet	-	2	Enquire
30	3W8837615	bracket, gasket	3W8837615 bracket, gasket left,	-	1	Enquire
30	3W8837616	bracket, gasket	3W8837616 bracket, gasket right,	-	1	Enquire
31	3W7871353A	water drainage hose	3W7871353A water drainage hose left,	-	1	Enquire
31	3W7871354	water drainage hose	3W7871354 water drainage hose right,	-	1	Enquire
32	3W8864820	Adhesive tape	3W8864820 Adhesive tape	-	10	Enquire
