Find Your Part

frame of Bentley Bentley Continental Supersports (2009-2011)

View All

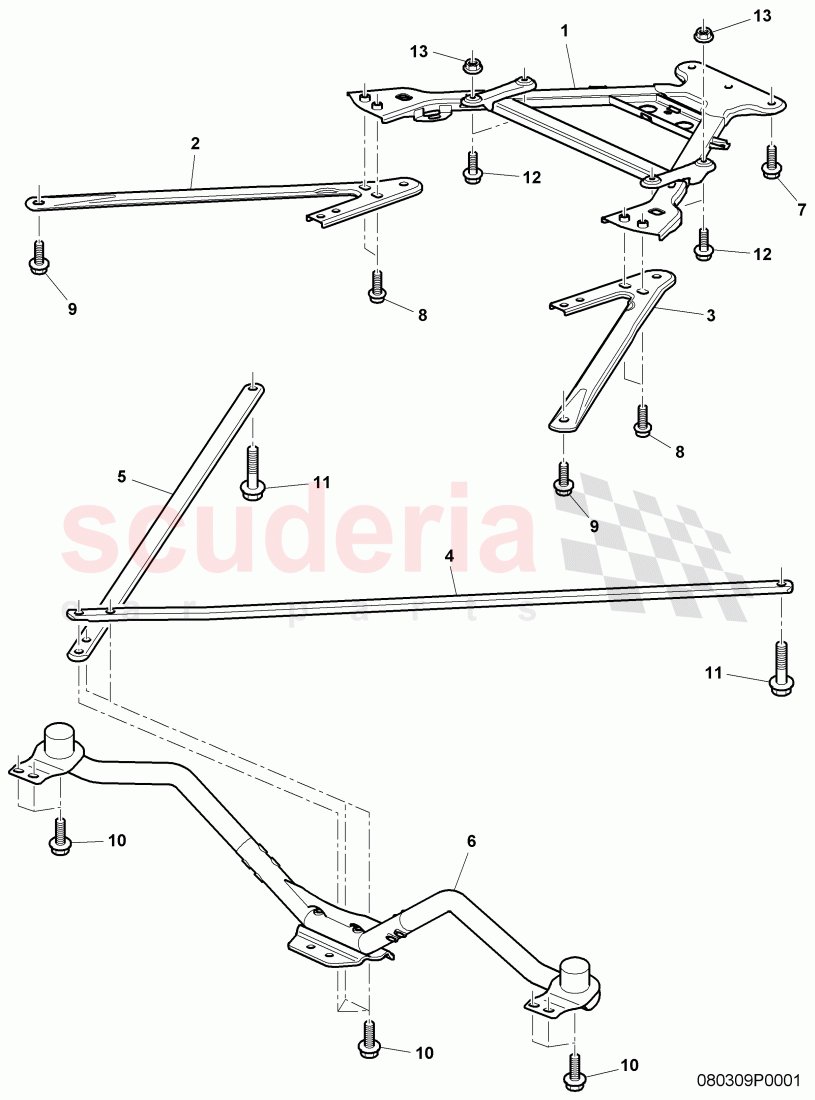

Bentley Continental Supersports (2009-2011) - frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7399375A	frame, cross support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825273D	link for stabilizer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825274D	link for stabilizer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7802769C	cross support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7802770A	cross support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7823183G	bracket, Braces, D - 07.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91154801	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91134202	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90634002	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0499337	Hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock

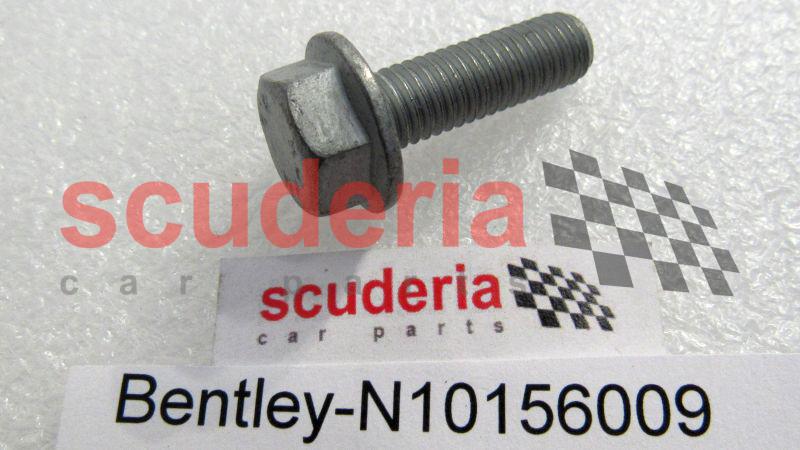

	N10156009	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300313	shouldered hex. nut,, self-locking, D - MJ 2007>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W7399375A	frame, cross support	3W7399375A frame, cross support front,	-	1	Enquire
2	3W7825273D	link for stabilizer	3W7825273D link for stabilizer left front,	-	1	Enquire
3	3W7825274D	link for stabilizer	3W7825274D link for stabilizer right front,	-	1	Enquire
4	3W7802769C	cross support	3W7802769C cross support rear,	-	1	Enquire
5	3W7802770A	cross support	3W7802770A cross support rear,	-	1	Enquire
6	3W7823183G	bracket, Braces, D - 07.05.2012>>	3W7823183G bracket, Braces, D - 07.05.2012>> rear,	-	1	Enquire
7	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	N10241605 bolt, hex. hd. with shoulder, D - MJ 2011>> M10X45,	-	3	Enquire
8	N91154801	bolt	N91154801 bolt M10X25,	-	4	Enquire
9	N91134202	screw, hex. hd.	N91134202 screw, hex. hd. M14X1,50X45,	-	2	Enquire
10	N90634002	screw, hex. hd.	N90634002 screw, hex. hd. M12X1,50X30,	-	7	Enquire
11	3W0499337	Hexagon head bolt	3W0499337 Hexagon head bolt M14X1,5X85,	-	2	Enquire
12	N10156009	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10156009 bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X25,	-	4	Enquire
13	N02300313	shouldered hex. nut,, self-locking, D - MJ 2007>>	N02300313 shouldered hex. nut,, self-locking, D - MJ 2007>> M8,	-	4	Enquire
