top stowage box of Bentley Bentley Continental Supersports (2009-2011)

View All

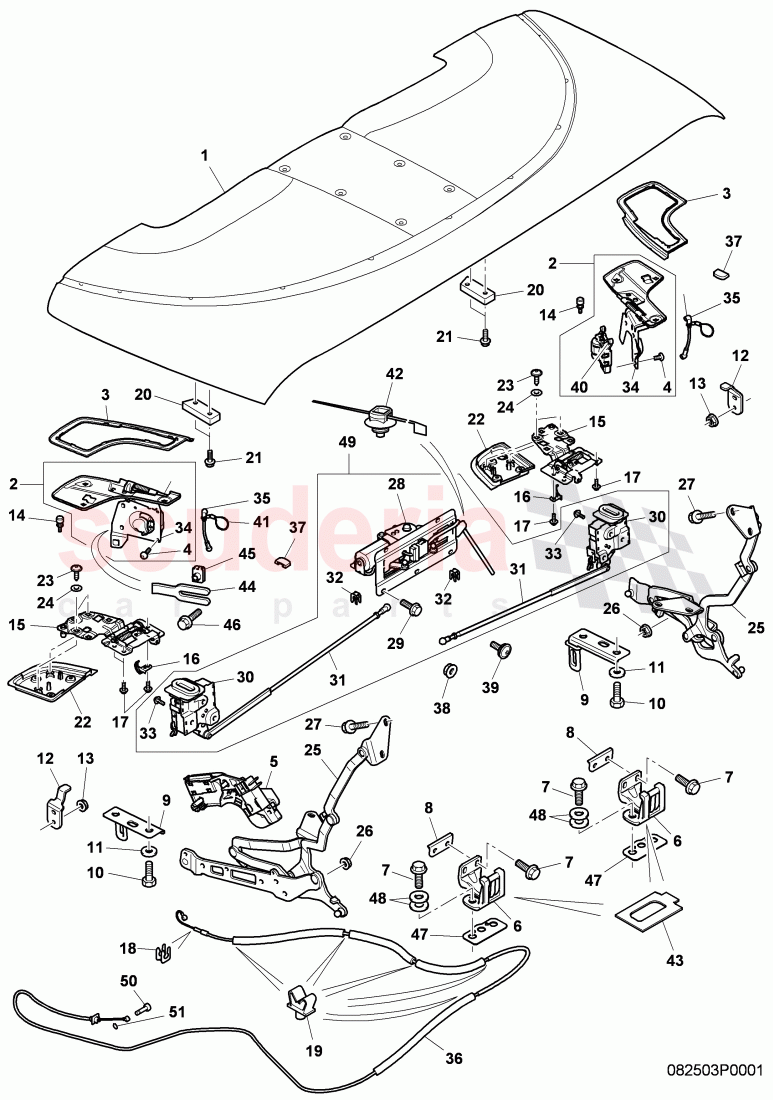

Bentley Continental Supersports (2009-2011) - top stowage box

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7825300E	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7867035J	side panel trim	Enquire
	3W7867036J	side panel trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871427B	shaped part	Enquire
	3W7871428B	shaped part	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7953229A	micro switch, cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825307C	hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90518703	bolt, D >> - 30.01.2012	Enquire
	N90643907	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825365	plate hinge hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825435A	latch, cover	Enquire
	3W7825436A	latch, cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01024044	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90033312	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871459	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90446504	hex. nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD871581A	stop buffer, adjustable	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871349C	hinge, cover	Enquire
	3W7871350C	hinge, cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871919A	cover, bracket	Enquire
	3W7871920A	cover, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	1Y0871720A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90997501	bracket for hose, support, D >> - 18.02.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825419	jounce bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10025004	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871079C	Linkage protrusion flap, for convertible roof frame,, automatic operation	Enquire
	3W7871080C	Linkage protrusion flap, for convertible roof frame,, automatic operation	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0116735	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7872419A	hinge convertible top stowage box	Enquire
	3W7872420A	hinge convertible top stowage box	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90295504	nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91073003	Hexagon flange nut,, self-locking, D - 14.07.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825395E	latch, D - 24.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338903	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825395E	latch, D - 24.06.2013>>	Enquire
	3W7825395E	latch, D - 24.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825395E	latch, D - 24.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0155283	securing bars	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10225202	bolt, hex. hd. (combi.), D >> - 14.07.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871715A	bowden cable, D >> - 18.02.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871159A	jounce bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000678	Locknut	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002624	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	8J0959311A	motor for adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871239	emergency release, cord	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971838	Cable ties	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7853410	blinds, rollers, anti-glare, tinting film	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7871851	spacer	Enquire
	3W7871852	spacer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90327503	speed nut, D - 01.06.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90928702	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825367	hinge, setting bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90033312	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7825395E	latch, D - 24.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001419	pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0124341	securing ring	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W7825300E	cover	3W7825300E cover	-	1	Enquire
2	3W7867035J	side panel trim	3W7867035J side panel trim left,	-	1	Enquire
2	3W7867036J	side panel trim	3W7867036J side panel trim right,	-	1	Enquire
3	3W7871427B	shaped part	3W7871427B shaped part left,	-	1	Enquire
3	3W7871428B	shaped part	3W7871428B shaped part right,	-	1	Enquire
4	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	6	Enquire
5	3W7953229A	micro switch, cover	3W7953229A micro switch, cover	-	1	Enquire
6	3W7825307C	hinge	3W7825307C hinge	-	2	Enquire
7	N90518703	bolt, D >> - 30.01.2012	N90518703 bolt, D >> - 30.01.2012 M8X22,	-	10	Enquire
7	N90643907	hexagon head bolt (combi)	N90643907 hexagon head bolt (combi) M8X25,	-	10	Enquire
8	3W7825365	plate hinge hinge	3W7825365 plate hinge hinge	-	2	Enquire
9	3W7825435A	latch, cover	3W7825435A latch, cover left,	-	1	Enquire
9	3W7825436A	latch, cover	3W7825436A latch, cover right,	-	1	Enquire
10	N01024044	screw, hex. hd.	N01024044 screw, hex. hd. M8X20,	-	4	Enquire
11	N90033312	washer	N90033312 washer 8,4X20X2,5,	-	4	Enquire
12	3W7871459	bracket	3W7871459 bracket	-	2	Enquire
13	N90446504	hex. nut	N90446504 hex. nut M6,	-	4	Enquire
14	3SD871581A	stop buffer, adjustable	3SD871581A stop buffer, adjustable	-	2	Enquire
15	3W7871349C	hinge, cover	3W7871349C hinge, cover left,	-	1	Enquire
15	3W7871350C	hinge, cover	3W7871350C hinge, cover right,	-	1	Enquire
16	3W7871919A	cover, bracket	3W7871919A cover, bracket left,	-	1	Enquire
16	3W7871920A	cover, bracket	3W7871920A cover, bracket right,	-	1	Enquire
17	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	8	Enquire
18	1Y0871720A	Clip	1Y0871720A Clip	-	2	Enquire
19	N90997501	bracket for hose, support, D >> - 18.02.2013	N90997501 bracket for hose, support, D >> - 18.02.2013 6,	-	10	Enquire
20	3W7825419	jounce bumper	3W7825419 jounce bumper	-	2	Enquire
21	N10025004	hexagon head bolt (combi)	N10025004 hexagon head bolt (combi) M8X32,	-	4	Enquire
22	3W7871079C	Linkage protrusion flap, for convertible roof frame,, automatic operation	3W7871079C Linkage protrusion flap, for convertible roof frame,, automatic operation left inner,	-	1	Enquire
22	3W7871080C	Linkage protrusion flap, for convertible roof frame,, automatic operation	3W7871080C Linkage protrusion flap, for convertible roof frame,, automatic operation right inner,	-	1	Enquire
23	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt PR-3Y8	-	4	Enquire
24	N0116735	washer	N0116735 washer 5,5X18,	-	4	Enquire
25	3W7872419A	hinge convertible top stowage box	3W7872419A hinge convertible top stowage box left,	-	1	Enquire
25	3W7872420A	hinge convertible top stowage box	3W7872420A hinge convertible top stowage box right,	-	1	Enquire
26	N90295504	nut	N90295504 nut M8,	-	6	Enquire
27	N91073003	Hexagon flange nut,, self-locking, D - 14.07.2014>>	N91073003 Hexagon flange nut,, self-locking, D - 14.07.2014>> M8 X 16,	-	4	Enquire
28	3W7825395E	latch, D - 24.06.2013>>	3W7825395E latch, D - 24.06.2013>>	-	1	Enquire
29	N10338903	Hex collared bolt	N10338903 Hex collared bolt M6 X 16,	-	5	Enquire
30	3W7825395E	latch, D - 24.06.2013>>	3W7825395E latch, D - 24.06.2013>> left,	-	1	Enquire
30	3W7825395E	latch, D - 24.06.2013>>	3W7825395E latch, D - 24.06.2013>> right,	-	1	Enquire
31	3W7825395E	latch, D - 24.06.2013>>	3W7825395E latch, D - 24.06.2013>>	-	2	Enquire
32	N0155283	securing bars	N0155283 securing bars S10,	-	4	Enquire
33	N10225202	bolt, hex. hd. (combi.), D >> - 14.07.2014	N10225202 bolt, hex. hd. (combi.), D >> - 14.07.2014 M8X12,	-	6	Enquire
36	3W7871715A	bowden cable, D >> - 18.02.2013	3W7871715A bowden cable, D >> - 18.02.2013	-	2	Enquire
37	3W7871159A	jounce bumper	3W7871159A jounce bumper	-	2	Enquire
38	WHT000678	Locknut	WHT000678 Locknut M5,	-	2	Enquire
39	WHT002624	round hd. screw	WHT002624 round hd. screw M5X12,	-	2	Enquire
40	8J0959311A	motor for adjustment	8J0959311A motor for adjustment M5X12,	-	2	Enquire
41	3W7871239	emergency release, cord	3W7871239 emergency release, cord	-	2	Enquire
42	3W0971838	Cable ties	3W0971838 Cable ties	-	1	Enquire
43	3W7853410	blinds, rollers, anti-glare, tinting film	3W7853410 blinds, rollers, anti-glare, tinting film	-	2	Enquire
44	3W7871851	spacer	3W7871851 spacer 1MM,	-	1	Enquire
44	3W7871852	spacer	3W7871852 spacer 3MM,	-	1	Enquire
45	N90327503	speed nut, D - 01.06.2005>>	N90327503 speed nut, D - 01.06.2005>>	-	2	Enquire
46	N90928702	hexagon head bolt (combi)	N90928702 hexagon head bolt (combi) M6X30,	-	2	Enquire
47	3W7825367	hinge, setting bracket	3W7825367 hinge, setting bracket	-	2	Enquire
48	N90033312	washer	N90033312 washer 8,4X20X2,5,	-	8	Enquire
49	3W7825395E	latch, D - 24.06.2013>>	3W7825395E latch, D - 24.06.2013>>	-	1	Enquire
50	WHT001419	pin	WHT001419 pin	-	2	Enquire
51	N0124341	securing ring	N0124341 securing ring 4,	-	2	Enquire
