underbody lining of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - underbody lining

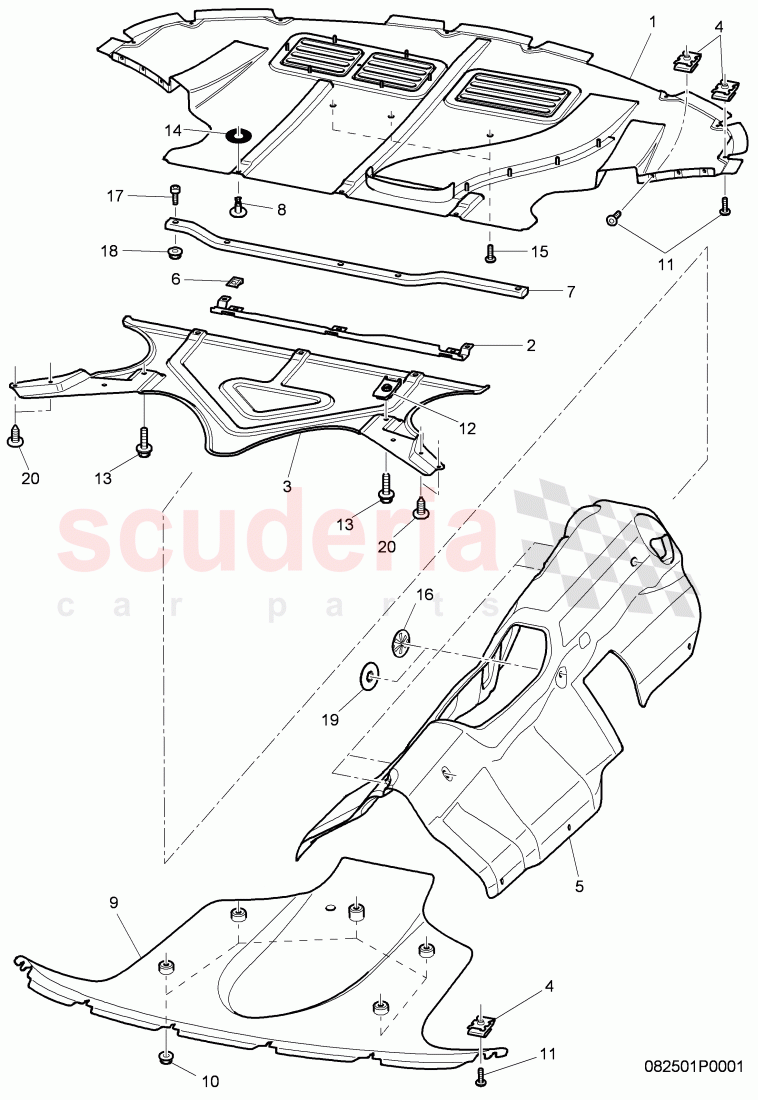

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8825235B	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825345A	Mounting Bracket Screen. Panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825249	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90959101	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825635C	sound absorber, tunnel, D - 28.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90327503	speed nut, D - 01.06.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825199B	support bracket underbody trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D0805121	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8825497	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90663603	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90327503	speed nut, D - 01.06.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0901484	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4A0805137	rubber washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90900402	Hex socket oval head collared M6x20	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90070305	lock washer, D - 04.02.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10619401	socket head collared bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10261302	shouldered hex. nut, D - MJ 2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90708803	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W8825235B	heat shield	3W8825235B heat shield front, lower,	-	1	Enquire
2	3W0825345A	Mounting Bracket Screen. Panel	3W0825345A Mounting Bracket Screen. Panel	-	1	Enquire
3	3W0825249	underbody lining	3W0825249 underbody lining rear,	-	1	Enquire
4	N90959101	Speed nut	N90959101 Speed nut	-	20	Enquire
5	3W0825635C	sound absorber, tunnel, D - 28.11.2011>>	3W0825635C sound absorber, tunnel, D - 28.11.2011>>	-	1	Enquire
6	N90327503	speed nut, D - 01.06.2005>>	N90327503 speed nut, D - 01.06.2005>>	-	8	Enquire
7	3W0825199B	support bracket underbody trim	3W0825199B support bracket underbody trim front,	-	1	Enquire
8	8D0805121	dowel pin	8D0805121 dowel pin 6X18MM, silver,	-	8	Enquire
9	3W8825497	underbody lining	3W8825497 underbody lining underfloor, rear,	-	1	Enquire
10	N90663603	hex. nut with washer	N90663603 hex. nut with washer M5,	-	5	Enquire
11	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	20	Enquire
12	N90327503	speed nut, D - 01.06.2005>>	N90327503 speed nut, D - 01.06.2005>>	-	2	Enquire
13	N0901484	hexagon head bolt (combi)	N0901484 hexagon head bolt (combi) M6X15,	-	2	Enquire
14	4A0805137	rubber washer	4A0805137 rubber washer 5X25X1,5,	-	8	Enquire
15	N90900402	Hex socket oval head collared M6x20	N90900402 Hex socket oval head collared M6x20 M6X20,	-	6	Enquire
16	N90070305	lock washer, D - 04.02.2013>>	N90070305 lock washer, D - 04.02.2013>>	-	5	Enquire
17	N10619401	socket head collared bolt with inner multipoint head	N10619401 socket head collared bolt with inner multipoint head M10X40,	-	2	Enquire
18	N10261302	shouldered hex. nut, D - MJ 2006>>	N10261302 shouldered hex. nut, D - MJ 2006>> M10,	-	2	Enquire
19	N90708803	speed nut	N90708803 speed nut 5,	-	5	Enquire
20	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	4	Enquire
