Bentley Continental GT (2011-2018) - armrest, D >> - MJ 2015

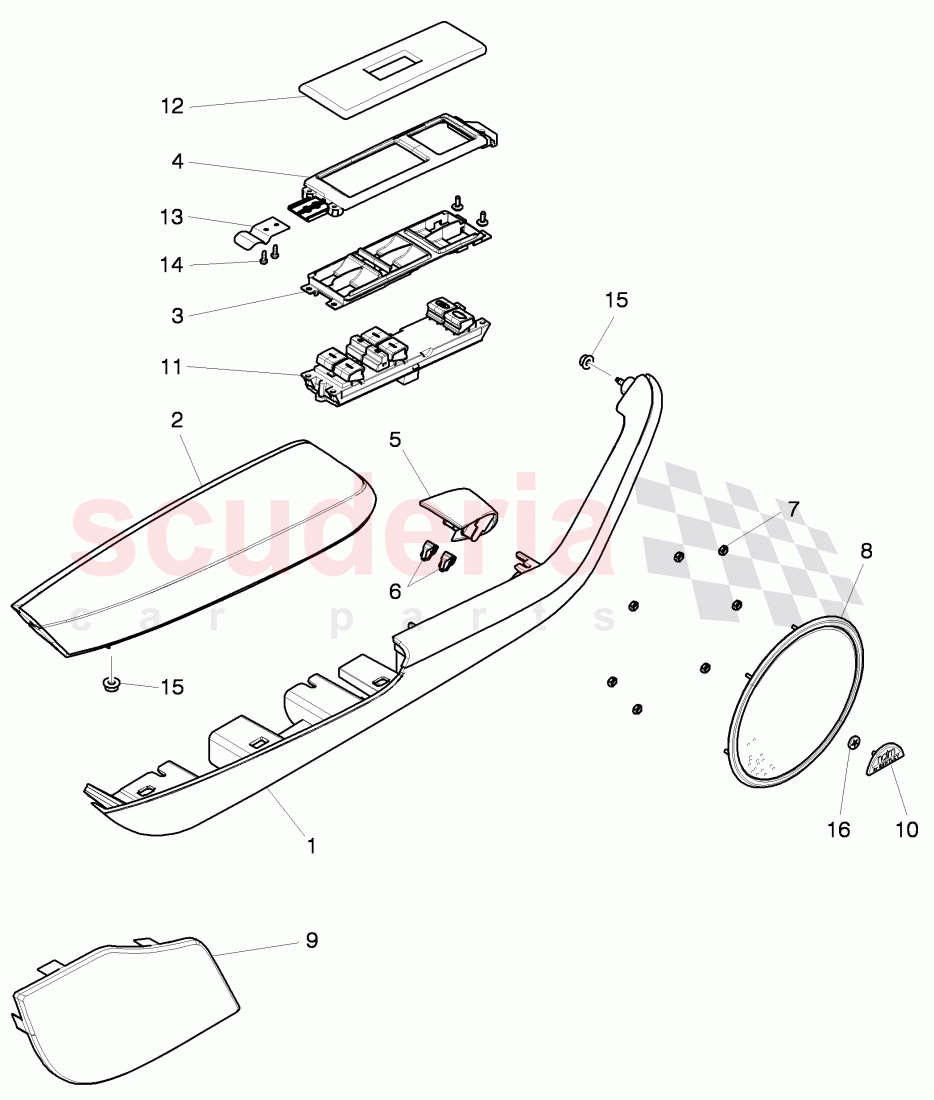

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W3867165D	armrest for door trim panel	Enquire
	3W3867166D	armrest for door trim panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867071B	armrest (upper part)	Enquire
	3W3867072B	armrest (upper part)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867273B	moulding frame, switches in door trim panel, D - 16.05.2011>>	Enquire
	3W0867274C	bracket for switch, switches in door trim panel, D - 16.07.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867261B	chrome trim, switch	Enquire
	3W0867653B	chrome trim, switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3868851	cap, armrest	Enquire
	3W3868852	cap, armrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864215	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868517A	retaining clip, only to be used with:, D >> - 02.03.2015	Enquire
	N91135001	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3035365F	loudspeaker grille, only to be used with:, D >> - 02.03.2015	Enquire
	3W3035365H	loudspeaker grille, only to be used with:, D - 02.03.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3868147	loudspeaker grille, door	Enquire
	3W3868148	loudspeaker grille, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W4867932A	emblem, loudspeaker grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867461	lining, Switch Unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837493	bracket for trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91019901	Hexagon socket flat, head bolt, F 3W-6-030 421>> 3W-8-054 534	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000678	Locknut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91135001	Clamping washer	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W3867165D	armrest for door trim panel	3W3867165D armrest for door trim panel left front, lower,	-	1	Enquire
1	3W3867166D	armrest for door trim panel	3W3867166D armrest for door trim panel right front, lower,	-	1	Enquire
2	3W3867071B	armrest (upper part)	3W3867071B armrest (upper part) side left,	-	1	Enquire
2	3W3867072B	armrest (upper part)	3W3867072B armrest (upper part) side right,	-	1	Enquire
3	3W0867273B	moulding frame, switches in door trim panel, D - 16.05.2011>>	3W0867273B moulding frame, switches in door trim panel, D - 16.05.2011>> front, drivers side,	-	1	Enquire
3	3W0867274C	bracket for switch, switches in door trim panel, D - 16.07.2012>>	3W0867274C bracket for switch, switches in door trim panel, D - 16.07.2012>> passenger side,	-	1	Enquire
4	3W0867261B	chrome trim, switch	3W0867261B chrome trim, switch front, drivers side,	-	1	Enquire
4	3W0867653B	chrome trim, switch	3W0867653B chrome trim, switch passenger side,	-	1	Enquire
5	3W3868851	cap, armrest	3W3868851 cap, armrest side left,	-	1	Enquire
5	3W3868852	cap, armrest	3W3868852 cap, armrest side right,	-	1	Enquire
6	3W0864215	Clip	3W0864215 Clip	-	4	Enquire
7	3W0868517A	retaining clip, only to be used with:, D >> - 02.03.2015	3W0868517A retaining clip, only to be used with:, D >> - 02.03.2015 3W3035365F,	-	14	Enquire
7	N91135001	Clamping washer	N91135001 Clamping washer B3.00X9.70, 3W3035365H,	-	14	Enquire
8	3W3035365F	loudspeaker grille, only to be used with:, D >> - 02.03.2015	3W3035365F loudspeaker grille, only to be used with:, D >> - 02.03.2015 front, 3W0868517A,	-	2	Enquire
8	3W3035365H	loudspeaker grille, only to be used with:, D - 02.03.2015>>	3W3035365H loudspeaker grille, only to be used with:, D - 02.03.2015>> front, N91135001,	-	2	Enquire
9	3W3868147	loudspeaker grille, door	3W3868147 loudspeaker grille, door left rear,	-	1	Enquire
9	3W3868148	loudspeaker grille, door	3W3868148 loudspeaker grille, door right rear,	-	1	Enquire
10	3W4867932A	emblem, loudspeaker grille	3W4867932A emblem, loudspeaker grille NAIM,	-	2	Enquire
12	3W3867461	lining, Switch Unit	3W3867461 lining, Switch Unit passenger side,	-	1	Enquire
13	3W0837493	bracket for trim	3W0837493 bracket for trim	-	2	Enquire
14	N91019901	Hexagon socket flat, head bolt, F 3W-6-030 421>> 3W-8-054 534	N91019901 Hexagon socket flat, head bolt, F 3W-6-030 421>> 3W-8-054 534	-	2	Enquire
15	WHT000678	Locknut	WHT000678 Locknut M5,	-	12	Enquire
16	N91135001	Clamping washer	N91135001 Clamping washer B3.00X9.70,	-	2	Enquire
