cross member for dashbord, dashboard carrier of Bentley Bentley Continental GT (2011-2018)

View All

Bentley Continental GT (2011-2018) - cross member for dashbord, dashboard carrier

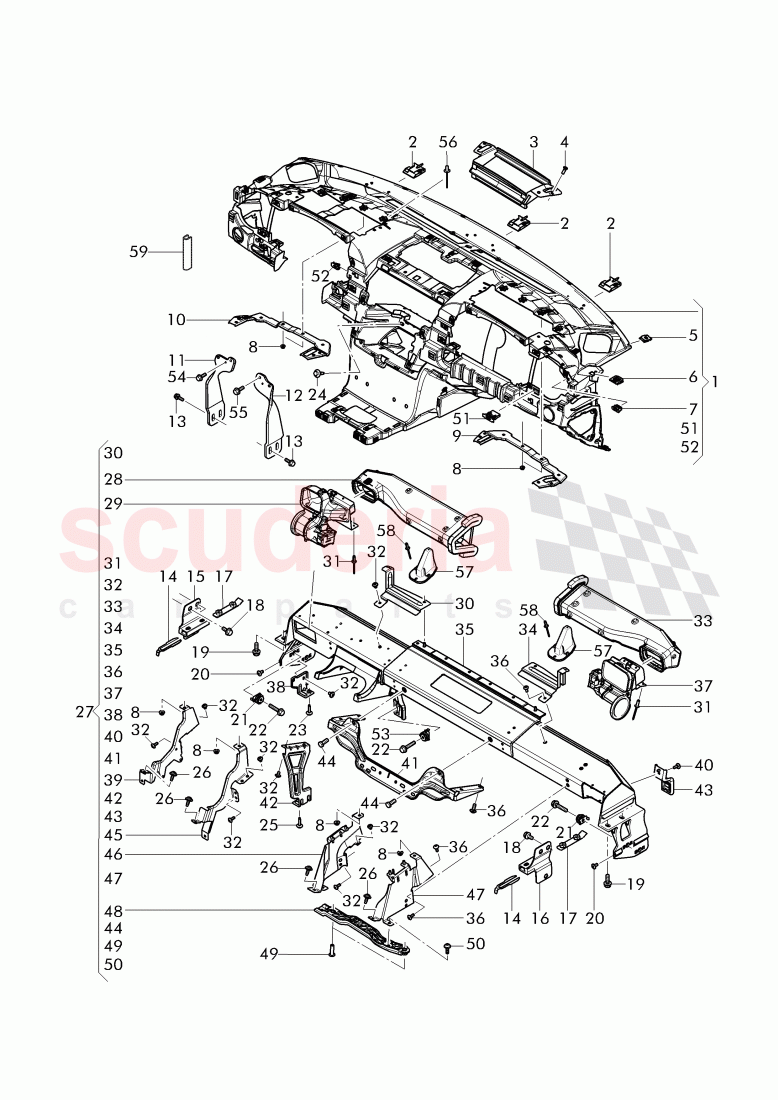

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W3857669J	dashboard carrier F >> 3W-C-071 642	Enquire
	3W3857669N	dashboard carrier F 3W-C-071 643>>	Enquire
	3W3857669AA	dashboard carrier	Enquire

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W0857327A	setting bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10623501	countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698701	Speed nut Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90356204	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0867838	spring clip, alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000678	Locknut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858782C	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858781C	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire
	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire
	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10155906	bolt, hex. hd. with shoulder, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857173	distance piece cross tube	Enquire
	3D0857173A	spacer washer, cross tube	Enquire
	3D0857173B	spacer washer, cross tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857953C	securing bracket cross member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857954C	securing bracket cross member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857955A	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10063205	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90648402	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000258	fillister hd. screw with hex., socket hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857049A	adjustment part	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90798602	hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90750603	bolt, hex. hd. with shoulder,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90999502	bolt, hex. hd. with shoulder, D - 22.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90750603	bolt, hex. hd. with shoulder,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90729003	fillister head bolt (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1857017R	cross member for dashbord, F >> 3W-C-071 642, F >> ZA-C-071 642	Enquire
	3W1857017AC	cross member for dashbord, D - 17.09.2012>> - 08.04.2013	Enquire
	3W1857017AE	cross member for dashbord, D - 08.04.2013>>	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W0857071B	bracket, cross tube, D >> - 08.04.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90997001	oval head countersunk bolt with multi-point socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857072B	bracket, cross tube, D >> - 08.04.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90780901	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880357	bracket, bracket	Enquire
	3W2880357	bracket, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1805333D	bracket, knee bar	Enquire
	3W2805333D	bracket, knee bar	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90780901	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857056A	bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880358	bracket, bracket	Enquire
	3W2880358A	bracket, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0857195A	support glove compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1805334D	bracket, knee bar	Enquire
	3W2805334D	bracket, knee bar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1880263D	bracket	Enquire
	3W2880263D	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	Enquire
	3W2880264E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0880778	bearing bracket for glove compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863954	adjuster, (height adjustment)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3858153	spring clip, D >> - 30.08.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90455902	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0419645	adjusting element	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10528402	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0197006	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90465201	pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0857071	bracket, cross tube, D - 08.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90825801	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0854551	Edge protection	Enquire
	3W0854341	protective edging, Battery cable, D - 08.12.2014>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W3857669J	dashboard carrier F >> 3W-C-071 642	3W3857669J dashboard carrier F >> 3W-C-071 642 lhd,	-	1	Enquire
1	3W3857669N	dashboard carrier F 3W-C-071 643>>	3W3857669N dashboard carrier F 3W-C-071 643>> lhd,	-	1	Enquire
1	3W3857669AA	dashboard carrier	3W3857669AA dashboard carrier lhd,	-	1	Enquire
1	3W3857669AE	dashboard carrier	3W3857669AE dashboard carrier lhd,	-	1	Enquire
1	3W3857669AJ	dashboard carrier	3W3857669AJ dashboard carrier lhd,	-	1	Enquire
1	3W3857669K	dashboard carrier F >> 3W-C-071 642	3W3857669K dashboard carrier F >> 3W-C-071 642 rhd,	-	1	Enquire
1	3W3857669P	dashboard carrier F 3W-C-071 663>>	3W3857669P dashboard carrier F 3W-C-071 663>> rhd,	-	1	Enquire
1	3W3857669AB	dashboard carrier	3W3857669AB dashboard carrier rhd,	-	1	Enquire
1	3W3857669AF	dashboard carrier	3W3857669AF dashboard carrier rhd,	-	1	Enquire
1	3W3857669AK	dashboard carrier	3W3857669AK dashboard carrier rhd,	-	1	Enquire
2	3W0857327A	setting bracket	3W0857327A setting bracket	-	3	Enquire
4	N10623501	countersunk bolt	N10623501 countersunk bolt M5X16,	-	4	Enquire
5	N90698701	Speed nut Included in position:	N90698701 Speed nut Included in position:	-	8	Enquire
6	N90356204	Speed nut	N90356204 Speed nut	-	30	Enquire
7	3Y0867838	spring clip, alternatively, you can use:	3Y0867838 spring clip, alternatively, you can use: 16X5X9, PV112843PA,	-	2	Enquire
8	WHT000678	Locknut	WHT000678 Locknut M5,	-	8	Enquire
9	3W0858782C	retaining plate	3W0858782C retaining plate right,	-	1	Enquire
10	3W0858781C	retaining plate	3W0858781C retaining plate left,	-	1	Enquire
11	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858787 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> left,	-	1	Enquire
11	3W8858787	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858787 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> side left,	-	1	Enquire
12	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858788 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> right,	-	1	Enquire
12	3W8858788	support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>>	3W8858788 support, dashboard carrier, F 3W-C-071 643>>, F ZA-C-071 643>> side right,	-	1	Enquire
13	N10155906	bolt, hex. hd. with shoulder, D - MJ 2007>>	N10155906 bolt, hex. hd. with shoulder, D - MJ 2007>> M8X20,	-	4	Enquire
14	3D0857173	distance piece cross tube	3D0857173 distance piece cross tube 1MM,	-	1	Enquire
14	3D0857173A	spacer washer, cross tube	3D0857173A spacer washer, cross tube 2MM,	-	1	Enquire
14	3D0857173B	spacer washer, cross tube	3D0857173B spacer washer, cross tube 3MM,	-	1	Enquire
15	3D0857953C	securing bracket cross member	3D0857953C securing bracket cross member left,	-	1	Enquire
16	3D0857954C	securing bracket cross member	3D0857954C securing bracket cross member right,	-	1	Enquire
17	3D0857955A	retaining plate	3D0857955A retaining plate	-	2	Enquire
18	N10063205	bolt, hex. hd. with shoulder	N10063205 bolt, hex. hd. with shoulder M8X20,	-	6	Enquire
19	N90648402	hexagon head bolt (combi)	N90648402 hexagon head bolt (combi) M10X35,	-	4	Enquire
20	WHT000258	fillister hd. screw with hex., socket hd.	WHT000258 fillister hd. screw with hex., socket hd. M6X12,	-	2	Enquire
21	3D0857049A	adjustment part	3D0857049A adjustment part	-	4	Enquire
22	N90798602	hexagon head bolt	N90798602 hexagon head bolt M8X50,	-	5	Enquire
23	N90750603	bolt, hex. hd. with shoulder,, self-locking	N90750603 bolt, hex. hd. with shoulder,, self-locking M6X30,	-	1	Enquire
24	N90999502	bolt, hex. hd. with shoulder, D - 22.07.2013>>	N90999502 bolt, hex. hd. with shoulder, D - 22.07.2013>> M6 X 25,	-	2	Enquire
25	N90750603	bolt, hex. hd. with shoulder,, self-locking	N90750603 bolt, hex. hd. with shoulder,, self-locking M6X30,	-	1	Enquire
26	N90729003	fillister head bolt (combi.)	N90729003 fillister head bolt (combi.)	-	4	Enquire
27	3W1857017R	cross member for dashbord, F >> 3W-C-071 642, F >> ZA-C-071 642	3W1857017R cross member for dashbord, F >> 3W-C-071 642, F >> ZA-C-071 642 lhd, PR-L0L	-	1	Enquire
27	3W1857017AC	cross member for dashbord, D - 17.09.2012>> - 08.04.2013	3W1857017AC cross member for dashbord, D - 17.09.2012>> - 08.04.2013 lhd, PR-L0L	-	1	Enquire
27	3W1857017AE	cross member for dashbord, D - 08.04.2013>>	3W1857017AE cross member for dashbord, D - 08.04.2013>> lhd, PR-L0L	-	1	Enquire
27	3W2857017P	cross member for dashbord, F >> 3W-C-071 642, F >> ZA-C-071 642	3W2857017P cross member for dashbord, F >> 3W-C-071 642, F >> ZA-C-071 642 rhd, PR-L0R	-	1	Enquire
27	3W2857017Q	cross member for dashbord, F 3W-C-071 643>>, F ZA-C-071 643>>, D >> - 08.04.2013	3W2857017Q cross member for dashbord, F 3W-C-071 643>>, F ZA-C-071 643>>, D >> - 08.04.2013 rhd, PR-L0R	-	1	Enquire
27	3W2857017T	cross member for dashbord, D - 08.04.2013>>	3W2857017T cross member for dashbord, D - 08.04.2013>> rhd, PR-L0R	-	1	Enquire
30	3W0857071B	bracket, cross tube, D >> - 08.04.2013	3W0857071B bracket, cross tube, D >> - 08.04.2013 left,	-	1	Enquire
32	N90997001	oval head countersunk bolt with multi-point socket head	N90997001 oval head countersunk bolt with multi-point socket head M6X10,	-	-	Enquire
34	3W0857072B	bracket, cross tube, D >> - 08.04.2013	3W0857072B bracket, cross tube, D >> - 08.04.2013 right,	-	1	Enquire
36	N90780901	oval hexagon socket head bolt	N90780901 oval hexagon socket head bolt M6X16,	-	-	Enquire
38	3W1880357	bracket, bracket	3W1880357 bracket, bracket lhd, outer,	-	1	Enquire
38	3W2880357	bracket, bracket	3W2880357 bracket, bracket rhd, outer,	-	1	Enquire
39	3W1805333D	bracket, knee bar	3W1805333D bracket, knee bar drivers side, left lhd,	-	1	Enquire
39	3W2805333D	bracket, knee bar	3W2805333D bracket, knee bar drivers side, right rhd,	-	1	Enquire
40	N90780901	oval hexagon socket head bolt	N90780901 oval hexagon socket head bolt M6X16,	-	2	Enquire
41	3W0857056A	bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	3W0857056A bracket, F 3W-C-071 643>>, F ZA-C-071 643>>	-	1	Enquire
42	3W1880358	bracket, bracket	3W1880358 bracket, bracket lhd, inner,	-	1	Enquire
42	3W2880358A	bracket, bracket	3W2880358A bracket, bracket rhd, inner,	-	1	Enquire
43	3D0857195A	support glove compartment	3D0857195A support glove compartment	-	2	Enquire
45	3W1805334D	bracket, knee bar	3W1805334D bracket, knee bar drivers side, right lhd,	-	1	Enquire
45	3W2805334D	bracket, knee bar	3W2805334D bracket, knee bar drivers side, left rhd,	-	1	Enquire
46	3W1880263D	bracket	3W1880263D bracket left lhd,	-	1	Enquire
46	3W2880263D	bracket	3W2880263D bracket left rhd,	-	1	Enquire
47	3W1857017AB	cross member for dashbord, D - 17.09.2012>>	3W1857017AB cross member for dashbord, D - 17.09.2012>> right lhd,	-	1	Enquire
47	3W2880264E	bracket	3W2880264E bracket right rhd,	-	1	Enquire
48	3W0880778	bearing bracket for glove compartment	3W0880778 bearing bracket for glove compartment	-	1	Enquire
49	3W0863954	adjuster, (height adjustment)	3W0863954 adjuster, (height adjustment) dash panel, box,	-	2	Enquire
51	7M3858153	spring clip, D >> - 30.08.2011	7M3858153 spring clip, D >> - 30.08.2011	-	8	Enquire
52	N90455902	Speed nut	N90455902 Speed nut	-	17	Enquire
53	3D0419645	adjusting element	3D0419645 adjusting element lhd,	-	1	Enquire
54	N10528402	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10528402 bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M6X30,	-	2	Enquire
55	N0197006	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N0197006 bolt, hex. hd. with shoulder, D - 11.12.2006>> M8X30,	-	2	Enquire
56	N90465201	pop rivet	N90465201 pop rivet	-	2	Enquire
57	4W0857071	bracket, cross tube, D - 08.04.2013>>	4W0857071 bracket, cross tube, D - 08.04.2013>> left a. right,	-	2	Enquire
58	N90825801	Pop rivet	N90825801 Pop rivet	-	6	Enquire
59	3W0854551	Edge protection	3W0854551 Edge protection drivers side, 6X6X100,	-	1	Enquire
59	3W0854341	protective edging, Battery cable, D - 08.12.2014>>	3W0854341 protective edging, Battery cable, D - 08.12.2014>> side right, 15X13X33,	-	1	Enquire
