Find Your Part

doors, window slot seal, door seal of Bentley Bentley Continental GT (2011-2018)

View All

Bentley Continental GT (2011-2018) - doors, window slot seal, door seal

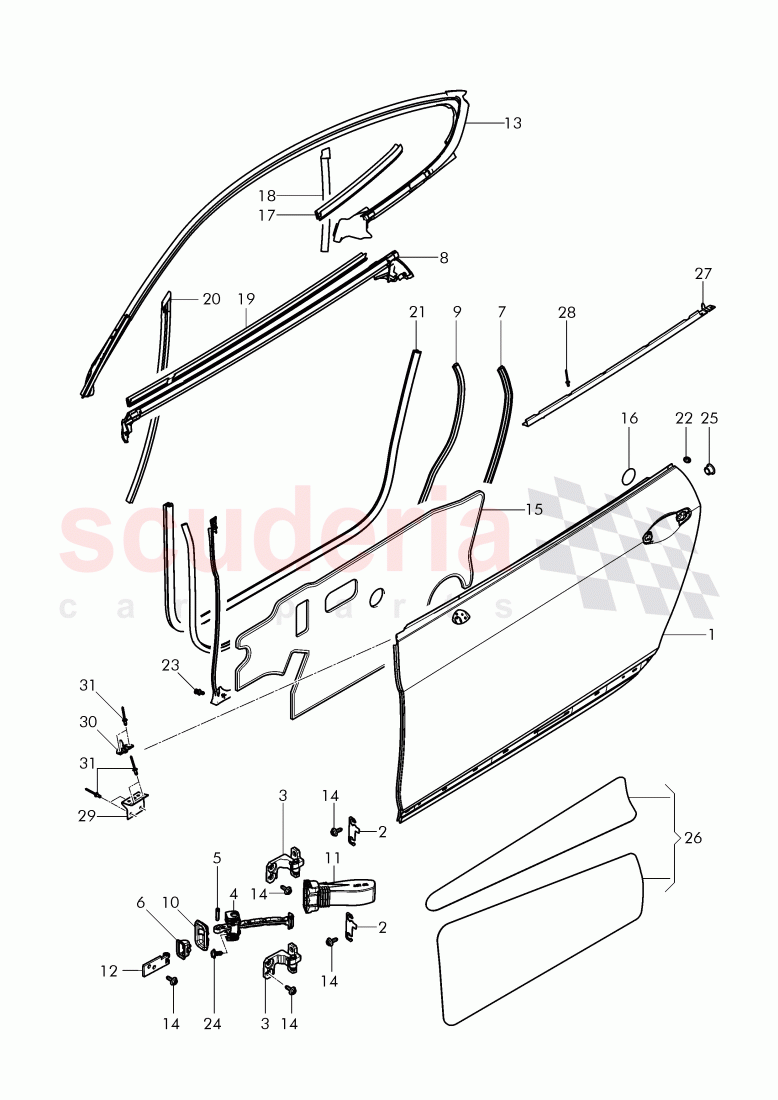

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8831055H	door, D - 03.10.2011>>	Enquire
	3W8831056H	door, D - 03.10.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0831379C	spacer washer	Enquire
	3D0831380E	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W8831401C	door hinge, D - 16.08.2011>>	Enquire
	3W8831402C	door hinge, D - 16.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837249B	check rod - door, D - 20.07.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837257	pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3837267	cover, check rod - door	Enquire
	3W3837268	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837433S	door seal, outer, D - 22.08.2011>>, also use:	Enquire
	3W8837434S	door seal, outer, D - 22.08.2011>>, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7837475K	seal for door window, D - 01.10.2012>>	Enquire
	3W7837476K	seal for door window, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837703A	door seal, D - 03.01.2011>> - 03.10.2011	Enquire
	3W0837709A	door seal, D - 21.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3837707	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3837874	cover, check rod - door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837429B	check rod - door	Enquire
	3W0837430B	check rod - door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8867367AD	window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221	Enquire
	3W8867367AH	window slot seal, D - 01.10.2012>>	Enquire
	3W8867368AD	window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8867845	splash shield	Enquire
	3W8867846	splash shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8864820	Adhesive tape	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8847343C	gasket, D >> - 16.01.2012	Enquire
	3W8847345A	gasket, D - 04.02.2013>>	Enquire
	3W8847346A	gasket, D - 04.02.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837901C	window guide with, window slot seal	Enquire
	3W0837902C	window guide with, window slot seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837513	gasket, door	Enquire
	3W8837514	gasket, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0837431G	gasket, guide	Enquire
	3W0837432G	gasket, guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8867337D	gasket, door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837111	bungs	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0385053	spreader rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90638103	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837722	grommet, D >> - 24.11.2014	Enquire
	431823225	plug, D - 24.11.2014>>	Enquire
	4H0839111	Cover cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3837739	sound baffle	Enquire
	3W3837740	sound baffle	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3868743B	Door trim strip, D - 22.10.2012>>	Enquire
	3W3868744B	Door trim strip, D - 22.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007012	pop-rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868423	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868467C	Locating pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90994201	pop rivet	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W8831055H	door, D - 03.10.2011>>	3W8831055H door, D - 03.10.2011>> front, left,	-	1	Enquire
1	3W8831056H	door, D - 03.10.2011>>	3W8831056H door, D - 03.10.2011>> front, right,	-	1	Enquire
2	3D0831379C	spacer washer	3D0831379C spacer washer 1.0MM, left,	-	1	Enquire
2	3D0831380E	spacer washer	3D0831380E spacer washer 1.0MM, right,	-	1	Enquire
2	3D0831379E	spacer washer	3D0831379E spacer washer 1.5MM, left,	-	1	Enquire
2	3D0831380E	spacer washer	3D0831380E spacer washer 1.5MM, right,	-	1	Enquire
2	3D0831379E	spacer washer	3D0831379E spacer washer 2.0MM,	-	1	Enquire
2	3D0831380E	spacer washer	3D0831380E spacer washer 2.0MM, right,	-	1	Enquire
3	3W8831401C	door hinge, D - 16.08.2011>>	3W8831401C door hinge, D - 16.08.2011>> left,	-	2	Enquire
3	3W8831402C	door hinge, D - 16.08.2011>>	3W8831402C door hinge, D - 16.08.2011>> right,	-	2	Enquire
4	3W8837249B	check rod - door, D - 20.07.2015>>	3W8837249B check rod - door, D - 20.07.2015>> left a. right,	-	2	Enquire
5	8Z0837257	pin	8Z0837257 pin	-	2	Enquire
6	3W3837267	cover, check rod - door	3W3837267 cover, check rod - door left, front,	-	1	Enquire
6	3W3837268	cover	3W3837268 cover right,	-	1	Enquire
7	3W8837433S	door seal, outer, D - 22.08.2011>>, also use:	3W8837433S door seal, outer, D - 22.08.2011>>, also use: left, 3W0 868 307,	-	1	Enquire
7	3W8837434S	door seal, outer, D - 22.08.2011>>, also use:	3W8837434S door seal, outer, D - 22.08.2011>>, also use: right, 3W0 868 307,	-	1	Enquire
8	3W7837475K	seal for door window, D - 01.10.2012>>	3W7837475K seal for door window, D - 01.10.2012>> left,	-	1	Enquire
8	3W7837476K	seal for door window, D - 01.10.2012>>	3W7837476K seal for door window, D - 01.10.2012>> right,	-	1	Enquire
9	3W0837703A	door seal, D - 03.01.2011>> - 03.10.2011	3W0837703A door seal, D - 03.01.2011>> - 03.10.2011 left a. right,	-	2	Enquire
9	3W0837709A	door seal, D - 21.05.2012>>	3W0837709A door seal, D - 21.05.2012>> left a. right,	-	2	Enquire
10	3W3837707	grommet	3W3837707 grommet	-	2	Enquire
11	3W3837874	cover, check rod - door	3W3837874 cover, check rod - door left a. right, front,	-	2	Enquire
12	3W0837429B	check rod - door	3W0837429B check rod - door left inner,	-	1	Enquire
12	3W0837430B	check rod - door	3W0837430B check rod - door right inner,	-	1	Enquire
13	3W8867367AD	window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221	3W8867367AD window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221 left,	-	1	Enquire
13	3W8867367AH	window slot seal, D - 01.10.2012>>	3W8867367AH window slot seal, D - 01.10.2012>> left,	-	1	Enquire
13	3W8867368AD	window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221	3W8867368AD window slot seal, F >> 3W-C-074 221, F >> ZA-C-074 221 right,	-	1	Enquire
13	3W8867368AH	window slot seal, D - 01.10.2012>>	3W8867368AH window slot seal, D - 01.10.2012>> right,	-	1	Enquire
14	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	16	Enquire
15	3W8867845	splash shield	3W8867845 splash shield left,	-	1	Enquire
15	3W8867846	splash shield	3W8867846 splash shield right,	-	1	Enquire
16	3W8864820	Adhesive tape	3W8864820 Adhesive tape	-	6	Enquire
17	3W8847343C	gasket, D >> - 16.01.2012	3W8847343C gasket, D >> - 16.01.2012 left a. right,	-	2	Enquire
17	3W8847345A	gasket, D - 04.02.2013>>	3W8847345A gasket, D - 04.02.2013>> inner, right rear,	-	1	Enquire
17	3W8847346A	gasket, D - 04.02.2013>>	3W8847346A gasket, D - 04.02.2013>> inner, left rear,	-	1	Enquire
18	3W0837901C	window guide with, window slot seal	3W0837901C window guide with, window slot seal left,	-	1	Enquire
18	3W0837902C	window guide with, window slot seal	3W0837902C window guide with, window slot seal right,	-	1	Enquire
19	3W8837513	gasket, door	3W8837513 gasket, door left inner,	-	1	Enquire
19	3W8837514	gasket, door	3W8837514 gasket, door right inner,	-	1	Enquire
20	3W0837431G	gasket, guide	3W0837431G gasket, guide left,	-	1	Enquire
20	3W0837432G	gasket, guide	3W0837432G gasket, guide right,	-	1	Enquire
21	3W8867337D	gasket, door seal	3W8867337D gasket, door seal lower, left a. right,	-	2	Enquire
22	8Z0837111	bungs	8Z0837111 bungs	-	2	Enquire
23	N0385053	spreader rivet	N0385053 spreader rivet	-	2	Enquire
24	N90638103	round hd. screw	N90638103 round hd. screw M6X12,	-	4	Enquire
25	3W8837722	grommet, D >> - 24.11.2014	3W8837722 grommet, D >> - 24.11.2014 14MM,	-	3	Enquire
25	431823225	plug, D - 24.11.2014>>	431823225 plug, D - 24.11.2014>>	-	4	Enquire
25	4H0839111	Cover cap	4H0839111 Cover cap 16MM,	-	1	Enquire
26	3W3837739	sound baffle	3W3837739 sound baffle left,	-	2	Enquire
26	3W3837740	sound baffle	3W3837740 sound baffle right,	-	2	Enquire
27	3W3868743B	Door trim strip, D - 22.10.2012>>	3W3868743B Door trim strip, D - 22.10.2012>> left,	-	1	Enquire
27	3W3868744B	Door trim strip, D - 22.10.2012>>	3W3868744B Door trim strip, D - 22.10.2012>> right,	-	1	Enquire
28	WHT007012	pop-rivet	WHT007012 pop-rivet	-	10	Enquire
29	3W0868423	bracket	3W0868423 bracket	-	2	Enquire
30	3W0868467C	Locating pin	3W0868467C Locating pin	-	2	Enquire
31	N90994201	pop rivet	N90994201 pop rivet	-	12	Enquire
