Heater And Ventilation, System

Bentley Continental GT (2011-2018)

Find Your Part

Bentley Continental GT (2011-2018) - Heater and ventilation, System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3D2819167 footwell vent Enquire
Photo Part No Description Price (each) Stock
3W2819152A footwell vent, D - 11.12.2006>> Enquire
Photo Part No Description Price (each) Stock
3W0857481A air guide channel side window Enquire
3W0857482A air guide channel side window Enquire
Photo Part No Description Price (each) Stock
3W0819701 grille for, dashboard Enquire
Photo Part No Description Price (each) Stock
3W0819737B gasket Enquire
Photo Part No Description Price (each) Stock
3D1857039C air guide (drivers side) Enquire
3D1857040B air guide (passenger side) Enquire
3D2857039A air guide (passenger side) Enquire
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N90825801 Pop rivet Enquire
Photo Part No Description Price (each) Stock
3D1819633B air guide Enquire
3D1819634A air guide Enquire
3D2819633A air guide Enquire
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3W0819070B gasket for air duct Enquire
Photo Part No Description Price (each) Stock
3W0819063C air guide channel Enquire
Photo Part No Description Price (each) Stock
N0162061 cup rivet see drawing: Enquire
Photo Part No Description Price (each) Stock
N10569501 Round-head screw with inner hexagon socket head Enquire
Photo Part No Description Price (each) Stock
N10017304 Hexagon collar nut Enquire
Photo Part No Description Price (each) Stock
3W0819064B gasket for air duct Enquire
3W0819065C gasket for air duct Enquire
Photo Part No Description Price (each) Stock
3W3819381B grille for, dashboard, D - 02.10.2017>> Enquire
Photo Part No Description Price (each) Stock
3W0819241C air guide channel Enquire
Photo Part No Description Price (each) Stock
3W0819028 gasket for air duct Enquire
Photo Part No Description Price (each) Stock
3W1819509 air distribution housing Enquire
3W2819509 air distribution housing Enquire
Photo Part No Description Price (each) Stock
N90659601 tapping screw Enquire
Photo Part No Description Price (each) Stock
3D0959311 motor for adjustment Enquire
Photo Part No Description Price (each) Stock
4B0820539 Temperature sensor Enquire
Photo Part No Description Price (each) Stock
N90974701 Hexagon socket head panel bolt Enquire
Photo Part No Description Price (each) Stock
N10174804 fillister hd. bolt Enquire
Photo Part No Description Price (each) Stock
N90356204 Speed nut Enquire
Photo Part No Description Price (each) Stock
N01152426 washer Enquire
Photo Part No Description Price (each) Stock
3W1819549B bracket, footwell vent Enquire
Photo Part No Description Price (each) Stock
N90729003 fillister head bolt (combi.) Enquire
Photo Part No Description Price (each) Stock
3D1819167D footwell vent Enquire
Photo Part No Description Price (each) Stock
3D1819168A footwell vent Enquire
Photo Part No Description Price (each) Stock
3W2819550A bracket, footwell vent Enquire
Photo Part No Description Price (each) Stock
N01152426 washer Enquire
Photo Part No Description Price (each) Stock
3W1819151D footwell vent, assembly Enquire
Photo Part No Description Price (each) Stock
3W2819152A footwell vent, D - 11.12.2006>> Enquire
View All

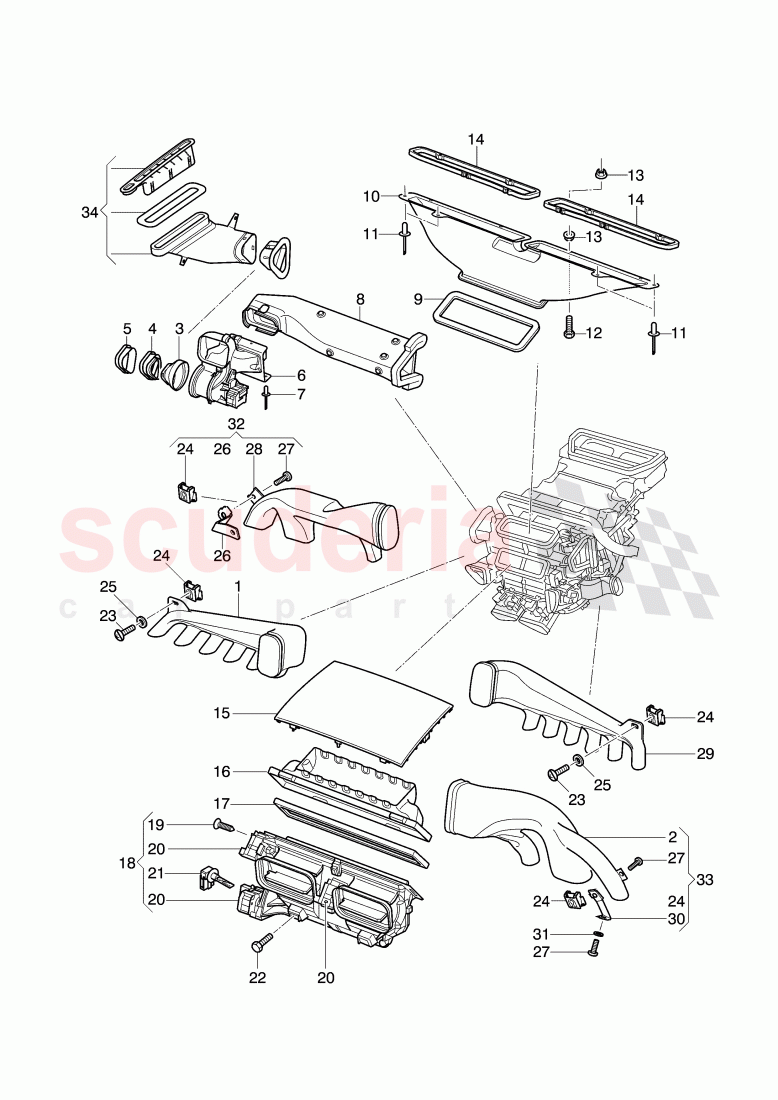

Heater and ventilation, System of Bentley Bentley Continental GT (2011-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3D2819167
footwell vent
left rhd, 		- 1 Enquire
2 3W2819152A
footwell vent, D - 11.12.2006>>
right rhd, 		- 1 Enquire
3 3W0857481A
air guide channel side window
left, 		- 1 Enquire
3 3W0857482A
air guide channel side window
right, 		- 1 Enquire
4 3W0819701
grille for, dashboard 		- 2 Enquire
5 3W0819737B
gasket 		- 2 Enquire
6 3D1857039C
air guide (drivers side)
lhd, 		- 1 Enquire
6 3D1857040B
air guide (passenger side)
lhd, 		- 1 Enquire
6 3D2857039A
air guide (passenger side)
rhd, 		- 1 Enquire
6 3D2857040A
air guide (drivers side)
rhd, 		- 1 Enquire
7 N90825801
Pop rivet 		- 10 Enquire
8 3D1819633B
air guide
left lhd, 		- 1 Enquire
8 3D1819634A
air guide
right lhd, 		- 1 Enquire
8 3D2819633A
air guide
left rhd, 		- 1 Enquire
8 3D2819634A
air guide
right rhd, 		- 1 Enquire
9 3W0819070B
gasket for air duct
center lower, 		- 1 Enquire
10 3W0819063C
air guide channel 		- 1 Enquire
11 N0162061
cup rivet see drawing: 		- 4 Enquire
12 N10569501
Round-head screw with inner hexagon socket head
M5 X 16, 		- 2 Enquire
13 N10017304
Hexagon collar nut 		- 4 Enquire
14 3W0819064B
gasket for air duct
right upper, 		- 1 Enquire
14 3W0819065C
gasket for air duct
left upper, 		- 1 Enquire
15 3W3819381B
grille for, dashboard, D - 02.10.2017>> 		- 1 Enquire
16 3W0819241C
air guide channel 		- 1 Enquire
17 3W0819028
gasket for air duct 		- 1 Enquire
18 3W1819509
air distribution housing
lhd, 		- 1 Enquire
18 3W2819509
air distribution housing
rhd, 		- 1 Enquire
19 N90659601
tapping screw
3X34, 		- 6 Enquire
20 3D0959311
motor for adjustment 		- 3 Enquire
21 4B0820539
Temperature sensor 		- 1 Enquire
22 N90974701
Hexagon socket head panel bolt 		- 2 Enquire
23 N10174804
fillister hd. bolt
M5X16, 		- 2 Enquire
24 N90356204
Speed nut
M5X17X17, 		- 2 Enquire
25 N01152426
washer
M6, 		- 2 Enquire
26 3W1819549B
bracket, footwell vent
left, 		- 1 Enquire
27 N90729003
fillister head bolt (combi.)
M5X16, 		- 1 Enquire
28 3D1819167D
footwell vent
left lhd, 		- 1 Enquire
29 3D1819168A
footwell vent
right lhd, 		- 1 Enquire
30 3W2819550A
bracket, footwell vent
right rhd, 		- 1 Enquire
31 N01152426
washer
M6, 		- 1 Enquire
32 3W1819151D
footwell vent, assembly
left lhd, 		- 1 Enquire
33 3W2819152A
footwell vent, D - 11.12.2006>>
right rhd, 		- 1 Enquire
